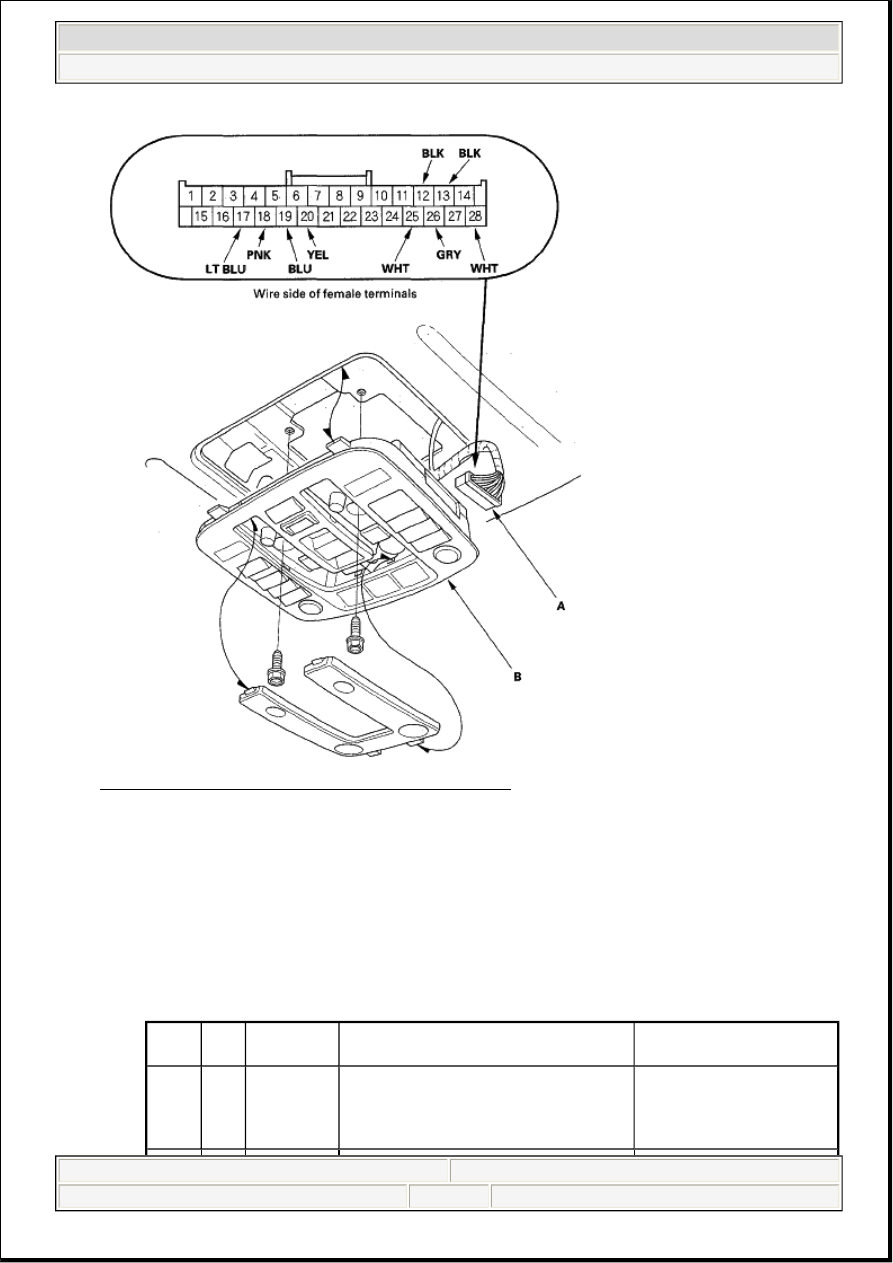

Fig. 11: Identifying Roof Console And 28P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connector still disconnected, make these input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

WIRE CAVITY REFERENCE CHART

Cavity Wire

Test

condition

Test: Desired result

Possible cause if desired

result is not obtained

18

PNK

Under all
conditions

Check for continuity between the No.
18 terminal and driver's under-dash
fuse/relay box connector W (5P) No. 4
terminal: There should be continuity.

An open in the wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

6. Reconnect the connector to the roof console, and make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the roof console must be faulty; replace it (see ROOF
CONSOLE REPLACEMENT).

WIRE CAVITY REFERENCE CHART

26

GRY

Under all
conditions

Check for continuity between the No.
18 terminal and driver's under-dash
fuse/relay box connector Q (14P) No.
12 terminal: There should be continuity.

An open in the wire

20

YEL

Under all
conditions

Attach to ground: The right rear map
light should come on.



Blown No. 6 (7.5A)
fuse in the driver's
under-dash
fuse/relay box



Faulty rear map light



Blown bulb



An open in the wire

25

WHT

Under all
conditions

Attach to ground: The left rear map
light should come on.



Blown No. 6 (7.5A)
fuse in the driver's
under-dash
fuse/relay box



Faulty rear map light



Blown bulb



An open in the wire

Cavity Wire

Test condition

Test: Desired result

Possible cause if desired result is

not obtained

12

BLK

Under all
conditions

Measure the voltage to
ground: There should be
less than 0.5 V.



Poor ground (G601)



An open in the wire

13

BLK

Under all
conditions

Measure the voltage to
ground: There should be
less than 0.5 V.



Poor ground (G601)



An open in the wire

28

WHT

Under all
conditions

Measure the voltage to
ground: There should be
battery voltage.



Blown No. 6 (7.5A) fuse in
the driver's under-dash
fuse/relay box



An open in the wire

17

LT

BLU

Right rear map
light switch ON

Measure the voltage to
ground: There should be
less than 1 V.



Poor ground(G601)



Faulty rear map light



An open in the wire

Right rear map

light switch OFF

Measure the voltage to
ground: There should be 5
V or more.



Faulty rear map light



A short to ground in the
wire

Left rear map

Measure the voltage to



Poor ground(G601)



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

MICU INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the left kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).

3. Disconnect the driver's under-dash fuse/relay box connectors.

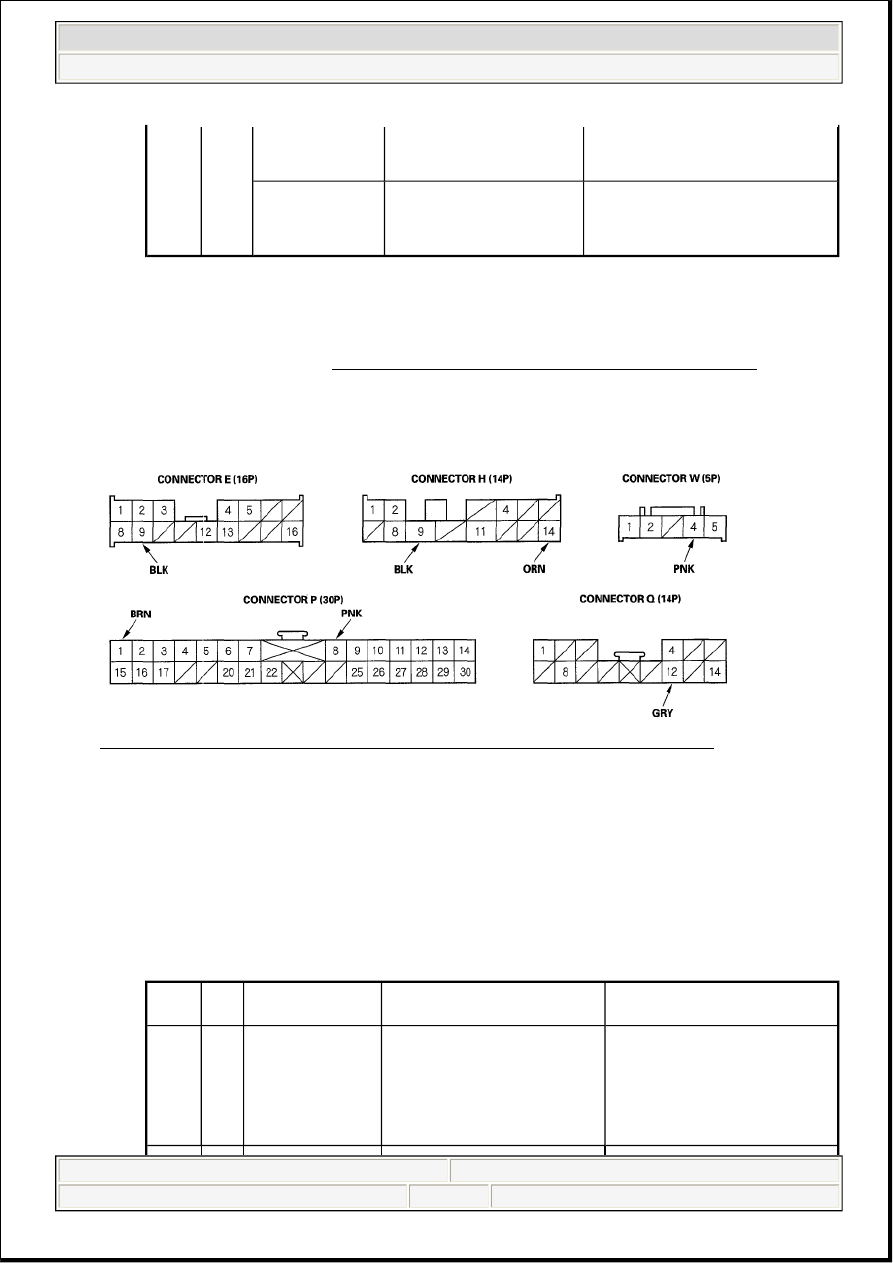

Fig. 12: Identifying Driver's Under-Dash Fuse/Relay Box Connectors Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connectors still disconnected, make these input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

WIRE CAVITY REFERENCE CHART

19

BLU

light switch ON

ground: There should be
less than 1 V.



Faulty rear map light



An open in the wire

Left rear map

light switch OFF

Measure the voltage to
ground: There should be 5
V or more.



Faulty rear map light



A short to ground in the
wire

NOTE:

All connector views are wire side of female terminals.

Cavity Wire Test condition

Test: Desired result

Possible cause if desired

result is not obtained

P8

PNK

Under all
conditions

Attach to ground: The driver's
and front passenger's foot
lights should come on.



Blown No. 6 (7.5A) fuse
in the driver's under-dash
fuse/relay box



Faulty foot light



An open in the wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

6. Reconnect the connectors to the driver's under-dash fuse/relay box, and make these input tests at the

connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the MICU must be faulty, replace the driver's under-dash
fuse/relay box (see DRIVER'S UNDER-DASH FUSE/RELAY BOX (MICU)
REMOVAL/INSTALLATION ).

WIRE CAVITY REFERENCE CHART

DRIVER'S MPCS UNIT INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

3. Disconnect driver's MPCS unit connector A (40P).

H14 ORN

Under all
conditions

Attach to ground: The ignition
key light should come on.



Blown No. 7 (10A) fuse
in the driver's under-dash
fuse/relay box



Faulty ignition key light



An open in the wire

Q12 GRY

Interior lights
switch in DOOR
position

Attach to ground: The
individual map lights should
come on.



Blown No. 6 (7.5A) fuse
in the driver's under-dash
fuse/relay box



Faulty map light



Faulty roof console



An open in the wire

W4

PNK

Interior lights
switch in DOOR
position

Attach to ground: The
individual map lights should
come on.



Blown No. 6 (7.5A) fuse
in the driver's under-dash
fuse/relay box



Faulty map light



Faulty roof console



An open in the wire

Cavity Wire Test condition

Test: Desired result

Possible cause if desired

result is not obtained

P1

BRN

Under all
conditions

Measure the voltage to ground:
There should be less than 0.5 V.



Poor ground (G502)



An open in the wire

E9

BLK Under all

conditions

Measure the voltage to ground:
There should be less than 0.5 V.



Poor ground (G601)



An open in the wire

H9

BLK
