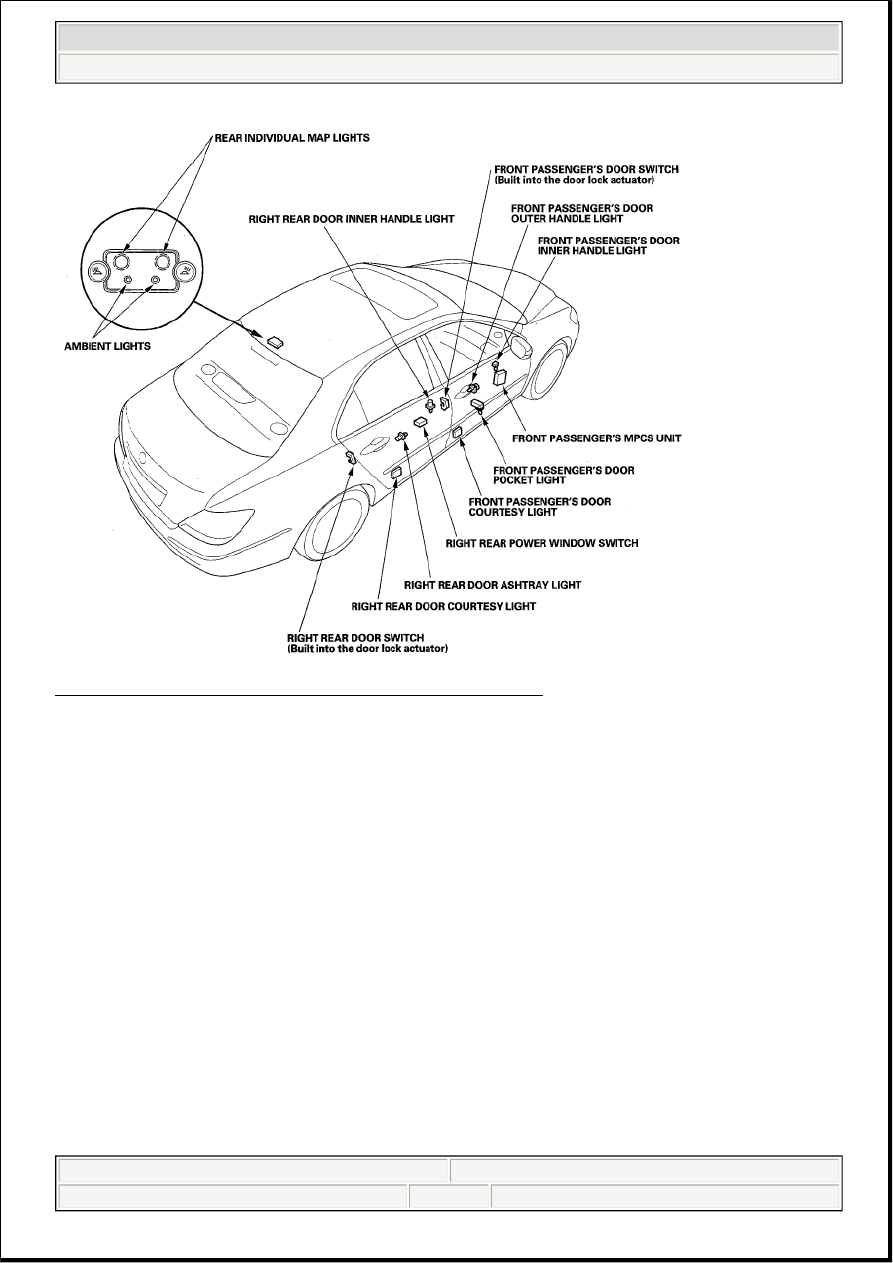

Fig. 3: Identifying Interior Lights Component Location (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

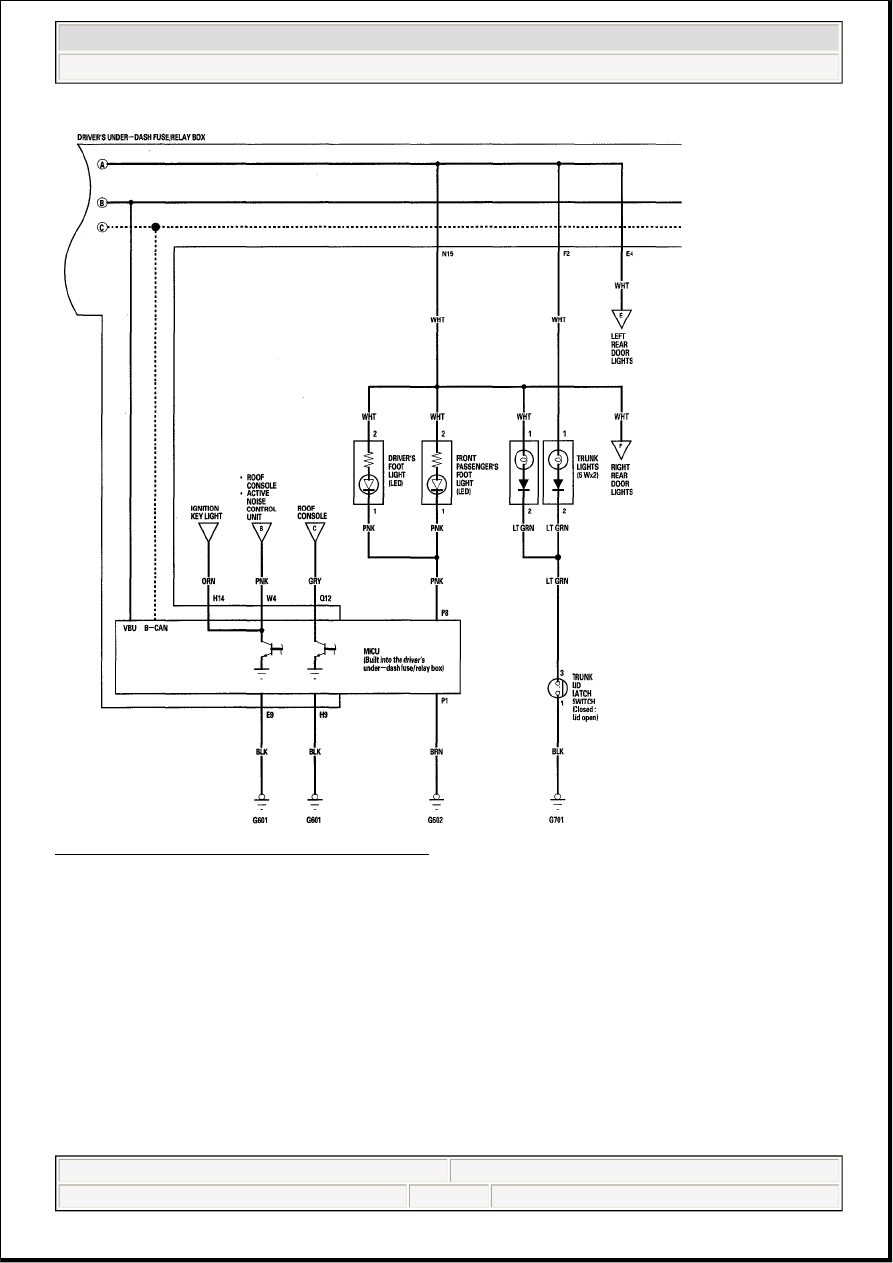

Fig. 4: Interior Lights - Circuit Diagram (1 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

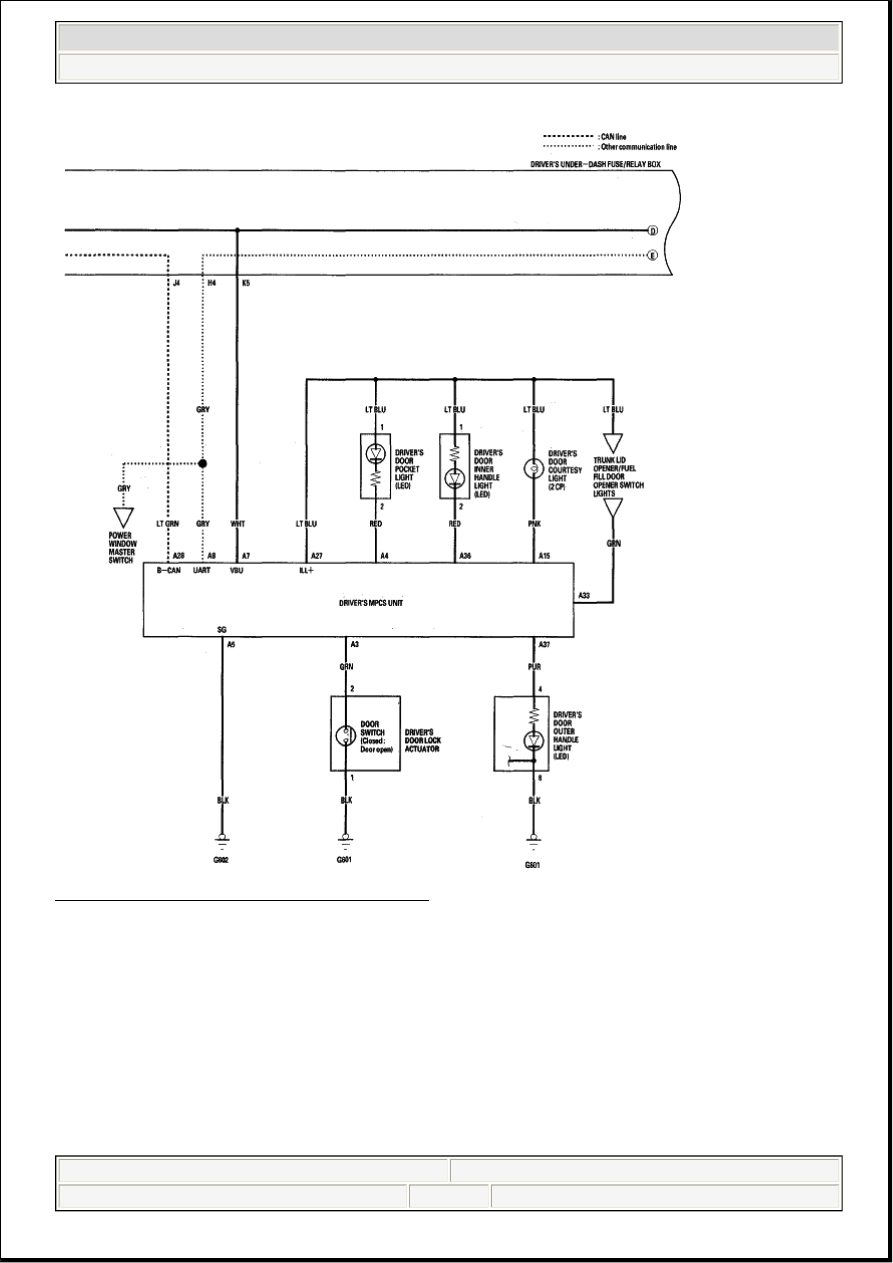

Fig. 5: Interior Lights - Circuit Diagram (2 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

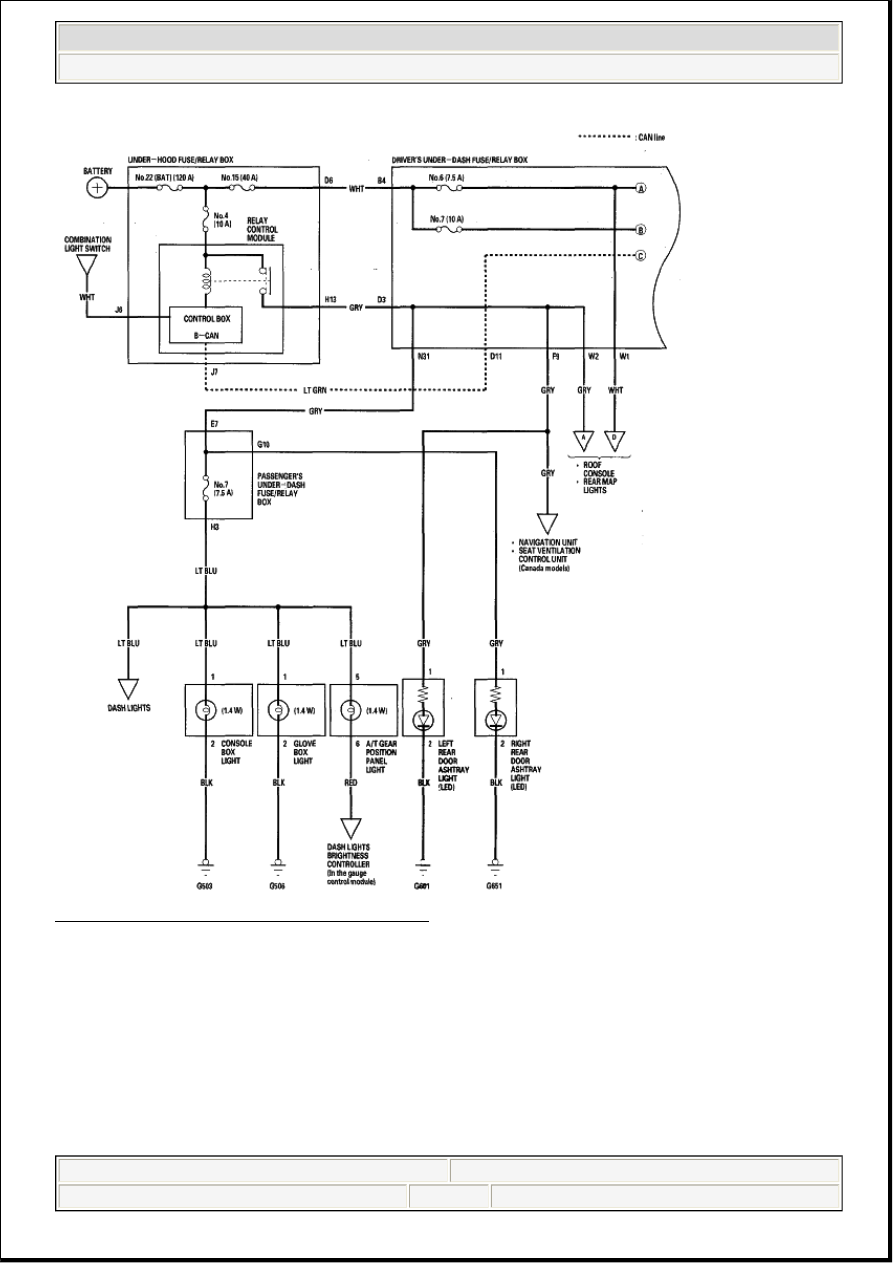

Fig. 6: Interior Lights - Circuit Diagram (3 Of 7)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.
