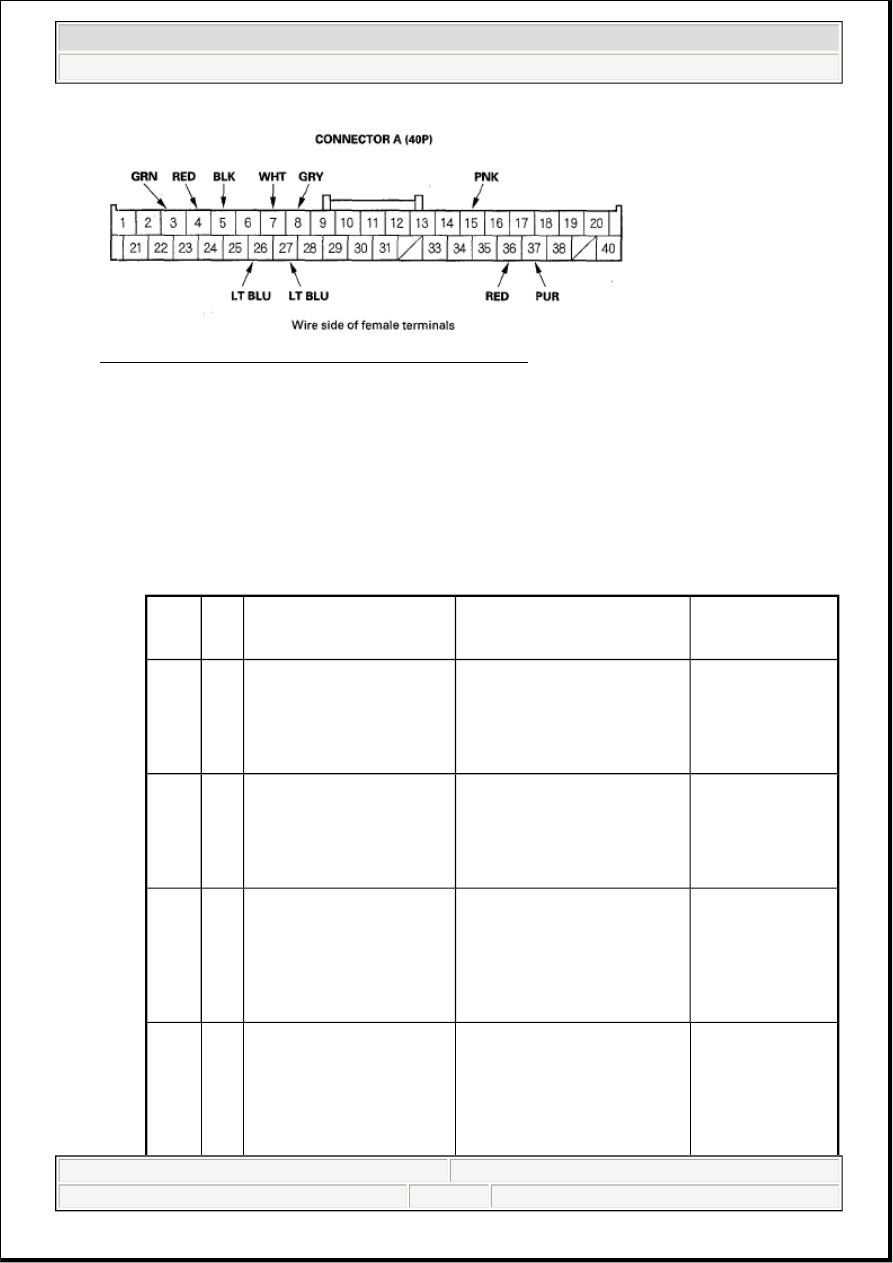

Fig. 13: Identifying Driver's MPCS Unit 40P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connector still disconnected, make these input tests at the connector.



If any test indicates a problem find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

WIRE CAVITY REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is

not obtained

A4

RED

Connect the A7 and A27
terminals with a jumper
wire.

Attach to ground: The driver's
door pocket light should come
on.



Faulty
driver's door
pocket light



An open in
the wire

A15 PNK

Connect the A7 and A27
terminals with a jumper
wire.

Attach to ground: The driver's
door courtesy light should
come on.



Faulty
driver's door
courtesy light



An open in
the wire

A36 RED

Connect the A7 and A27
terminals with a jumper
wire.

Attach to ground: The driver's
door inner handle light should
come on.



Faulty
driver's door
inner handle
light



An open in
the wire

A37 PUR

Connect the A7 and A37
terminals with a jumper
wire.

Check the driver's door outer
handle light: The light should
come on.



Faulty
driver's door
outer handle
light



Poor ground
(G601)



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

6. Reconnect the connector to the driver's MPCS unit, and make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the control unit must be faulty; replace the driver's MPCS unit
and go to step 7.

WIRE CAVITY REFERENCE CHART



An open in
the wire

A8

GRY

Driver's under-dash
fuse/relay box connector H
(14P) and power window
master switch 6P connector
disconnected

Check for continuity between
the A8 terminal and driver's
under-dash fuse/relay box
connector H (14P) No. 4
terminal: There should be
continuity.

An open in the wire

Check for continuity to ground:

There should be no continuity.

A short to ground
in the wire

Cavity Wire

Test

condition

Test: Desired result

Possible cause if desired result is

not obtained

A5

BLK

Under all
conditions

Measure the voltage to
ground: There should be
less than 0.5 V.



Poor ground(G602)



An open in the wire

A7

WHT

Under all
conditions

Measure the voltage to
ground: There should be
battery voltage.



Blown No. 15 (40A) fuse in
the under-hood fuse/relay
box



Blown No. 7 (10A) fuse in
the driver's under-dash
fuse/relay box



Faulty driver's under-dash
fuse/relay box



An open in the wire

A3

GRN

Driver's door
open

Measure the voltage to
ground: There should be
less than 1 V.



Faulty driver's door switch



An open in the wire

Driver's door

closed

Measure the voltage to
ground: There should be 5
V or more.



Faulty driver's door switch



A short to ground in the wire

A26

LT

BLU

Under all
conditions

Measure the voltage to
ground: There should be
battery voltage.



Blown No. 15 (40A) fuse in
the under-hood fuse/relay
box



Blown No. 7 (10A) fuse in
the driver's under-dash
fuse/relay box



Faulty driver's under-dash
fuse/relay box



An open in the wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

7. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL

UNIT ).

FRONT PASSENGER'S MPCS UNIT INPUT TEST

1. Turn the ignition switch OFF.

2. Remove the front passenger's door panel (see FRONT DOOR PANEL

REMOVAL/INSTALLATION ).

3. Disconnect front passenger's MPCS unit connector A (28P).

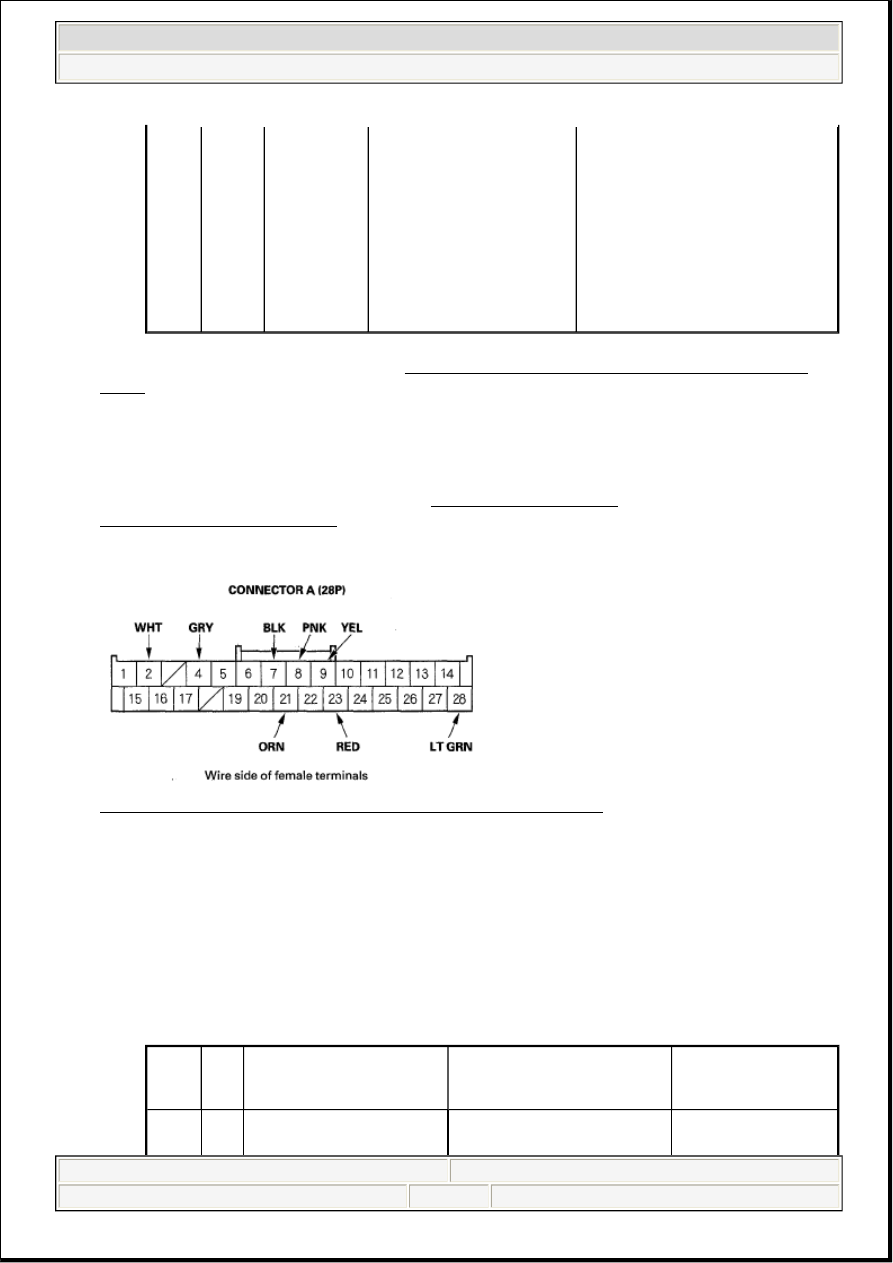

Fig. 14: Identifying Front Passenger's MPCS Unit 28P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 5.

5. With the connector still disconnected, make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 6.

WIRE CAVITY REFERENCE CHART

A27 LTBLU

Under all
conditions

Measure the voltage to
ground: There should be
battery voltage.



Blown No. 15 (40A) fuse in
the under-hood fuse/relay
box



Blown No. 7 (10A) fuse in
the driver's under-dash
fuse/relay box



Faulty driver's under-dash
fuse/relay box



An open in the wire

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is not

obtained



Faulty front
passenger's



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Interior Lights - RL



me



Friday, June 05, 2009 3:31:24 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

6. Reconnect the connector to the front passenger's MPCS unit, and make these input tests at the

connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the control unit must be faulty; replace the front passenger's
MPCS unit and go to step 7.

WIRE CAVITY REFERENCE CHART

A8

PNK

Connect the A2 and A19
terminals with a jumper
wire.

Attach to ground: The front
passenger's door pocket light
should come on.

door pocket
light



An open in the
wire

A9

YEL

Connect the A2 and A19
terminals with a jumper
wire.

Attach to ground: The front
passenger's door courtesy
light should come on.



Faulty front
passenger's
door courtesy
light



An open in the
wire

A21 ORN

Connect the A2 and A19
terminals with a jumper
wire.

Attach to ground: The front
passenger's door inner handle
light should come on.



Faulty front
passenger's
door inner
handle light



An open in the
wire

A23 RED

Connect the A2 and A23
terminals with a jumper
wire.

Check the front passenger's
door outer handle light: The
front passenger's door outer
handle light should come on.



Faulty front
passenger's
door outer
handle light



Poor ground
(G506)



An open in the
wire

A4

GRY

Driver's under-dash
fuse/relay box connector X
(39P) and right rear power
window switch 14P
connector disconnected

Check for continuity between
the A4 terminal and driver's
under-dash fuse/relay box
connector X (39P) No. 15
terminal: There should be
continuity.



Faulty
passenger's
under-dash
fuse/relay box



An open in the
wire

Check for continuity to

ground: There should be no

continuity.



Faulty
passenger's
under-dash
fuse/relay box



A short to
ground in the
wire

Possible cause if desired result is
