Acura RL. Manual - part 476

EXPLODED VIEW

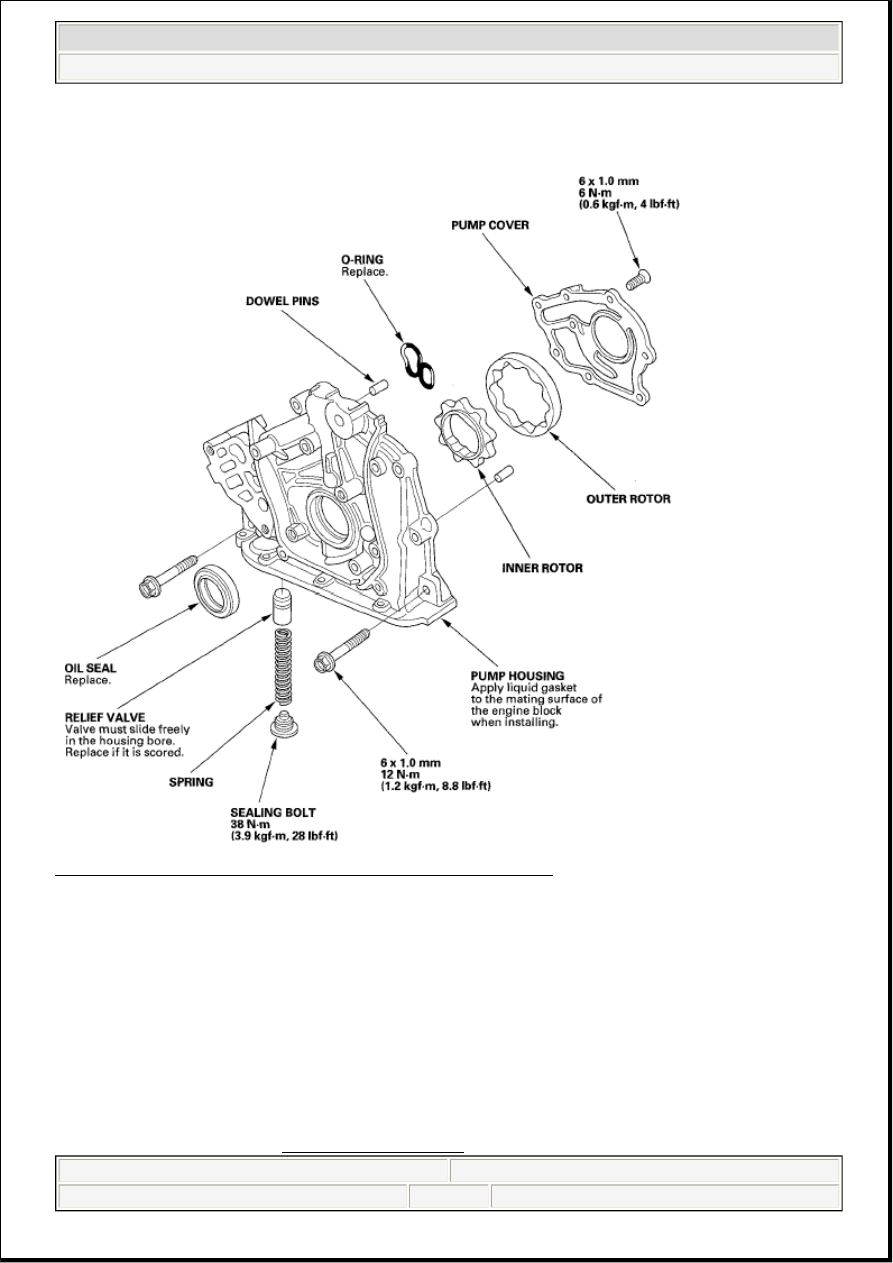

Fig. 16: Exploded View Of Oil Pump With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required



Oil seal driver, 64 mm 070AD-RCAA100



Engine support hanger, A and Reds AAR-T-12566 *



Engine hanger balance bar VSB02C000019 *

* Available through the Honda Tool and Equipment program, 1-888-424-6857.

REMOVAL

1. Drain the engine oil (see OIL PRESSURE TEST ).

2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL

Friday, June 05, 2009 3:14:20 PM

Page 12

2. Remove the windshield wiper arms (see WIPER MOTOR REPLACEMENT ).

3. Remove the engine cover, right upper fender trim, battery trim, and left upper fender trim, then

remove the upper grille cover and cowl cover (see step 3 under ENGINE REMOVAL ).

4. Remove the under-hood fuse/relay box, connector, and transfer breather hose from the strut brace,

then remove the strut brace (see step 18 under ENGINE REMOVAL ).

5. Remove the connector bracket from the front cylinder head; use the bracket bolt hole to attach engine

balance bar front arm (see step 55 under ENGINE REMOVAL ).

6. Remove the engine mount control solenoid valve bracket from the rear cylinder head; use the bracket

bolt hole to attach engine balance bar rear arm (see step 56 under ENGINE REMOVAL ).

7. Lift and support the engine with engine hanger and engine balance bar. Attach the front arm to the

front cylinder head with a spacer and the 10 x 1.25 mm bolt. Attach the rear arm to the rear cylinder
head with the 8 x 1.25 mm bolt (see step 57 under ENGINE REMOVAL ).

8. Remove the timing belt (see TIMING BELT REMOVAL ).

9. Remove the crankshaft position (CKP) sensor (see CKP SENSOR REPLACEMENT ).

10. Remove the rocker arm oil control solenoid/oil filter assembly (see step 9 under CRANKSHAFT

AND PISTON REMOVAL ).

11. Remove the oil pan (see OIL PAN REMOVAL ).

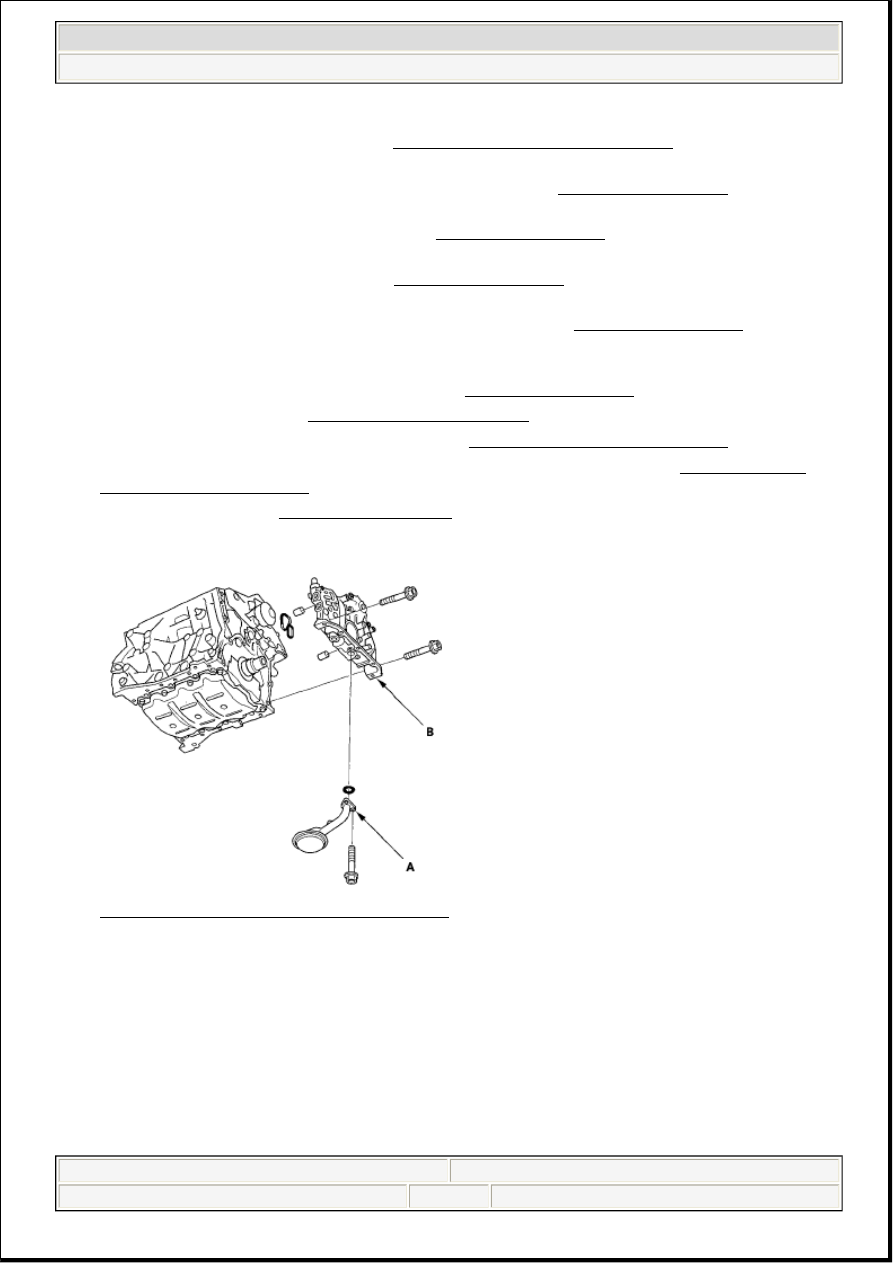

12. Remove the oil screen (A), then remove the oil pump (B).

Fig. 17: Identifying Oil Screen And Oil Pump
Courtesy of AMERICAN HONDA MOTOR CO., INC.

INSPECTION

1. Remove the screws from the pump housing, then separate the housing and cover.

2. Check the inner-to-outer rotor radial clearance between the inner rotor (A) and outer rotor (B). If the

inner-to-outer rotor clearance exceeds the service limit, replace the oil pump assembly.

Inner Rotor-to-Outer Rotor Radial Clearance

Standard (New): 0.04-0.16 mm (0.002-0.006 in.)

2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL

Friday, June 05, 2009 3:14:21 PM

Page 13

Service Limit: 0.20 mm (0.008 in.)

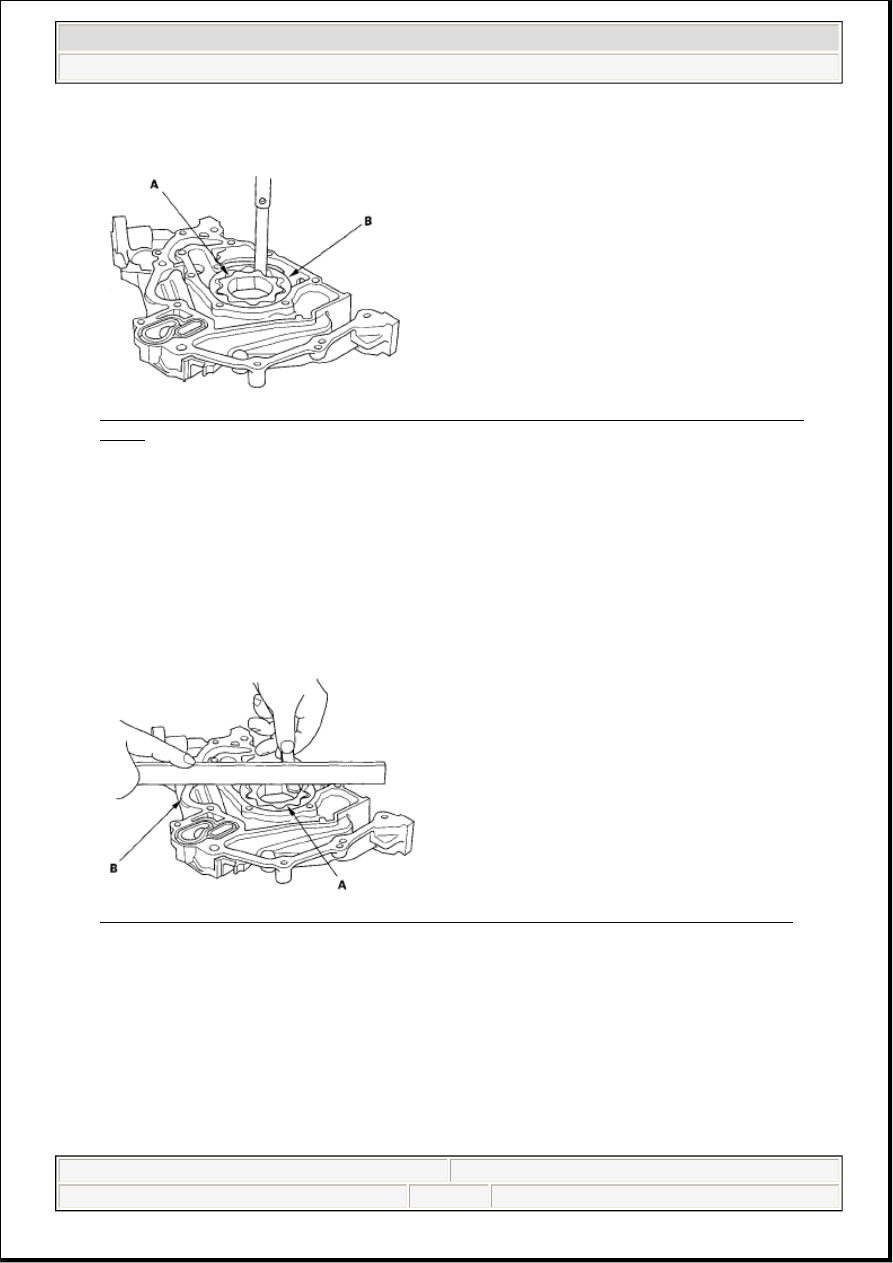

Fig. 18: Checking Inner-To-Outer Rotor Radial Clearance Between Inner Rotor And Outer
Rotor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check the housing-to-rotor axial clearance between the rotors (A) and pump housing (B). If the

housing-to-rotor axial clearance exceeds the service limit, replace the oil pump assembly.

Housing-to-Rotor Axial Clearance

Standard (New): 0.02-0.07 mm (0.001-0.003 in.)

Service Limit: 0.12 mm (0.005 in.)

Fig. 19: Checking Housing-To-Rotor Axial Clearance Between Rotors And Pump Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Check the housing-to-outer rotor radial clearance between the outer rotor (A) and pump housing (B).

If the housing-to-outer rotor radial clearance exceeds the service limit, replace the oil pump assembly.

Housing-to-Outer Rotor Radial Clearance

Standard (New): 0.14-0.19 mm (0.006-0.007 in.)

Service Limit: 0.20 mm (0.008 in.)

2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL

Friday, June 05, 2009 3:14:21 PM

Page 14

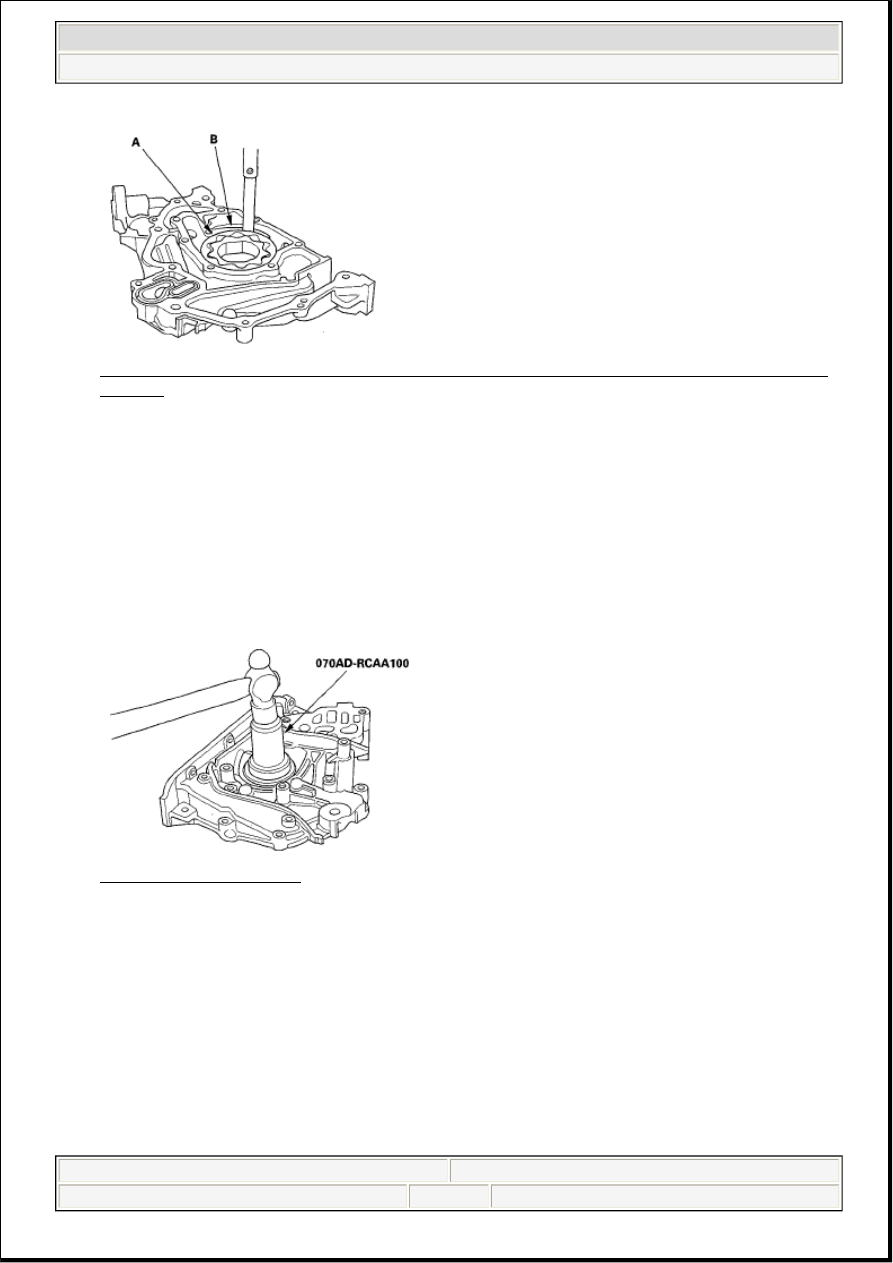

Fig. 20: Checking Housing-To-Outer Rotor Radial Clearance Between Outer Rotor And Pump
Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Inspect both rotors and pump housing for scoring or other damage, Replace the parts, if necessary.

6. Apply liquid thread lock to the pump housing screws, then install the oil pump cover.

7. Make sure the oil pump turns freely.

INSTALLATION

1. Remove the old oil seal from the oil pump.

2. Gently tap in the new oil seal until the oil seal driver bottoms on the pump.

Fig. 21: Installing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove all of the old liquid gasket from the oil pump mating surfaces, bolts, and bolt holes.

4. Clean and dry the oil pump mating surfaces.

5. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, evenly to the engine

block mating surface of the oil pump. Install the component within 5 minutes of applying the liquid
gasket.

NOTE:



If you apply liquid gasket P/N 08718-0012, the component must be
installed within 4 minutes.



If too much time has passed after applying the liquid gasket,
remove the old liquid gasket and residue, then reapply new liquid

2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL

Friday, June 05, 2009 3:14:21 PM

Page 15
