6. Grease the lip of the oil seal, and apply oil to the new O-ring (A).

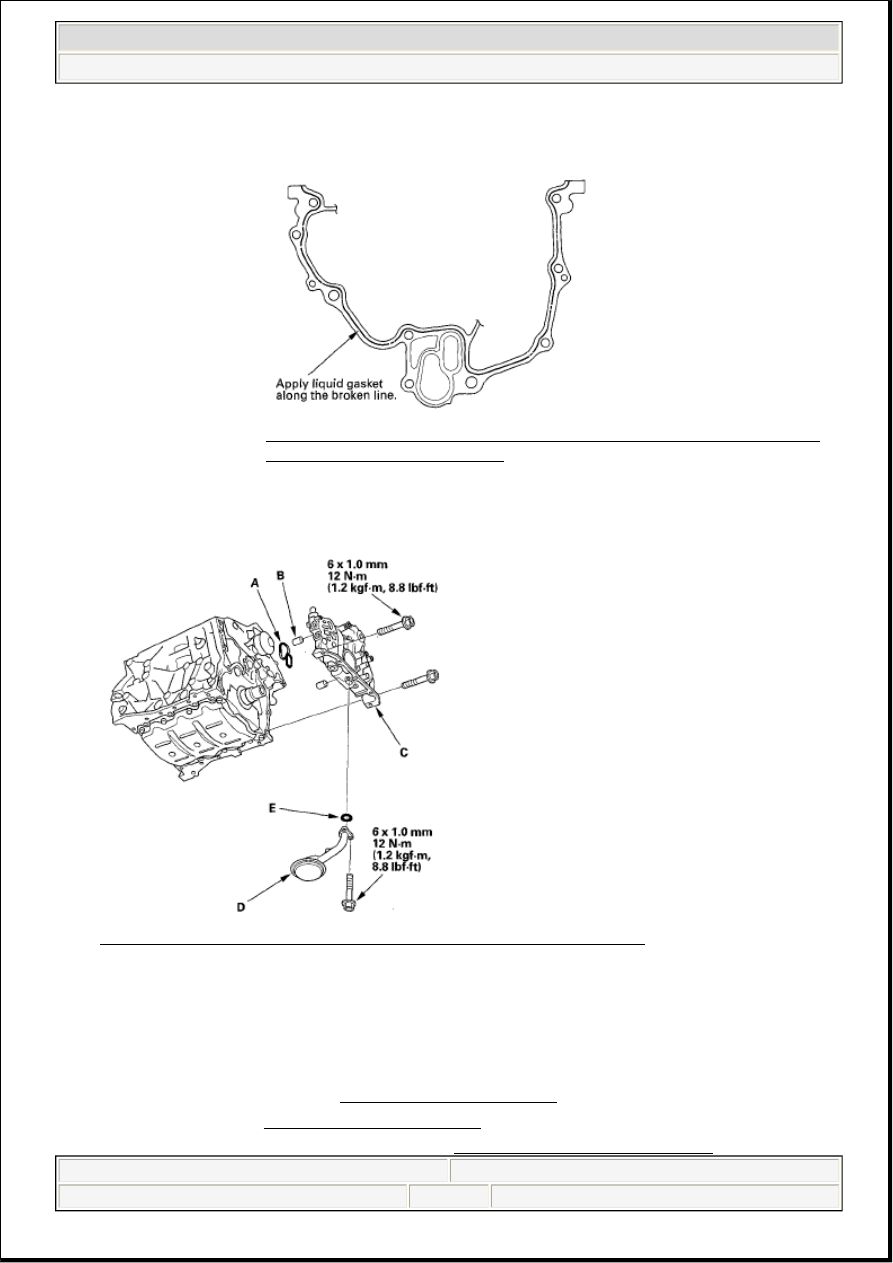

Fig. 23: Identifying Oil Seal And Oil Pump With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the dowel pins (B), then align the inner rotor with the crankshaft, and install the oil pump (C).

8. Clean the excess grease off the crankshaft, and check the seal for distortion.

9. Install the oil screen (D) with a new O-ring (E).

10. Install the rocker arm oil control solenoid/oil filter assembly, with a new rocker arm oil control

solenoid filter (see step 38 under OIL PAN INSTALLATION ).

11. Install the oil pan (see OIL PAN INSTALLATION ).

12. Install the crankshaft position (CKP) sensor (see CKP SENSOR REPLACEMENT ).

gasket.

Fig. 22: Identifying Liquid Gasket Applying Area Of Engine Block
Mating Surface Of Oil Pump
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL



me



Friday, June 05, 2009 3:14:21 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

13. Install the timing belt (see TIMING BELT INSTALLATION ).

14. Remove the engine balance bar and hanger.

15. Install the connector bracket to the front cylinder head (see step 46 under ENGINE

INSTALLATION ).

16. Install the engine mount control solenoid valve bracket to the rear cylinder head (see step 47 under

ENGINE INSTALLATION ).

17. Install the strut brace, then install the under-hood fuse/relay box, connector, and transfer breather hose

(see step 59 under ENGINE INSTALLATION ).

18. Install the cowl cover and upper grille cover (see step 77 under ENGINE INSTALLATION ), then

install the left upper fender trim, battery trim, right upper fender trim, and engine cover (see step 78
under ENGINE INSTALLATION ).

19. Install the windshield wiper arms (see WIPER MOTOR REPLACEMENT ).



2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL



me



Friday, June 05, 2009 3:14:21 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ENGINE

Engine Mount Control System - RL

COMPONENT LOCATION INDEX

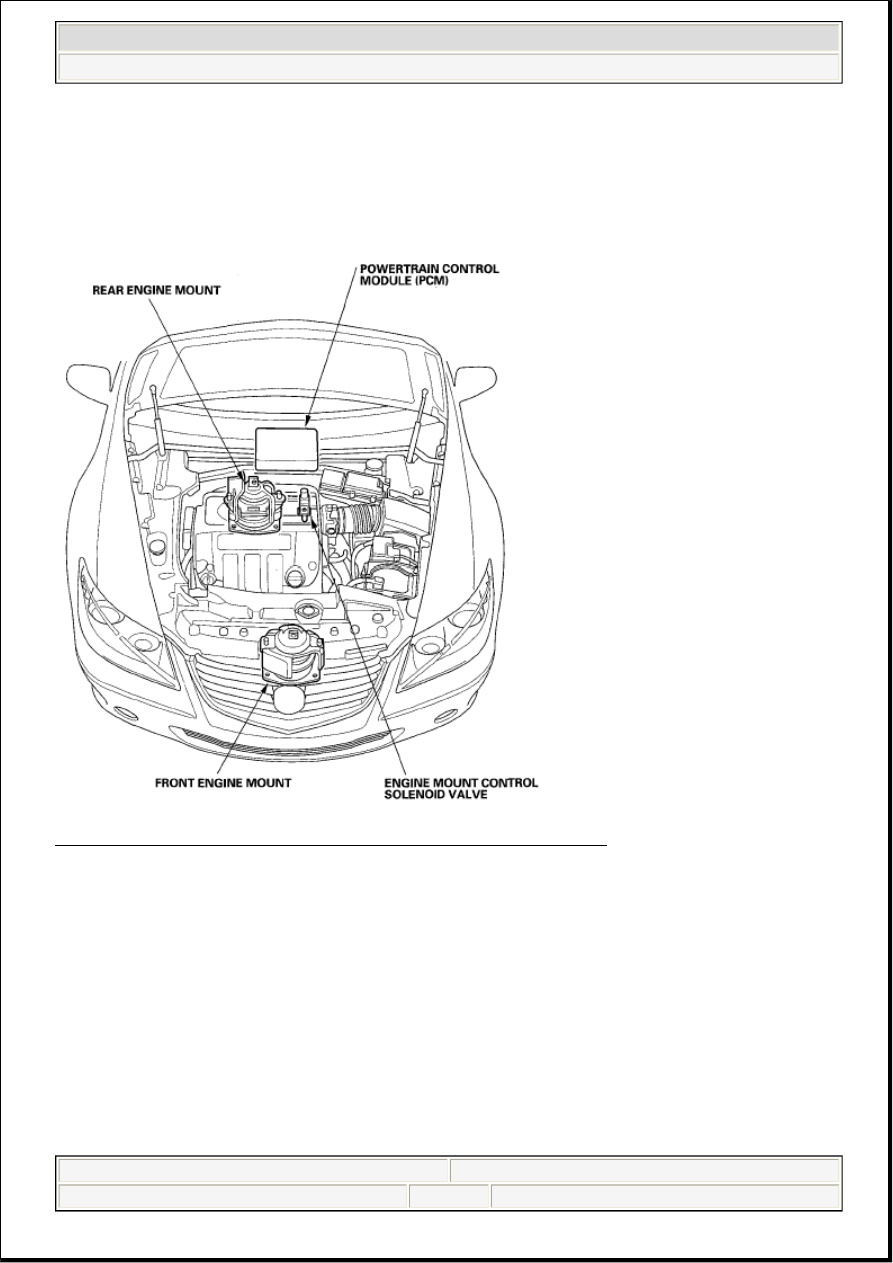

Fig. 1: Identifying Engine Mount Control System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Acura RL

2005-08 ENGINE Engine Mount Control System - RL





2007 Acura RL

2005-08 ENGINE Engine Mount Control System - RL



me



Friday, June 05, 2009 3:15:20 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:15:25 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

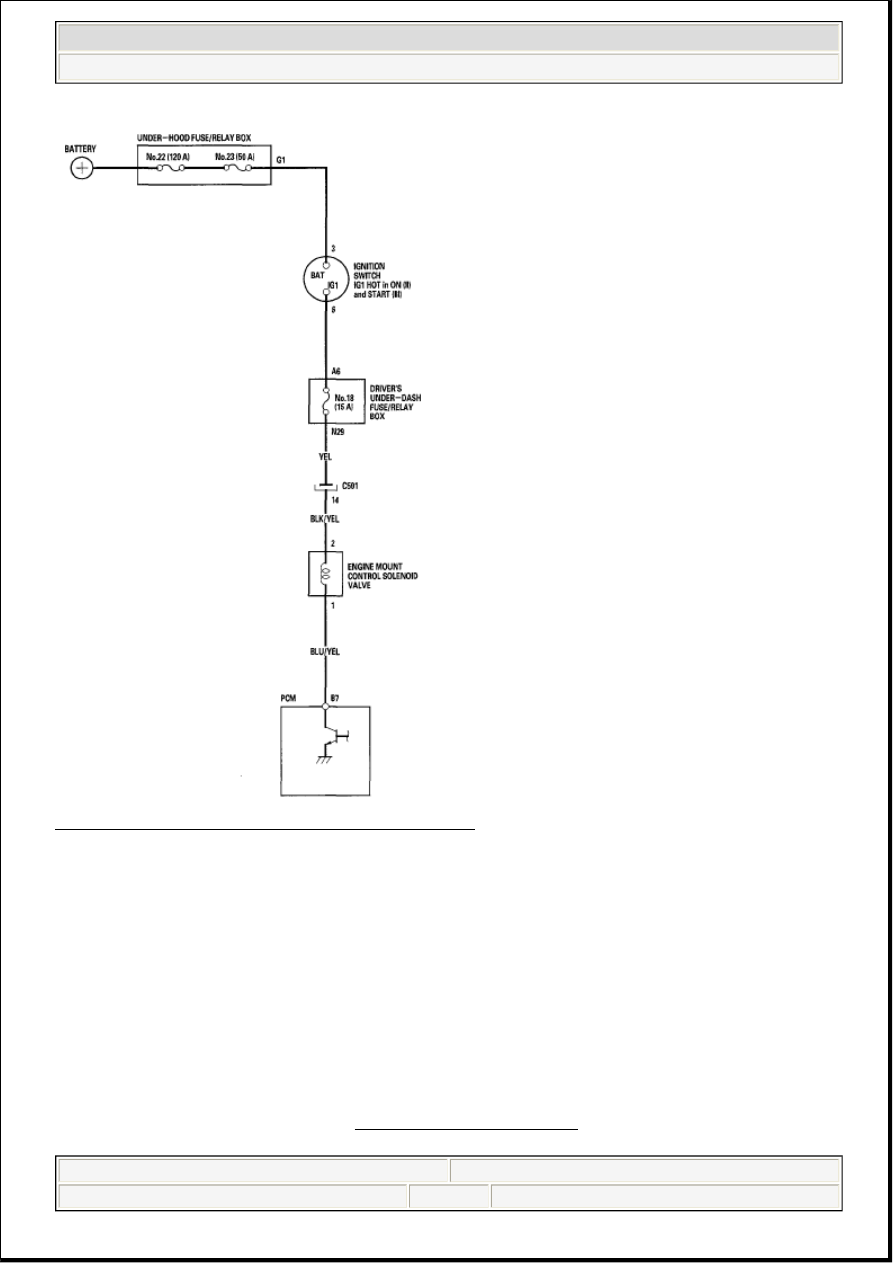

Fig. 2: Engine Mount Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TROUBLESHOOTING

Special Tools Required

Vacuum pump/gauge, 0-30 in.Hg Snap-on YA4000A or equivalent, commercially available

Follow this procedure if the engine vibrates excessively when idling.

1. Start the engine, and let it idle (see IDLE SPEED INSPECTION ).

2. Raise the engine speed from idling to 2,000 RPM.

NOTE:

Check the vacuum hoses and lines for damage and proper connections
before troubleshooting.
