Acura RL. Manual - part 474

OIL PRESSURE SWITCH TEST

1. Remove the YEL/RED wire (A) from the oil pressure switch (B).

Excessive engine oil
consumption

and oil filter are tight.

2. Check for oil leaks.

3. Check for worn valve guide(s) (see VALVE

INSPECTION ) or worn valve stem seal(s)
(see VALVE, SPRING, AND VALVE
SEAL REMOVAL ).

4. Check for damaged or worn piston ring(s)

(see PISTON RING REPLACEMENT ).

5. Check for damaged or worn engine internal

parts (cylinder wall, pistons, etc.) (see
BLOCK AND PISTON INSPECTION ).



Low oil pressure
indicator does not come
on with the ignition
switch ON (II)

1. Do the gauge control module self-diagnostic

function (see SELF-DIAGNOSTIC
FUNCTION ).

2. Test the oil pressure switch (see OIL

PRESSURE SWITCH TEST ).

An open in the wire
between the gauge
control module and the
oil pressure switch

Low oil pressure
indicator stays on

1. Check the engine oil level.

2. Do the gauge control module self-diagnostic

function (see SELF-DIAGNOSTIC
FUNCTION ).

3. Test the oil pressure switch (see OIL

PRESSURE SWITCH TEST ).

4. Check the engine oil pressure (see OIL

PRESSURE TEST ).

5. Check the oil filter for clogging.

6. Check the oil screen for clogging.

7. Check the relief valve.

8. Test the oil pump (see OIL PUMP

OVERHAUL ).

A wire shorted to
ground between the
gauge control module
and the oil pressure
switch



2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL



me



Friday, June 05, 2009 3:14:20 PM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

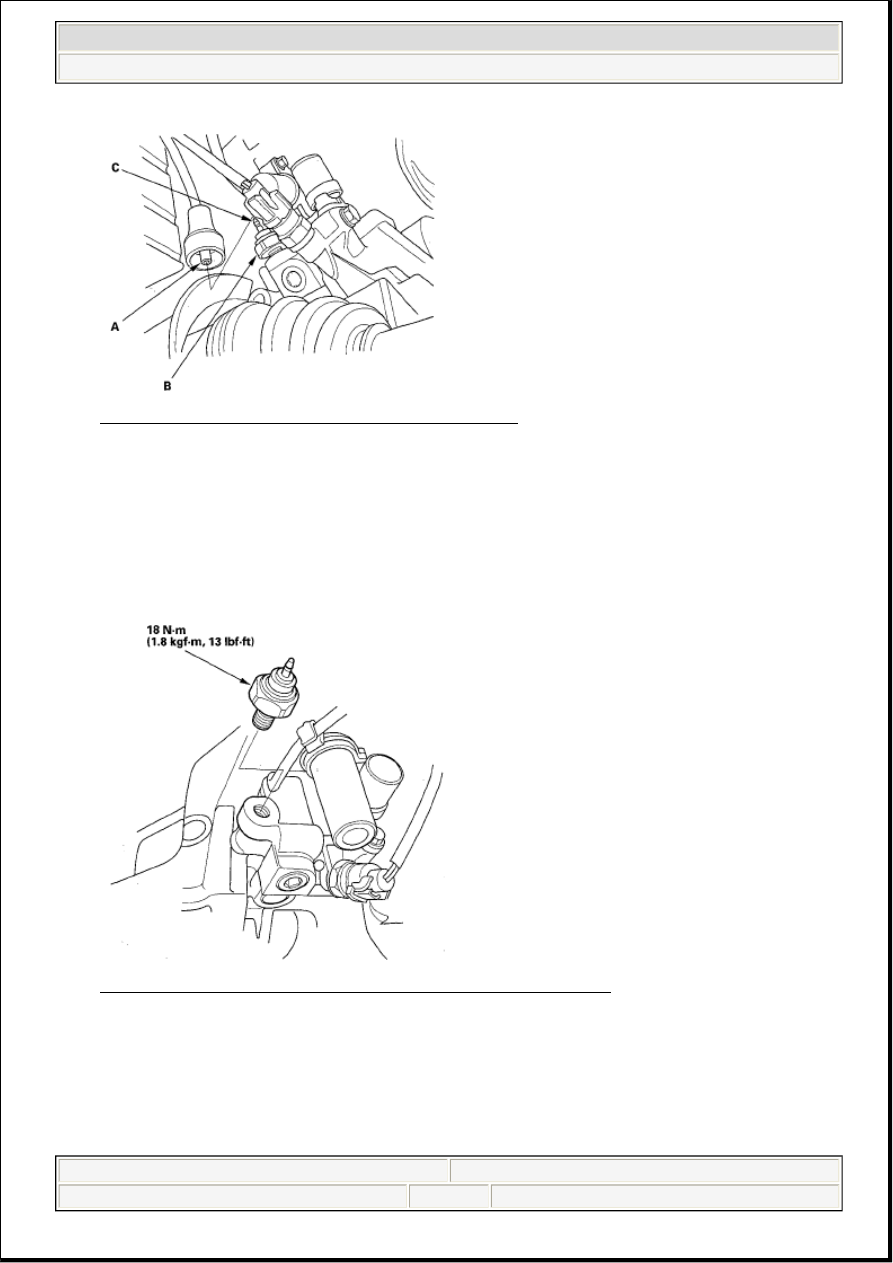

Fig. 4: Identifying Oil Pressure Switch And Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Check for continuity between the positive terminal (C) and the engine (ground). There should be

continuity with the engine stopped. There should be no continuity with the engine running.

OIL PRESSURE SWITCH REPLACEMENT

1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

Fig. 5: Identifying Oil Pressure Switch With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove any old liquid gasket from the switch and switch mounting hole.

3. Apply a very small amount of liquid gasket to the oil pressure switch threads, then install the oil

pressure switch.

NOTE:

Using too much liquid gasket may cause liquid gasket to enter the oil



2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL



me



Friday, June 05, 2009 3:14:20 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

OIL PRESSURE TEST

If the low oil pressure indicator stays on with the engine running, check the engine oil level. If the oil level
is correct:

1. Remove the oil pressure switch, then install an oil pressure gauge (A).

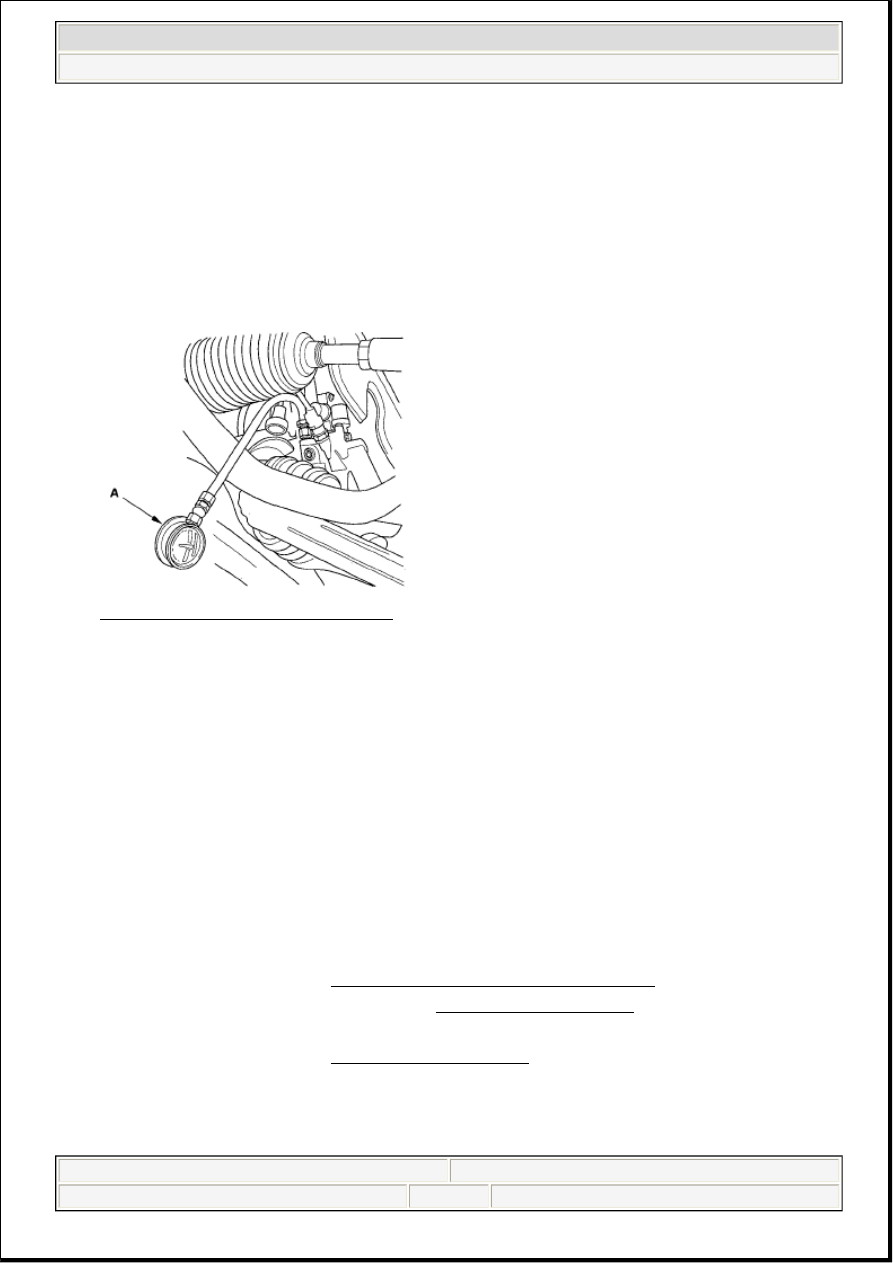

Fig. 6: Identifying Oil Pressure Gauge
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Start the engine. Shut it off immediately if the gauge registers no oil pressure. Repair the problem

before continuing.

3. Allow the engine to reach operating temperature (fan comes on at least twice). The pressure should

be:

Engine Oil Temperature: 176°F (80°C)

Engine Oil Pressure:

At Idle: 70 kPa (0.7 kgf/cm

2

 , 10 psi) min.



At 3,000 RPM: 490 kPa (5.0 kgf/cm

2

 , 71 psi) min.



4. If oil pressure is out of specifications, inspect these items:



Replace the oil filter (see ENGINE OIL FILTER REPLACEMENT ).



Inspect the oil pressure relief valve (see OIL PUMP OVERHAUL ).



Check the oil screen for clogging.



Inspect the oil pump (see OIL PUMP OVERHAUL ).

ENGINE OIL REPLACEMENT

1. Warm up the engine.

passage or the end of the new oil pressure switch.



2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL



me



Friday, June 05, 2009 3:14:20 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

2. Remove the drain bolt (A), and drain the engine oil.

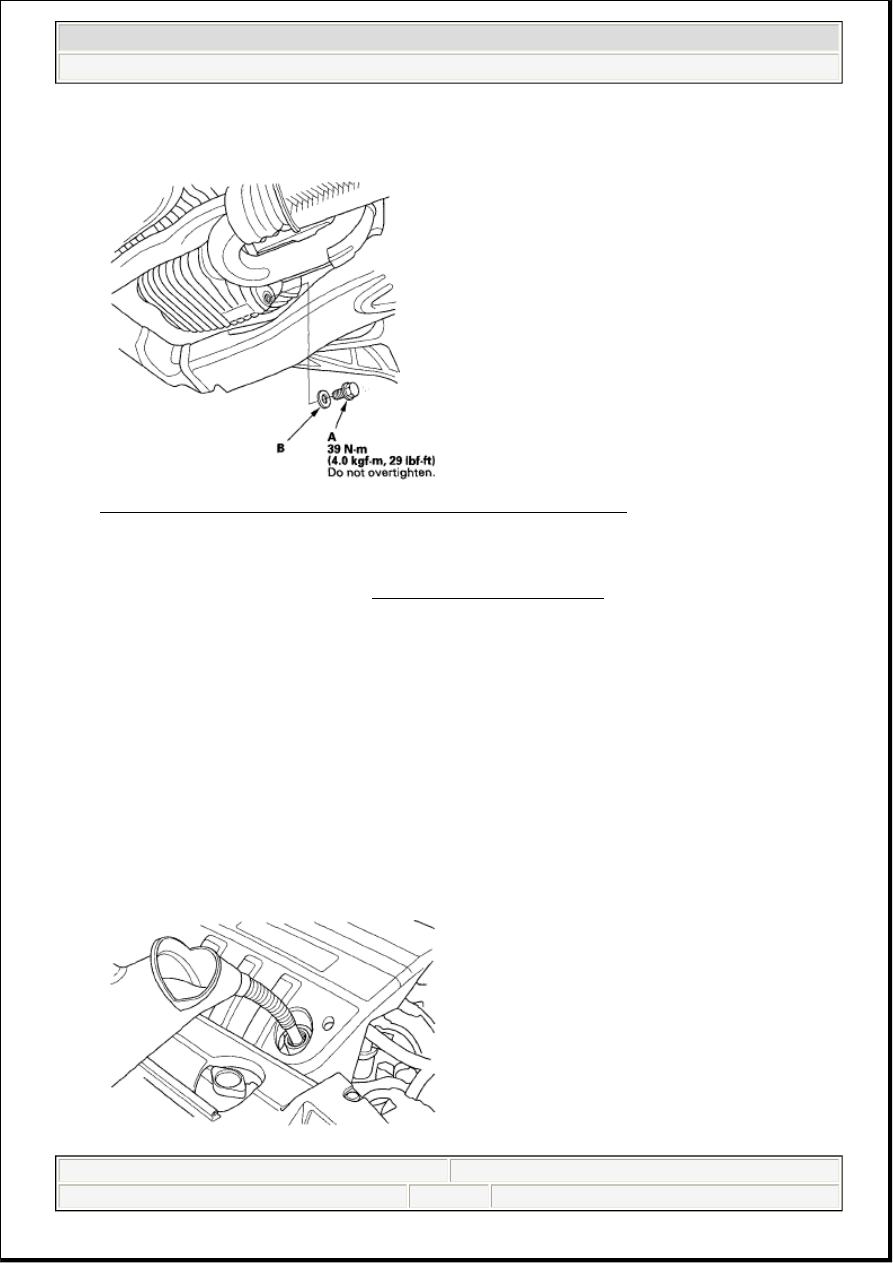

Fig. 7: Identifying Engine Oil Drain Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Reinstall the drain bolt with a new washer (B).

4. Refill with the recommended oil (see LUBRICANTS AND FLUIDS ).

Capacity

At Oil Change:

4.0 L (4.2 US qt)

At Oil Change including Filter:

4.3 L (4.5 US qt)

After Engine Overhaul:

5.0 L (5.3 US qt)

Fig. 8: Filling Engine Oil
