Fig. 72: Installing Transmission End Crankshaft Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Clean any excess grease off the crankshaft, and check that the oil seal lip is not distorted.

7. Install the drive plate (see DRIVE PLATE REMOVAL AND INSTALLATION ), and the

transmission (see TRANSMISSION INSTALLATION ).

DRAIN BOLT INSTALLATION

Fig. 73: Identifying Engine Block Drain Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

When installing the drain bolt, always use a new washer.



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 46

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ENGINE

Engine Lubrication - RL

SPECIAL TOOLS

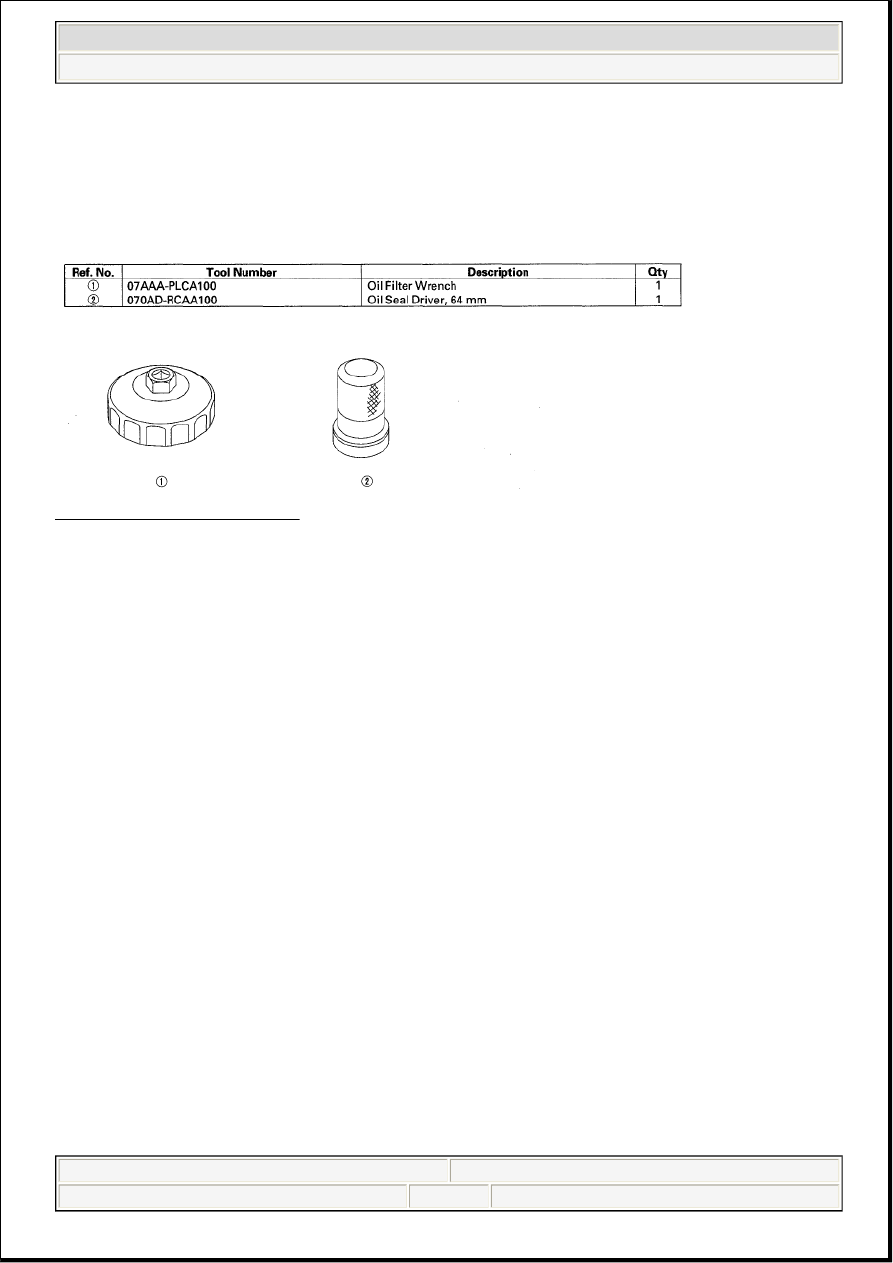

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

COMPONENT LOCATION INDEX



2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL





2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL



me



Friday, June 05, 2009 3:14:20 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:14:35 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

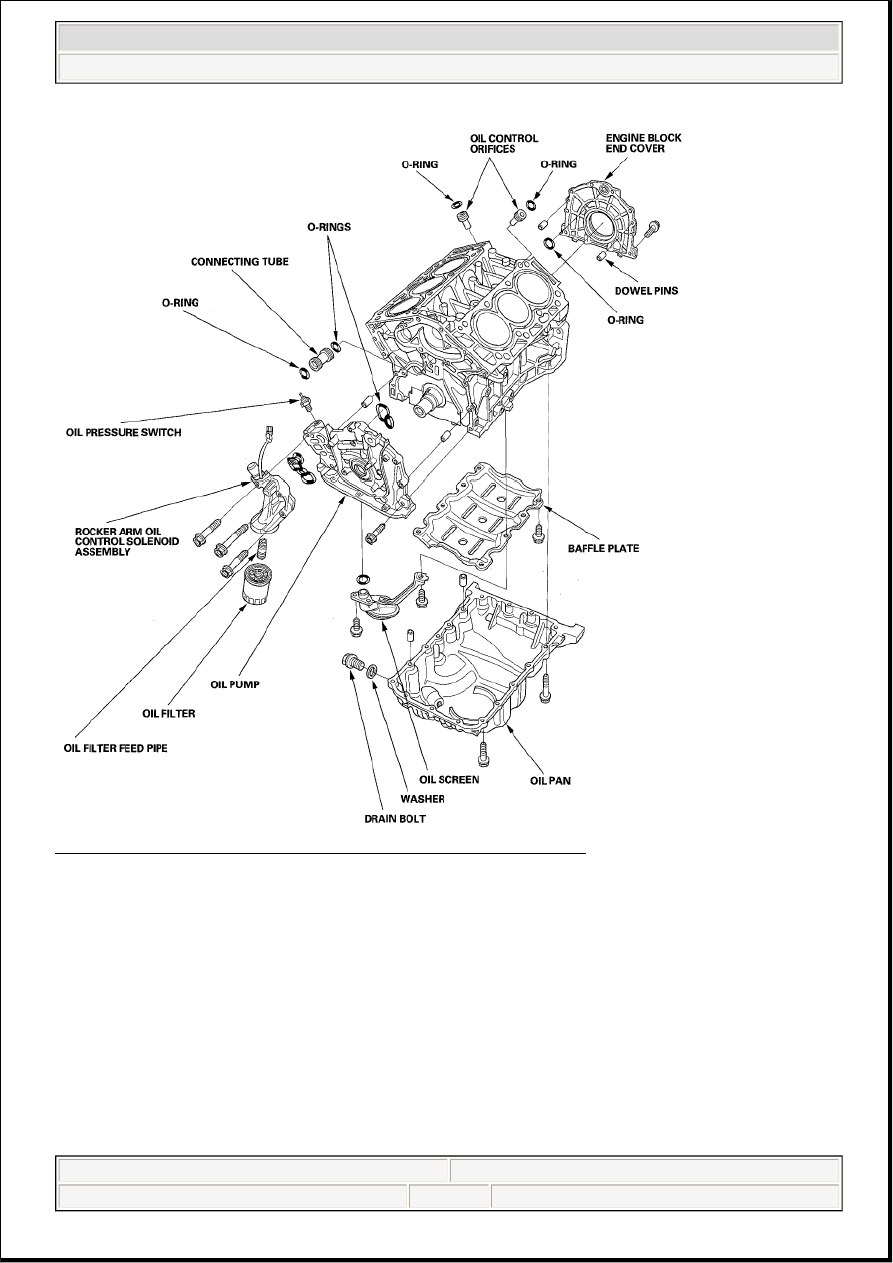

Fig. 2: Identifying Engine Lubrication Components Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE Engine Lubrication - RL



me



Friday, June 05, 2009 3:14:20 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

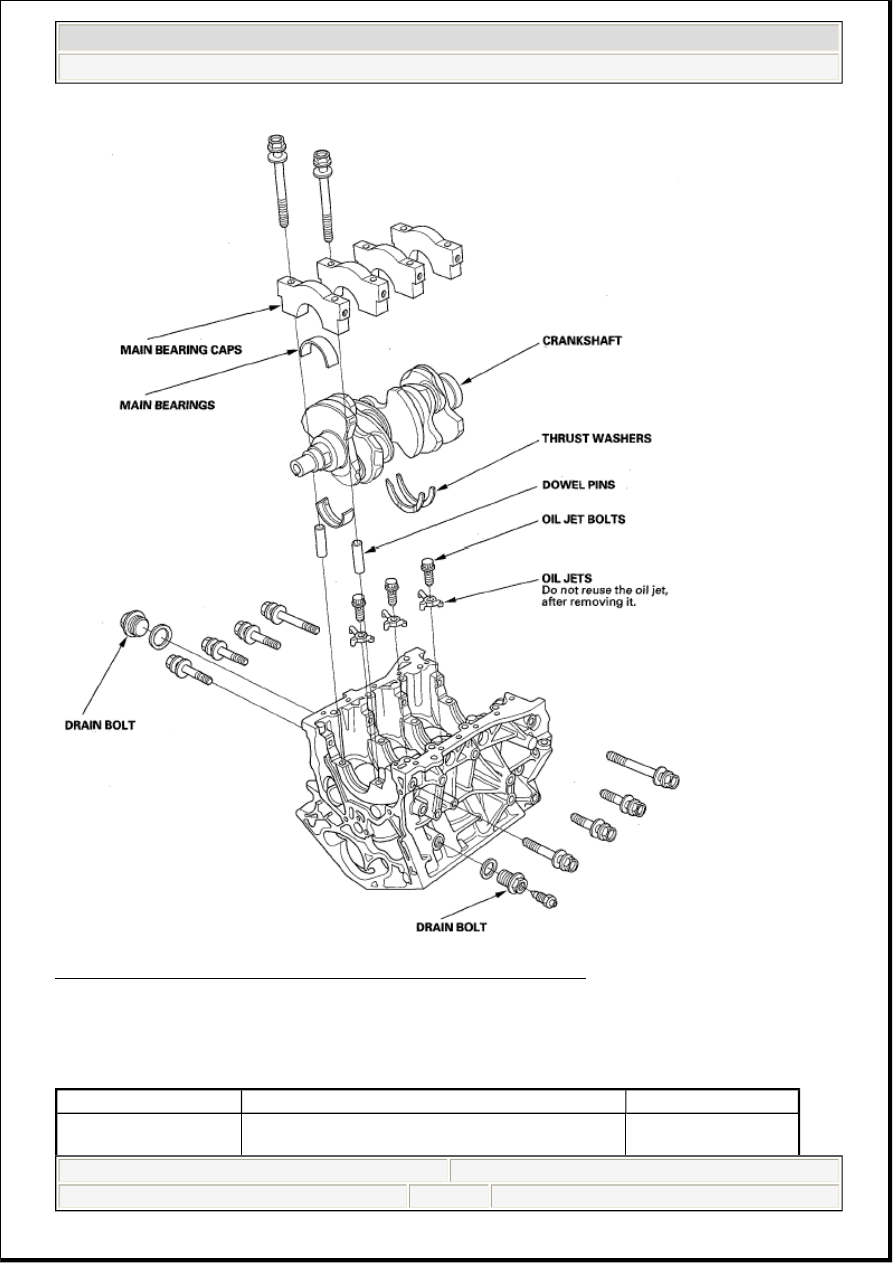

Fig. 3: Identifying Engine Lubrication Components Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX

SYMPTOM TROUBLESHOOTING INDEX

Symptom

Diagnostic procedure

Also check for

1. Verify the engine oil filler cap, oil drain bolt,
