Acura RL. Manual - part 471

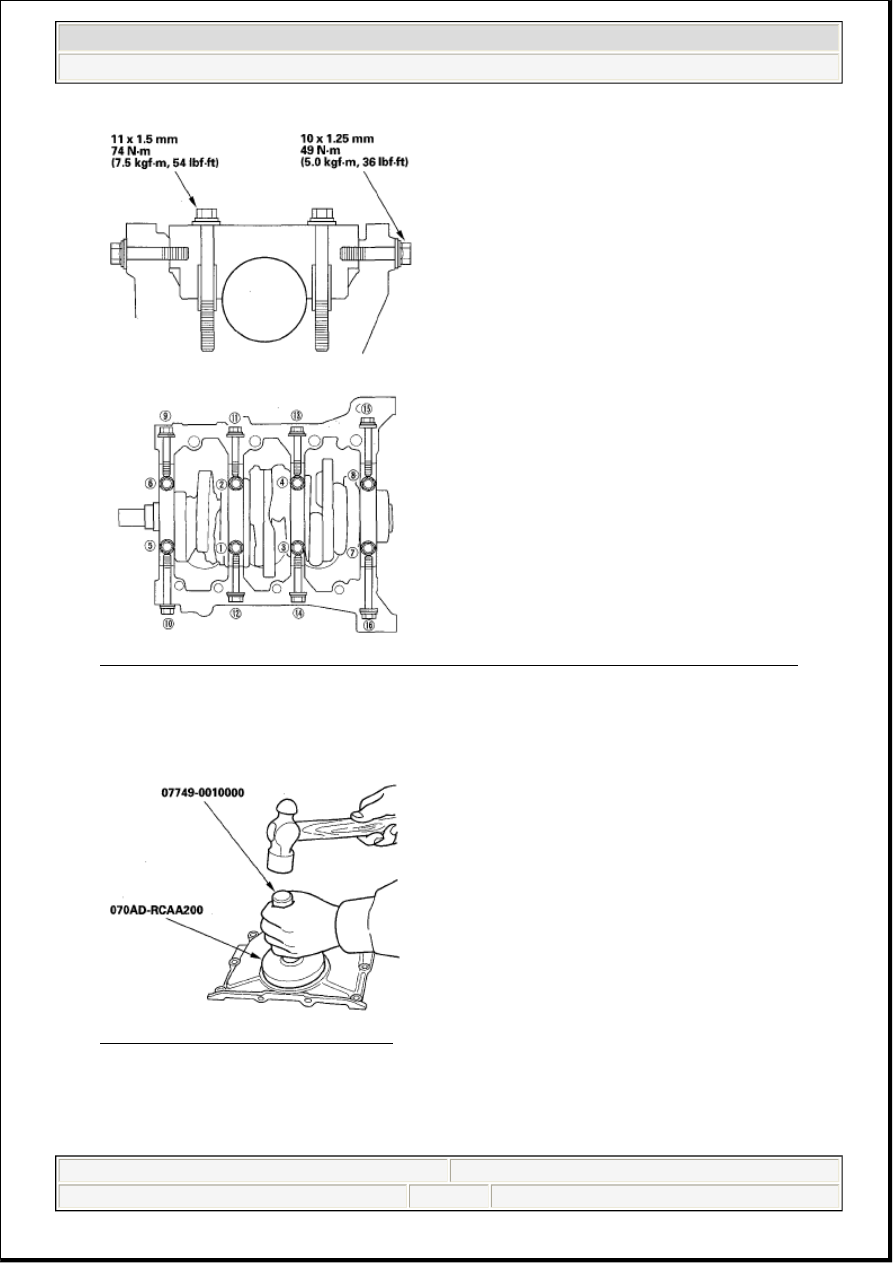

Fig. 59: Identifying Tightening Sequence Of Bearing Cap Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Apply a light coat of multipurpose grease to the crankshaft and to the lip of the seal.

24. Drive the new crankshaft oil seal until the driver attachment bottoms on the engine block end cover.

Fig. 60: Installing Crankshaft Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

25. Remove all of the old liquid gasket from the engine block end cover mating surfaces, bolts, and bolt

holes.

26. Clean and dry the engine block end cover mating surfaces.



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 38

© 2005 Mitchell Repair Information Company, LLC.

27. Apply liquid gasket, P/N 08717-0004,08718-0001, 08718-0003, or 08718-0009, evenly to the engine

block mating surface of the engine block end cover. Install the component within 5 minutes of
applying the liquid gasket.

28. Install the dowel pins (A), new O-ring (B), and the engine block end cover (C) on the engine block.

Fig. 62: Identifying Dowel Pins, O-Ring And Engine Block End Cover With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

29. Clean the excess grease off the crankshaft, and check the seal for distortion.

30. Install a new crankshaft oil seal in the oil pump (see step 2 under INSTALLATION ).

NOTE:



If you apply liquid gasket P/N 08718-0012, the component must be
installed within 4 minutes.



If too much time has passed after applying the liquid gasket,
remove the old liquid gasket and residue, then reapply new liquid
gasket.

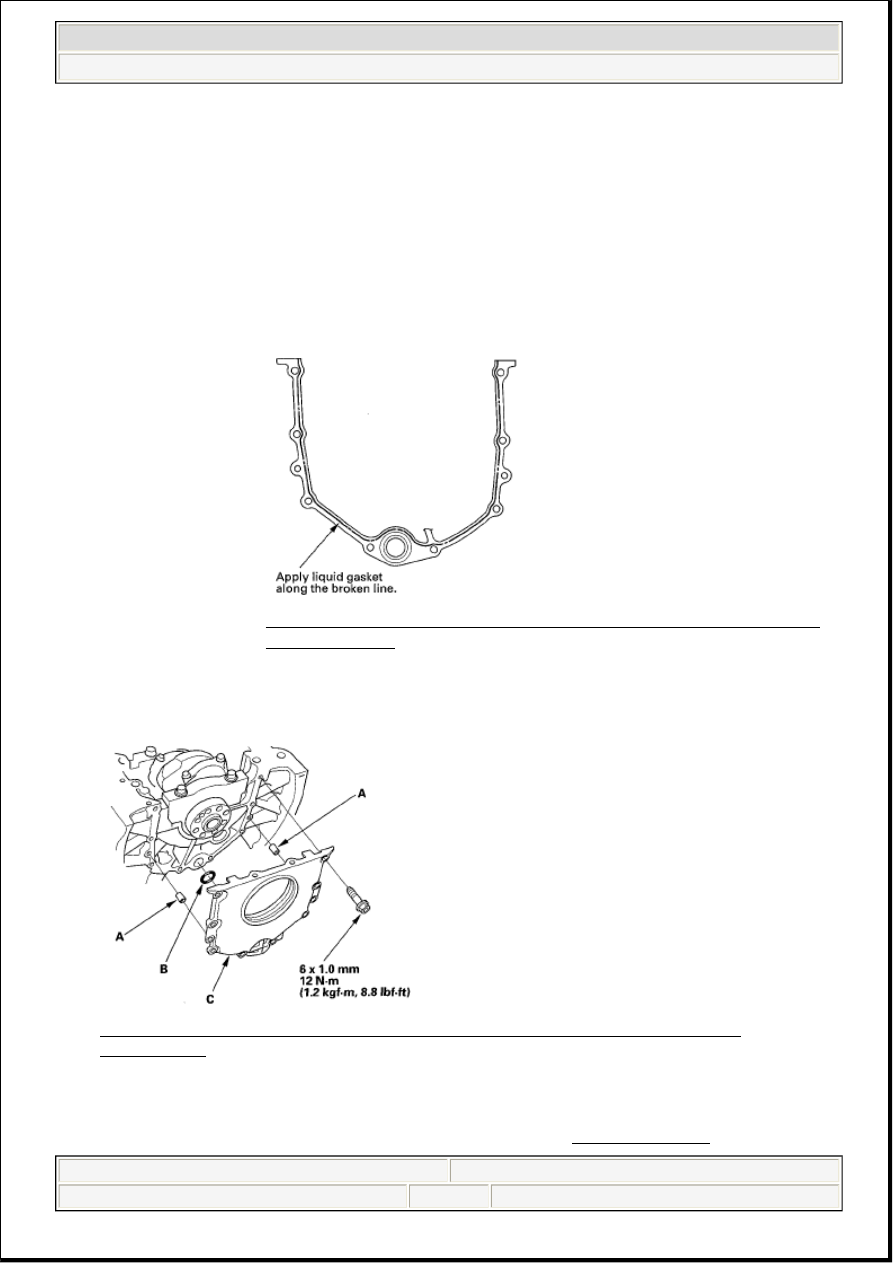

Fig. 61: Identifying Liquid Gasket Applying Area Of Engine Block
Mating Surface
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

31. Remove all of the old liquid gasket from the oil pump mating surfaces, bolts, and bolt holes.

32. Clean and dry the oil pump mating surfaces.

33. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, evenly to the engine

block mating surface of the oil pump. Install the component within 5 minutes of applying the liquid
gasket.

34. Grease the lip of the oil seal, and apply oil to the new O-ring (A).

NOTE:



If you apply liquid gasket P/N 08718-0012, the component must be
installed within 4 minutes.



If too much time has passed after applying the liquid gasket,
remove the old liquid gasket and residue, then reapply new liquid
gasket.

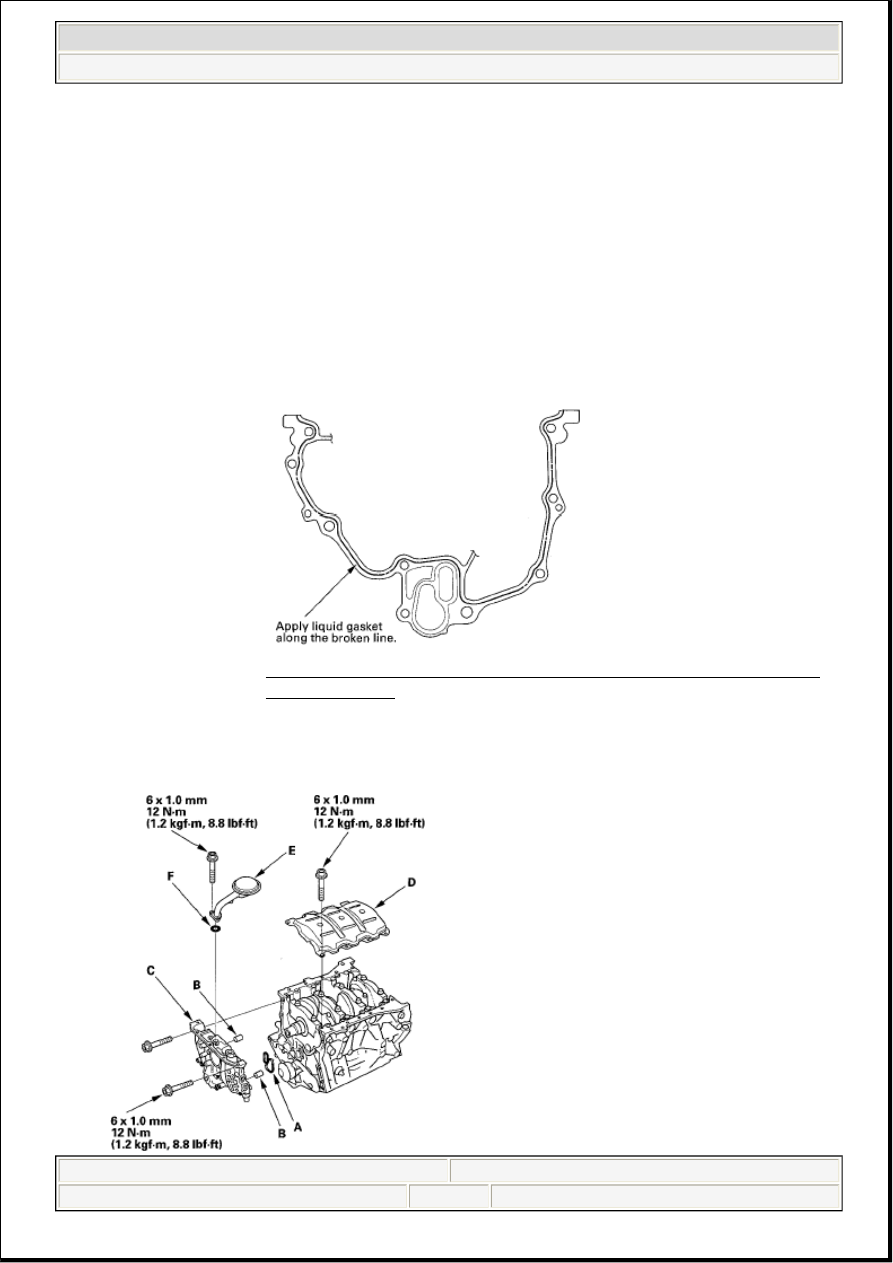

Fig. 63: Identifying Liquid Gasket Applying Area Of Engine Block
Mating Surface
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE Engine Block - RL



me



Friday, June 05, 2009 3:16:24 PM

Page 40

© 2005 Mitchell Repair Information Company, LLC.

Fig. 64: Identifying Dowel Pins, Oil Pump, Baffle Plate And Oil Screen With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

35. Install the dowel pins (B), then align the inner rotor with the crankshaft, and install the oil pump (C).

36. Clean the excess grease off the crankshaft, and check the seal for distortion.

37. Install the baffle plate (D), then install the oil screen (E) with new O-ring (F).

38. Install the rocker arm oil control solenoid/oil filter assembly (A), with a new rocker arm oil control

solenoid filter (B).

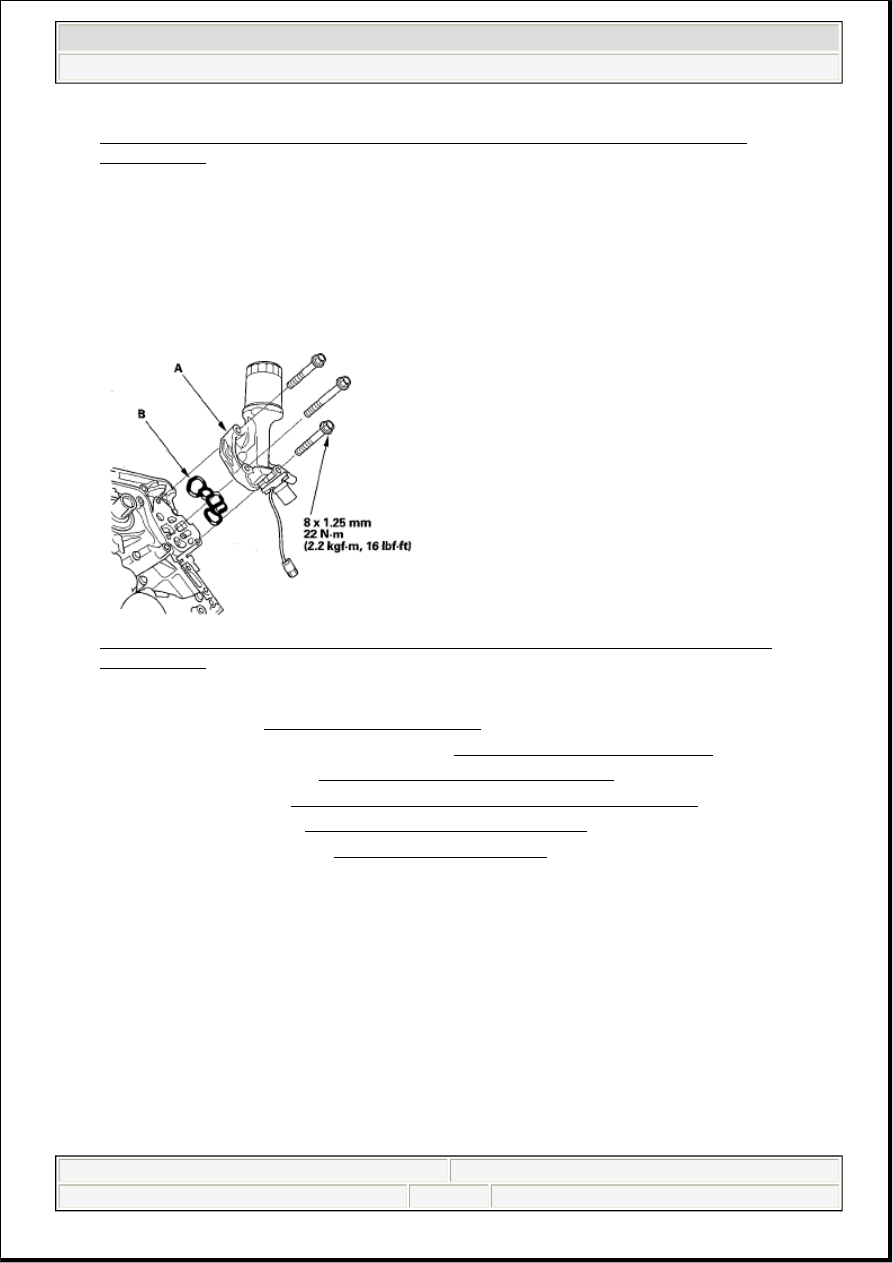

Fig. 65: Identifying Rocker Arm Oil Control Solenoid/Oil Filter Assembly With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

39. Install the oil pan (see OIL PAN INSTALLATION ).

40. Install the crankshaft position (CKP) sensor (see CKP SENSOR REPLACEMENT ).

41. Install the cylinder heads (see CYLINDER HEAD INSTALLATION ).

42. Install the drive plate (see DRIVE PLATE REMOVAL AND INSTALLATION ).

43. Install the transmission (see TRANSMISSION INSTALLATION ).

44. Install the engine assembly (see ENGINE INSTALLATION ).

OIL PAN INSTALLATION

1. Remove all of the old liquid gasket from the oil pan mating surfaces, bolts, and bolt holes.

2. Clean and dry the oil pan mating surfaces.

3. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-009, evenly to the oil pan

mating surface of the engine block. Install the component within 5 minutes of applying the liquid
gasket.

NOTE:

When any crankshaft or connecting rod bearing is replaced, after
assembly it is necessary to run the engine at idling speed until it
reaches normal operating temperature, then continue to run it for about
15 minutes.
