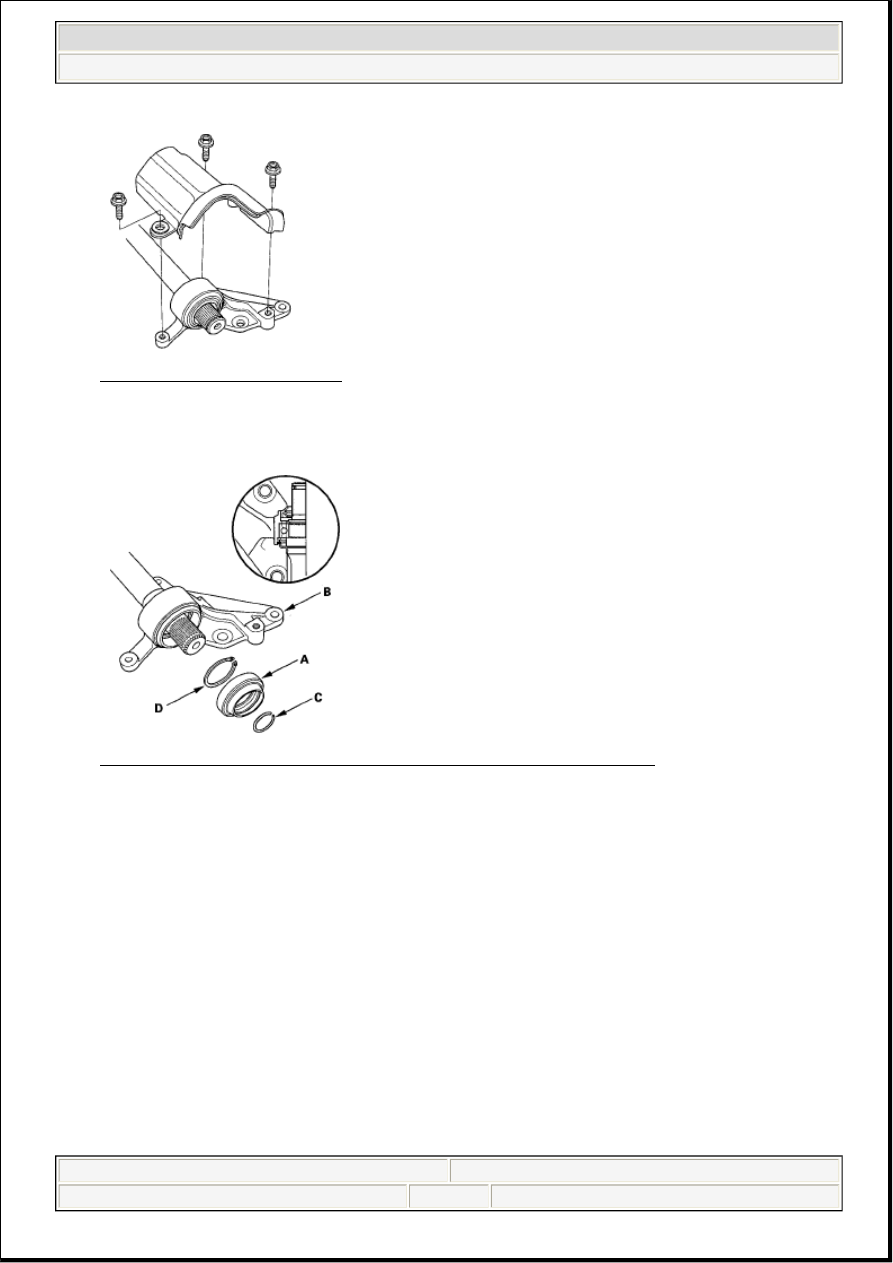

Fig. 65: Identifying Heat Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the intermediate shaft outer seal (A) from the bearing support (B).

Fig. 66: Identifying Intermediate Shaft Outer Seal And Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the set ring (C) and external snap ring (D).

4. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the support base

attachment, support base and a press. Be careful not to damage the metal rings (C) on the intermediate
shaft during disassembly.



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

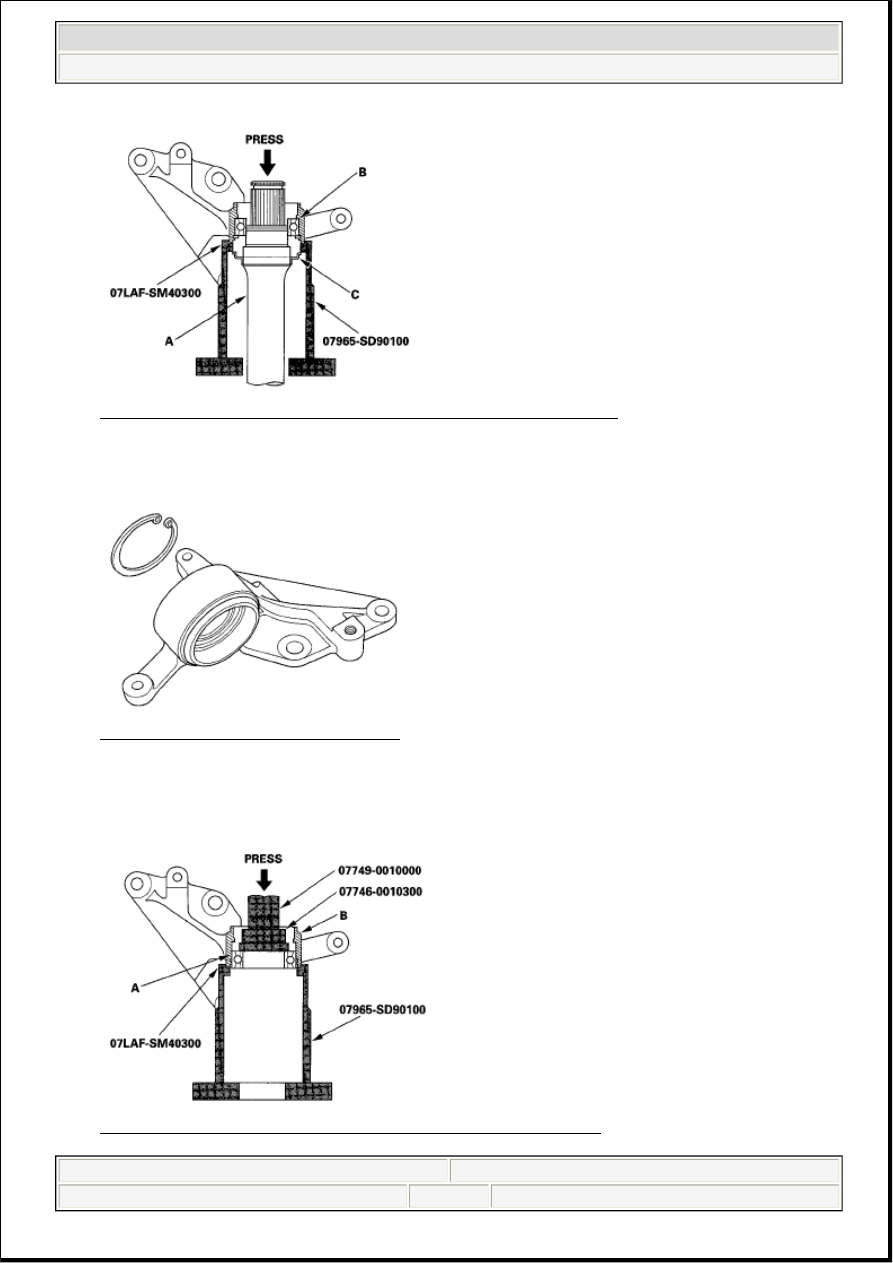

Fig. 67: Pressing Intermediate Shaft Of Intermediate Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the internal snap ring.

Fig. 68: Identifying Internal Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Press the intermediate shaft bearing (A) out of the bearing support (B) using the driver, attachment, 42

x 47 mm, support base attachment, support base and a press.

Fig. 69: Pressing Intermediate Shaft Bearing Of Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

INTERMEDIATE SHAFT REASSEMBLY

EXPLODED VIEW

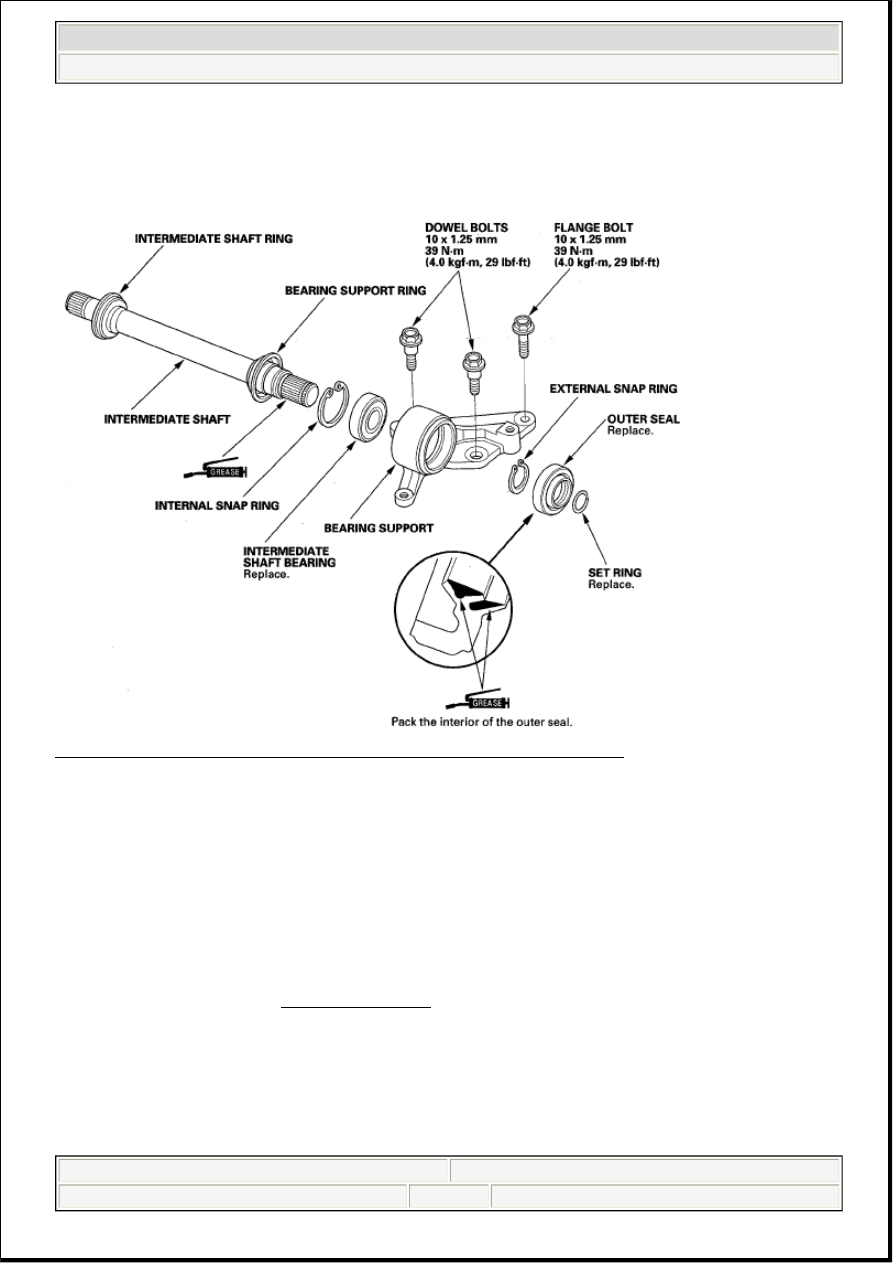

Fig. 70: Exploded View Of Intermediate Shaft With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required



Driver 07749-0010000



Support base attachment 07LAF-SM40300



Support base 07965-SD90100



Oil seal driver attachment 07JAD-PH80101



Fork seal driver, 39.2 x 49.5 x 15 mm 07947-4630100

1. Clean the disassembled parts with solvent, and dry them with compressed air. Do not wash the rubber

parts with solvent.

2. Press the intermediate shaft bearing (A) into the bearing support (B) using the driver, oil seal driver

attachment and a press.

NOTE:

Refer to the EXPLODED VIEW as needed during this procedure.



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 32

© 2005 Mitchell Repair Information Company, LLC.

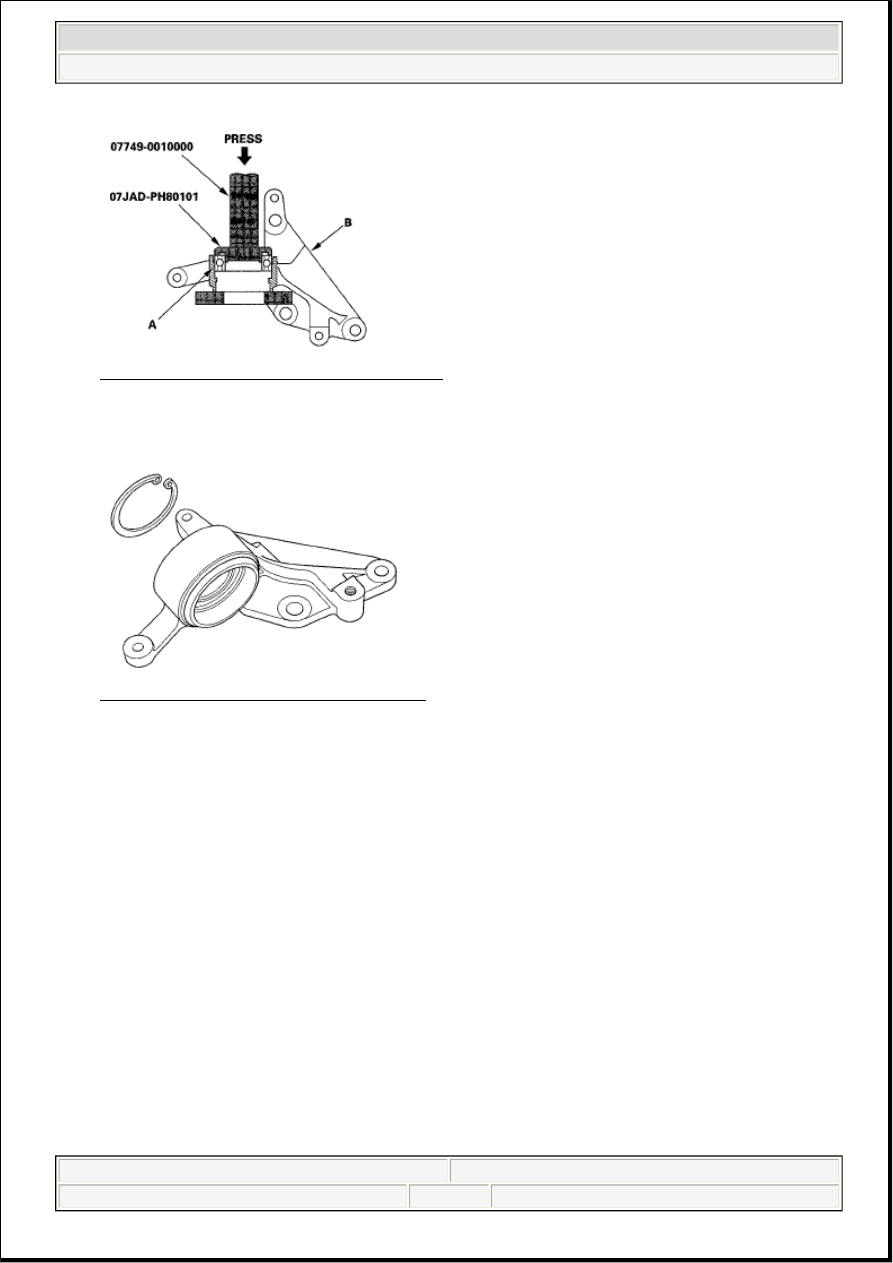

Fig. 71: Pressing Intermediate Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install, then seat the internal snap ring in the groove of the bearing support.

Fig. 72: Installing Seat Internal Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Press the intermediate shaft (A) into the shaft bearing (B) using the fork seal driver, 39.2 x 49.5 x 15

mm and a press.
