Fig. 56: Inserting Inboard End Of Driveshaft Into Differential
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the outboard joint (A) into the front hub (B).

Fig. 57: Installing Outboard Joint Into Front Hub
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install exhaust pipe A (see step 5 under TRANSFER ASSEMBLY INSTALLATION , also refer to

EXHAUST PIPE AND MUFFLER REPLACEMENT ).

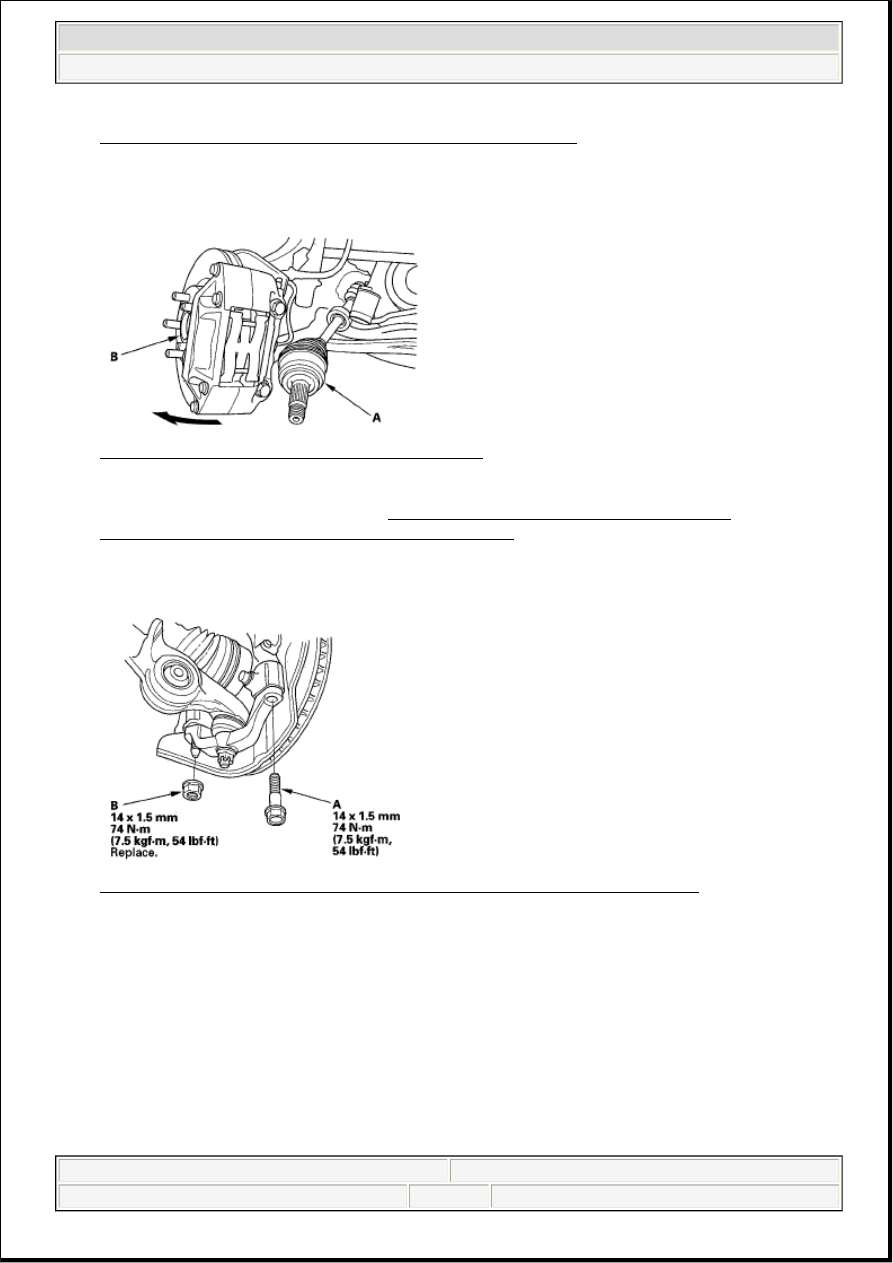

7. Install the knuckle holder to the knuckle, and then tighten the knuckle holder bolt (A) and new nut

(B).

Fig. 58: Identifying Knuckle Holder Bolt And Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the damper fork (A) over the driveshaft and onto the lower arm. Install the damper in the

damper fork so the aligning tab (B) is aligned with the slot in the damper fork. Loosely install the
pinch bolt (C).

2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL

Friday, June 05, 2009 3:01:08 PM

Page 26

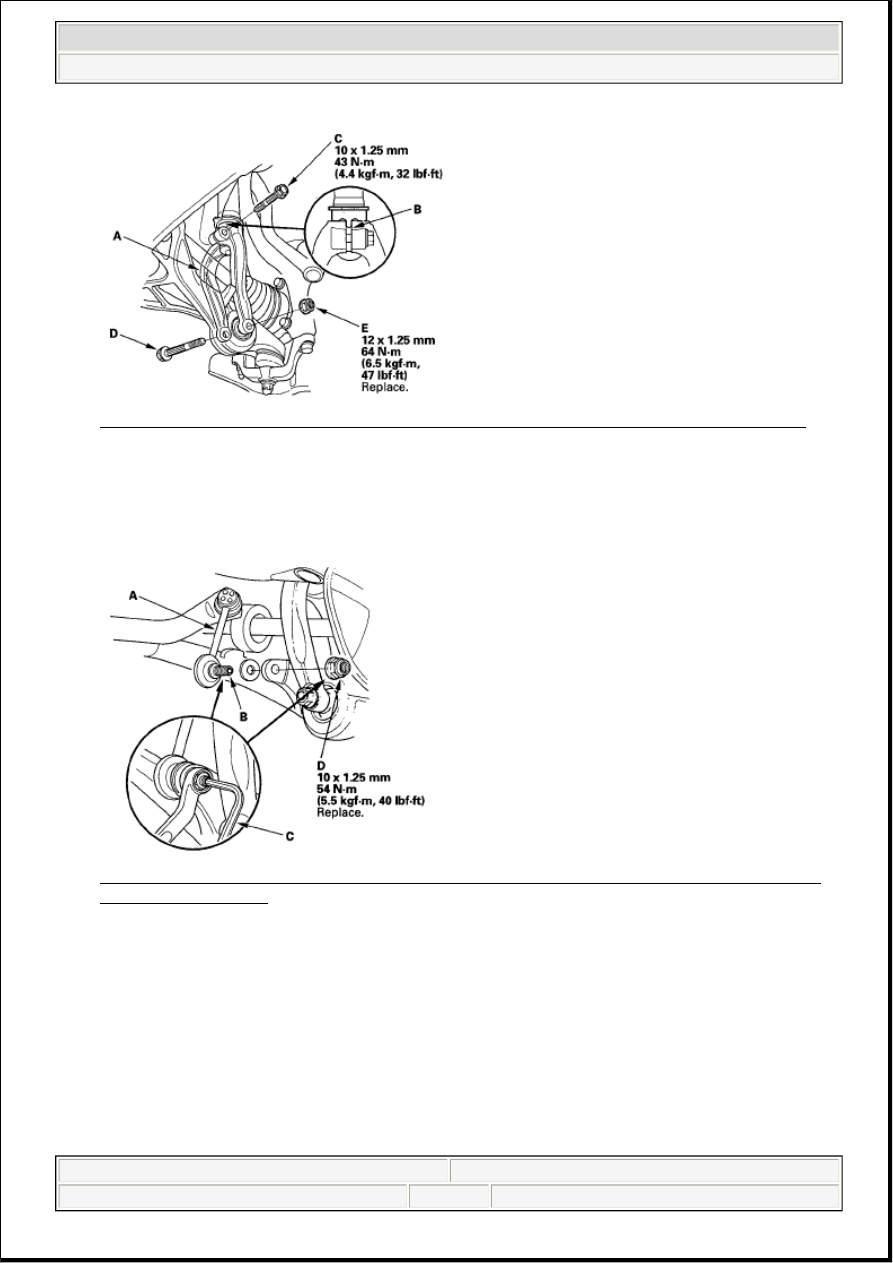

Fig. 59: Identifying Damper Fork, Aligning Tab And Pinch Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Loosely install the flange bolt (D) and a new self-locking nut (E).

10. Connect the front stabilizer link (A) to the lower arm. Hold the stabilizer link ball joint pin (B) with a

hex wrench (C), and tighten the new flange nut (D).

Fig. 60: Identifying Front Stabilizer Link, Stabilizer Link Ball Joint Pin And Flange Nut With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Install a new spindle nut (A), then tighten the nut. After tightening, use a drift to stake the spindle nut

shoulder (B) against the driveshaft.

2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL

Friday, June 05, 2009 3:01:08 PM

Page 27

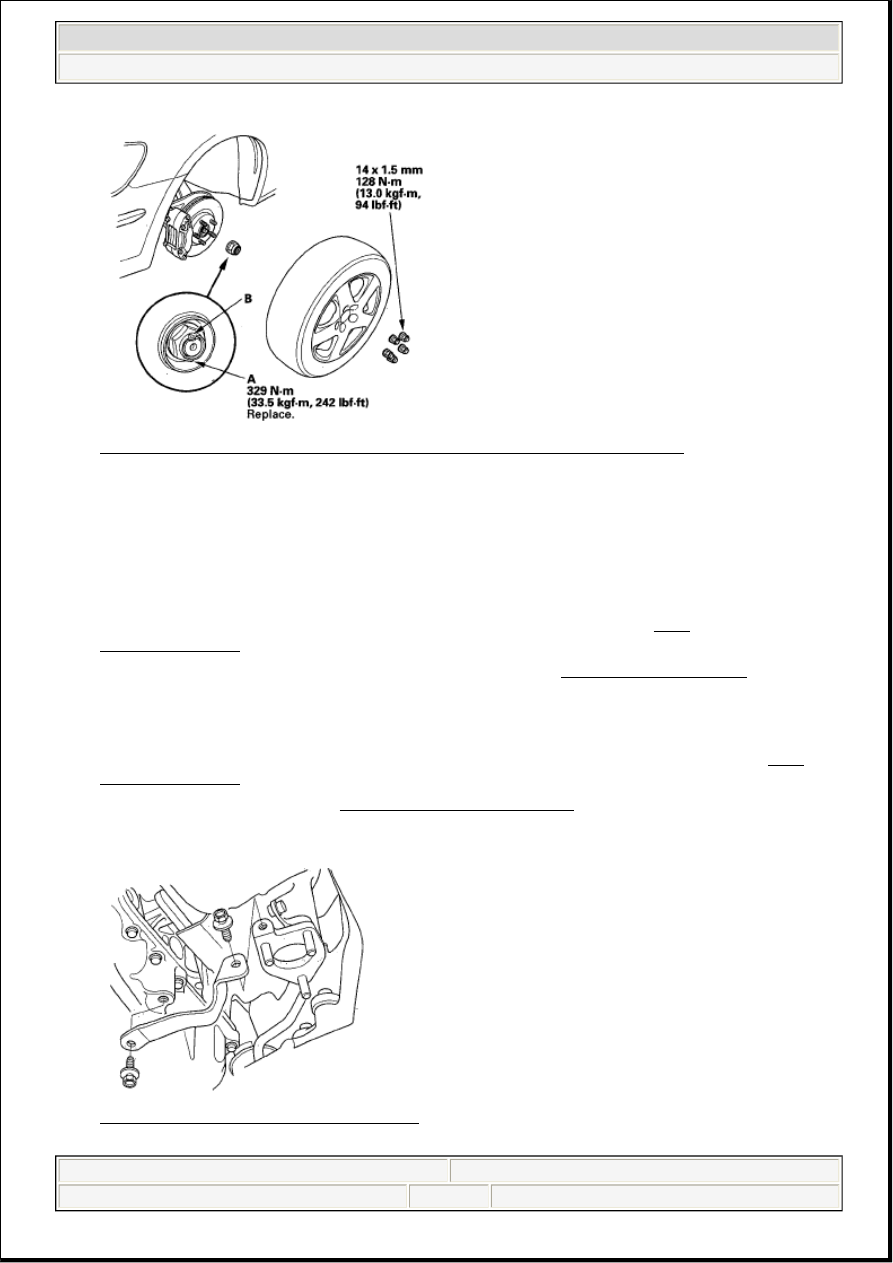

Fig. 61: Identifying Spindle Nut And Wheel Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Clean the mating surfaces of the brake disc and the front wheel, then install the front wheel with the

wheel nuts.

13. Turn the front wheel by hand, and make sure there is no interference between the driveshaft and

surrounding parts.

14. Tighten the flange bolt and the self-locking nut with the vehicle's weight on the damper.

15. Refill the transmission with recommended automatic transmission fluid (see ATF

REPLACEMENT ).

16. Check the front wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).

INTERMEDIATE SHAFT REMOVAL

1. Drain the automatic transmission fluid, then reinstall the drain plug using a new washer (see ATF

REPLACEMENT ).

2. Remove the right driveshaft (see DRIVESHAFT INSPECTION ).

3. Remove the exhaust pipe bracket.

Fig. 62: Identifying Exhaust Pipe Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL

Friday, June 05, 2009 3:01:08 PM

Page 28

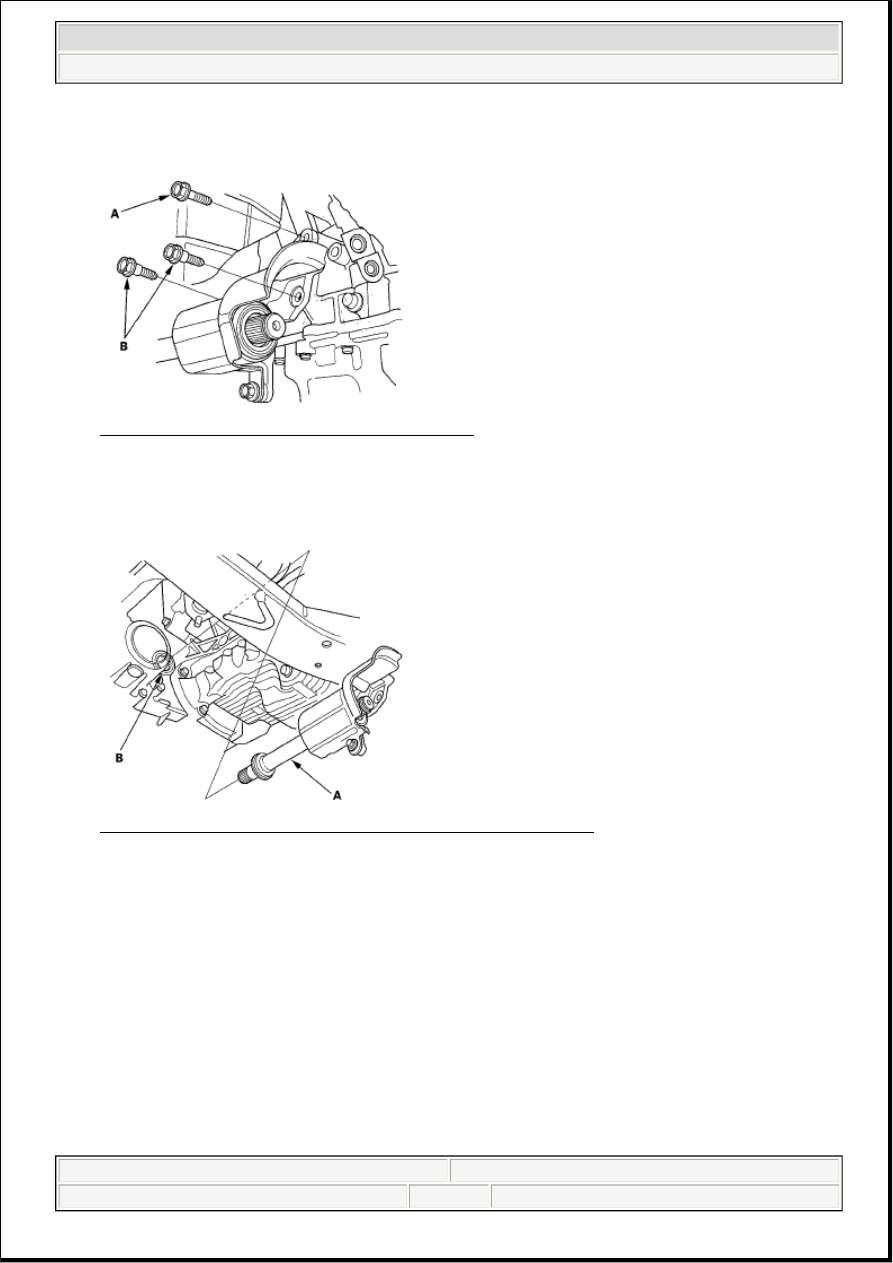

4. Remove the flange bolt (A) and the two dowel bolts (B).

Fig. 63: Identifying Flange Bolt And Dowel Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontal until it

is clear of the differential to prevent damage to the differential oil seal (B).

Fig. 64: Identifying Intermediate Shaft And Differential Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

INTERMEDIATE SHAFT DISASSEMBLY

Special Tools Required



Driver 07749-0010000



Support base attachment 07LAF-SM40300



Support base 07965-SD90100



Attachment, 42 x 47 mm 07746-0010300

1. Remove the heat shield.
