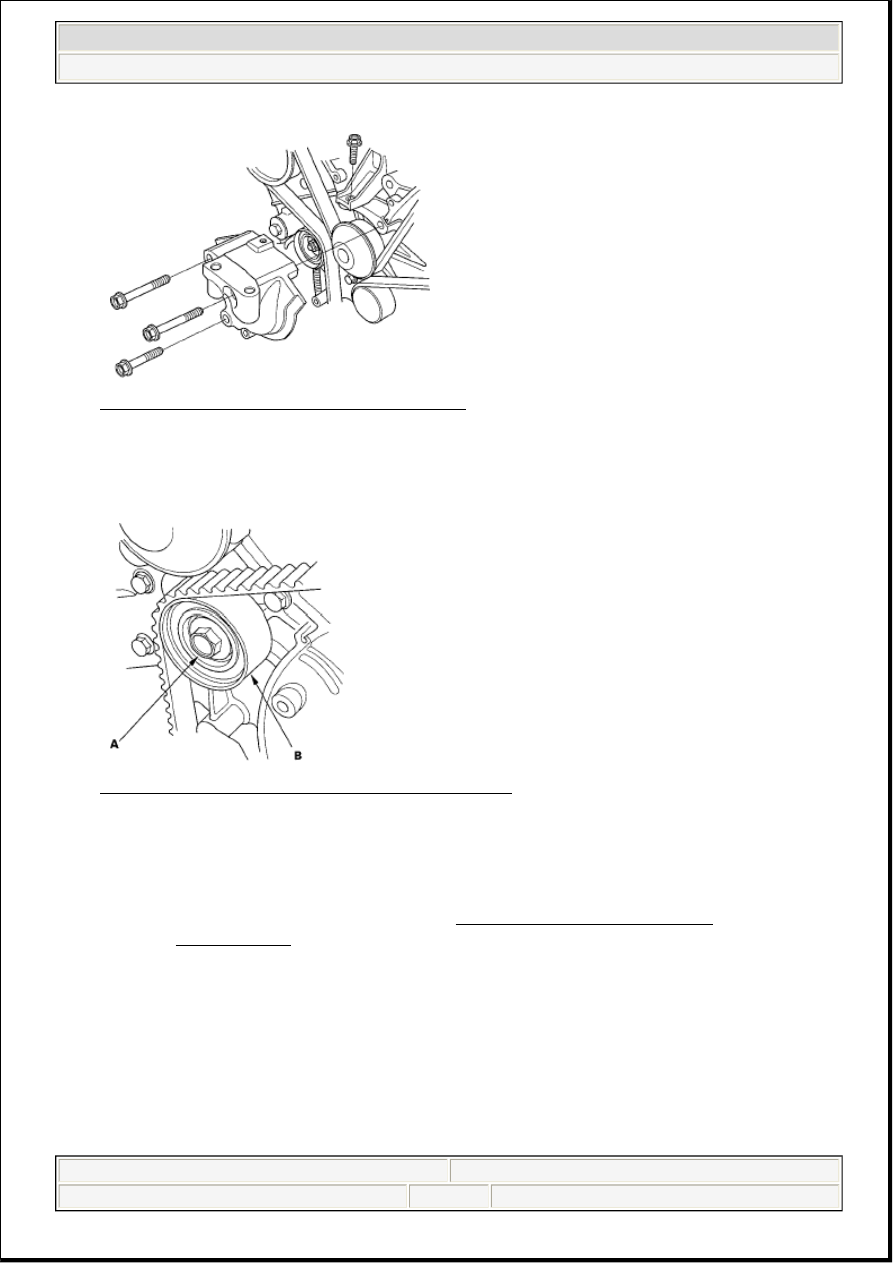

Fig. 35: Identifying Side Engine Mount Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Remove the idler pulley bolt (A) and idler pulley (B), then remove the timing belt. Discard the idler

pulley bolt.

Fig. 36: Identifying Idler Pulley Bolt And Idler Pulley
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TIMING BELT INSTALLATION

1. Clean the timing belt pulleys, timing belt guide plate, and the upper and lower covers.

2. Set the timing belt drive pulley to top dead center (TDC) by aligning the TDC mark (A) on the tooth

of the timing belt drive pulley with the pointer (B) on the oil pump.

NOTE:

The following procedure is for installation of a used timing belt. If you are
installing a new belt, refer to the TIMING BELT REPLACEMENT
PROCEDURE ) -->.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

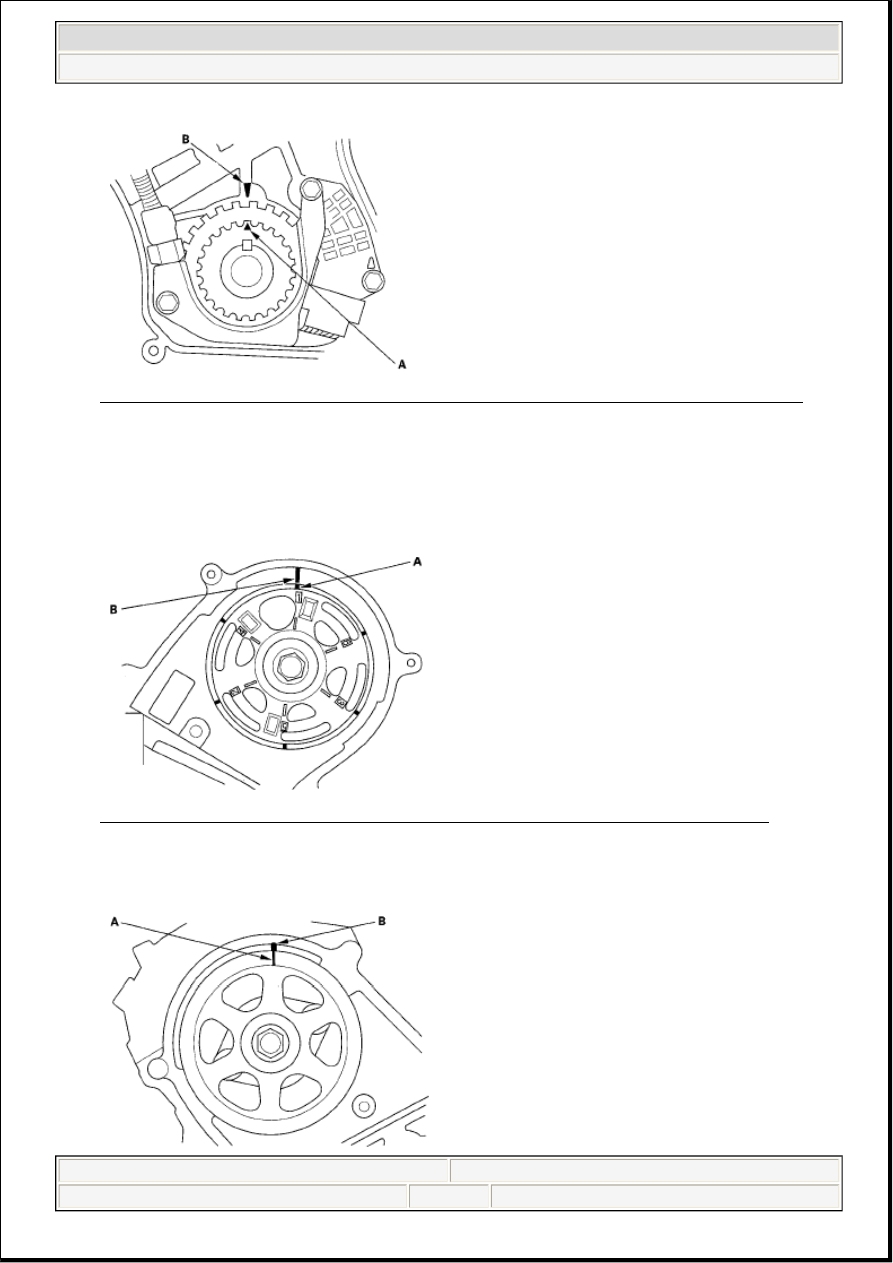

Fig. 37: Aligning TDC Mark On Tooth Of Timing Belt Drive Pulley With Oil Pump Pointer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Set the camshaft pulleys to TDC by aligning the TDC marks (A) on the camshaft pulleys with the

pointers (B) on the back covers.

FRONT

Fig. 38: Aligning TDC Marks On Camshaft Pulleys With Back Covers Pointers (Front)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

Fig. 39: Aligning TDC Marks On Camshaft Pulleys With Back Covers Pointers (Rear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Loosely install the idler pulley with a new idler pulley bolt so the pulley can move but does not come

off.

5. If the auto-tensioner has extended and the timing belt cannot be installed, perform the timing belt

replacement procedure (see TIMING BELT REPLACEMENT ).

6. Install the timing belt in a counterclockwise sequence starting with the drive pulley. Take care not to

damage the timing belt when installing it.

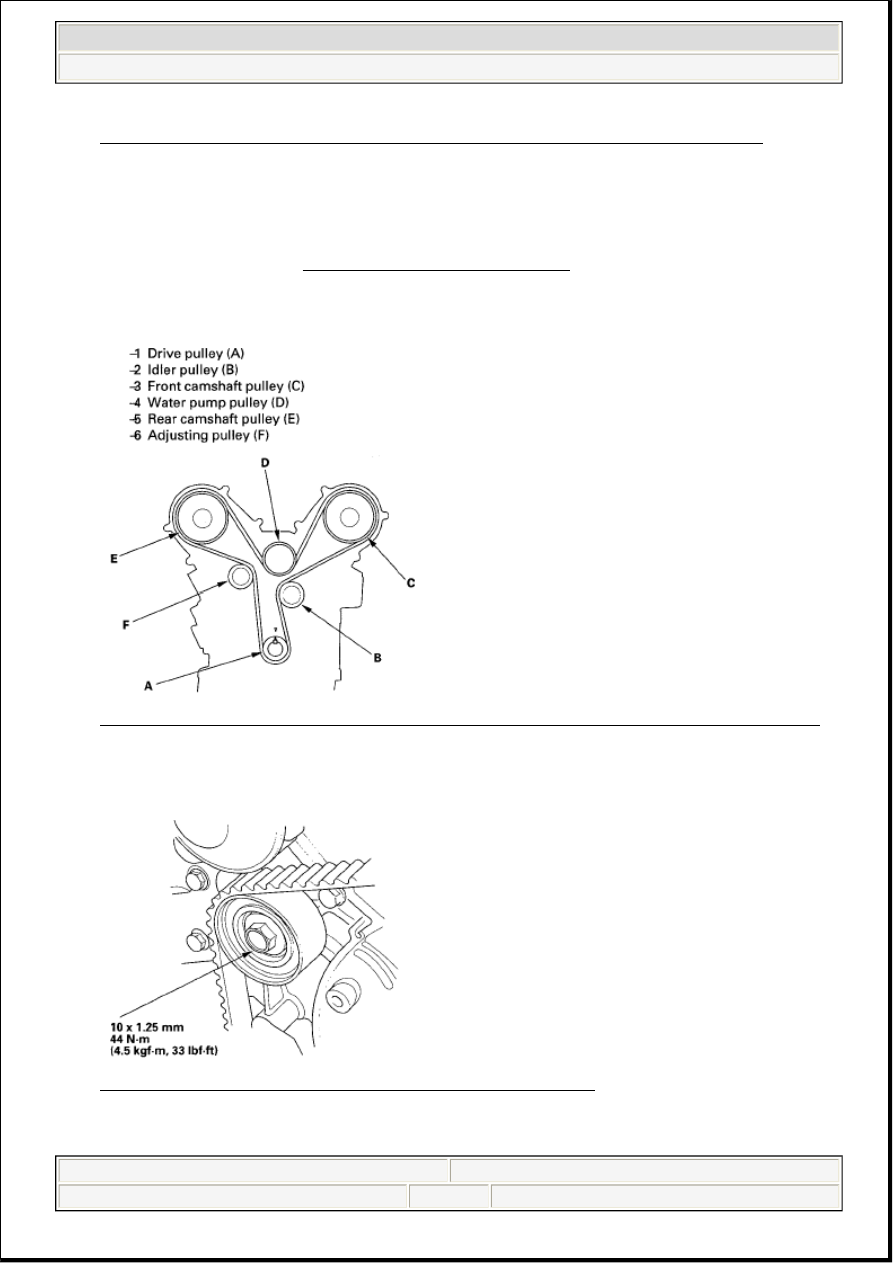

Fig. 40: Identifying Drive Pulley, Idler Pulley, Rear Camshaft Pulley And Water Pump Pulley
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Tighten the idler pulley bolt.

Fig. 41: Identifying Idler Pulley Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the battery clamp bolt from the back cover.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

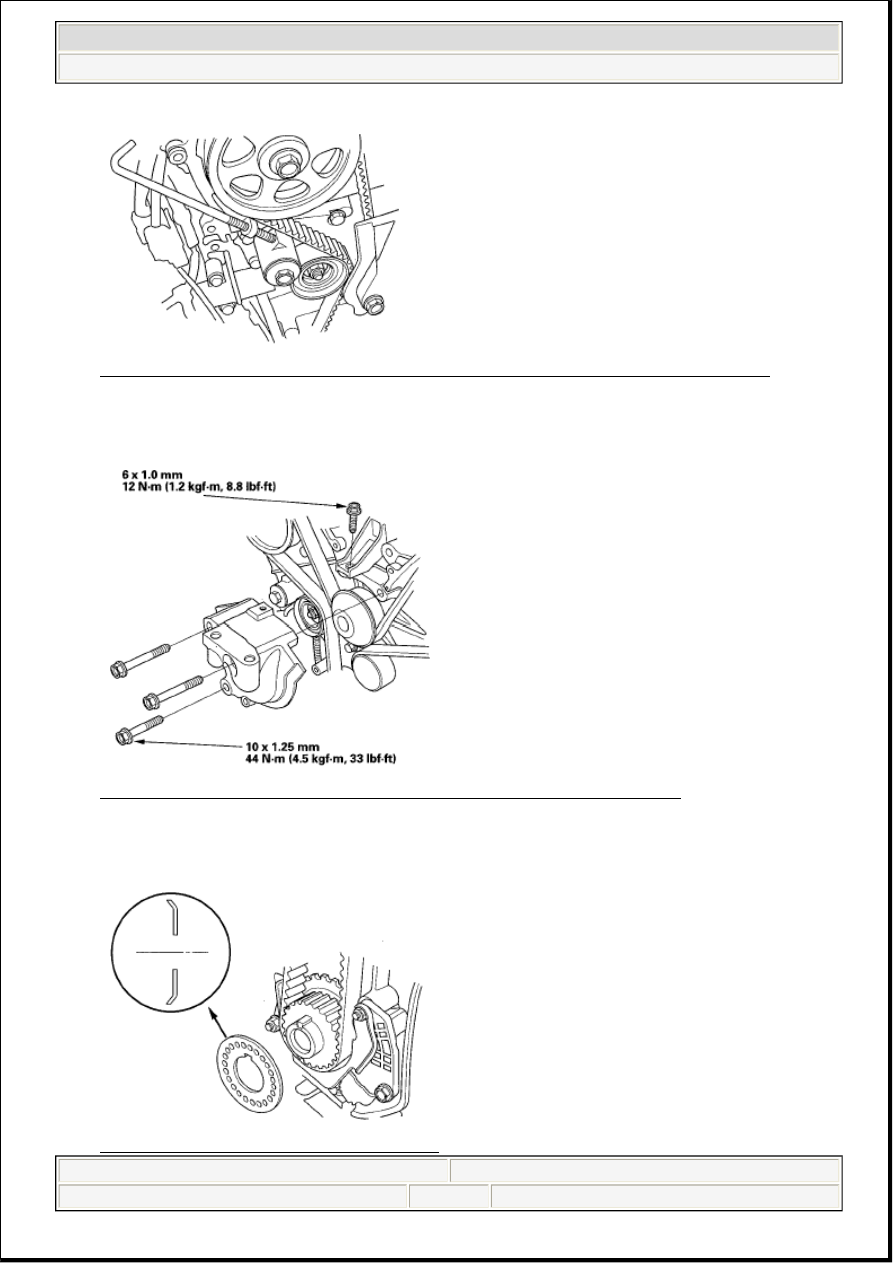

Fig. 42: Identifying Battery Clamp Bolt Used To Hold Timing Belt Adjuster In Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the side engine mount bracket.

Fig. 43: Identifying Side Engine Mount Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install the timing belt guide plate as shown.

Fig. 44: Identifying Timing Belt Guide Plate
