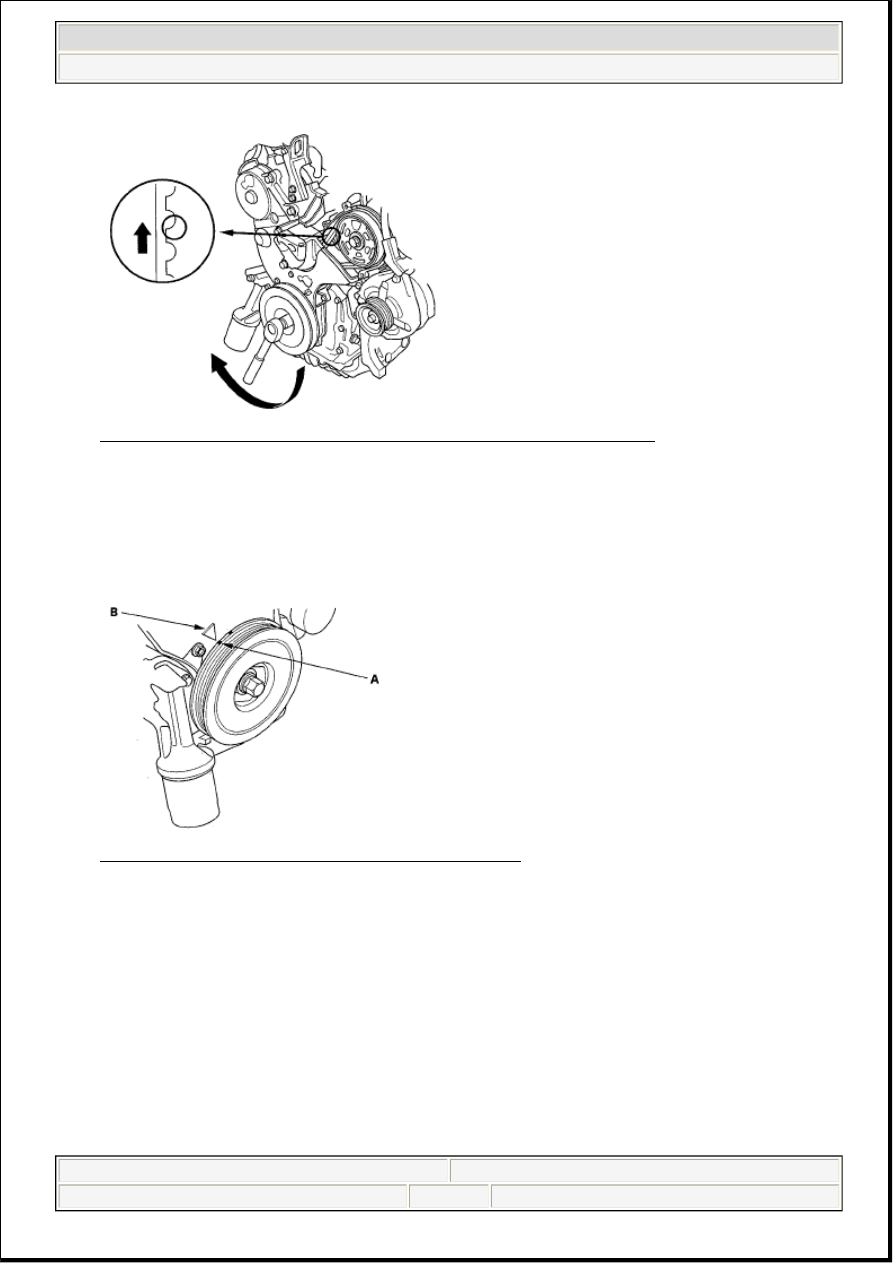

Fig. 26: Inspecting Timing Belt For Cracks And Oil Or Coolant Soaking
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TIMING BELT REMOVAL

1. Remove the right upper fender trim (see step 1 ).

2. Turn the crankshaft so its white mark (A) lines up with the pointer (B).

Fig. 27: Identifying White Mark On Crankshaft Pulley
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check that the No. 1 piston top dead center (TDC) mark (A) on the front camshaft pulley and the

pointer (B) on the front upper cover are aligned.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

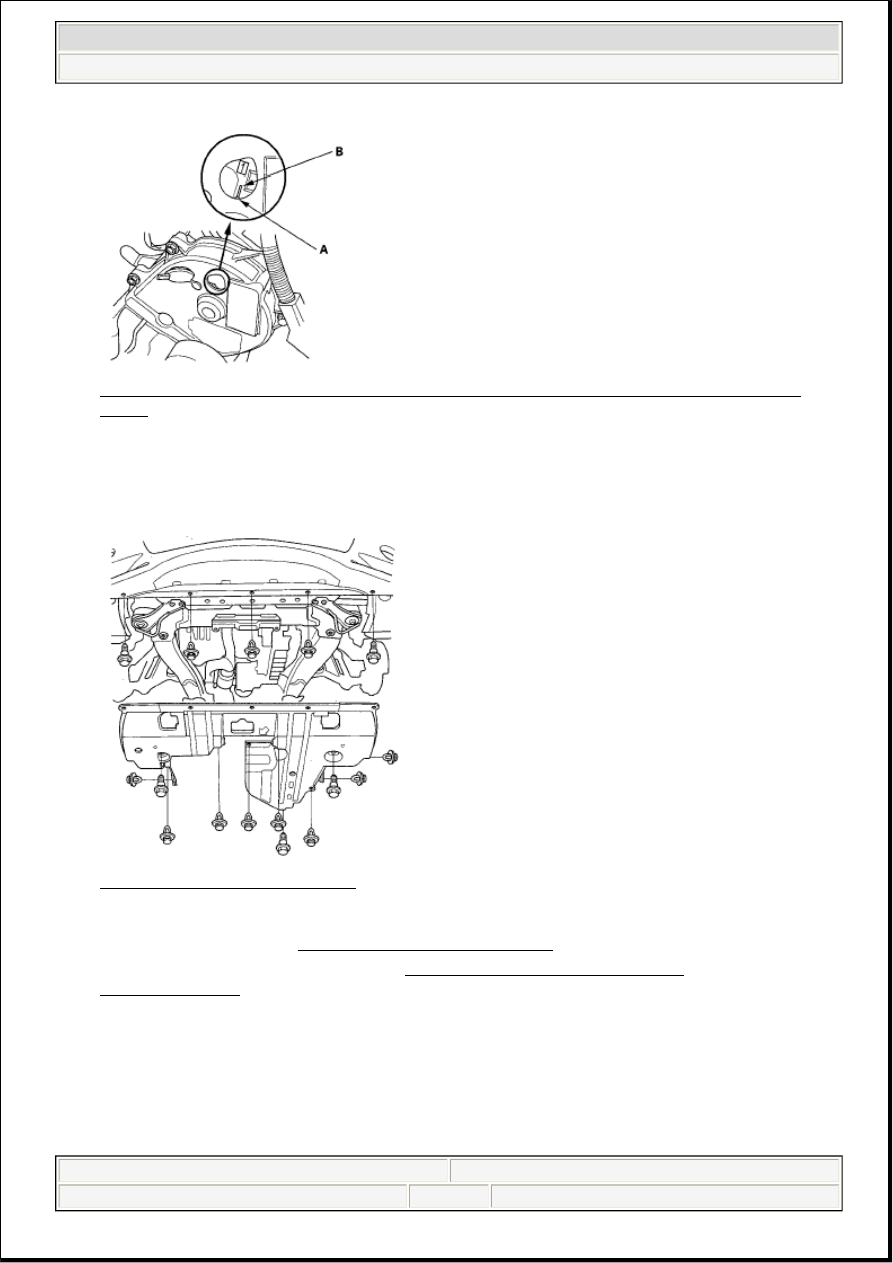

Fig. 28: Aligning Front Upper Cover Pointer With Piston 1 TDC Mark On Front Camshaft
Pulley
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the right front wheel.

5. Remove the splash shield.

Fig. 29: Identifying Splash Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the drive belt (see DRIVE BELT REPLACEMENT ).

7. Remove the drive belt auto-tensioner (see DRIVE BELT AUTO-TENSIONER

REPLACEMENT ).

8. Support the engine with a jack and wood block under the oil pan.

9. Remove the ground cable (A), then remove the upper bracket (B).



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

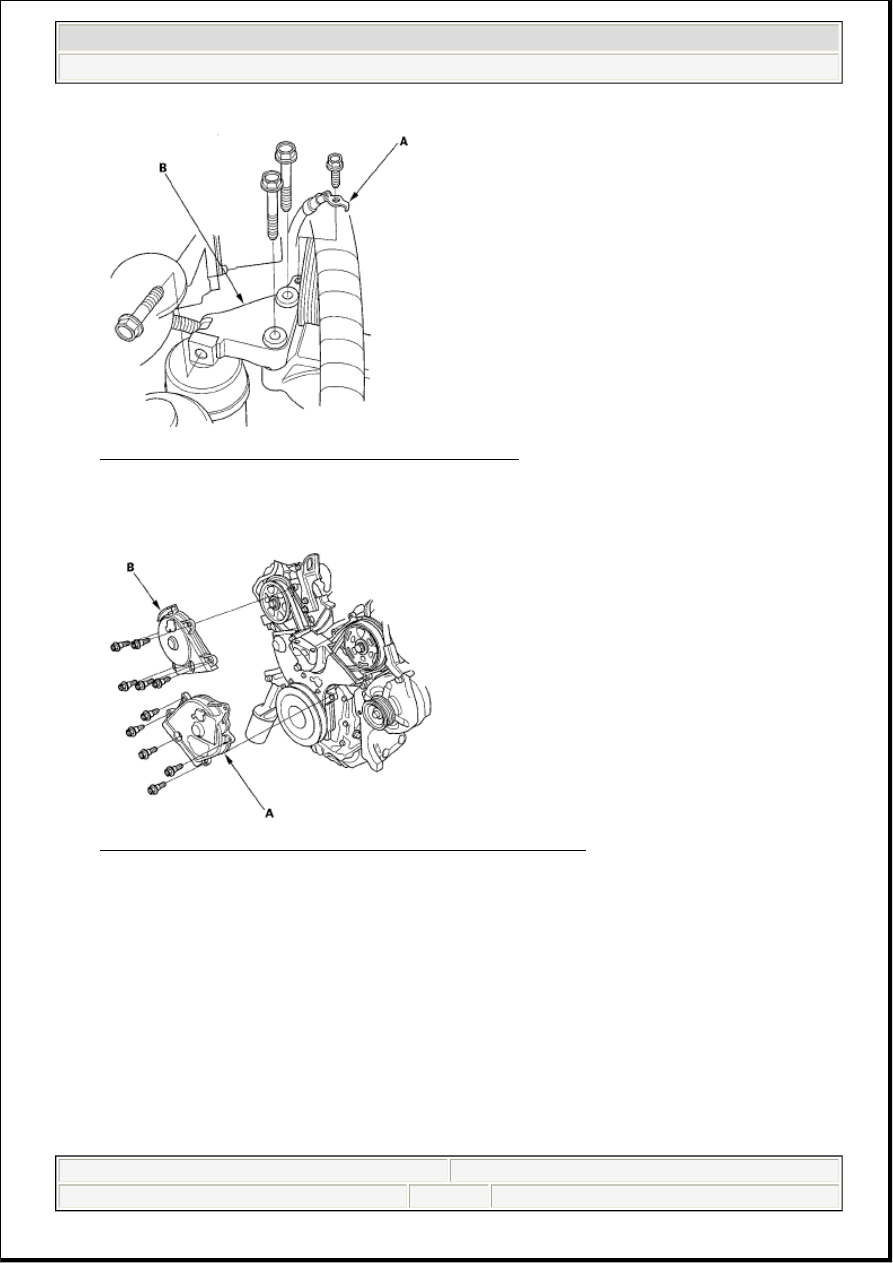

Fig. 30: Identifying Ground Cable And Upper Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the front upper cover (A) and rear upper cover (B).

Fig. 31: Identifying Front Upper Cover And Rear Upper Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Remove the crankshaft pulley (see step 4 ).

12. Remove the lower cover.



2007 Acura RL

2005-08 ENGINE Cylinder Head - RL



me



Friday, June 05, 2009 3:18:36 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

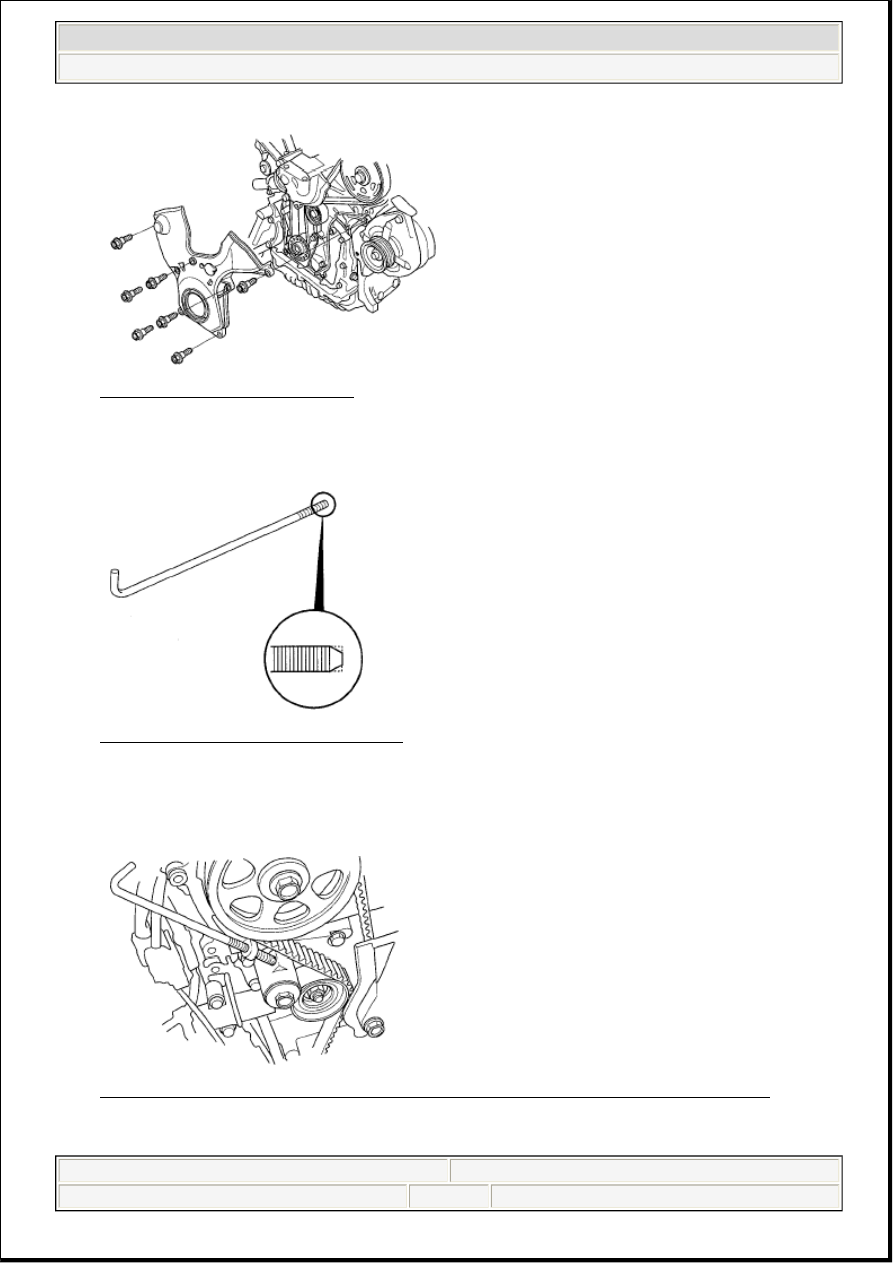

Fig. 32: Identifying Lower Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Remove one of the battery clamp bolts from the battery tray, and grind the end of it as shown.

Fig. 33: Identifying Battery Clamp Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Thread in the battery clamp bolt as shown to hold the timing belt adjuster in its current position.

Tighten it by hand; do not use a wrench.

Fig. 34: Identifying Battery Clamp Bolt Used To Hold Timing Belt Adjuster In Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Remove the side engine mount bracket.
