1. Remove the right front wheel.

2. Remove the splash shield.

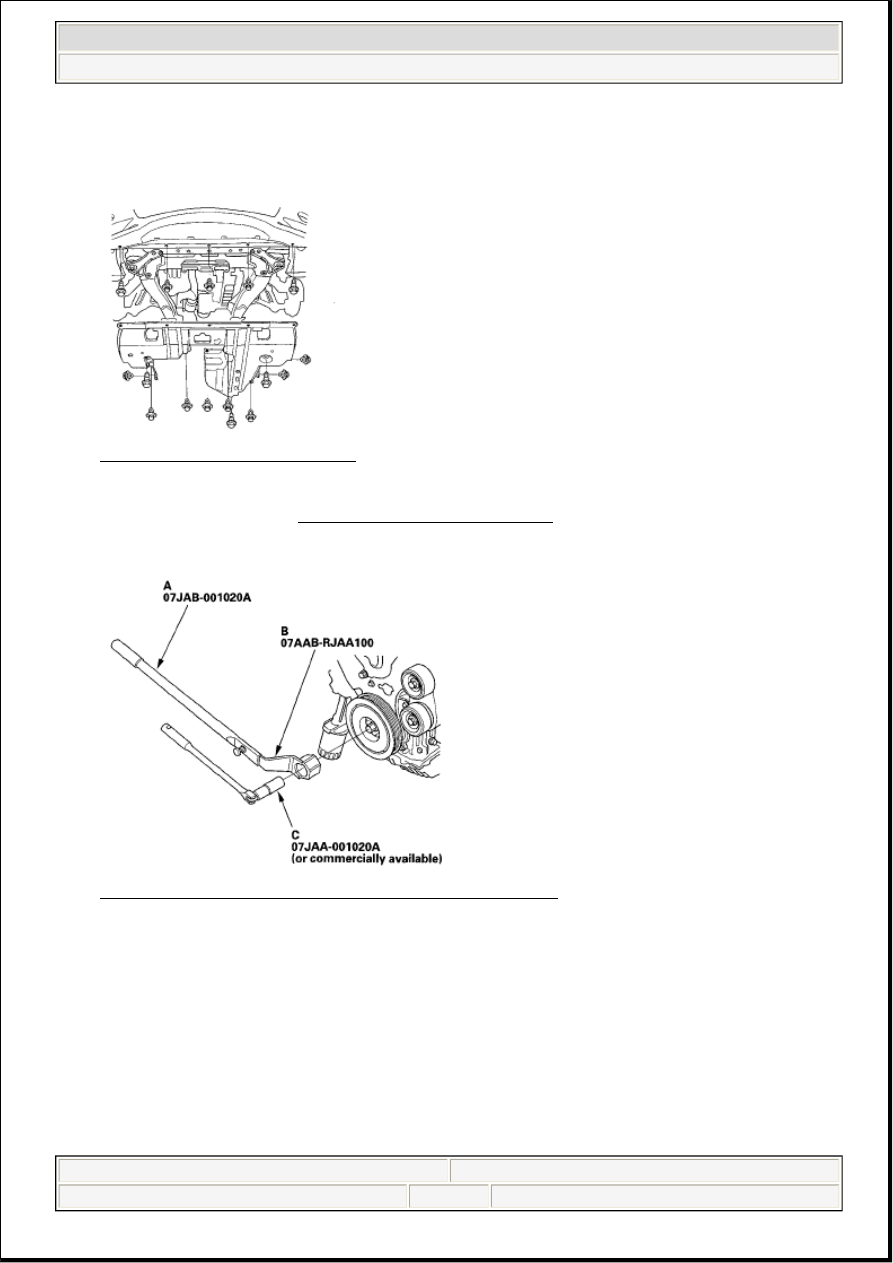

Fig. 20: Identifying Splash Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the drive belt (see DRIVE BELT REPLACEMENT ).

4. Hold the pulley with the holder handle (A) and holder attachment (B).

Fig. 21: Identifying Holder Handle And Holder Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the bolt with a heavy duty 19 mm socket (C) and breaker bar, then remove the crankshaft

pulley.

INSTALLATION

1. Remove any oil or clean the pulleys (A), crankshaft (B), bolt (C), and washer (D). Lubricate with new

engine oil as shown.

2007 Acura RL

2005-08 ENGINE Cylinder Head - RL

Friday, June 05, 2009 3:18:36 PM

Page 13

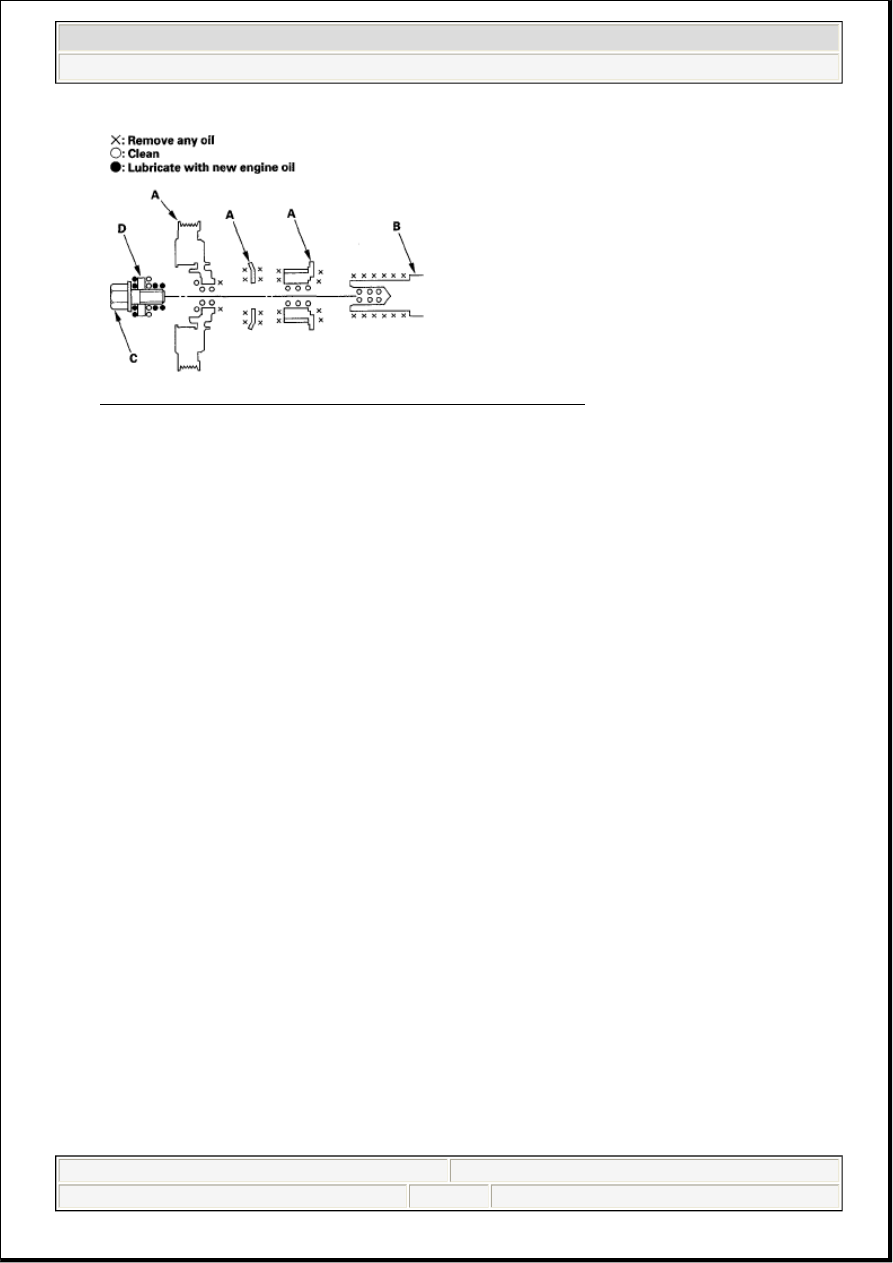

Fig. 22: Identifying Cleaning Areas Of Pulleys And Crankshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the crankshaft pulley, and tighten the bolt. Do not use an impact wrench.

1. Hold the pulley with the holder handle (A) and holder attachment (B), then torque the bolt to 64

N.m (6.5 kgf.m, 47 lbf.ft) with a torque wrench and 19 mm socket (C).

2. Mark the bolt head (D) and crankshaft pulley (E) as shown, then tighten the bolt an additional

60° (The mark on the bolt head lines up with the mark on the crankshaft pulley).

2007 Acura RL

2005-08 ENGINE Cylinder Head - RL

Friday, June 05, 2009 3:18:36 PM

Page 14

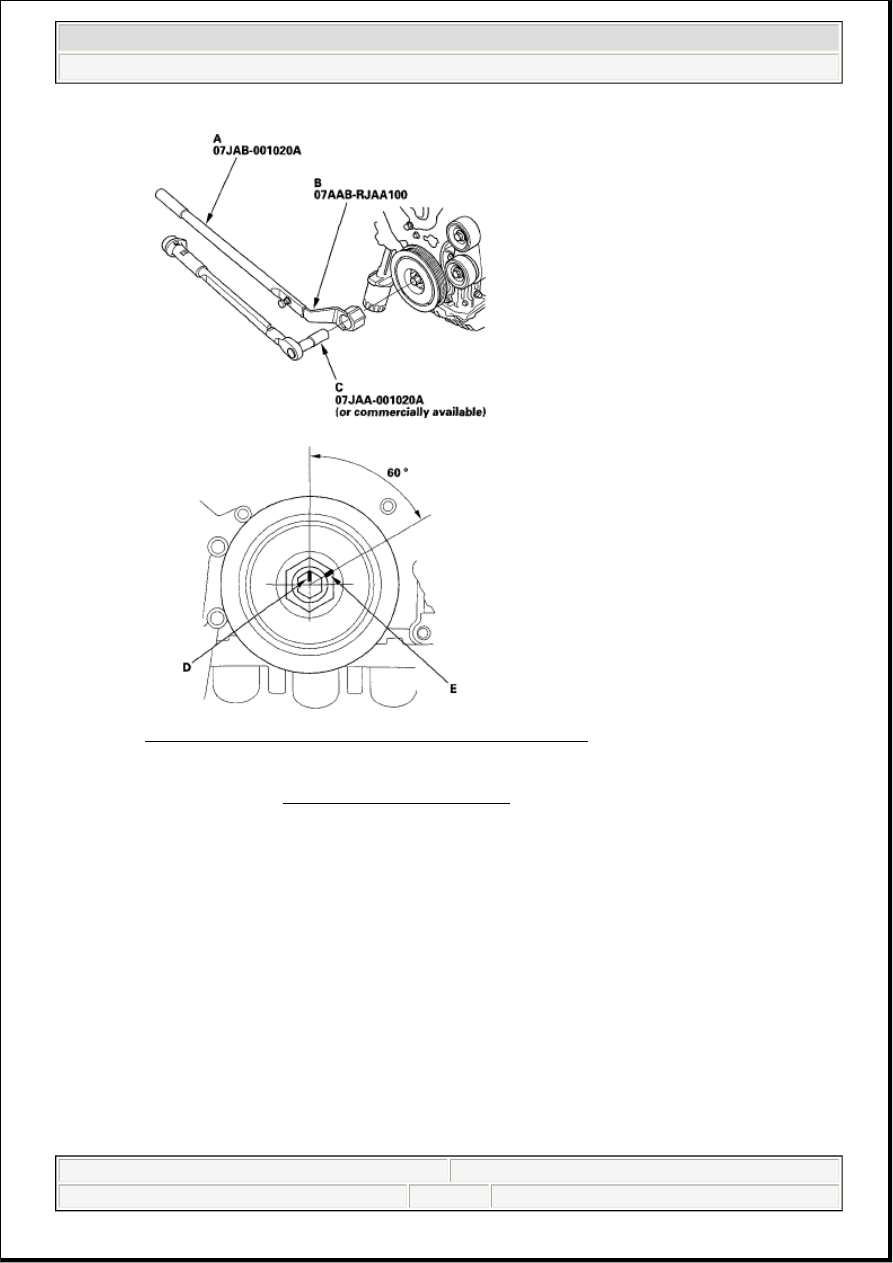

Fig. 23: Installing Crankshaft Pulley And Tightening Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the drive belt (see DRIVE BELT INSPECTION ).

4. Install the splash shield.

5. Install the right front wheel.

TIMING BELT INSPECTION

1. Remove the right upper fender trim.

2007 Acura RL

2005-08 ENGINE Cylinder Head - RL

Friday, June 05, 2009 3:18:36 PM

Page 15

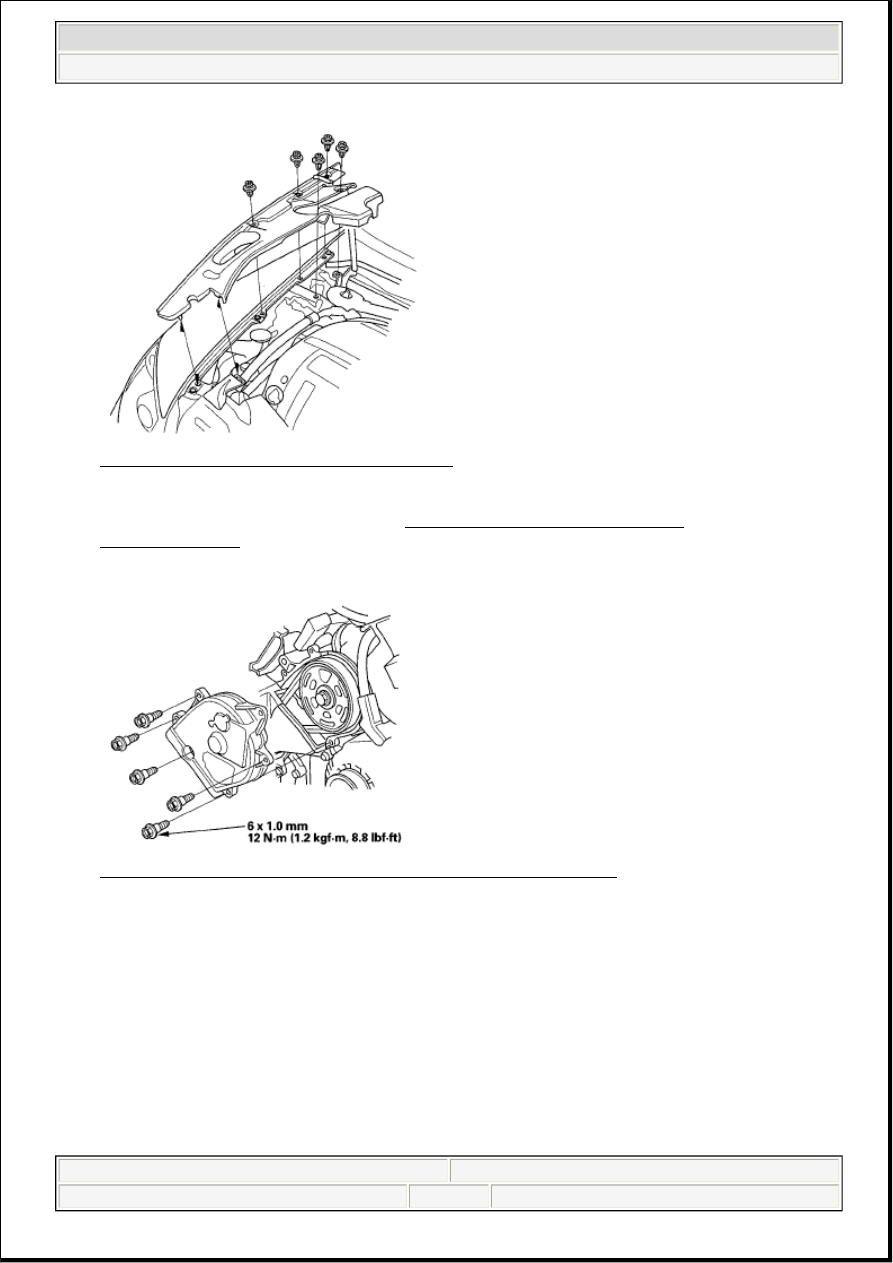

Fig. 24: Identifying Right Upper Fender Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the drive belt auto-tensioner (see DRIVE BELT AUTO-TENSIONER

REPLACEMENT ).

3. Remove the front upper cover.

Fig. 25: Identifying Front Upper Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the timing belt for cracks and oil or coolant soaking. Replace the belt if it is cracked or

soaked. Remove any oil or solvent that gets on the belt.

2007 Acura RL

2005-08 ENGINE Cylinder Head - RL

Friday, June 05, 2009 3:18:36 PM

Page 16
