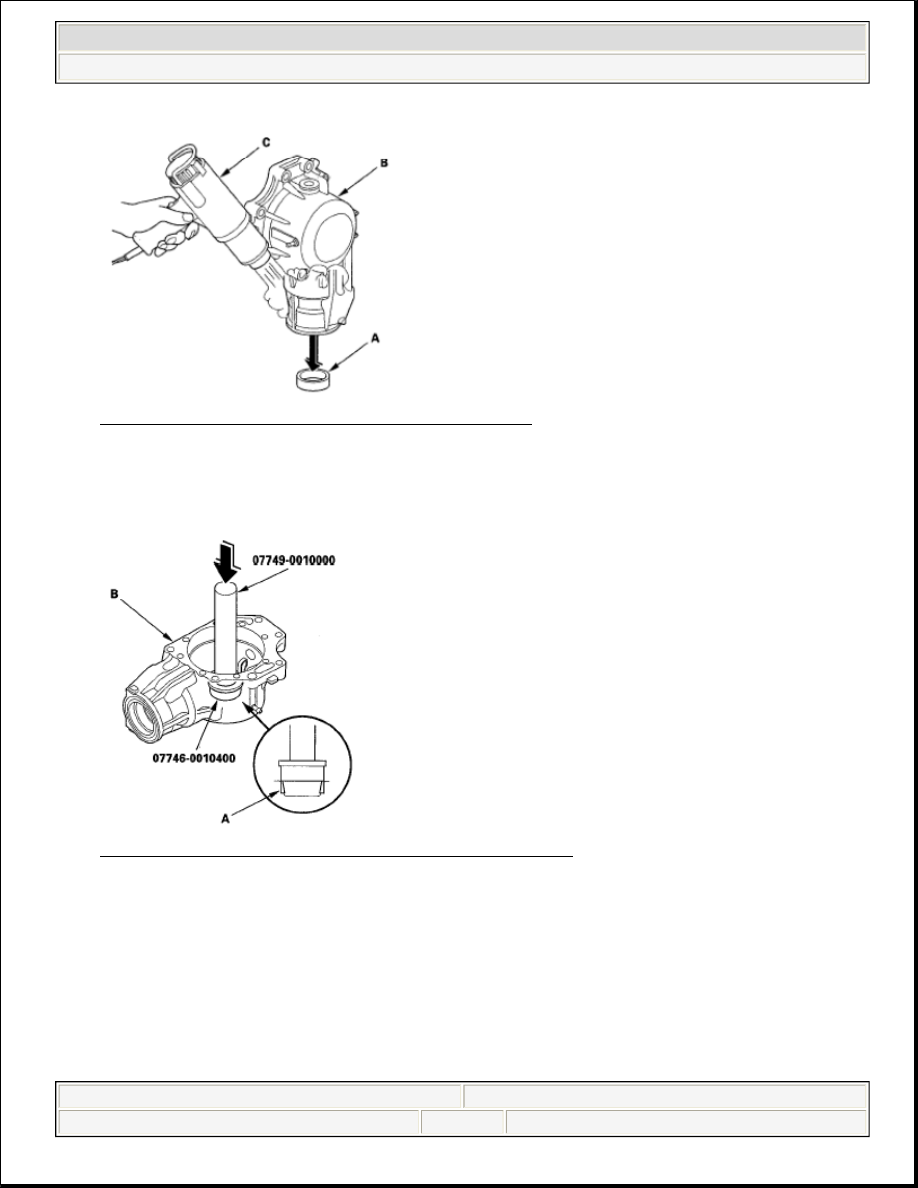

Fig. 673: Removing Bearing Outer Race With Heat Gun
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the 52 mm bearing outer race (A) until it bottoms in the transfer housing (B) using the driver and

the attachment (52 x 55 mm);

Fig. 674: Pressing Bearing Outer Race Into Transfer Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the 75 mm bearing outer race (A) and 65 mm bearing outer race (B) in the transfer housing (C), set

the attachment (65 mm) and the tapered bearing race installer A over the races, and install the installer
shaft through the attachment and installer.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 571

© 2005 Mitchell Repair Information Company, LLC.

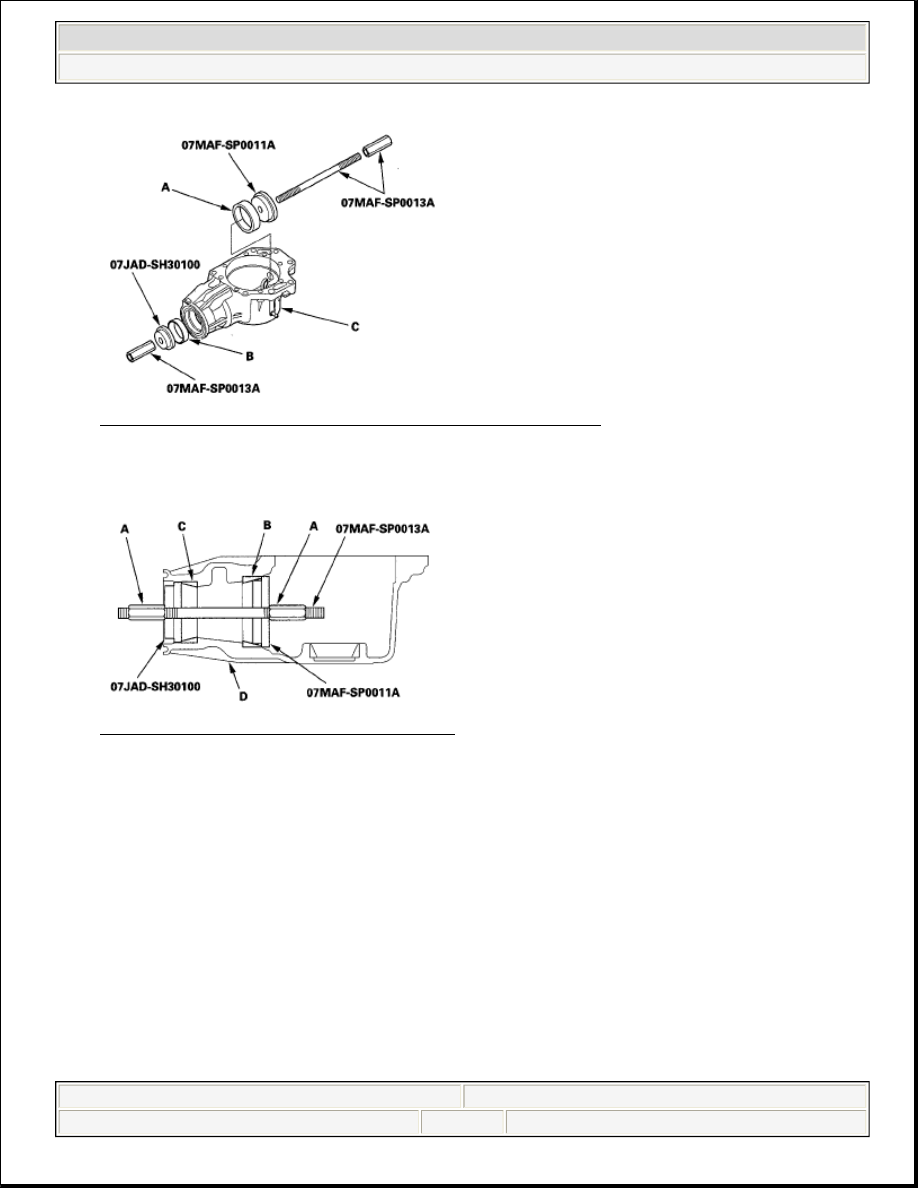

Fig. 675: Identifying Bearing Outer Races And Transfer Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Tighten the installer shaft nut (A) to install the races (B) (C) into the transfer housing (D) securely.

Fig. 676: Installing Races Using Race Installer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER COVER TAPERED ROLLER BEARING OUTER RACE REMOVAL/INSTALLATION

Special Tools Required



Driver 07749-0010000



Attachment, 78 x 80 mm 07NAD-PX40100

1. Remove the bearing outer race (A) and 80 mm thrust shim (B)from the transfer cover (C). If the bearing

outer race is press-fitted, remove the outer race by heating the cover to about 212°F (100°C) with a heat
gun (D). Do not heat the cover more than 212°F (100°C).

NOTE:

Replace the bearing with a new one whenever the outer race is replaced.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 572

© 2005 Mitchell Repair Information Company, LLC.

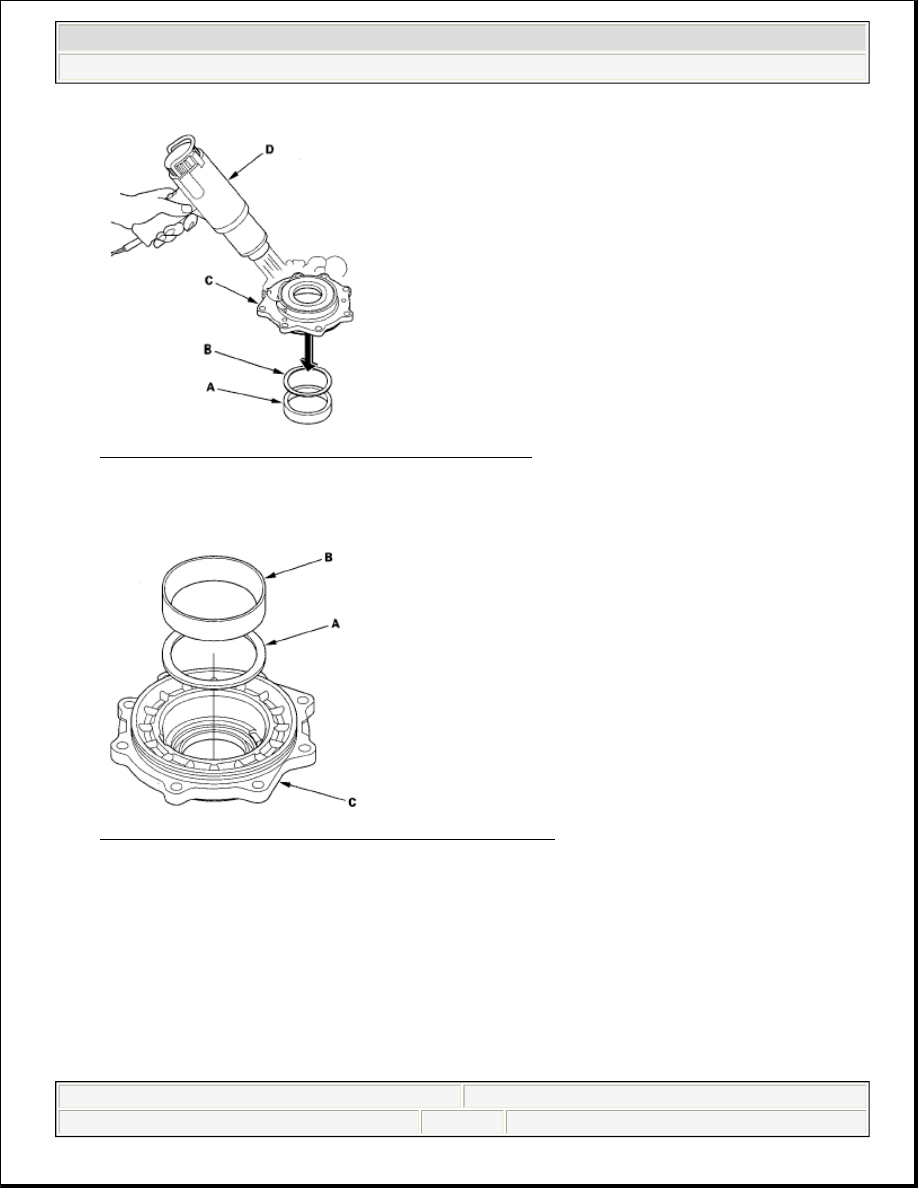

Fig. 677: Removing Bearing Outer Race With Heat Gun
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the 80 mm thrust shim (A) and bearing outer race (B) in the transfer cover (C).

Fig. 678: Identifying Thrust Shim And Bearing Outer Race
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Drive the outer race securely in the cover using the driver and the attachment (78 x 80 mm) so there is no

clearance between the outer race, thrust shim, and cover.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 573

© 2005 Mitchell Repair Information Company, LLC.

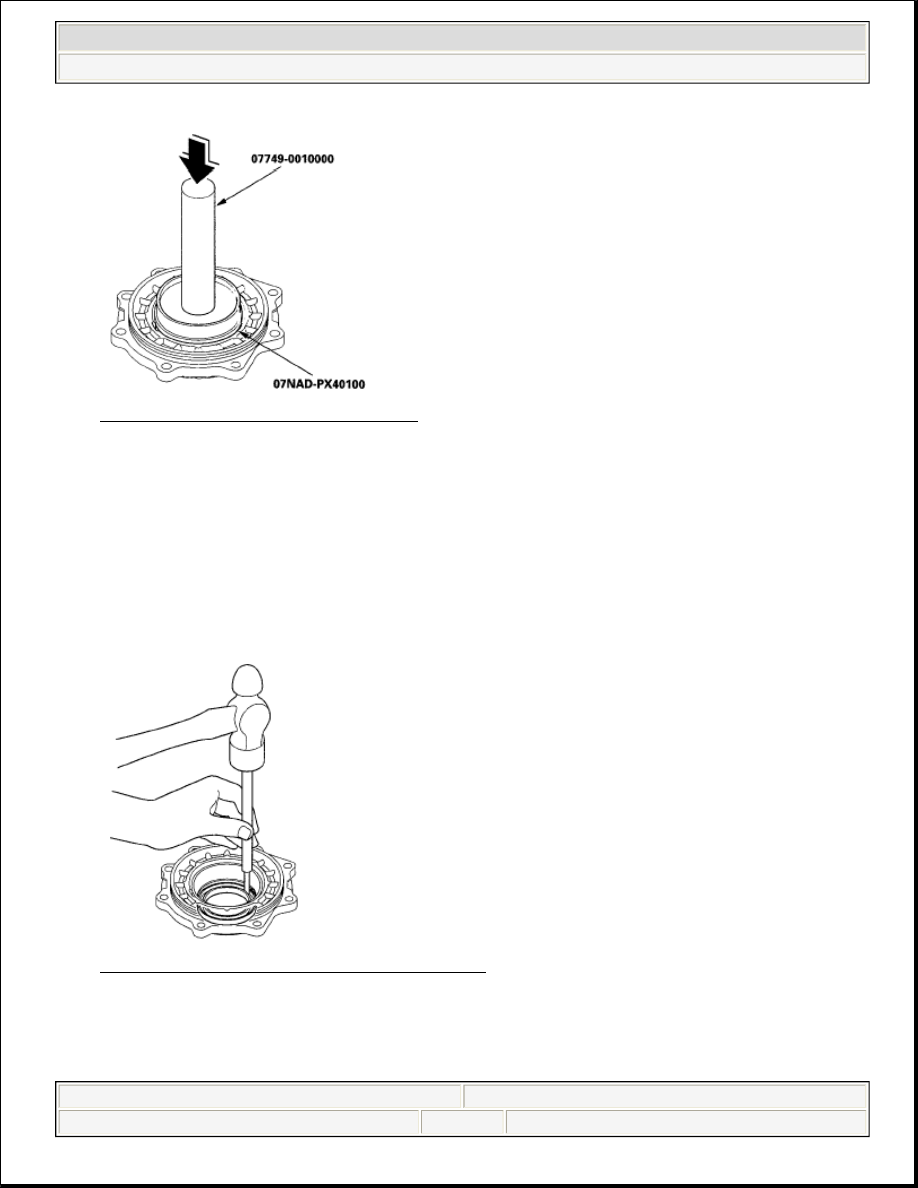

Fig. 679: Pressing Outer Race Into Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER COVER OIL SEAL REPLACEMENT

Special Tools Required



Driver 07749-0010000



Attachment, 65 mm 07JAD-SH30100

1. Remove the oil seal from the transfer cover.

Fig. 680: Removing Oil Seal From Transfer Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the new oil seal (A) in the transfer cover (B) to a height (C) of 0-1 mm (0-0.04 in.) above the cover

surface using the driver and the attachment (65 mm).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 574
