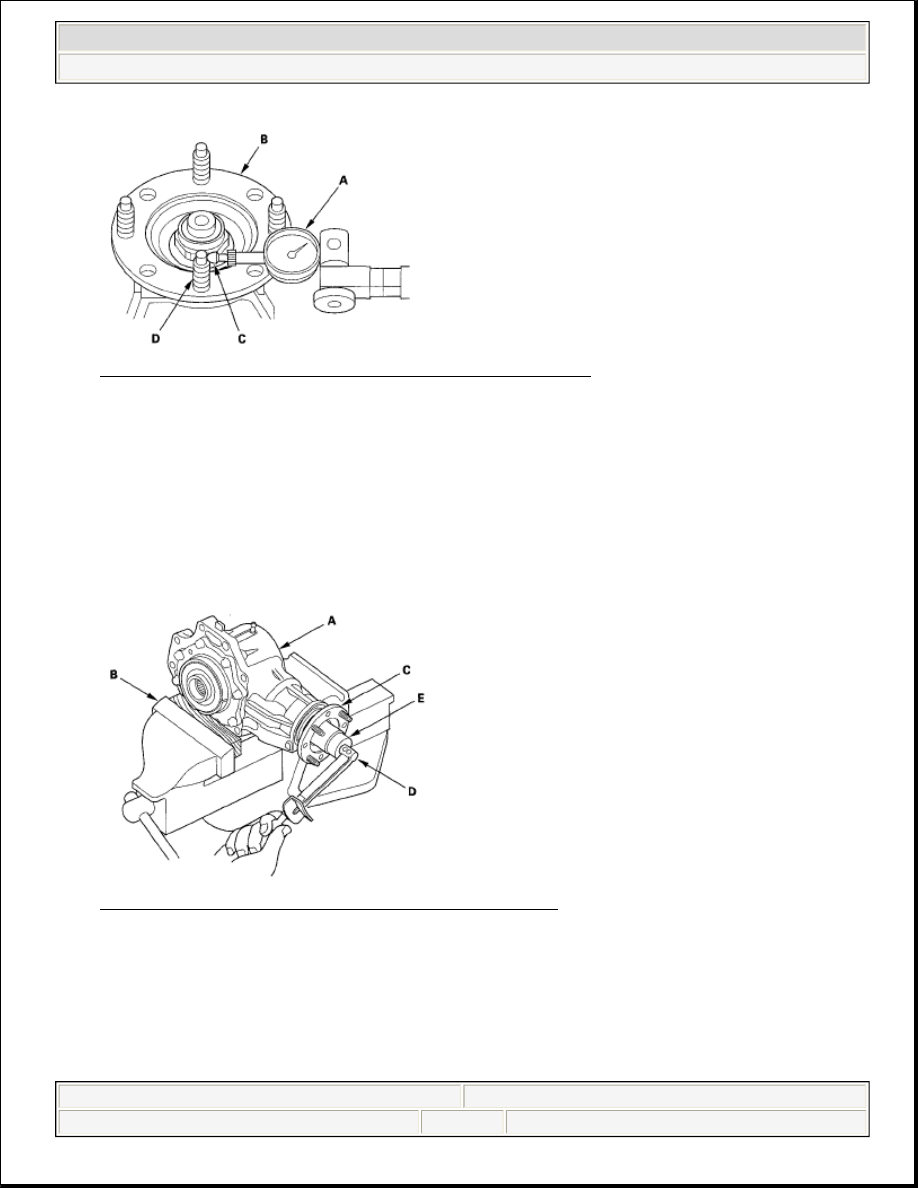

Fig. 659: Setting Dial Indicator On Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Measure transfer gear backlash.

Standard: 0.06-0.16 mm (0.002-0.006 in.)

Total Starting Torque Measurement

3. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damaging the transfer

housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig. 660: Measuring Starting Torque At Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Rotate the transfer companion flange several times to seat the tapered roller bearings.

5. Measure the starting torque at the companion flange (C) using a torque wrench (D) and a socket (E).

Standard: 2.12-3.45 N.m

(21.6-35.2 kgf.cm, 18.7-30.6 lbf.in.)



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 563

© 2005 Mitchell Repair Information Company, LLC.

6. If the starting torque is out of standard, disassemble the transfer assembly and repair it.

DISASSEMBLY

Exploded View

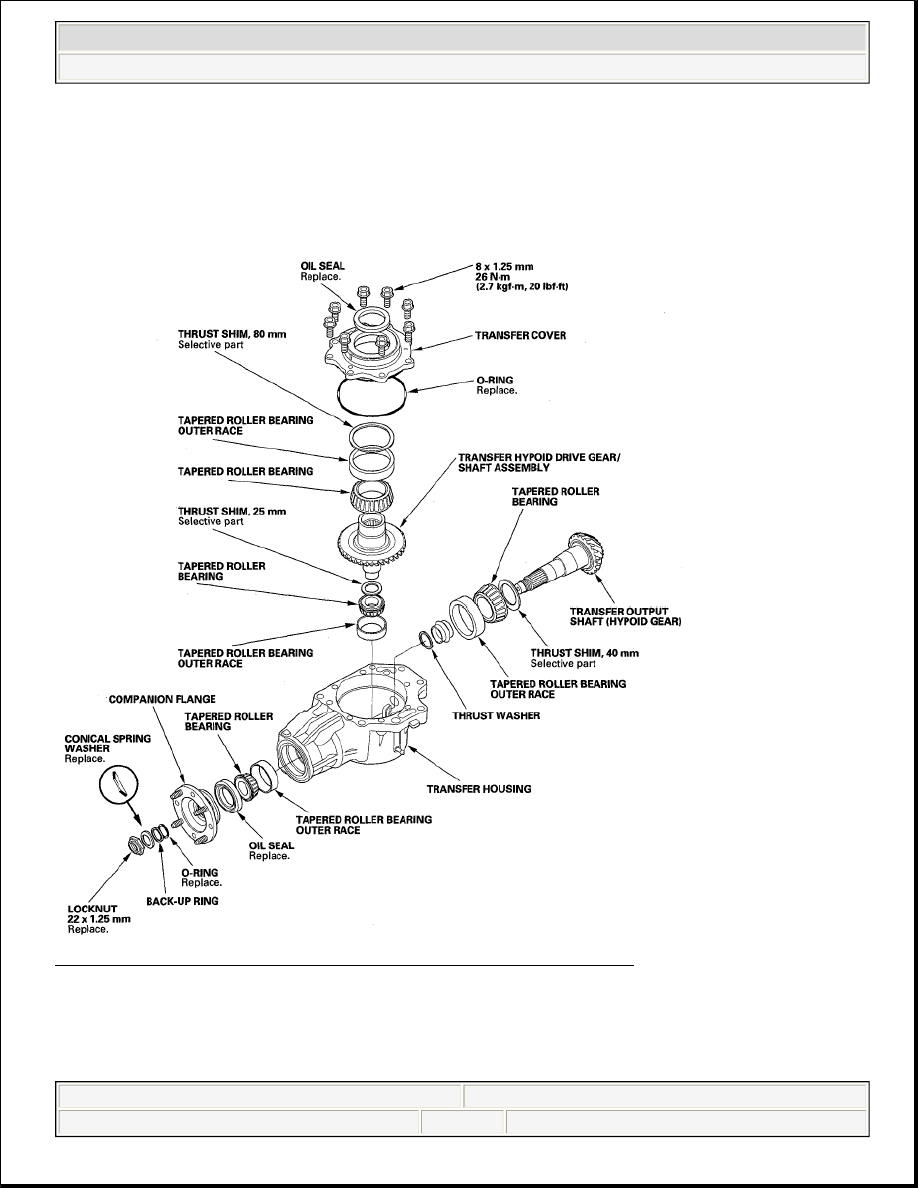

Fig. 661: Exploded View Of Transfer Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Companion flange holder 07XAB-0010101



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 564

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the transfer cover (A) from the transfer housing (B).

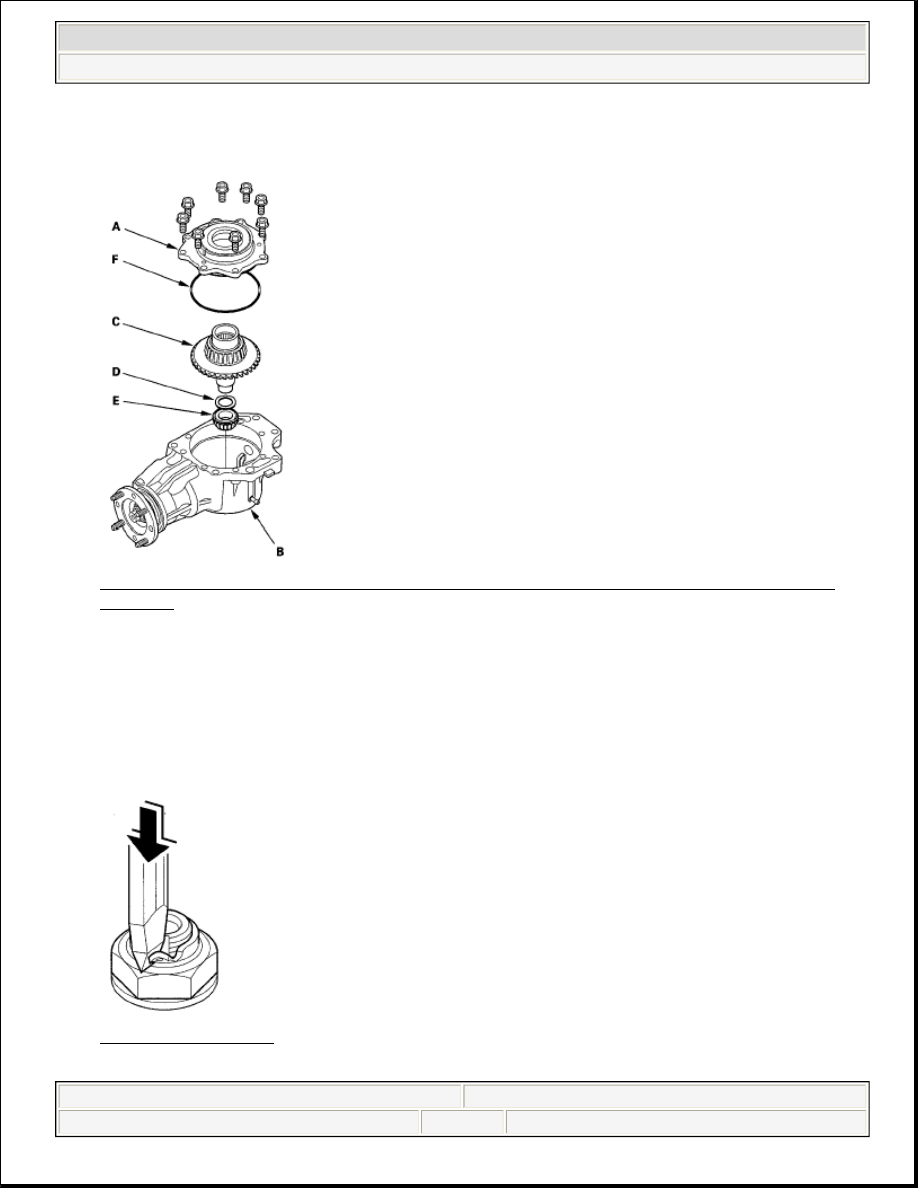

Fig. 662: Identifying Transfer Cover, Transfer Housing And Transfer Hypoid Drive Gear/Shaft
Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the transfer hypoid drive gear/shaft assembly (C), 25 mm thrust shim (D), and tapered roller

bearing (E).

3. Remove the O-ring (F) from the cover.

4. Drain the transfer fluid (hypoid gear oil) from the transfer housing.

5. Cut the lock tab on the locknut using a chisel.

Fig. 663: Cutting Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 565

© 2005 Mitchell Repair Information Company, LLC.

6. Secure the transfer housing in a bench vise with soft jaws. To prevent damage to the transfer housing,

always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig. 664: Removing Transfer Housing Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the companion flange holder on the companion flange, then loosen the locknut.

8. Remove the companion flange holder.

9. Remove the locknut (A), conical spring washer (B), back-up ring (C), O-ring (D), and companion flange

(E) from the transfer output shaft (hypoid gear) (F).

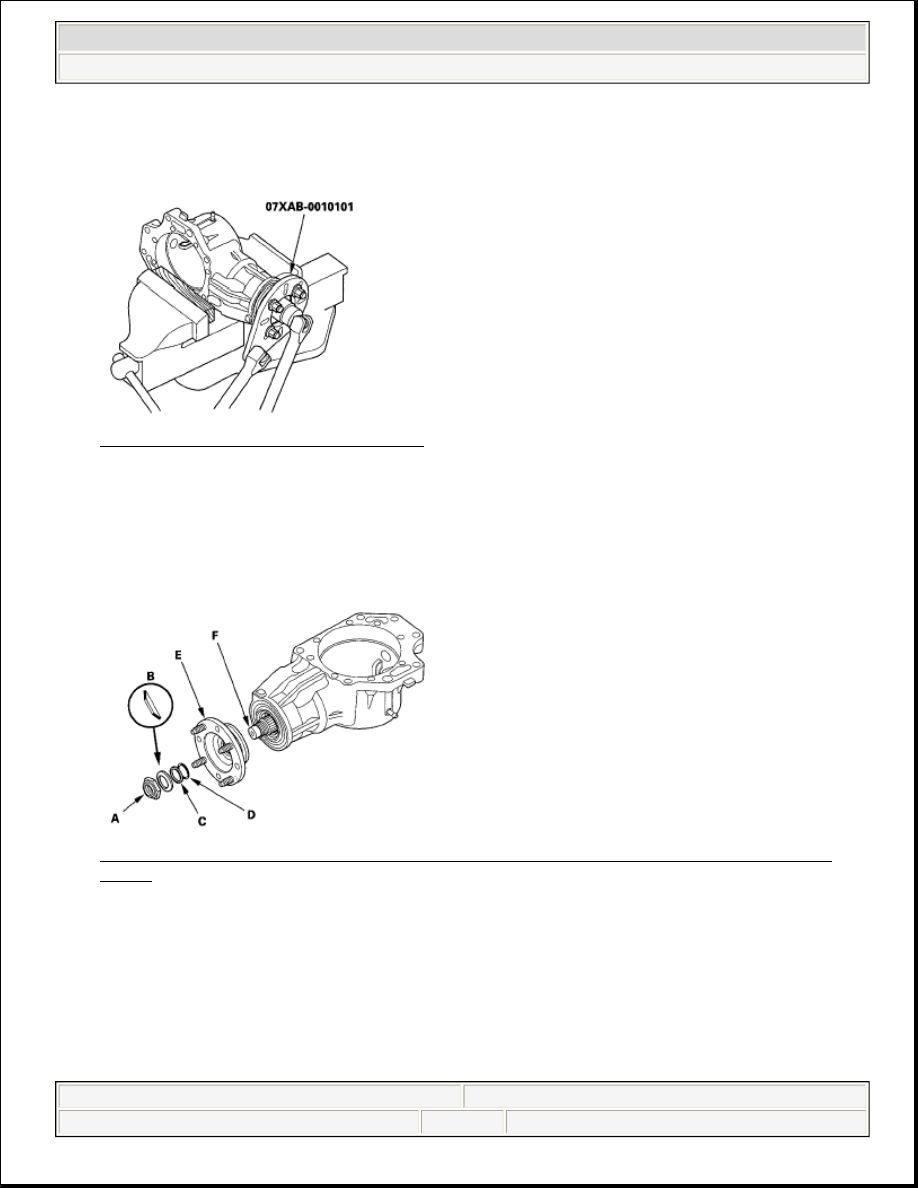

Fig. 665: Identifying Locknut, Conical Spring Washer, Back-Up Ring, O-Ring And Companion
Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the transfer output shaft (hypoid gear) (A) from the transfer housing (B), then remove the thrust

washer (C) and transfer spacer (D) from the transfer output shaft (hypoid gear).
