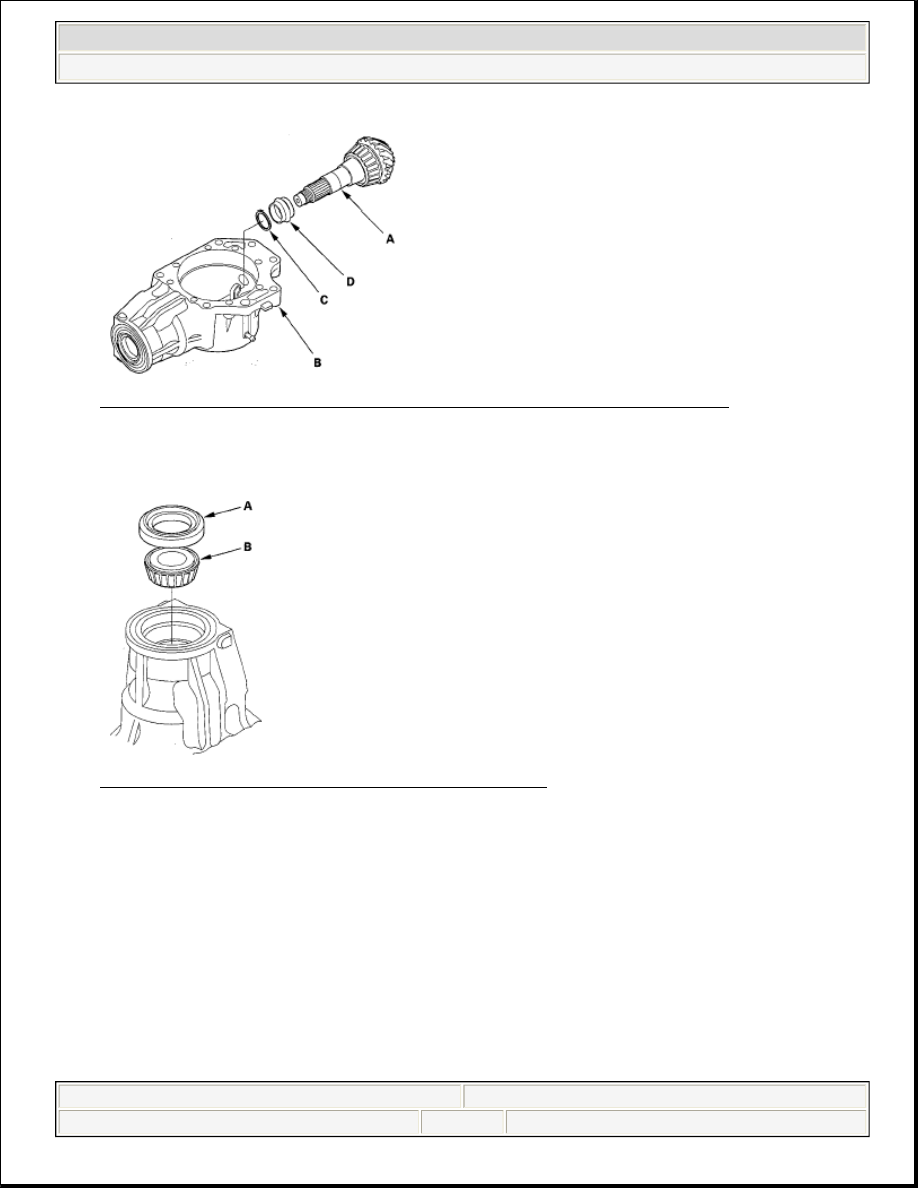

Fig. 666: Identifying Thrust Washer, Transfer Spacer And Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing.

Fig. 667: Identifying Oil Seal And Tapered Roller Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER HYPOID DRIVE GEAR BEARING REPLACEMENT

Special Tools Required



Driver 07749-0010000



Attachment, 42 x 47 mm 07746-0010300



Attachment, 40 x 50 mm 07LAD-PW50601

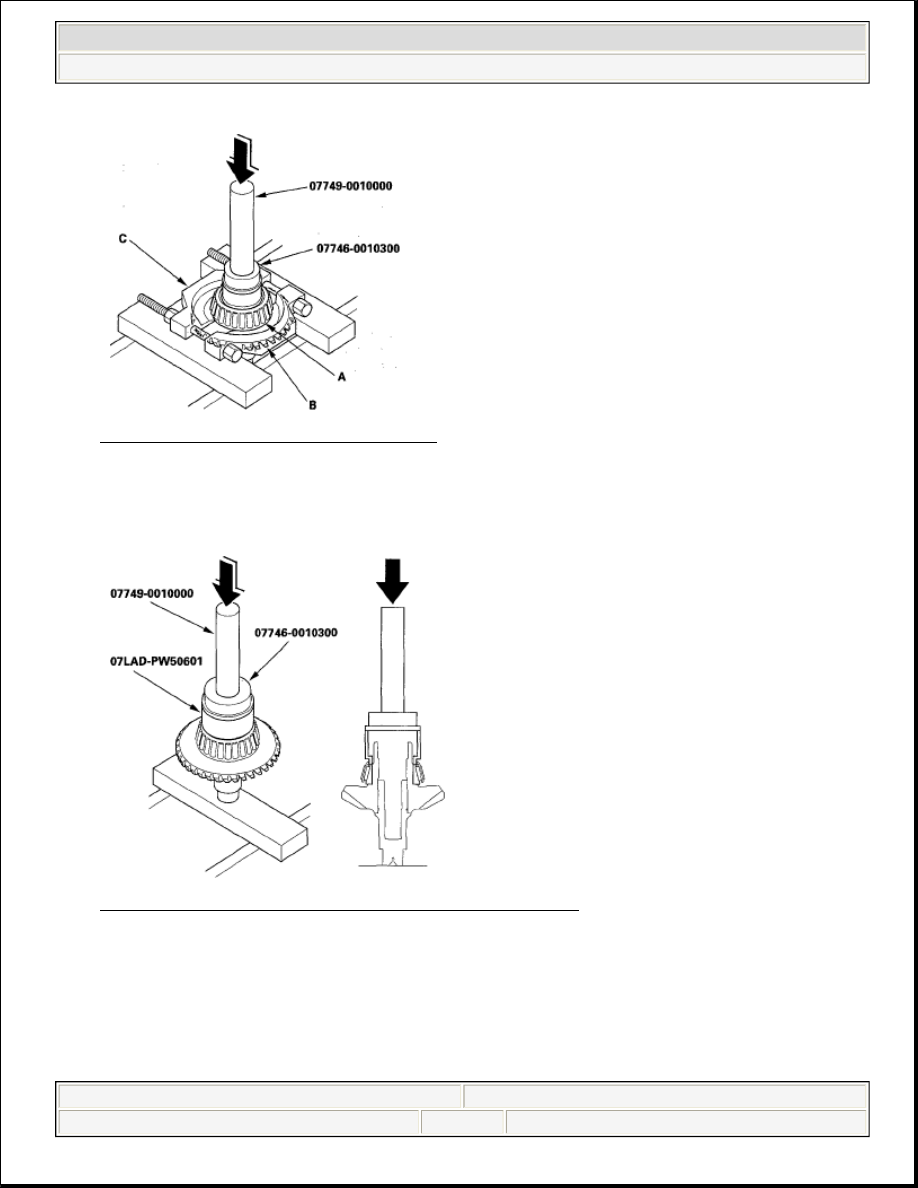

1. Remove the tapered roller bearing (A) from the transfer hypoid drive gear (B) using the driver, the

attachment (42 x 47 mm), bearing separator (C) and a press.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 567

© 2005 Mitchell Repair Information Company, LLC.

Fig. 668: Removing Tapered Roller Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the new bearing on the transfer hypoid drive gear using the driver, the attachment (40 x 50 mm),

and a press.

Fig. 669: Installing Bearing Onto Transfer Hypoid Drive Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER OUTPUT SHAFT (HYPOID GEAR) BEARING REMOVAL/INSTALLATION

Special Tools Required

Driver, 40 mm I.D. 07746-0030100



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 568

© 2005 Mitchell Repair Information Company, LLC.

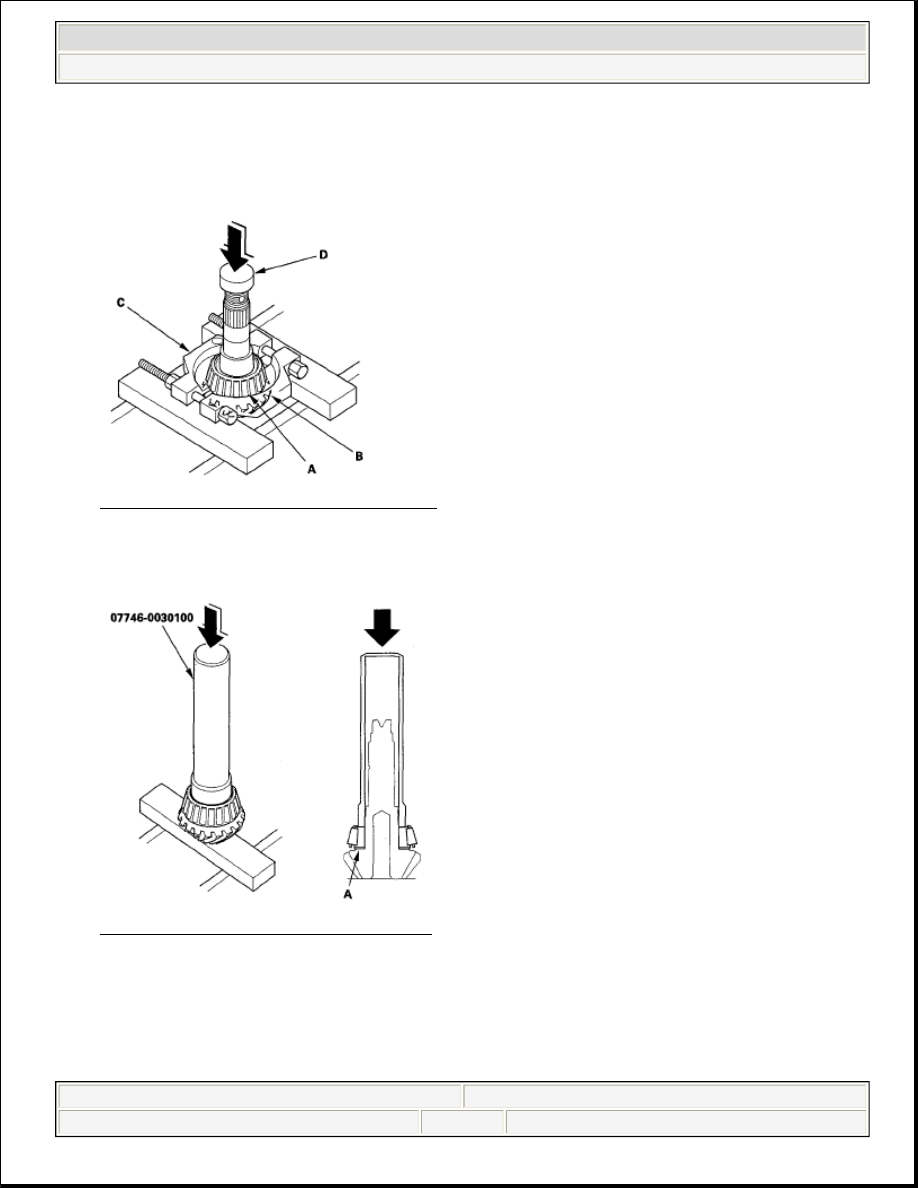

1. Remove the tapered roller bearing (A) from the transfer output shaft (hypoid gear) (B) with a bearing

separator (C) and a press. Place a shaft protector (D) between the transfer output shaft and a press to
prevent damaging the shaft.

Fig. 670: Removing Tapered Roller Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the 40 mm thrust shim (A) over the transfer output shaft (hypoid gear).

Fig. 671: Installing Tapered Roller Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the tapered roller bearing over the transfer output shaft (hypoid gear) using the driver (40 mm I.D.)

and a press.

TRANSFER HOUSING TAPERED ROLLER BEARING OUTER RACE REPLACEMENT



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:19 PM

Page 569

© 2005 Mitchell Repair Information Company, LLC.

Special Tools Required



Driver 07749-0010000



Attachment, 52 x 55 mm 07746-0010400



Attachment, 65 mm 07JAD-SH30100



Tapered bearing race installer A 07MAF-SP0011A



Installer shaft 07MAF-SP0013A

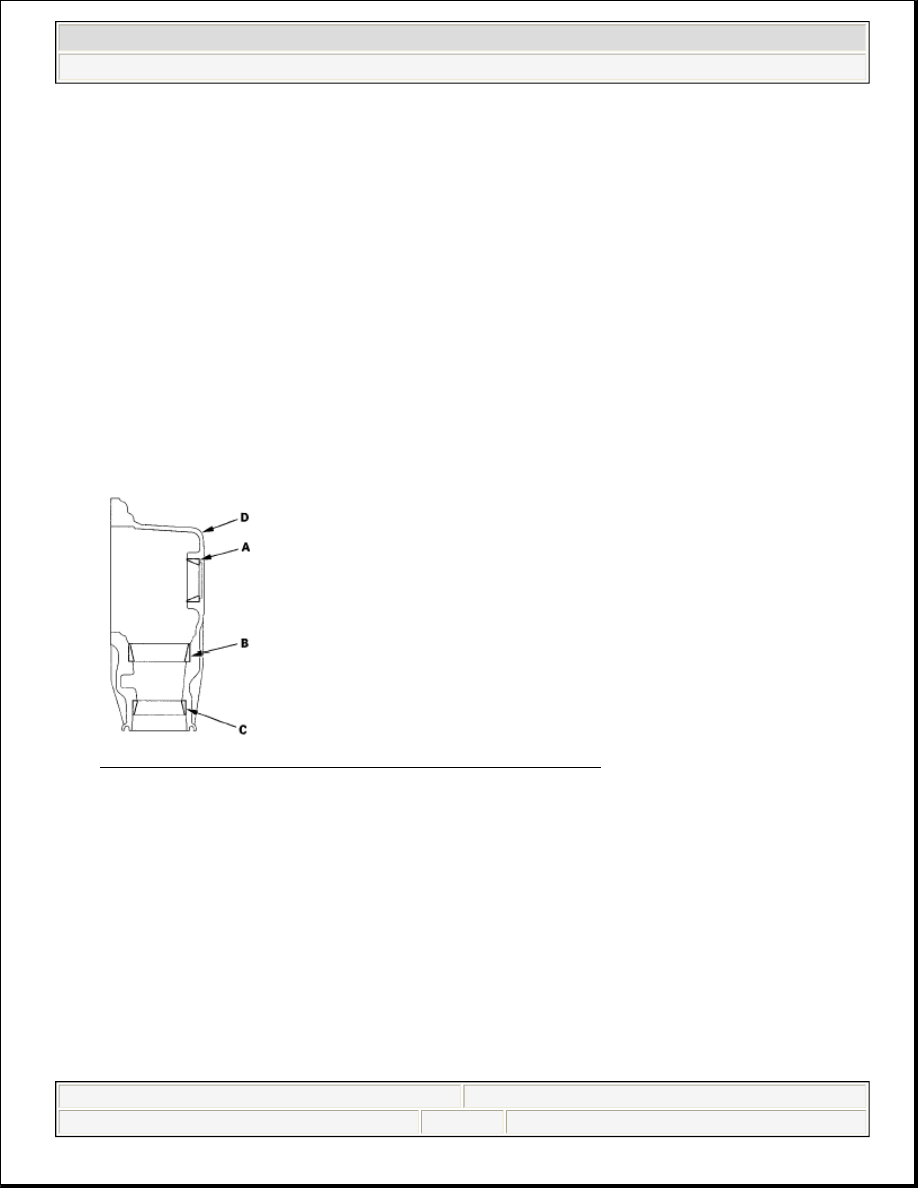

1. Remove the 52 mm bearing outer race (A), 75 mm outer race (B), and 65 mm outer race (C) from the

transfer housing (D).

Fig. 672: Identifying Bearing Outer Races And Transfer Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the press-fitted bearing outer race (A) from the transfer housing (B) by heating the housing to

about 212°F (100°C) with a heat gun (C). Do not heat the housing more than 212°F (100°C).

NOTE:

Replace the bearing with a new one whenever the outer race is replaced.

NOTE:

Some bearing outer races (52 mm, 65 mm, and 75 mm) are press-fitted in
the housing and must be removed by heating the housing.
