Acura RL. Manual - part 320



Attachment, 37 x 40 mm 07746-0010200



Attachment, 62 x 68 mm 07746-0010500

1. Remove the bolt, then remove the lock washer (A) and bearing set plate (B).

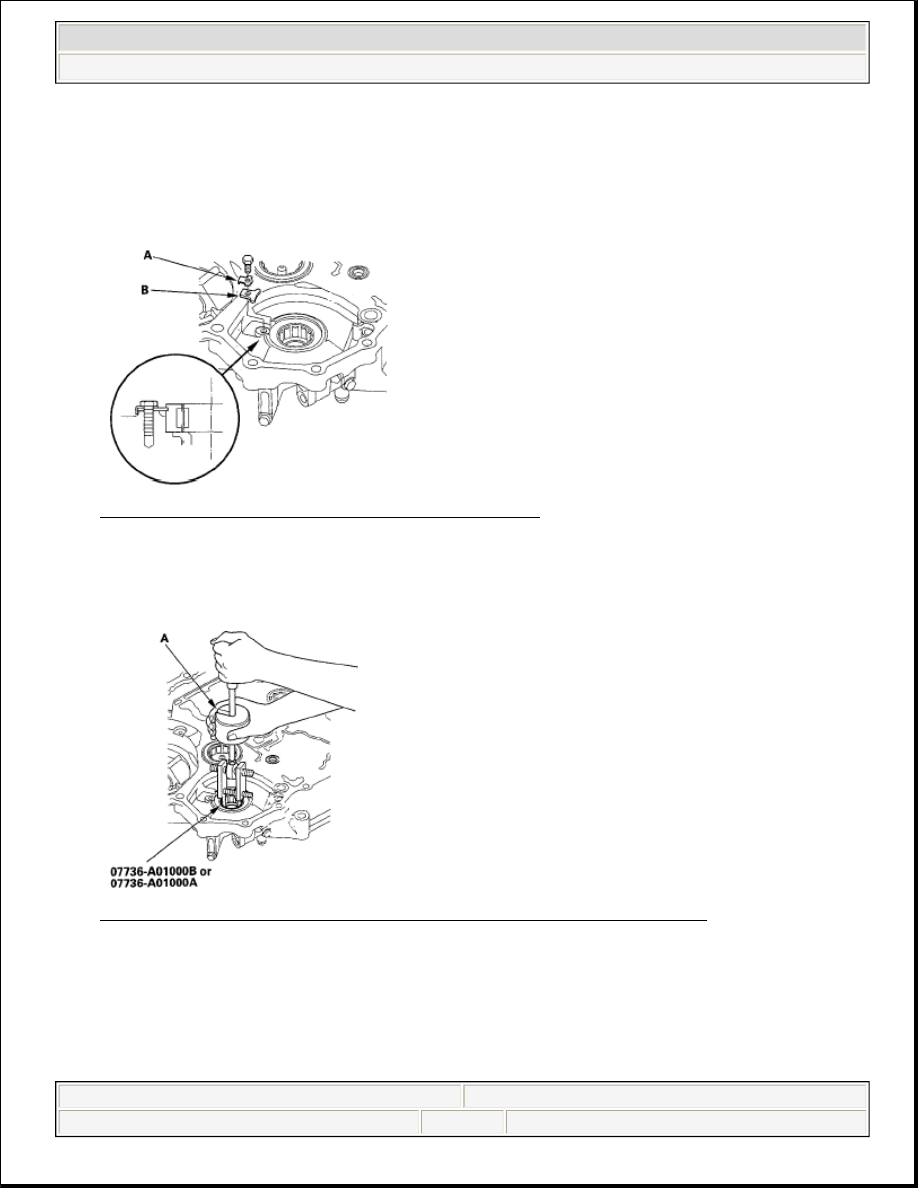

Fig. 479: Identifying Lock Washer And Bearing Set Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the secondary shaft bearing from the torque converter housing using the adjustable bearing puller

(25-40 mm) and a commercially available 3/8 "-16 slide hammer (A).

Fig. 480: Removing Secondary Shaft Bearing From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the ATF guide collar from the torque converter housing.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 451

© 2005 Mitchell Repair Information Company, LLC.

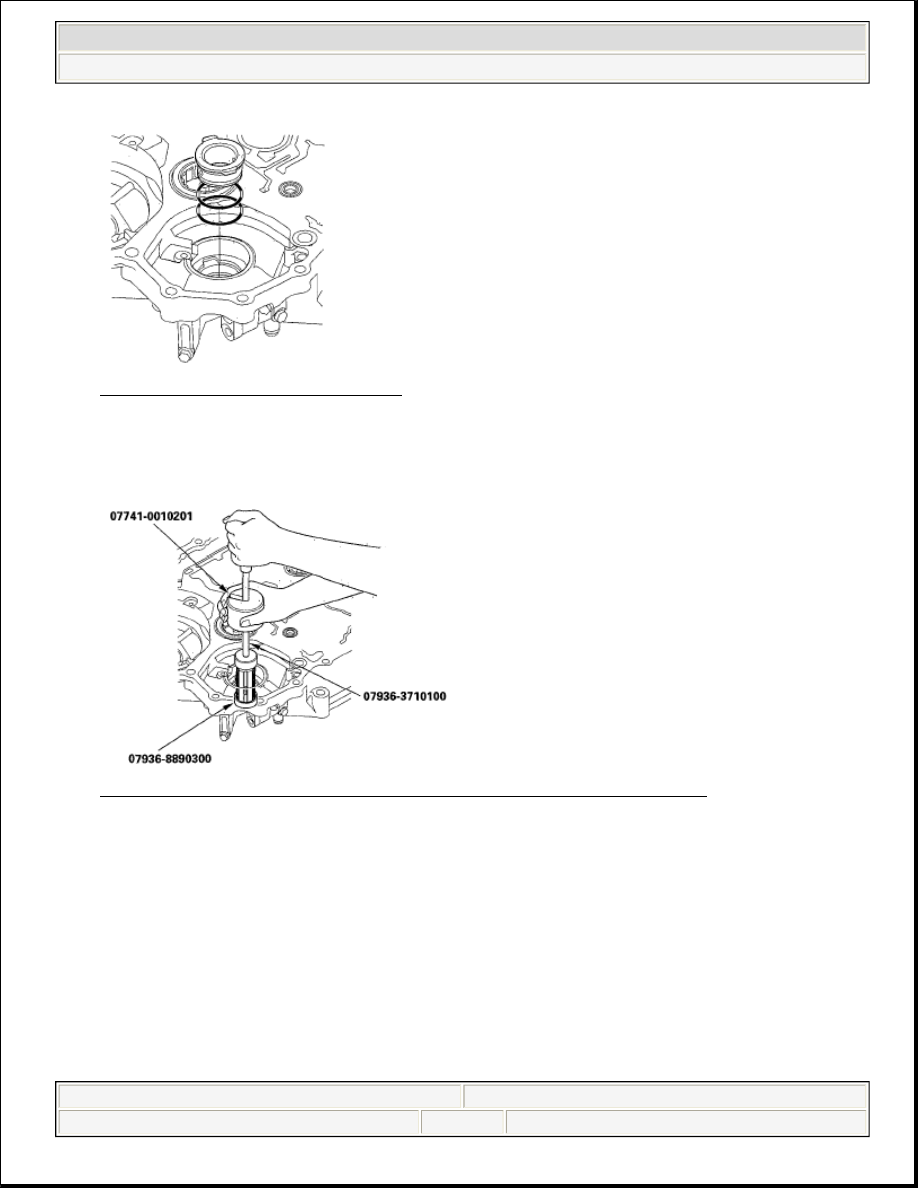

Fig. 481: Identifying ATF Guide Collar
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the 29 x 39 x 9.5 mm secondary shaft bearing from the torque converter housing using the

bearing remover shaft set (30 mm), the bearing remover shaft handle, and the sliding hammer weight.

Fig. 482: Removing Secondary Shaft Bearing From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the 29 x 39 x 9.5 mm bearing into the torque converter housing using the driver and the attachment

(37 x 40 mm).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 452

© 2005 Mitchell Repair Information Company, LLC.

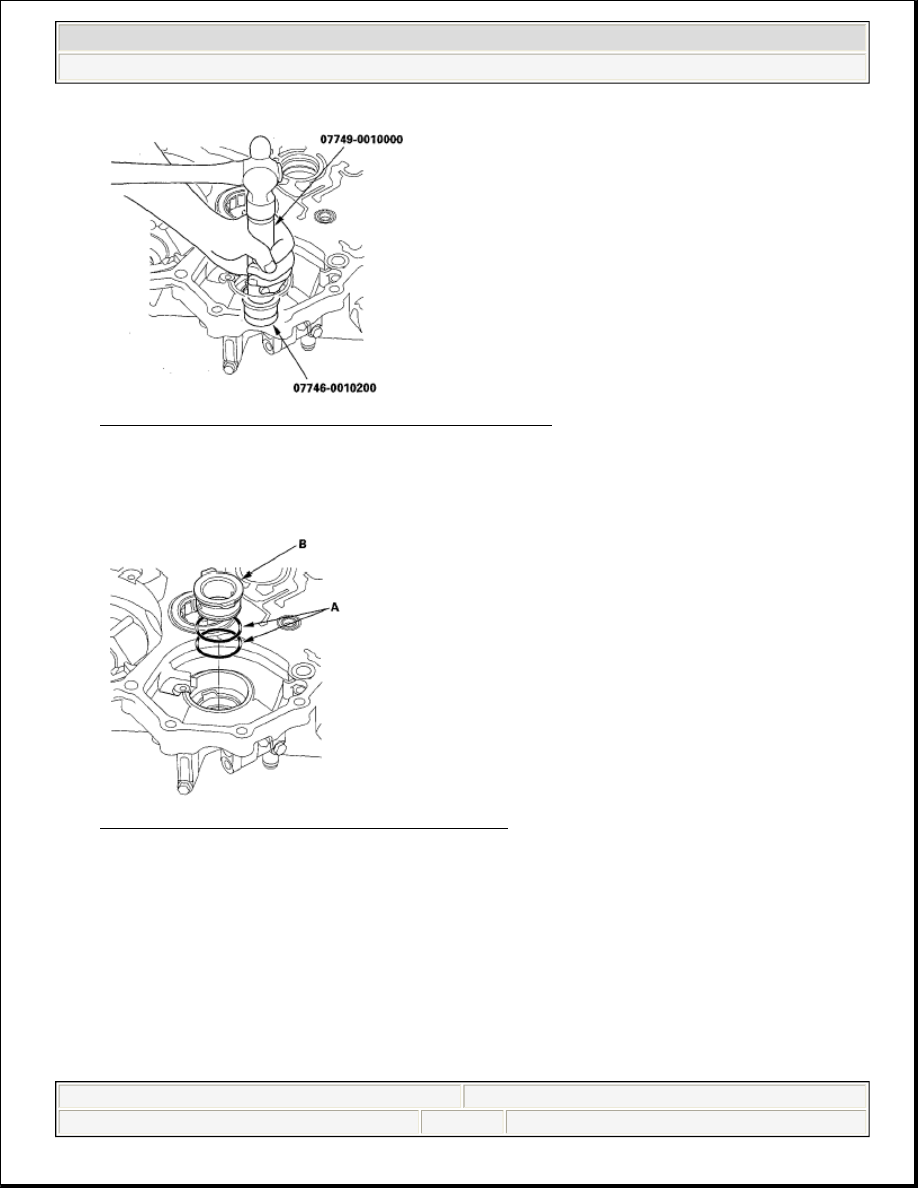

Fig. 483: Tapping Bearing Into Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the new O-rings (A) on the ATF guide collar (B), then install the guide collar in the torque

converter housing.

Fig. 484: Identifying ATF Guide Collar And O-Rings
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the bearing in the direction shown in the housing using the driver and the attachment (62x68 mm).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 453

© 2005 Mitchell Repair Information Company, LLC.

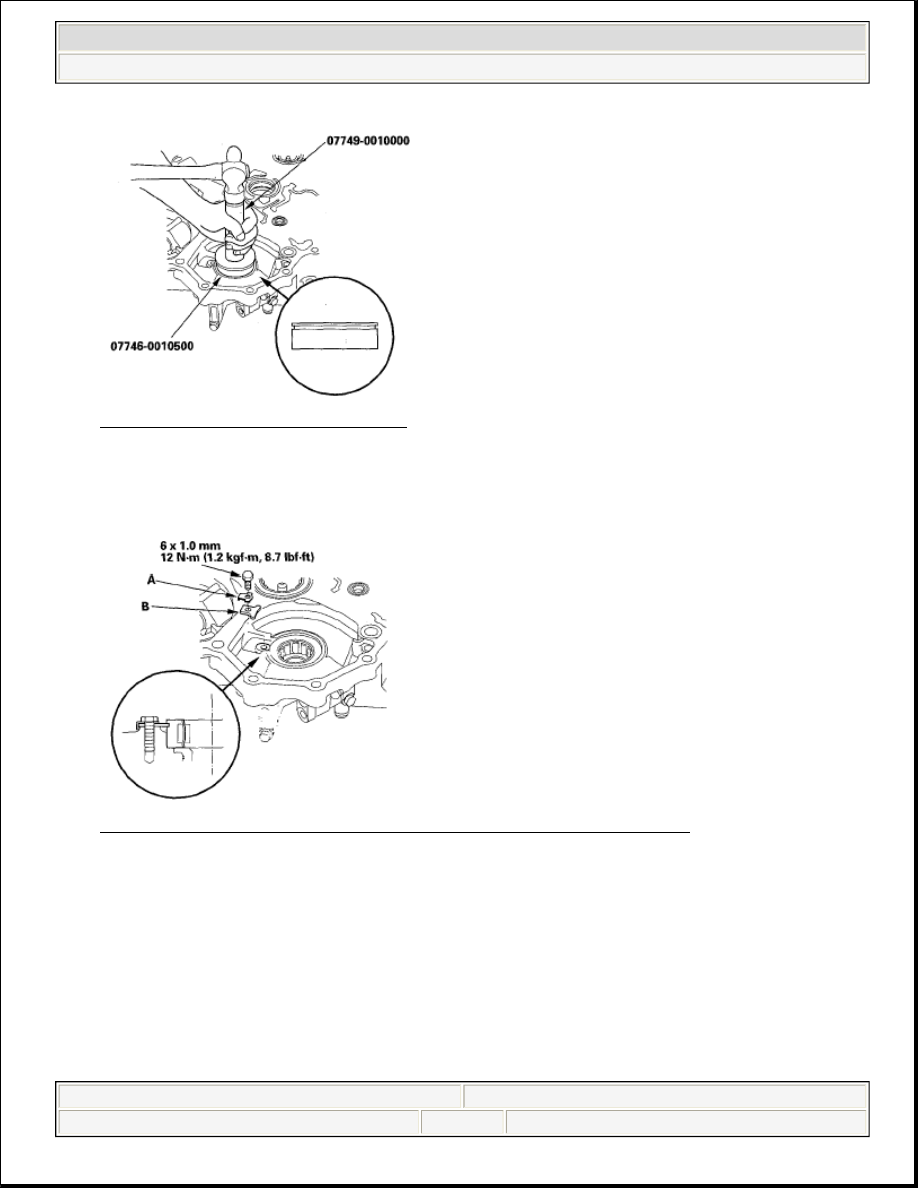

Fig. 485: Tapping Bearing Into Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Check that the bearing groove aligns with the set plate mounting surface, then install the set plate (A) by

aligning it with the bearing groove.

Fig. 486: Identifying Set Plate And Lock Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the new lock washer (B) and bolt, then bend the lock tab of the lock washer against the bolt head.

INTERMEDIARY SHAFT BEARING REPLACEMENT

Special Tools Required



Adjustable bearing puller, 25-40 mm 07736-A01000B or 07736-A01000A



Driver 07749-0010000



Attachment, 52 x 55 mm 07746-0010400
