1. Remove the intermediary shaft bearing from the torque converter housing using the adjustable bearing

puller (25-40 mm) and a commercially available 3/8 "-16 slide hammer (A).

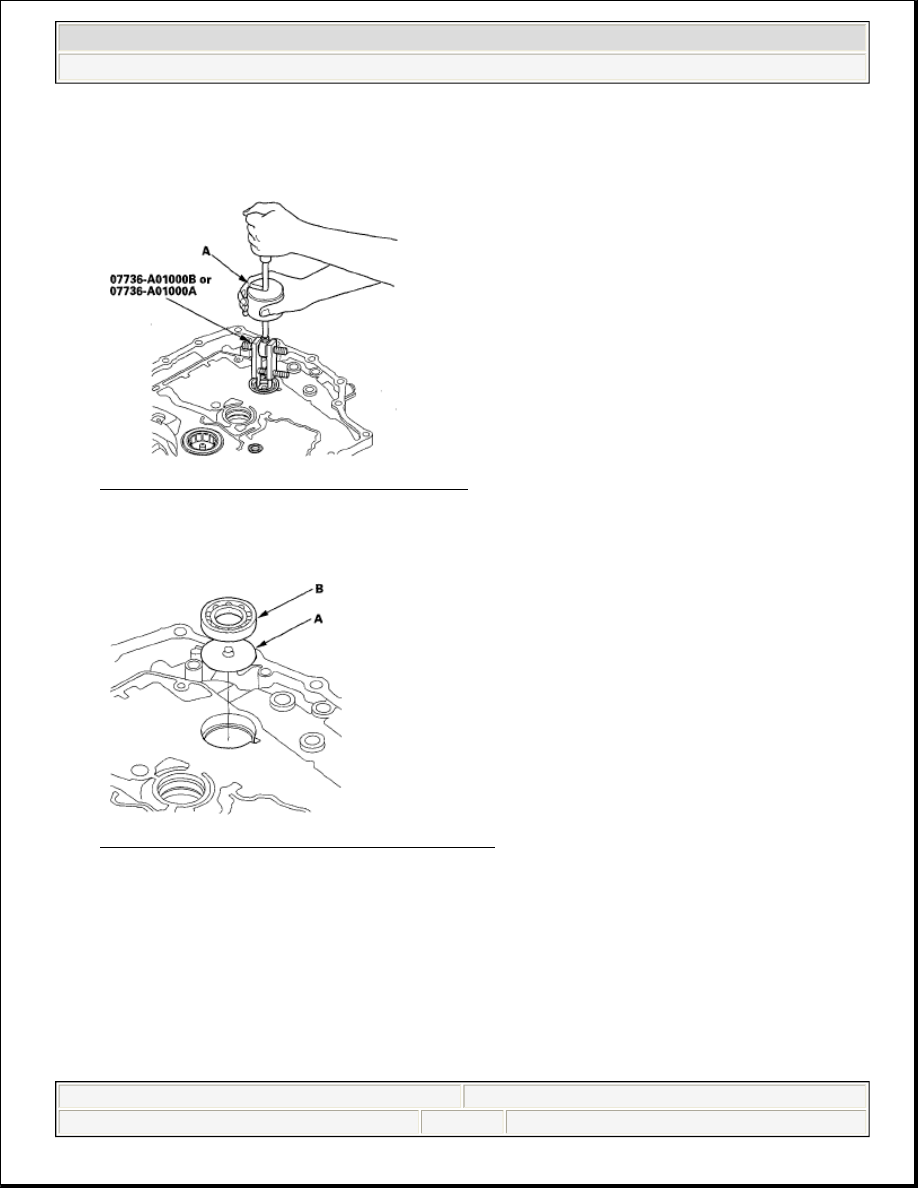

Fig. 487: Removing Intermediary Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the ATF guide plate (A), then install the new bearing (B) in the housing.

Fig. 488: Identifying ATF Guide Plate And Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Drive the bearing into the housing using the driver and the attachment (52 x 55 mm).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 455

© 2005 Mitchell Repair Information Company, LLC.

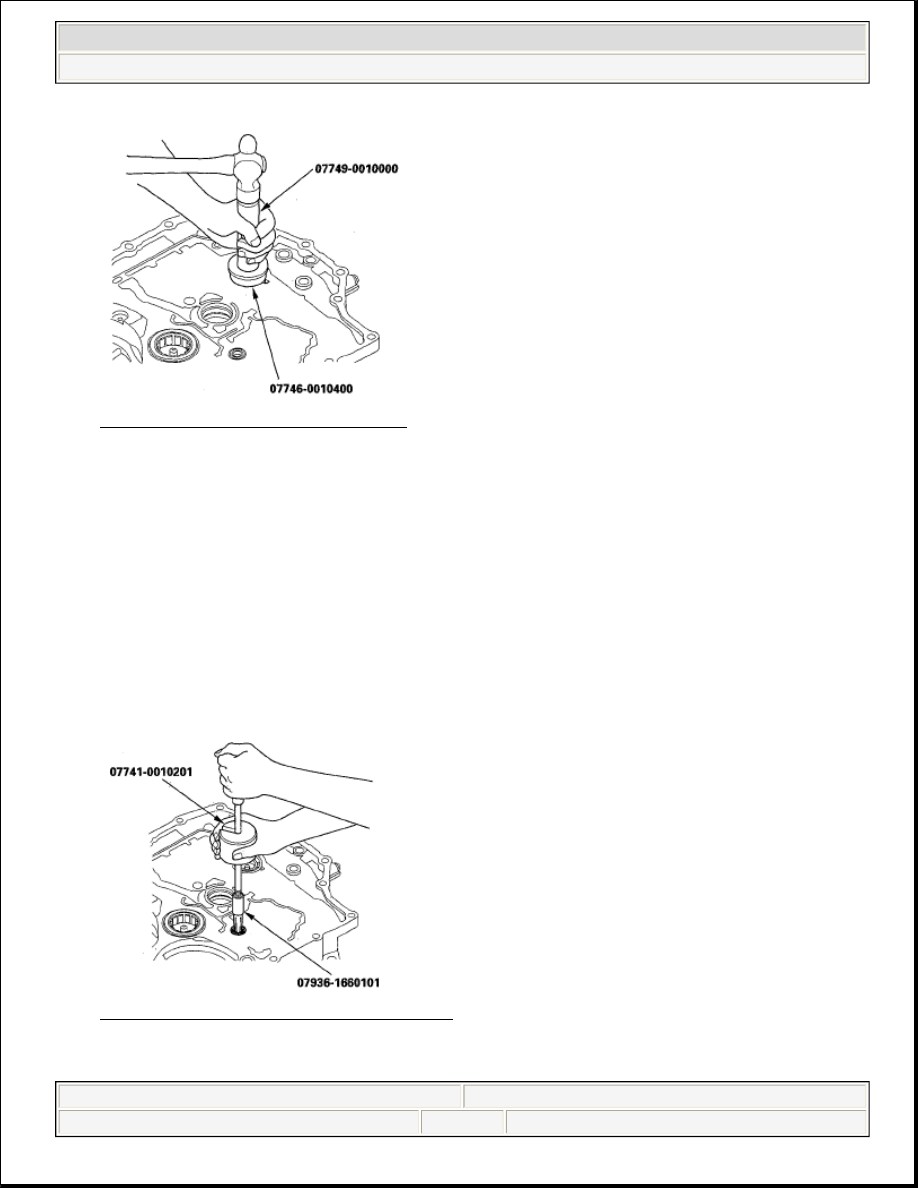

Fig. 489: Tapping Bearing Into Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

PARK LEVER SHAFT BEARING REPLACEMENT

Special Tools Required



Bearing remover shaft set, 12 mm 07936-1660101



Sliding hammer weight 07741-0010201



Driver 07749-0010000



Attachment, 22 x 24 mm 07746-0010800

1. Remove the park lever shaft bearing from the torque converter housing using the bearing remover shaft

set (12 mm) and the sliding hammer weight.

Fig. 490: Removing Park Lever Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the new bearing until it bottoms in the housing using the driver and the attachment (22x24 mm).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 456

© 2005 Mitchell Repair Information Company, LLC.

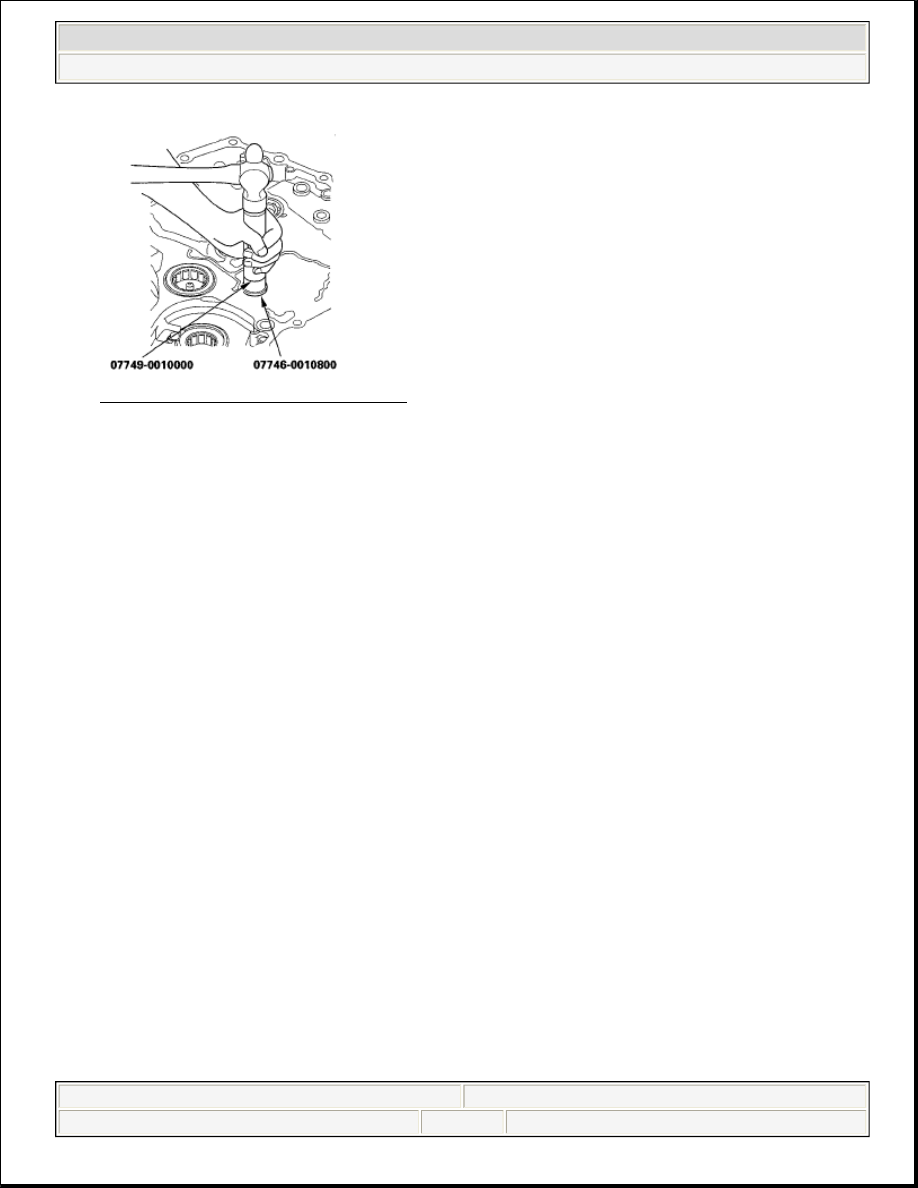

Fig. 491: Tapping Bearing Into Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SHAFTS AND CLUTCHES

MAINSHAFT DISASSEMBLY, INSPECTION, AND REASSEMBLY

1. Remove the thrust needle bearing (A), mainshaft 5th gear (B), needle bearing (C), thrust needle bearing

(D), mainshaft 5th gear collar (E), 4th/5th clutch (F), and O-rings (G) from the mainshaft (H).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 457

© 2005 Mitchell Repair Information Company, LLC.

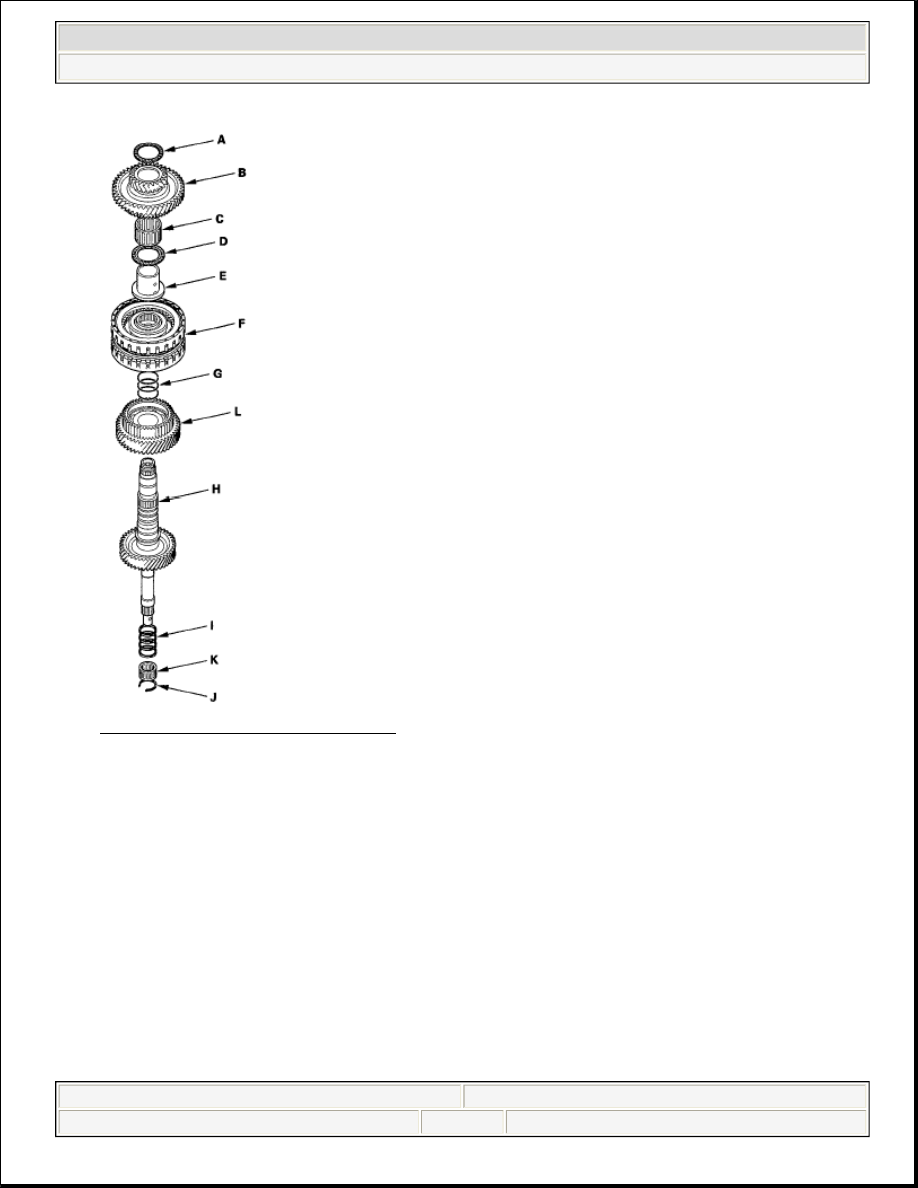

Fig. 492: Exploded View Of Mainshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Inspect the condition of the sealing rings (I). If the sealing rings are worn, distorted, or damaged, remove

the set ring (J) and needle bearing (K), and replace the sealing rings with new ones.

3. Inspect the thrust needle bearing and needle bearing for wear and rough movement.

4. Inspect the splines for excessive wear and damage.

5. Inspect 4th gear for wear and damage, and inspect the 4th gear bearing for wear and rough rotation.

6. Replace the mainshaft 4th gear (L) if 4th gear is worn or damaged, or the bearing is worn or damaged.

7. Check the shaft bearing surfaces for scoring and excessive wear.

8. Lubricate all parts with ATF during reassembly.

9. Wrap the shaft splines with tape to prevent O-ring damage, install the new O-rings on the mainshaft, then

remove the tape.

10. Install the 4th/5th clutch.

11. Install the mainshaft 5th gear collar, thrust needle bearing, needle bearing, mainshaft 5th gear, and thrust
