11. If improperly installed, remove the shift cable from the bracket base, and reinstall the shift cable. Do not

install the shift cable end on the mounting stud while the shift cable is on the bracket base.

12. Install and tighten the nut.

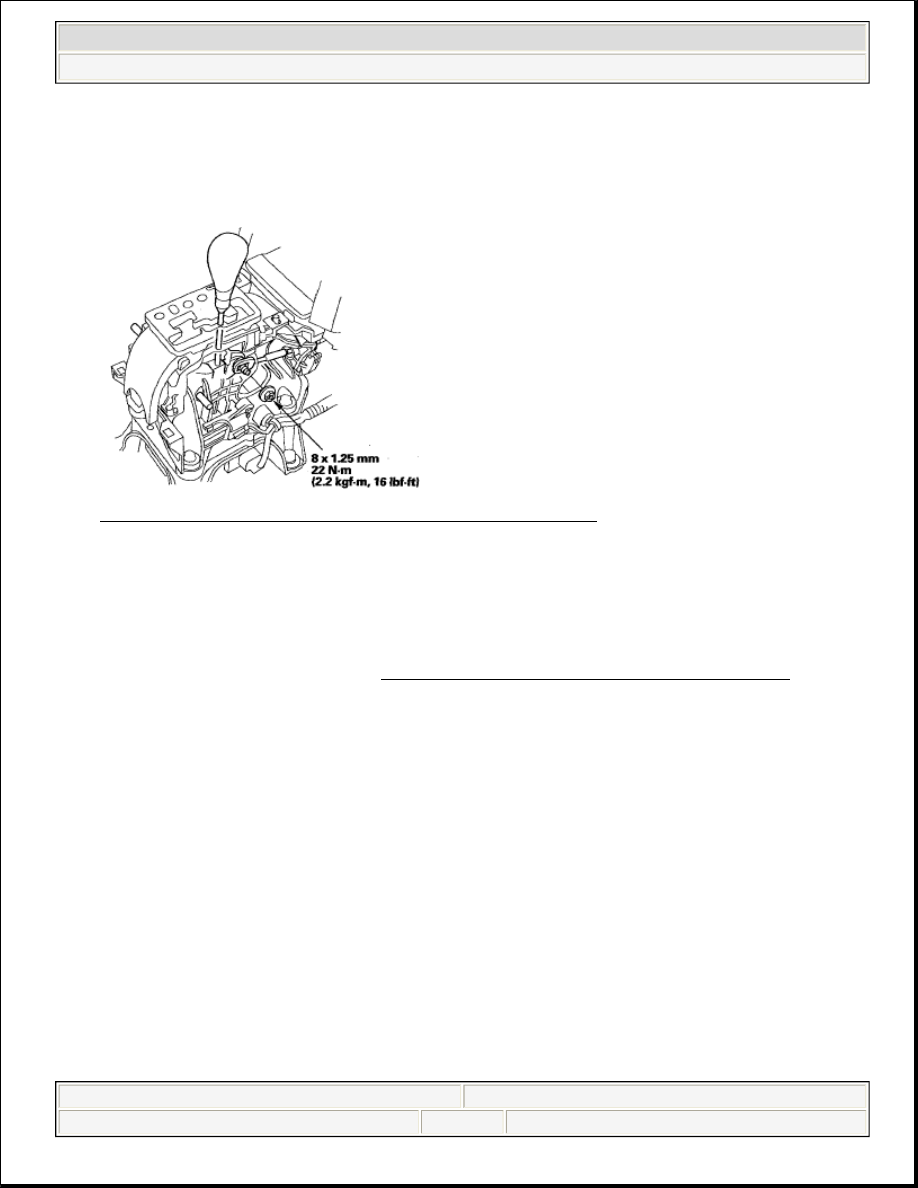

Fig. 378: Identifying Shift Cable Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Remove the 6.0 mm (0.24 in.) pin that was installed to hold the shift lever.

14. Move the shift lever to each position, and check that the A/T gear position indicator follows the

transmission range switch.

15. Push the shift lock release, and check that the shift lever releases.

16. Reinstall the center console cover (see CENTER CONSOLE REMOVAL/INSTALLATION ).

A/T GEAR POSITION INDICATOR

COMPONENT LOCATION INDEX



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 379

© 2005 Mitchell Repair Information Company, LLC.

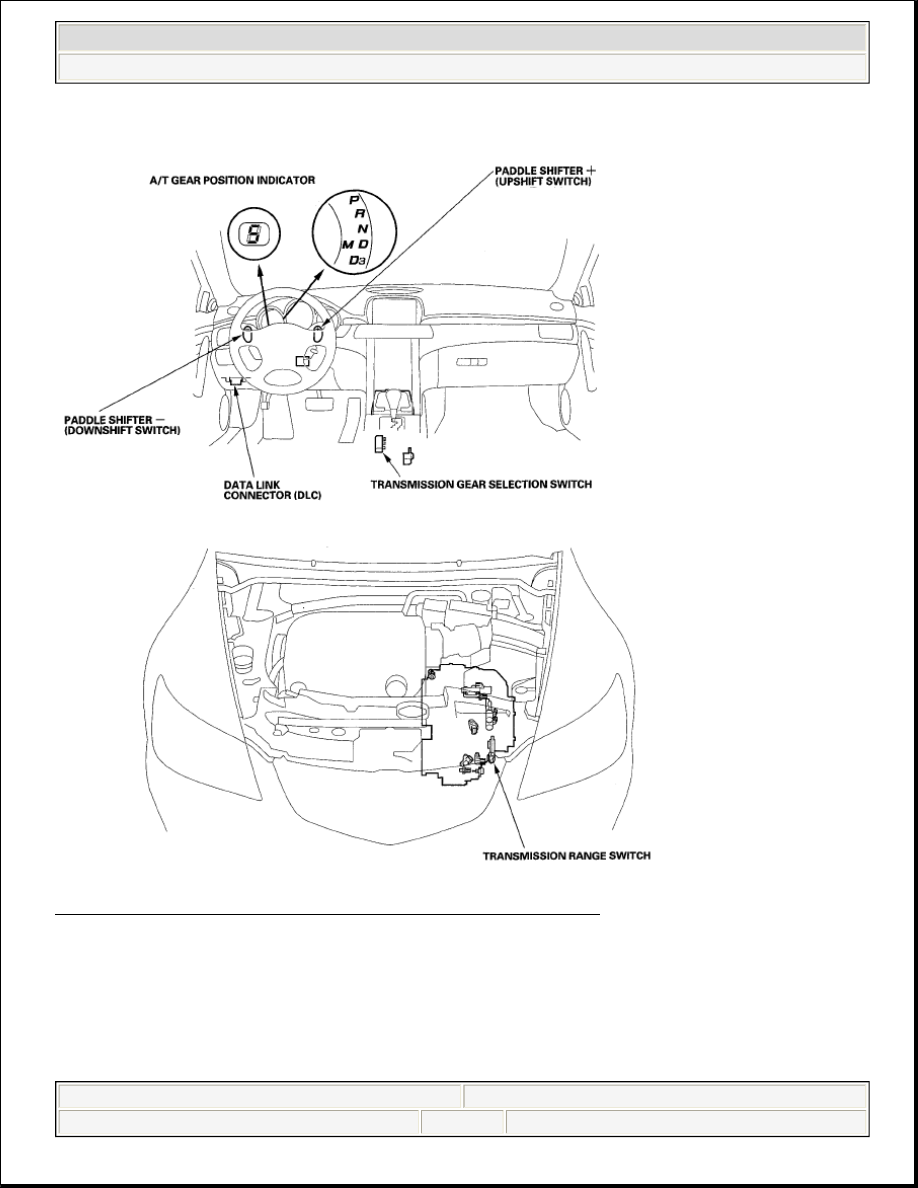

Fig. 379: Identifying A/T Gear Position Indicator Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 380

© 2005 Mitchell Repair Information Company, LLC.

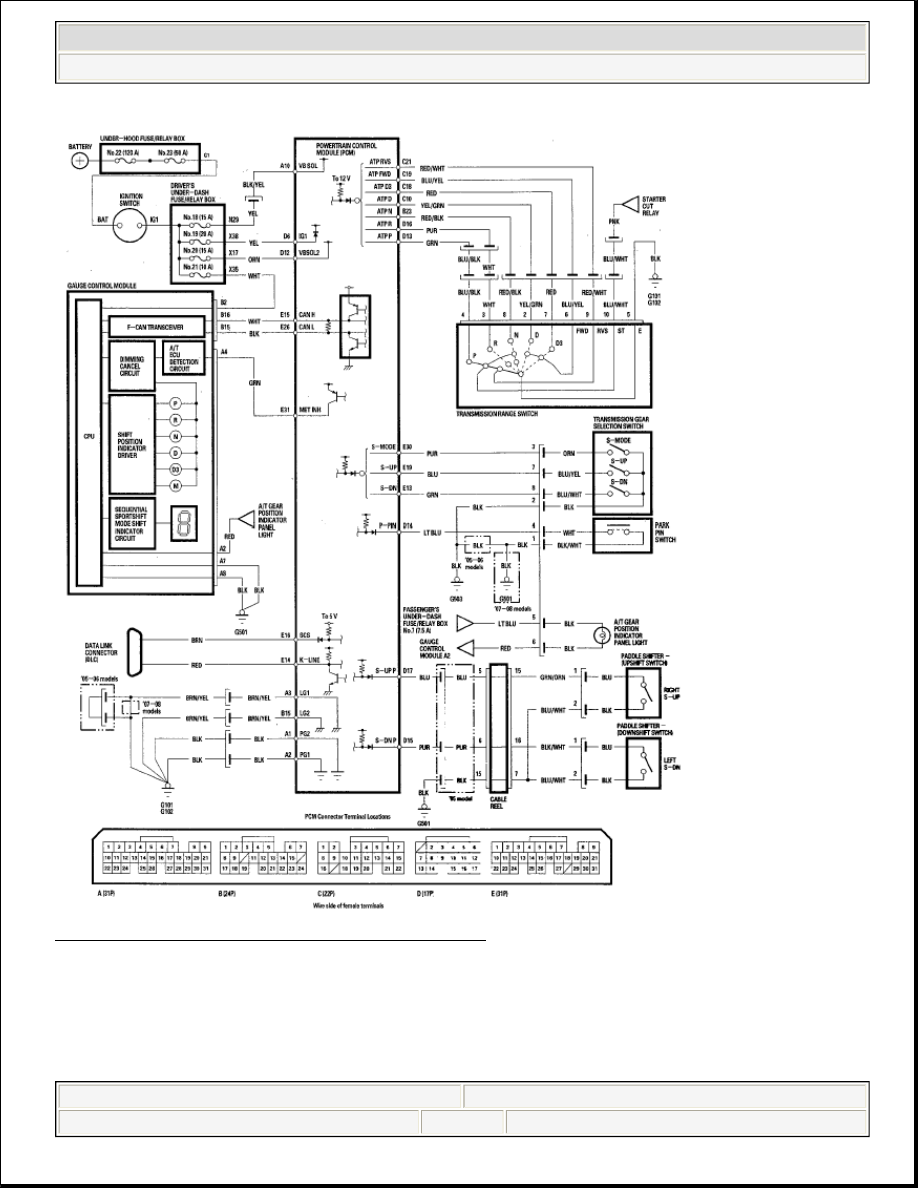

Fig. 380: A/T Gear Position Indicator - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSMISSION RANGE SWITCH TEST

1. Make sure you have the anti-theft codes for the audio system and the navigation system. Make sure the

ignition switch is in LOCK (0).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 381

© 2005 Mitchell Repair Information Company, LLC.

2. Remove the battery trim and left upper fender cover.

3. Disconnect the negative terminal from the battery, then disconnect the positive terminal.

4. Remove the battery hold-down bracket, and remove the battery and battery tray.

5. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

6. Remove the battery base.

7. Disconnect the transmission range switch connector.

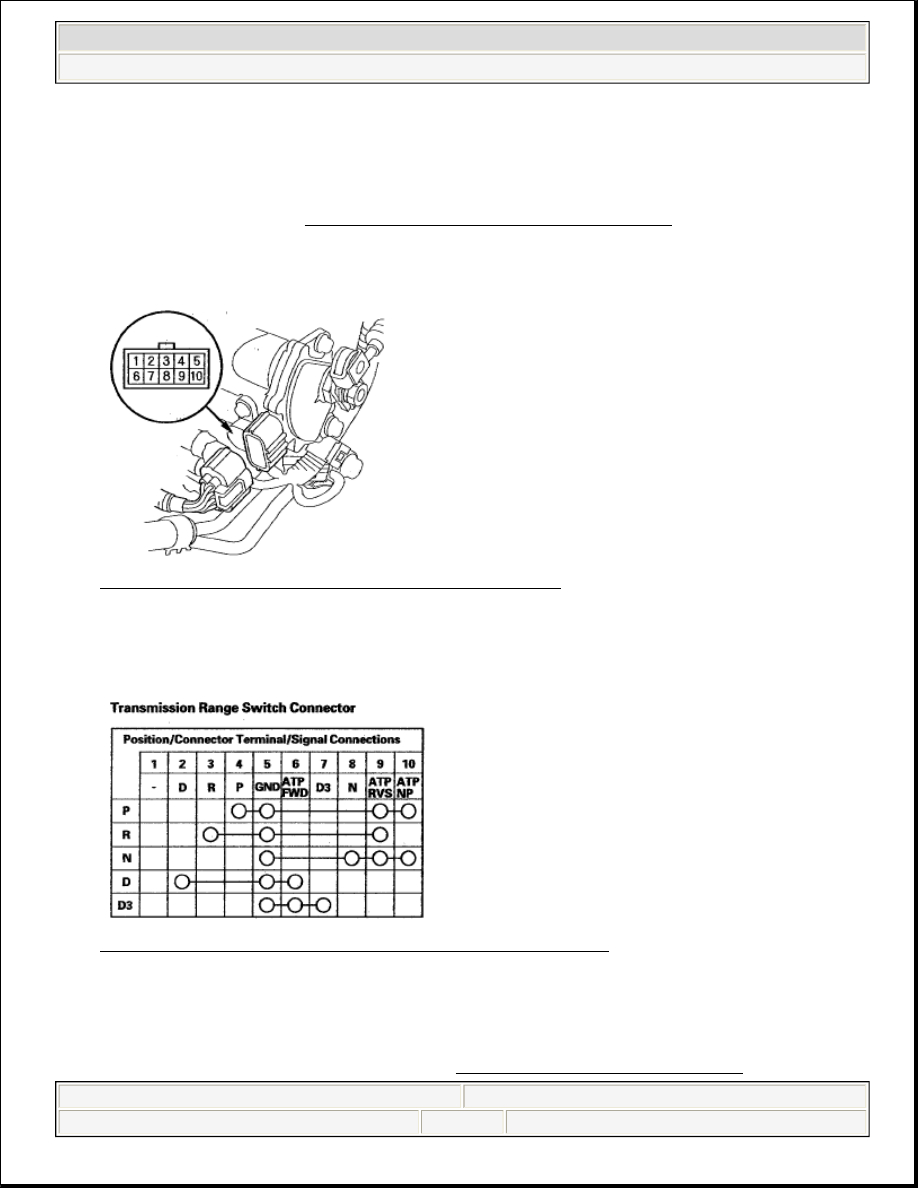

Fig. 381: Identifying Transmission Range Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Check for continuity between the terminals at the switch connector. There should be continuity between

the terminals in the following chart for each switch position.

Fig. 382: Transmission Range Switch Connector Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. The transmission range switch test is finished if the test results are OK.

If there is no continuity between any terminals, check that transmission range switch installation. If the
switch installation is OK, replace the switch (see TRANSMISSION RANGE SWITCH
