28. If improperly installed, remove the shift cable from the bracket base, and reinstall the shift cable. Do not

install the shift cable end on the mounting stud while the shift cable is on the bracket base.

29. Install and tighten the nut.

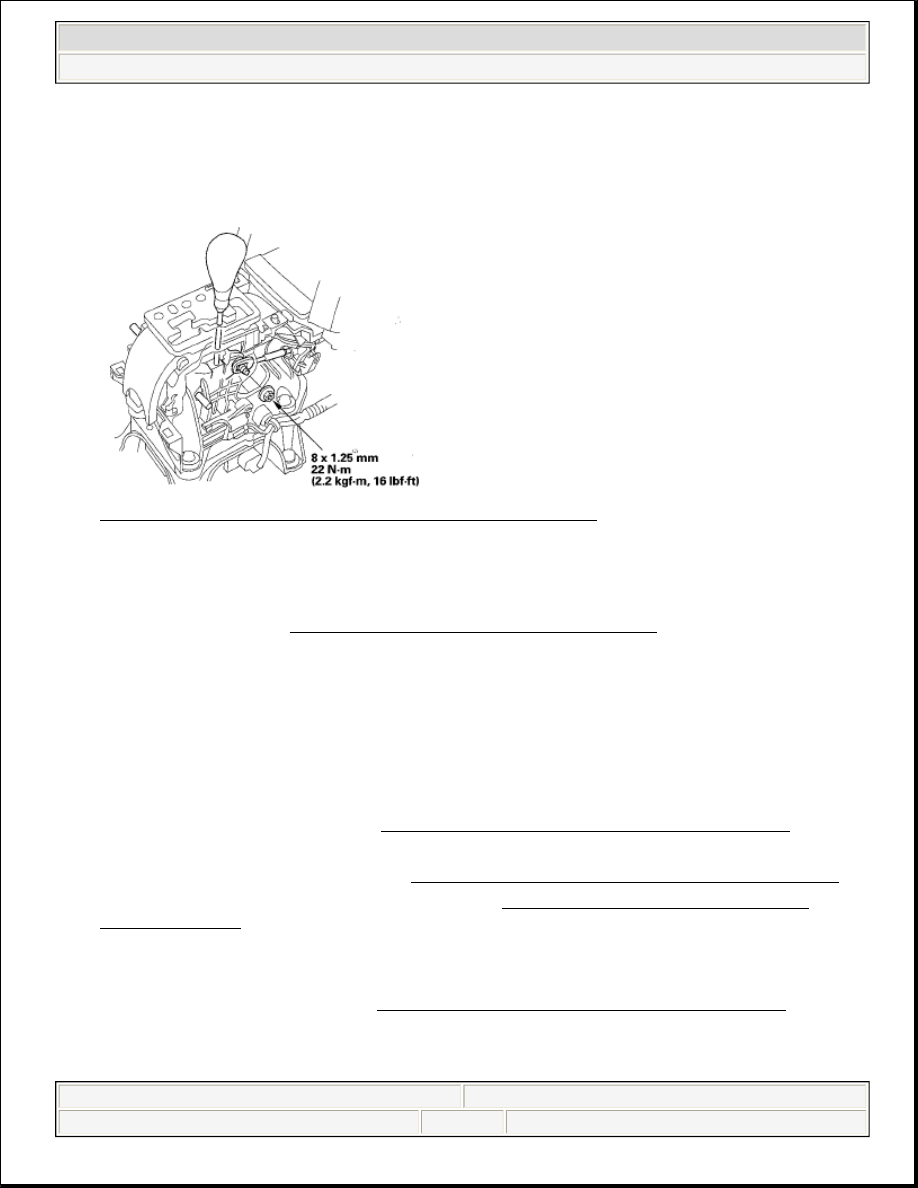

Fig. 370: Identifying Shift Cable Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Remove the 6.0 mm (0.24 in.) pin that was installed to hold the shift lever.

31. Install the battery base.

32. Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

33. Install the battery tray, battery, and battery hold-down bracket, then connect the battery terminals.

34. Install the left upper fender cover and the battery trim.

35. Move the shift lever to each position, and check that the A/T gear position indicator follows the

transmission range switch.

36. Allow all the wheels to rotate freely.

37. Start the engine, and check the shift lever operation in all gears.

38. Push the shift lock release, and check that the shift lever releases.

39. Reinstall the center console cover (see CENTER CONSOLE REMOVAL/INSTALLATION ).

40. Enter the anti-theft codes for the audio system and the navigation system.

41. Do the steering column memorization (see STEERING COLUMN POSITION MEMORIZATION ).

42. Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW

CONTROL UNIT ).

SHIFT CABLE ADJUSTMENT

1. Remove the center console cover (see CENTER CONSOLE REMOVAL/INSTALLATION ).

2. Shift the transmission into R.

3. Remove the nut securing the shift cable end.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 375

© 2005 Mitchell Repair Information Company, LLC.

Fig. 371: Identifying Center Console Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Press the holder lock release (A), and pull out the socket holder (B) to remove the shift cable (C) from the

shift lever bracket base (D). Do not remove the shift cable by pulling the shift cable guide (E) and the
damper (F).

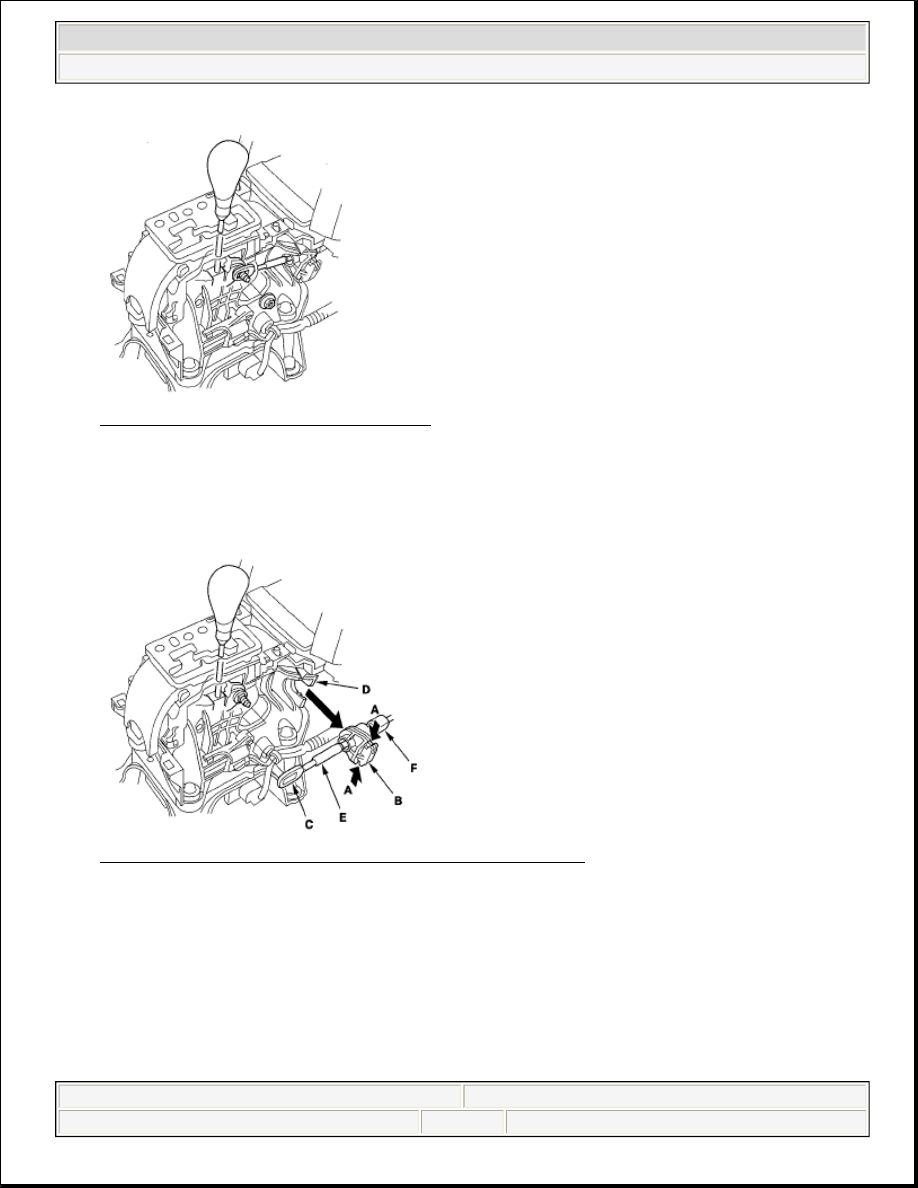

Fig. 372: Removing Shift Cable From Shift Lever Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Push the shift cable until it stops, then release it. Pull the shift cable back one step so that the shift

position is in R. Do not hold the shift cable guide (A) and the damper (B) to adjust the shift cable (C).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 376

© 2005 Mitchell Repair Information Company, LLC.

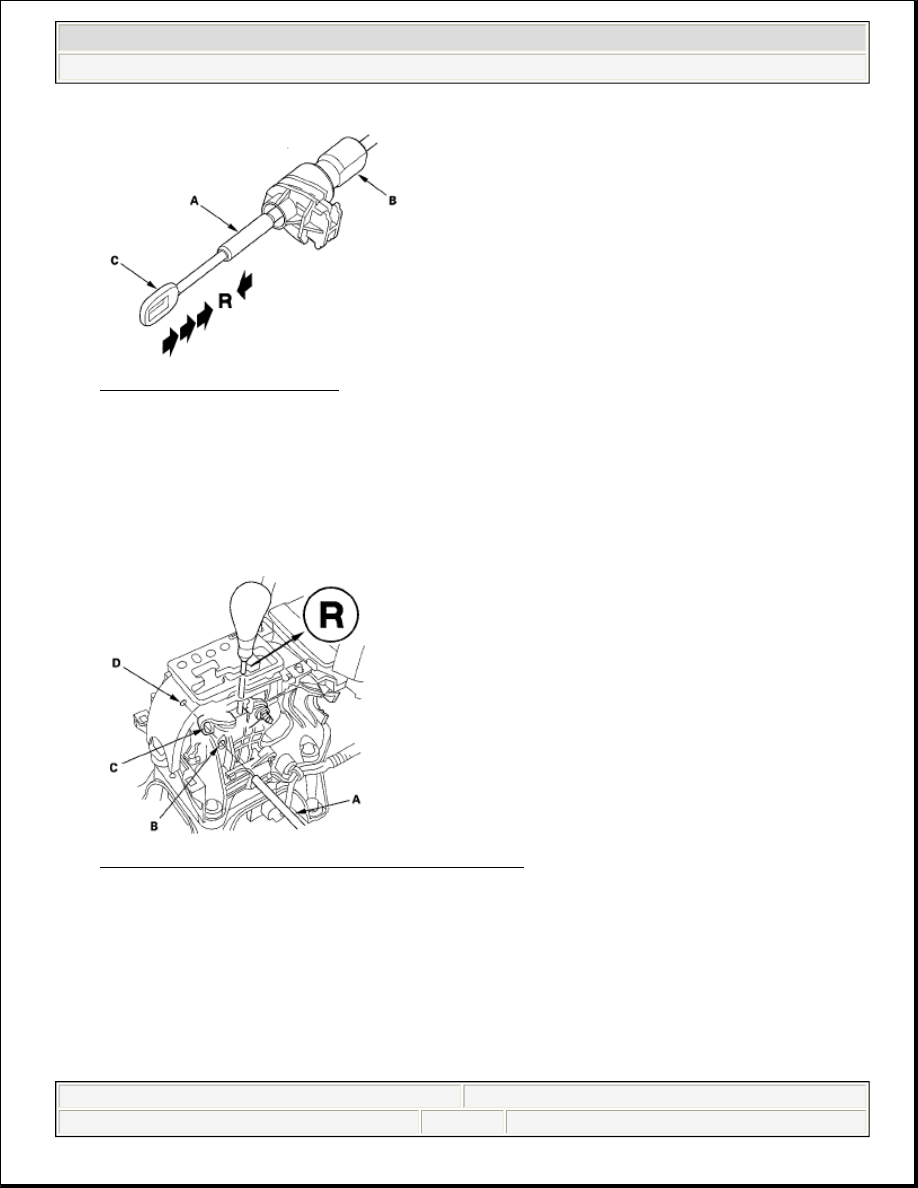

Fig. 373: Adjusting Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Turn the ignition switch to ON (II), and check that the R indicator comes on.

7. Turn the ignition switch to LOCK (0).

8. Place the shift lever in R, then insert a 6.0 mm (0.24 in.) pin (A) through the positioning hole (B) on the

shift lever bracket base, through the positioning hole (C) on the shift lever, and into the positioning hole
(D) on the shift lever bracket base. The shift lever is secured in R.

Fig. 374: Positioning Hole On Shift Lever Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Align the socket holder (A) on the shift cable (B) with the slot in the bracket base (C), then slide the

holder into the base. Install the shift cable end (D) over the mounting stud (E) by aligning its square hole
(F) with the square fitting (G) at the bottom of the stud. Push the holder until it snaps securely in place.
Do not install the shift cable by holding the shift cable guide (H) and the damper (I).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 377

© 2005 Mitchell Repair Information Company, LLC.

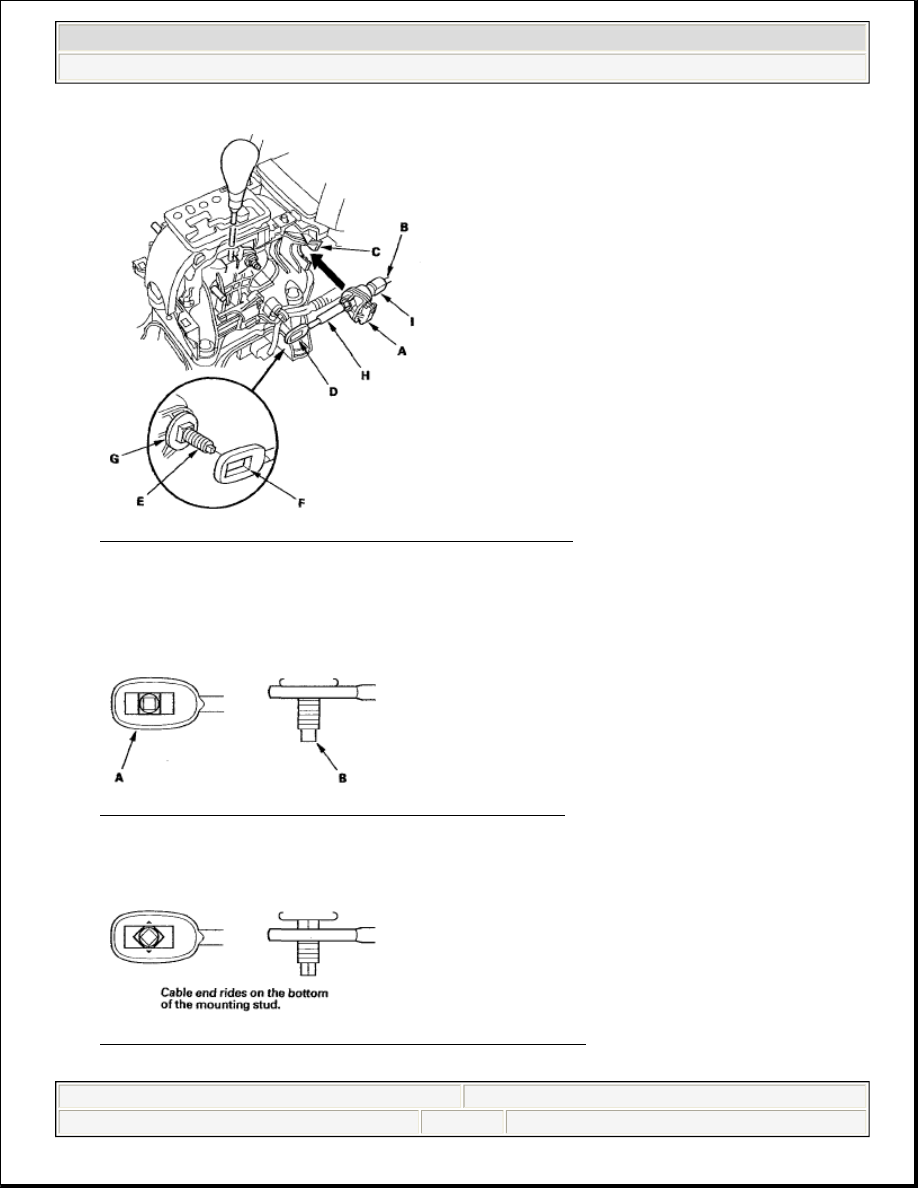

Fig. 375: Sliding Shift Cable Socket Holder Into Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Check that the shift cable end (A) is properly installed on the mounting stud (B).

Property Installed:

Fig. 376: Identifying Shift Cable Proper Installation Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Improperly Installed:

Fig. 377: Identifying Shift Cable Improper Installation Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
