15. Remove the heat shield under the shift cable grommet.

16. Remove the shift cable grommet, and pull out the shift cable.

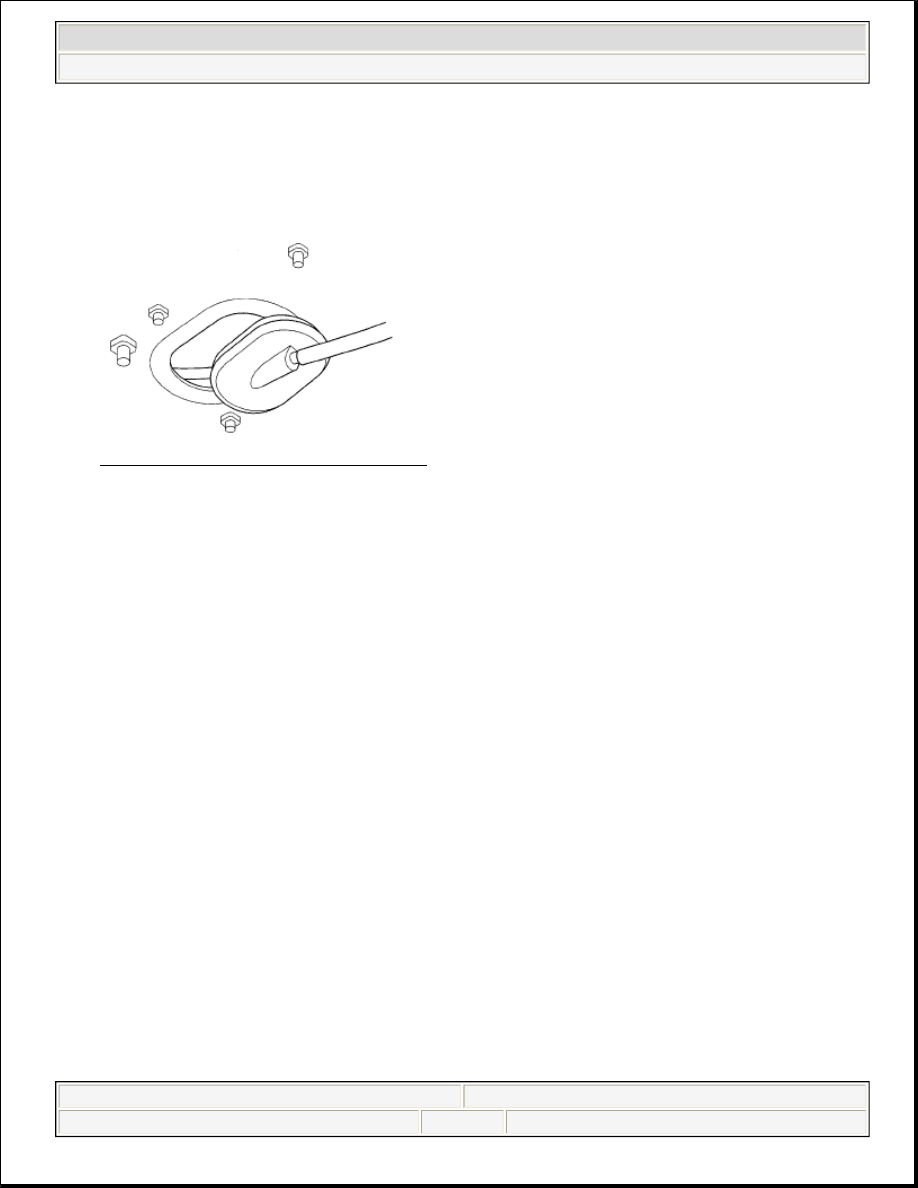

Fig. 362: Identifying Shift Cable Grommet
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Insert the new shift cable through the grommet hole, and install the grommet in its hole. Do not bend the

shift cable excessively.

18. Install the heat shield.

19. Install the shift cable bracket on the steering gearbox stiffener.

20. Apply molybdenum grease to the hole in the bushing (A) in the shift cable end (B). Attach the shift cable

end to the control lever (C), then insert the control pin (D) into the control lever hole through the shift
cable end, and secure the control pin with the spring clip/washer (E).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 371

© 2005 Mitchell Repair Information Company, LLC.

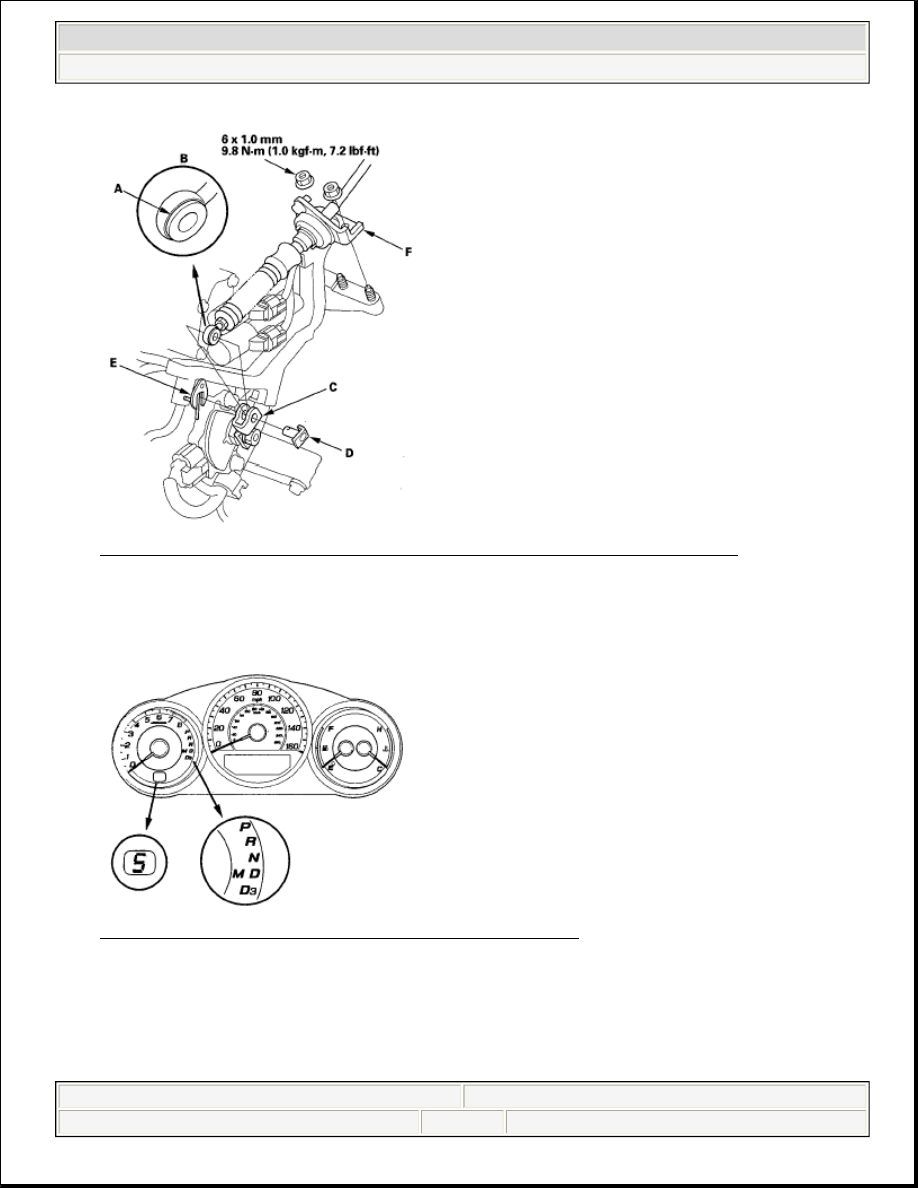

Fig. 363: Identifying Shift Cable On Transmission Side With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Secure the shift cable bracket (F) with the nuts.

22. Turn the ignition switch to ON (II), and check that the R indicator comes on.

Fig. 364: Identifying Shift Indicator In Gauge Control Module
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. If necessary, push the shift cable until it stops, then release it. Pull the shift cable back one step so that the

shift position is in R. Do not hold the shift cable guide (A) and damper (B) to adjust the shift cable (C).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 372

© 2005 Mitchell Repair Information Company, LLC.

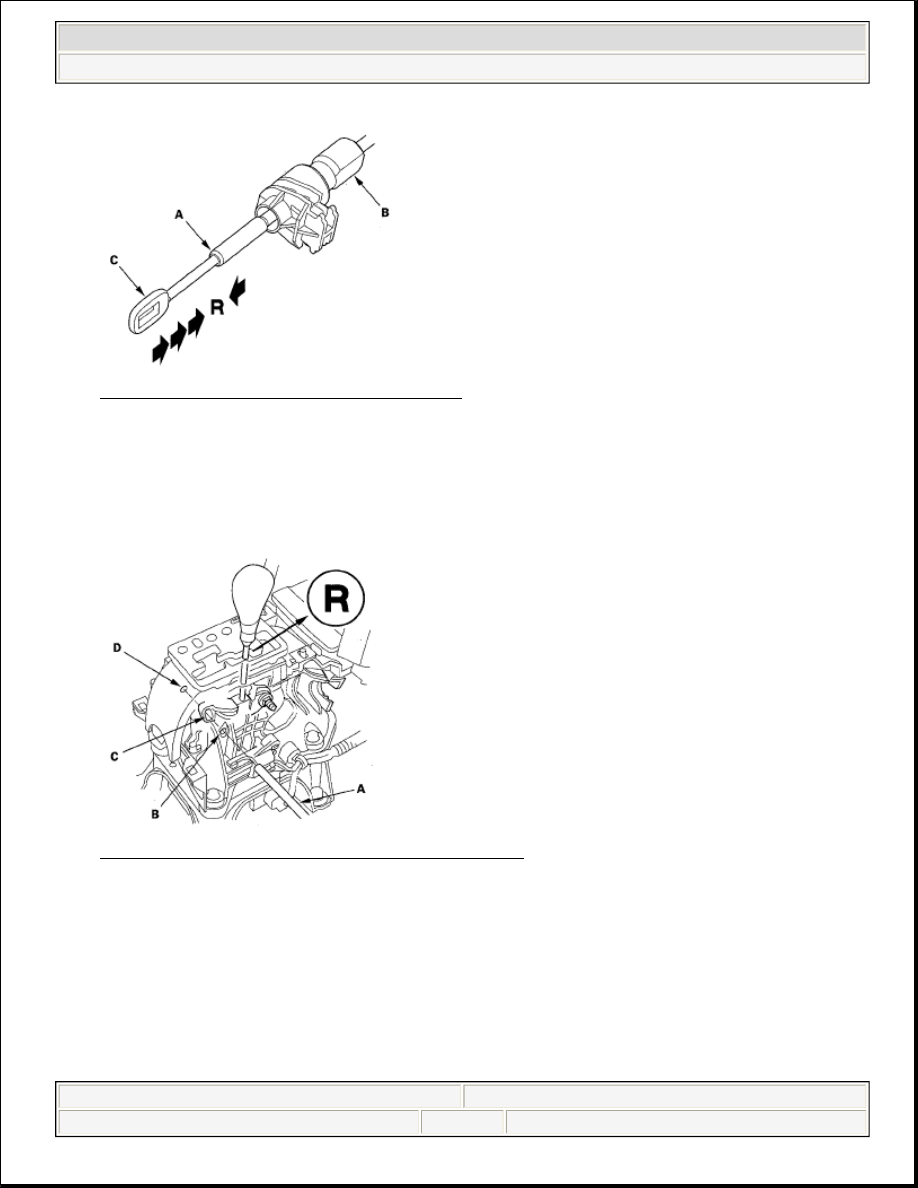

Fig. 365: Pushing Shift Cable In And Releasing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

24. Turn the ignition switch to LOCK (0).

25. Place the shift lever in R, then insert a 6.0 mm (0.24 in.) pin (A) through the positioning hole (B) on the

shift lever bracket base, through the positioning hole (C) on the shift lever, and into the positioning hole
(D) on the shift lever bracket base. The shift lever is secured in R.

Fig. 366: Positioning Hole On Shift Lever Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.

26. Align the socket holder (A) on the shift cable (B) with the slot in the bracket base (C), then slide the

holder into the base. Install the shift cable end (D) over the mounting stud (E) by aligning its square hole
(F) with the square fitting (G) at the bottom of the stud. Push the holder until it snaps securely in place.
Do not install the shift cable by holding the shift cable guide (H) and the damper (I).



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:15 PM

Page 373

© 2005 Mitchell Repair Information Company, LLC.

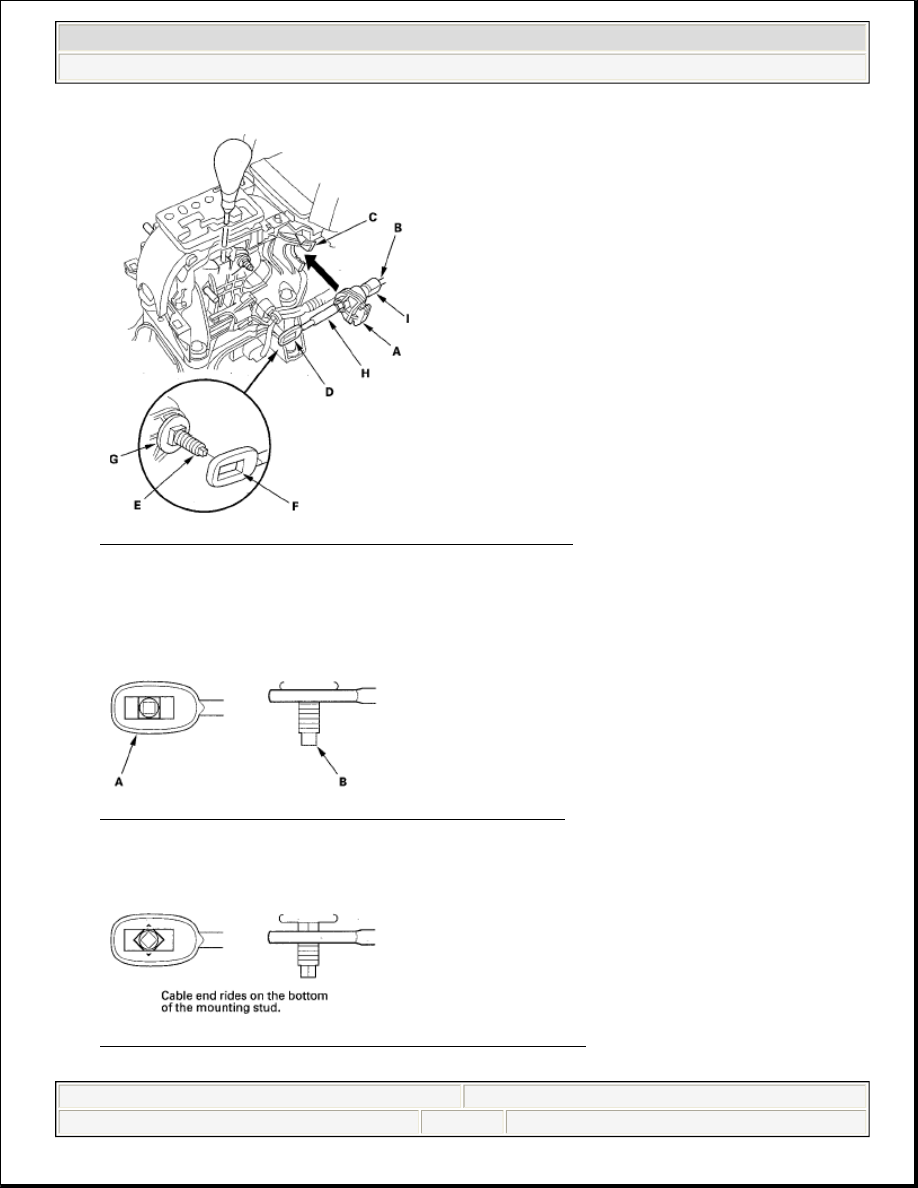

Fig. 367: Sliding Shift Cable Socket Holder Into Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.

27. Check that the shift cable end (A) is properly installed on the mounting stud (B).

Properly Installed:

Fig. 368: Identifying Shift Cable Proper Installation Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Improperly Installed:

Fig. 369: Identifying Shift Cable Improper Installation Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
