14-352
Transmission End Cover
B
A
E
8 x 1.25 mm
28 N·m
(2.9 kgf·m,
21 lbf·ft)
D
E
B
F
6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)
6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)
C
A
G
A
A
B
C
D

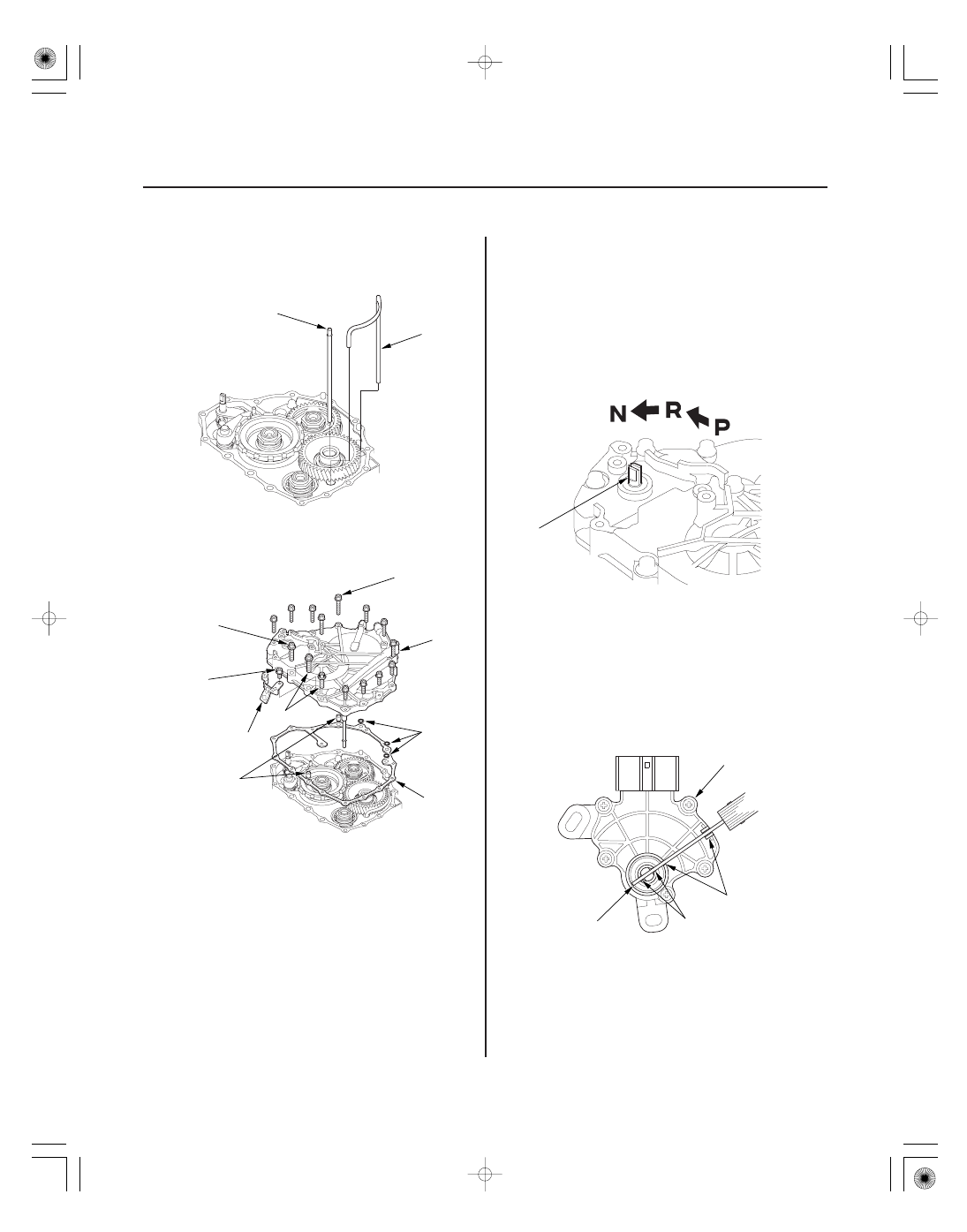

19. Install the ATF feed pipe (A) into the idler gear shaft,
and install the ATF lubrication pipe (B) into the
transmission housing.
20. Install a new gasket (A) on the transmission
housing, and install the two dowel pins (B) and new
O-rings (C) over the top of the ATF feed pipes.
21. Install the end cover (D), and tighten the three
special bolts (E) and the 6 x 1.0 mm bolts (F)
(12 bolts).
22. Install the harness clamp bracket (G) on the end
cover.
23. Set the selector control shaft (A) to the N position
by turning the control lever on the torque converter
side.
NOTE: Do not squeeze the end of the selector
control shaft tips together when turning the
selector control shaft. If the tips are squeezed
together it will cause a faulty shift position signal or
position due to the play between the selector
control shaft and the transmission range switch.

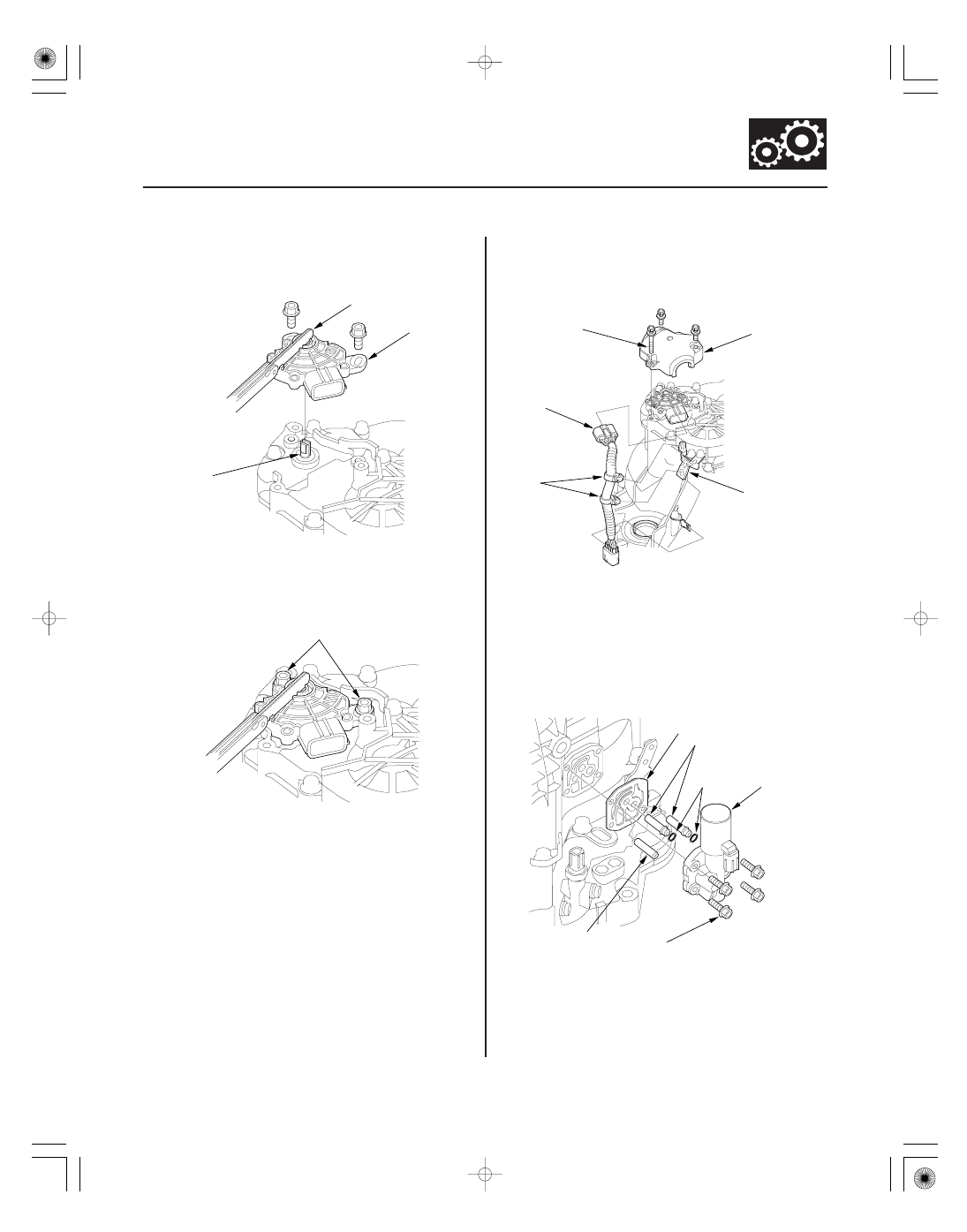

24. Align the cutouts (A) on the rotary-frame with the
neutral positioning cutouts (B) on the transmission
range switch (C), then put a 2.0 mm (0.08 in.) feeler
gauge blade (D) in the cutouts to hold in the N
position.
NOTE: Be sure to use a 2.0 mm (0.08 in.) blade or
equivalent to hold the transmission range switch in
the N position.
Replace.
Replace.
