Fig. 6: Removing Steering Wheel
Courtesy of KIA MOTORS AMERICA, INC.

5. Loosen the screws, and then remove the lower crash pad (A).

Fig. 7: Identifying Lower Crash Pad Screws
Courtesy of KIA MOTORS AMERICA, INC.

6. Loosen the screws, and then remove the steering column upper (B) and lower shrouds (A).



2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona



Microsoft



Monday, May 24, 2010 3:48:48 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

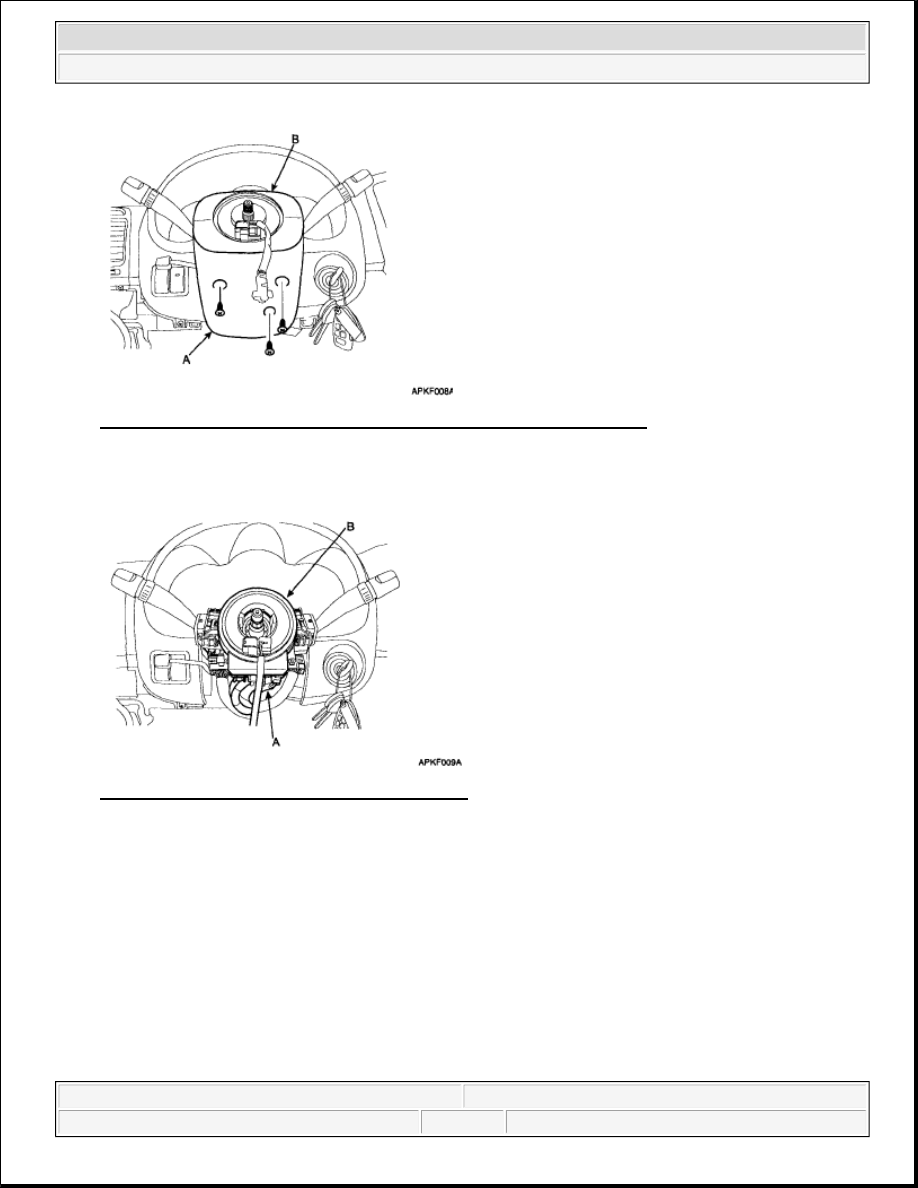

Fig. 8: Identifying Steering Column Upper And Lower Shrouds Screws
Courtesy of KIA MOTORS AMERICA, INC.

7. Disconnect the connectors (A) and then remove the clock spring (B).

Fig. 9: Identifying Connector And Clock Spring
Courtesy of KIA MOTORS AMERICA, INC.

8. Disconnect the connectors (A) and remove the multifunction switch (B).



2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona



Microsoft



Monday, May 24, 2010 3:48:48 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

Fig. 10: Identifying Connectors And Multifunction Switch
Courtesy of KIA MOTORS AMERICA, INC.

9. Loosen the bolt (A) and then disconnect the universal joint assembly (B) from the steering gear assembly.

Tightening torque N.m (kgf.m, lb-ft):

13-18 (1.3-1.8, 9.4-13.0)

Fig. 11: Identifying Bolt Between Steering Universal Joint Assembly
Courtesy of KIA MOTORS AMERICA, INC.

10. Remove the steering column assembly by loosening the steering column mounting bolts and nut (A).

Tightening torque N.m (kgf.m, lb-ft):

13-18 (1.3-1.8, 9.4-13.0)



2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona



Microsoft



Monday, May 24, 2010 3:48:48 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

Fig. 12: Identifying Steering Column Mounting Bolts And Nut
Courtesy of KIA MOTORS AMERICA, INC.

DISASSEMBLY

KEY LOCK ASSEMBLY

1. Make a groove on head of the special bolt (A) by using a punch.

Fig. 13: Identifying Key Lock Assembly Special Bolt
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the key lock assembly (A) from the steering column (B) by loosing special bolts.
