Kia Sedona (2008 year). Manual - part 528

Fig. 14: Identifying Key Lock Assembly And Steering Column
Courtesy of KIA MOTORS AMERICA, INC.

3. When reassembling the key lock assembly, loosely install new special bolts to the steering column shaft.

Fig. 15: Identifying NEW Special Bolt
Courtesy of KIA MOTORS AMERICA, INC.

4. Tighten the special bolt until its head is cut off.



2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona



Microsoft



Monday, May 24, 2010 3:48:48 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

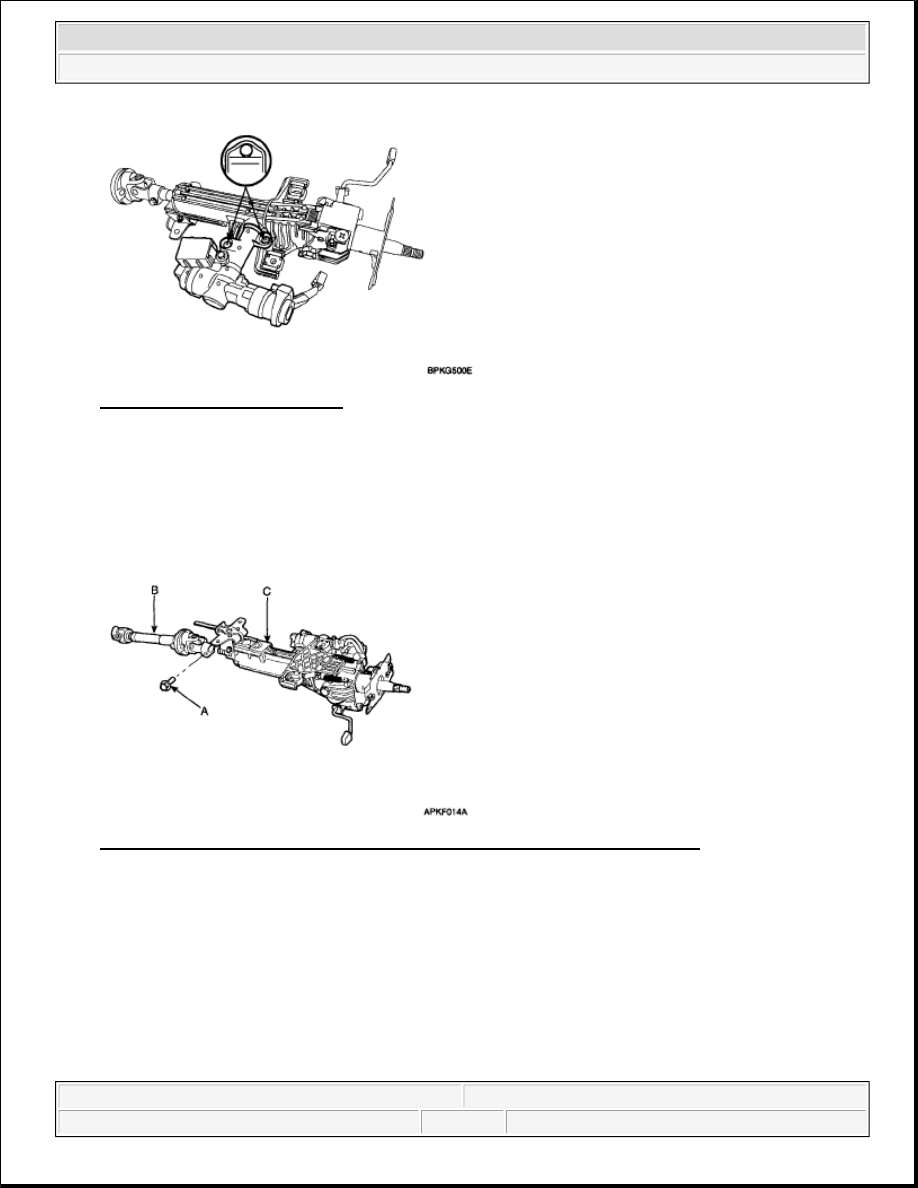

Fig. 16: Tightening Special Bolt
Courtesy of KIA MOTORS AMERICA, INC.

UNIVERSAL JOINT ASSEMBLY

1. Remove the universal joint (B) assembly from the steering column assembly (C) by loosening the bolt

(A).

2. Reassembly is the reverse of disassembly.

Fig. 17: Identifying Universal Joint Assembly And Steering Column Assembly
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. Check the steering column shaft for damage and deformation.

2. Check connection for play, damage and smooth operation.

3. Check the joint bearing for wear and damage.

INSTALLATION



2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona



Microsoft



Monday, May 24, 2010 3:48:48 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

1. Installation is the reverse of removal.

NOTE:

Before installing, apply multi-purpose grease to each moving parts.

CAUTION: Align the marks on the steering wheel and shaft made during removal

procedure.



2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona



Microsoft



Monday, May 24, 2010 3:48:48 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

2008 STEERING

Steering System - General - Sedona

SPECIFICATIONS

GENERAL SPECIFICATIONS

SERVICE STANDARD

SERVICE STANDARD SPECIFICATIONS

TIGHTENING TORQUE

TIGHTENING TORQUE SPECIFICATIONS

Items

Specifications

Steering column/shaft

Type

Tilt

Tilt stroke

+7°/-11.7°

Steering gear

Type

Rack & pinion

Rack stroke

148 mm (5.827 in)

Power steering pump

Type

Vane

Relief pressure

90 kgf/cm

2

Discharge

10.5 cc/rev

Items

Specifications

Steering wheel free play

30 mm (1.2 in)

Steering angle

Inner

38.64°

Outer

31.78°

Items

N.m

Kgf.m

Lb-ft

Steering wheel lock nut

40-50

4.0-5.0

29-36

Steering column mounting bolts and nut

13-18

1.3-1.8

9.4-13.0

Bolt connecting steering column to universal joint

15-20

1.5-2.0

10.8-14.5

Bolt connecting universal joint to steering gear

13-18

1.3-1.8

9.4-13.0

Steering column mounting bolts and nut

13-18

1.3-1.8

9.4-13.0

Tie rod end castle nut

35-45

3.5-4.5

25-33

Front lower arm ball joint assembly bolts

90-120

9.0-12.0

65-87

Stabilizer link to strut assembly nut

100-120

10.0-12.0

72-87

Rear roll stopper to sub-frame bolts

50-60

5.0-6.0

36-43

Pressure tube to valve body housing nut

12-18

1.2-1.8

9-13

Pressure tube to oil pump eye bolt

65-75

6.5-7.5

47-54

Return tube to valve body housing nut

12-18

1.2-1.8

9-13

Power steering gear box to sub-frame bolts

90-110

9-11

65-80
