Fig. 23: Checking Continuity Between Segments Of Commutator
Courtesy of KIA MOTORS AMERICA, INC.

8. Check with an ohmmeter that no continuity exists between the commutator (A) and armature coil core

(B), and between the commutator and armature shaft (C). If continuity exists, replace the armature.

Fig. 24: Checking For Continuity
Courtesy of KIA MOTORS AMERICA, INC.

INSPECT STARTER BRUSH

Brushes that are worm out, or oil-soaked, should be replaced.



2008 Kia Sedona

2008 ENGINE Starting System - Sedona



Microsoft



Saturday, May 22, 2010 4:03:21 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

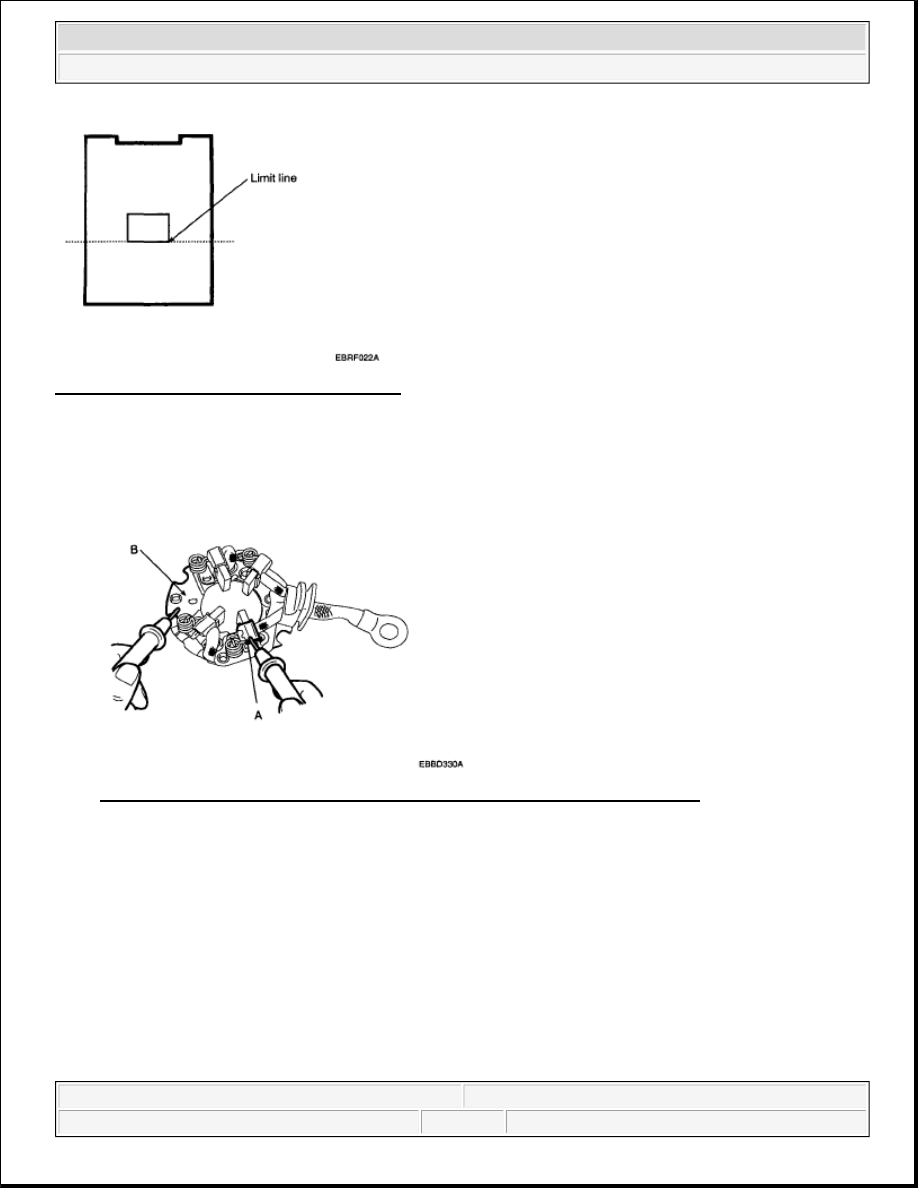

Fig. 25: Identifying Starter Brush Limit Line
Courtesy of KIA MOTORS AMERICA, INC.

STARTER BRUSH HOLDER TEST

1. Check that there is no continuity between the (+) brush holder (A) and (-) brush holder (B). If there is no

continuity, replace the brush holder assembly.

Fig. 26: Checking Continuity Between (+) Brush Holder And (-) Brush Holder
Courtesy of KIA MOTORS AMERICA, INC.

2. Pry back each brush spring (A) with a screwdriver, then position the brush (B) about halfway out of its

holder, and release the spring to hold it there.



2008 Kia Sedona

2008 ENGINE Starting System - Sedona



Microsoft



Saturday, May 22, 2010 4:03:21 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.

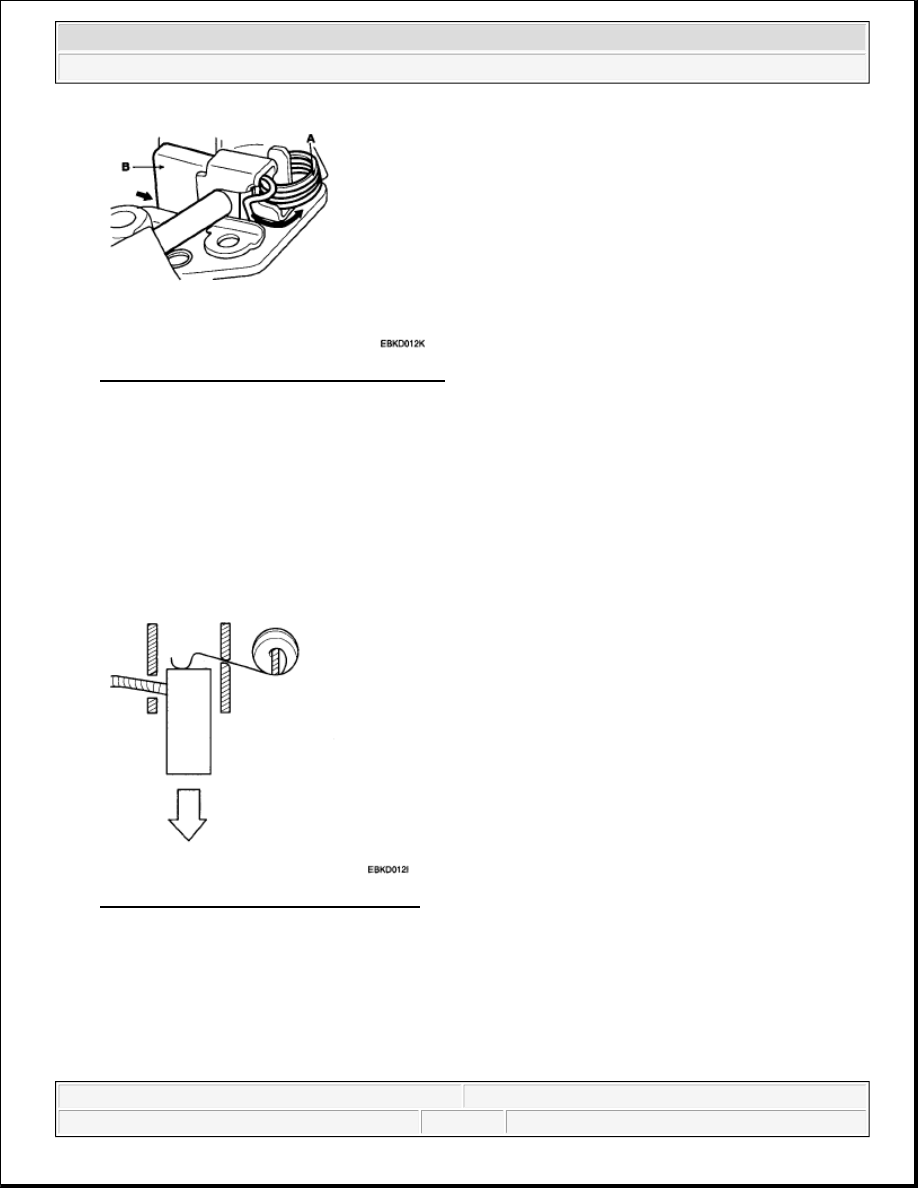

Fig. 27: Identifying Brush Spring And Brush
Courtesy of KIA MOTORS AMERICA, INC.

3. Install the armature in the housing, and install the brush holder. Next, pry back each brush spring again,

and push the brush down until it seats against the commutator, then release the spring against the end of
the brush.

Fig. 28: Identifying Armature In Housing
Courtesy of KIA MOTORS AMERICA, INC.

INSPECT OVERRUNNING CLUTCH

1. Slide the overrunning clutch along the shaft. Replace it if does not slide smoothly.

2. Rotate the overrunning clutch both ways.

Does it lock in one direction and rotate smoothly in reverse? If it does not lock in either direction or it

NOTE:

To seat new brushes, slip a strip of #500 or #600 sandpaper, with the grit
side up, between the commutator and each brush, and smoothly rotate the
armature. The contact surface of the brushes will be sanded to the same
contour as the commutator.



2008 Kia Sedona

2008 ENGINE Starting System - Sedona



Microsoft



Saturday, May 22, 2010 4:03:21 PM

Page 16

© 2006 Mitchell Repair Information Company, LLC.

locks in both directions, replace it.

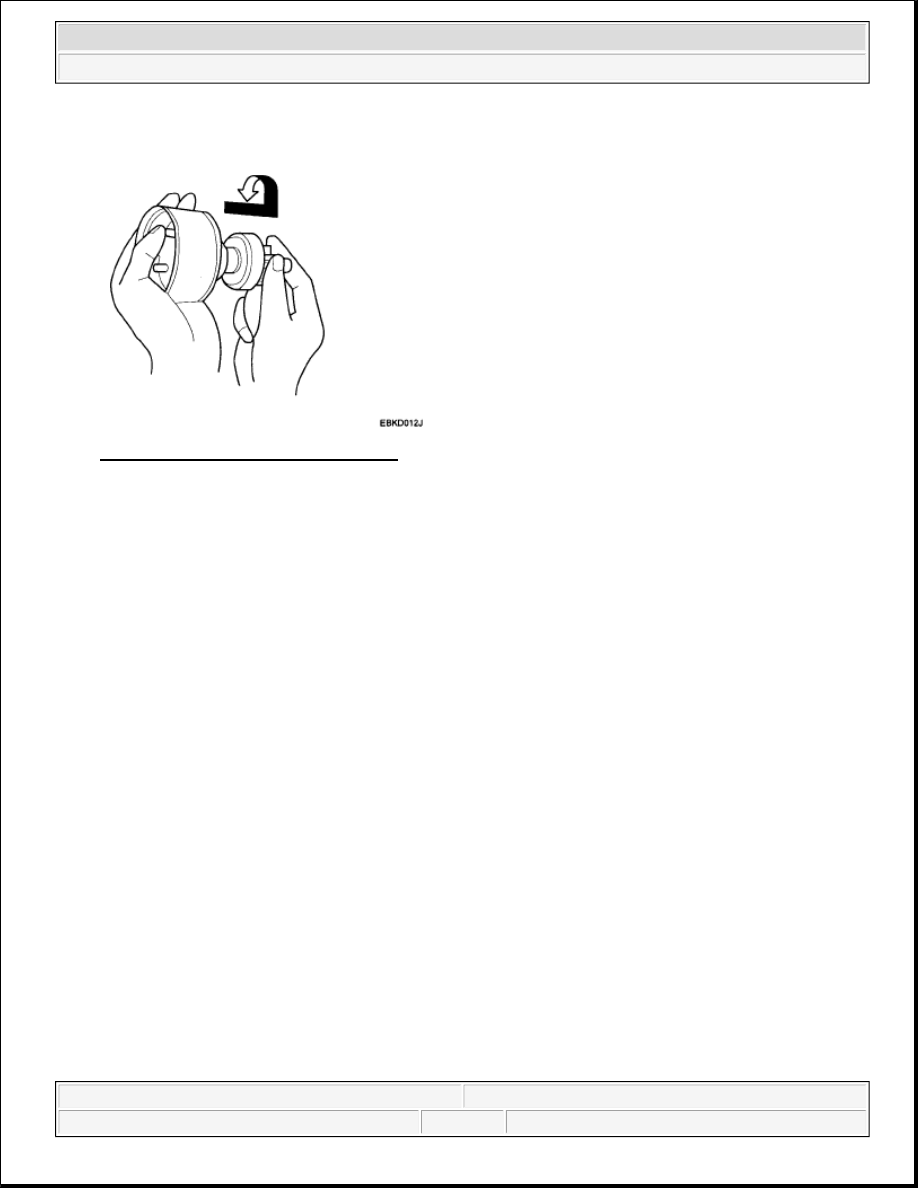

Fig. 29: Checking Overrunning Clutch
Courtesy of KIA MOTORS AMERICA, INC.

3. If the starter drive gear is worn or damaged, replace the overrunning clutch assembly (the gear is not

available separately).

Check the condition of the flywheel or torque converter ring gear if the starter drive gear teeth are
damaged.

CLEANING

1. Do not immerse parts in cleaning solvent. Immersing the yoke assembly and/or armature will damage the

insulation. Wipe these parts with a cloth only.

2. Do not immerse the drive unit in cleaning solvent. The overrun clutch is pre-lubricated at the factory and

solvent will wash lubrication from the clutch.

3. The drive unit may be cleaned with a brush moistened with cleaning solvent and wiped dry with a cloth.

STARTER RELAY

INSPECTION

1. Remove the fuse box cover.

2. Remove the starter relay (A).



2008 Kia Sedona

2008 ENGINE Starting System - Sedona



Microsoft



Saturday, May 22, 2010 4:03:21 PM

Page 17

© 2006 Mitchell Repair Information Company, LLC.
