THIRD SEAT BELT BUCKLE REPLACEMENT

1. Remove the recliner cover (A).

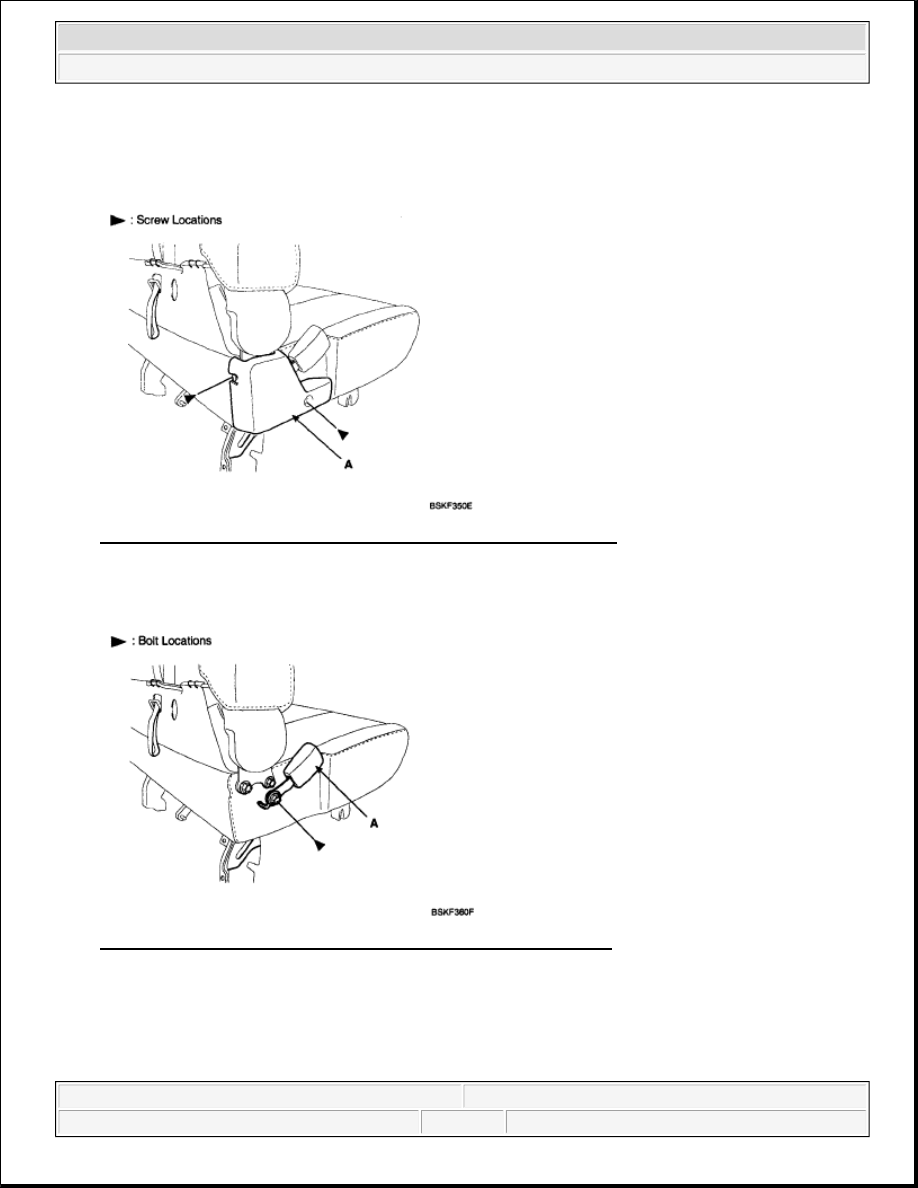

Fig. 80: Identifying Recliner Cover With Mounting Screw Location
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the seat belt buckle (A).

Fig. 81: Identifying Seat Belt Buckle With Mounting Bolt Location
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the seat belt buckle (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:59 PM

Page 49

© 2006 Mitchell Repair Information Company, LLC.

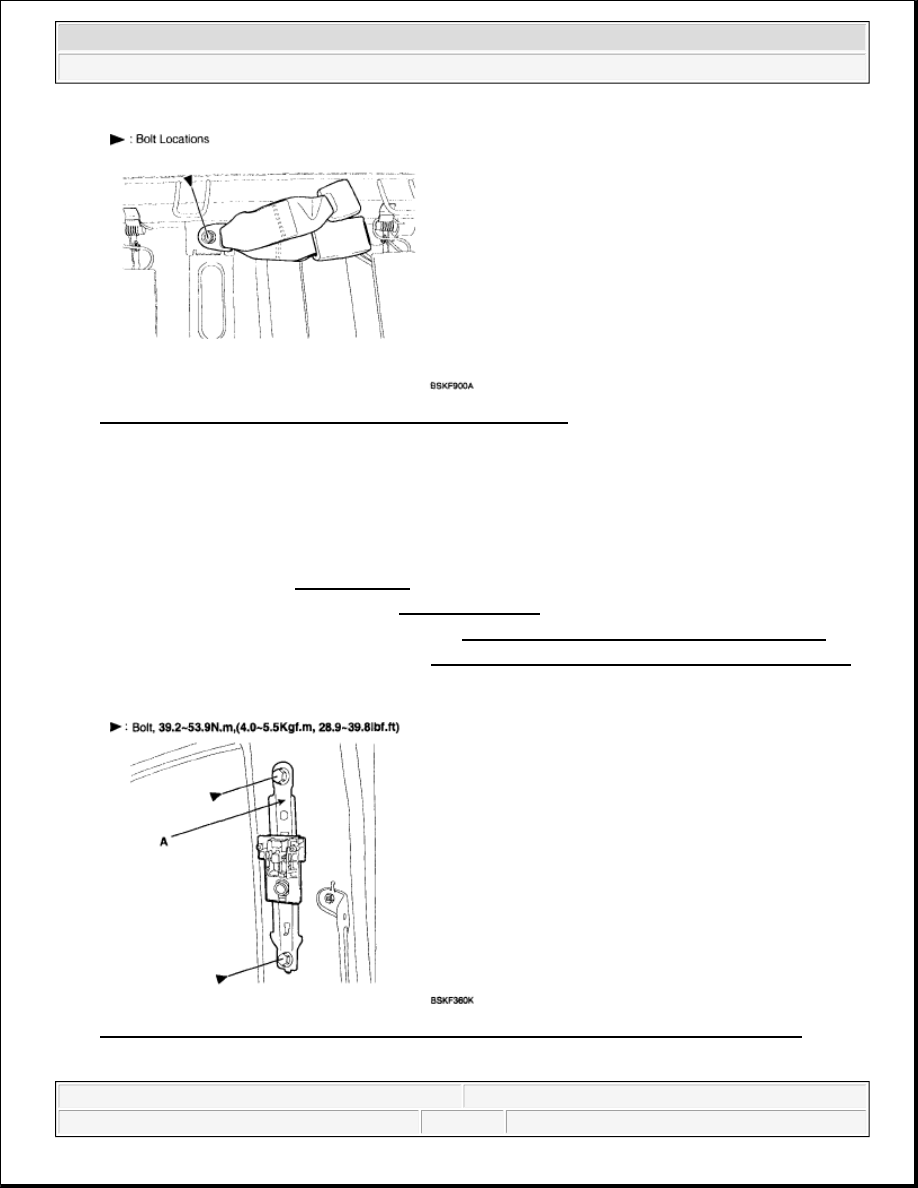

Fig. 82: Identifying Seat Belt Buckle Mounting Bolt Location
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

HEIGHT ADJUSTER REPLACEMENT

1. Remove the following items first.



Front assembly. See FRONT SEAT.



Front and rear door scuff trim. See REPLACEMENT .



Front seat belt upper and lower anchor. See SECONDARY SEAT BELT REPLACEMENT.



Center pillar lower and upper trim. See CENTER LOWER PILLAR TRIM REPLACEMENT .

2. Loosen the mounting bolts, then remove the height adjuster (A).

Fig. 83: Identifying Height Adjuster With Mounting Bolt Location & Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:59 PM

Page 50

© 2006 Mitchell Repair Information Company, LLC.

3. Installation is the reverse of removal.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:59 PM

Page 51

© 2006 Mitchell Repair Information Company, LLC.

2008 ENGINE

Starting System - Sedona

DESCRIPTION

The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T),
ignition lock switch, connection wires and the battery cable.

When the ignition key is turned to the start position, current flows and energizes the starter motor's solenoid
coil.

The solenoid plunger and clutch shift lever are activated, and the clutch pinion engages the ring gear.

The contacts close and the starter motor cranks. In order to prevent damage caused by excessive rotation of the
starter armature when the engine starts, the clutch pinion gear overruns.

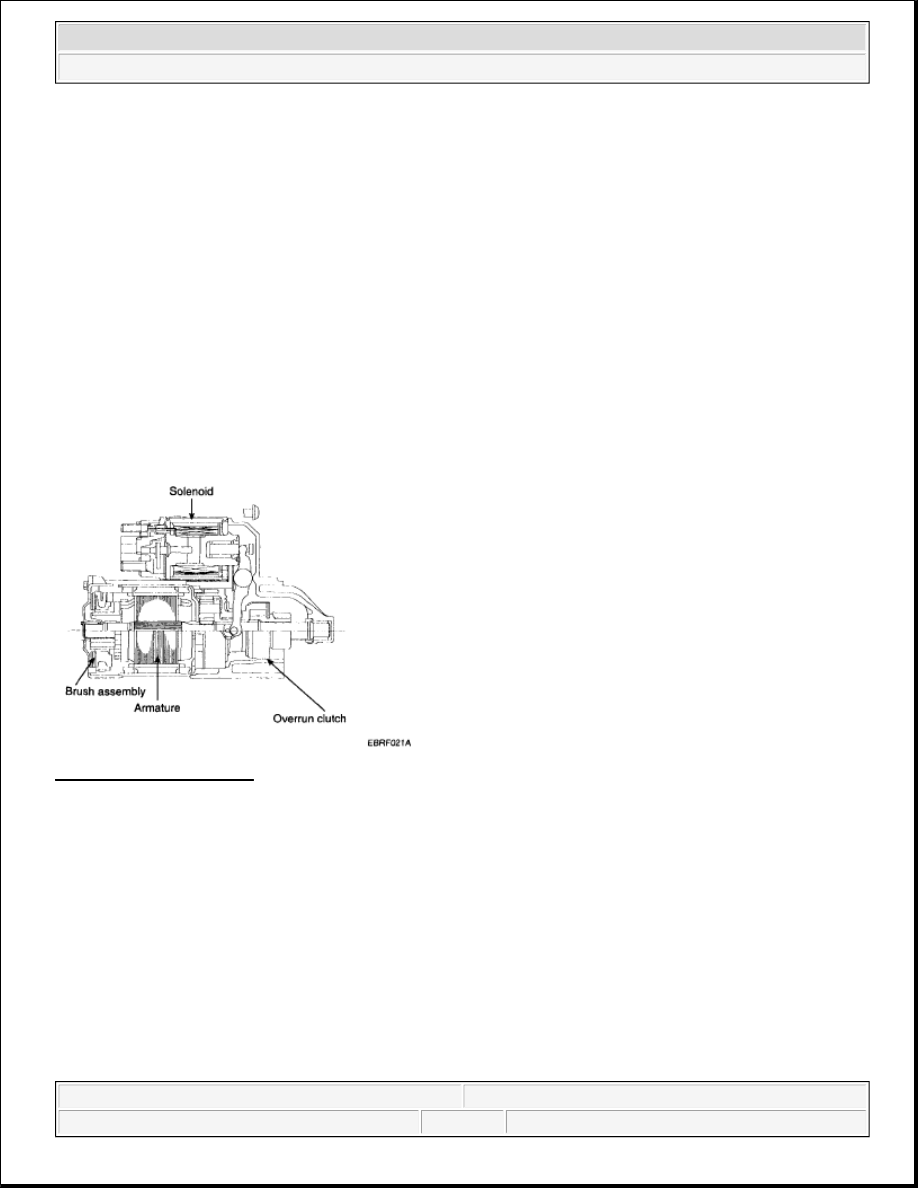

Fig. 1: Identifying Starter
Courtesy of KIA MOTORS AMERICA, INC.

STARTER CIRCUIT

TROUBLESHOOTING

1. Remove the fuel pump relay (A) from the fuse box.

NOTE:

When asked to turn on the accessory loads, turn on the blower to high (heater),
the high beam headlights, and rear defogger. DO NOT use cyclical loads such
as air conditioning or windshield wipers.
