Kia Sedona (2008 year). Manual - part 520

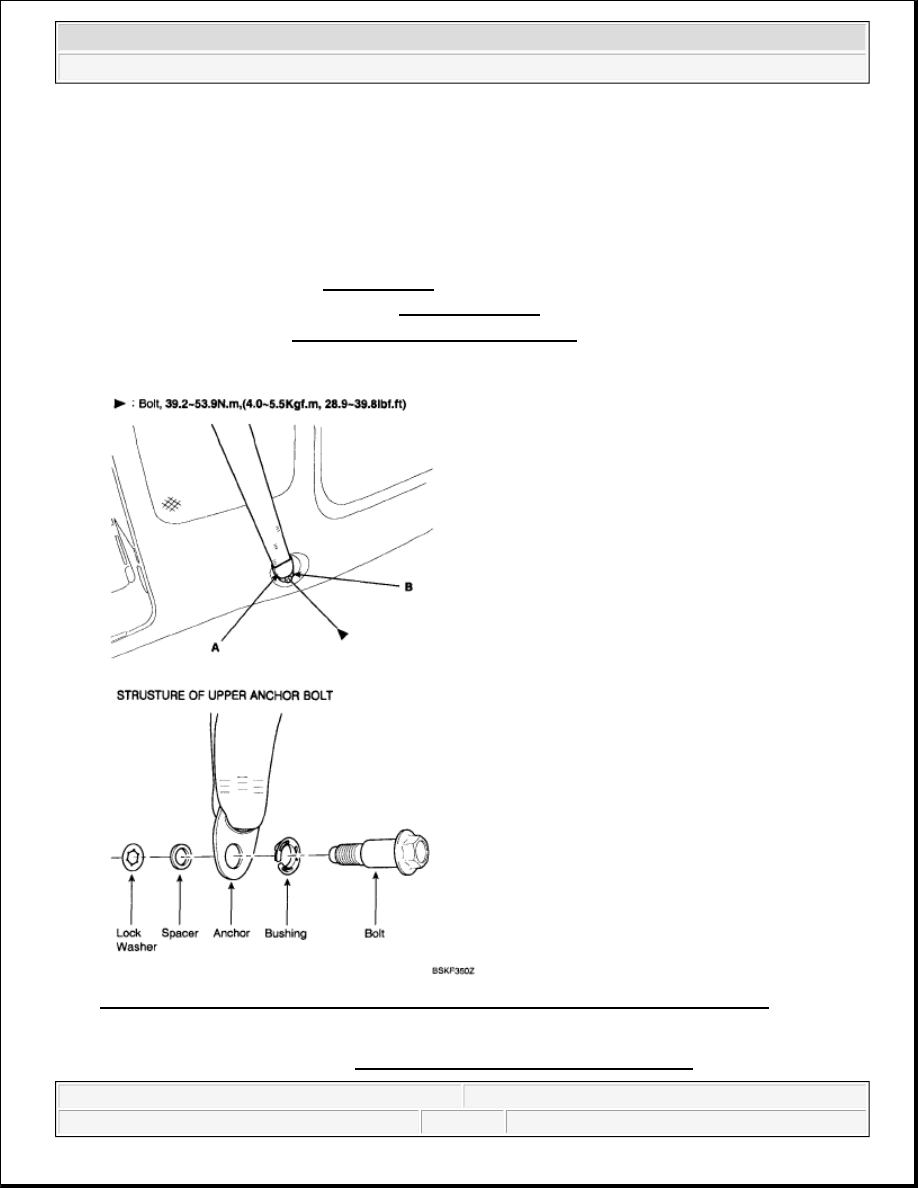

Fig. 75: Identifying Upper Anchor, Retractor, Rear Seat Belt With Mounting Bolt Location &
Torque Specifications



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:59 PM

Page 45

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

7. Installation is the reverse of removal.

THIRD SEAT BELT REPLACEMENT

1. Remove the following items first.



Rear seat assembly. See THIRD SEAT.



Front and rear door scuff trim. See REPLACEMENT .



Rear filler trim. See C PILLAR TRIM REPLACEMENT .

2. Remove the lower anchor (A).

Fig. 76: Identifying Lower Anchor Cover With Mounting Bolt & Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the luggage side trim. See LUGGAGE SIDE TRIM REPLACEMENT .



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:59 PM

Page 46

© 2006 Mitchell Repair Information Company, LLC.

4. Remove the C pillar trim. See C PILLAR TRIM REPLACEMENT .

5. Remove the upper anchor (A).

6. After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).

Fig. 77: Identifying Upper Anchor, Retractor, Rear Seat Belt With Mounting Bolt Location &
Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

7. Installation is the reverse of removal.

FRONT SEAT BELT BUCKLE REPLACEMENT

1. Remove the following items first.



Front seat assembly. See FRONT SEAT.



Recliner cover. See LUMBAR SUPPORT LEVER REPLACEMENT.

2. Remove the seat belt buckle (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:59 PM

Page 47

© 2006 Mitchell Repair Information Company, LLC.

Fig. 78: Identifying Seat Belt Buckle With Mounting Bolt Location
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

SECONDARY SEAT BELT BUCKLE REPLACEMENT

1. Remove the following items first.



Front seat assembly. See FRONT SEAT.



Recliner cover. See LUMBAR SUPPORT LEVER REPLACEMENT.

2. Remove the seat belt buckle (A).

Fig. 79: Identifying Seat Belt Buckle
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.
