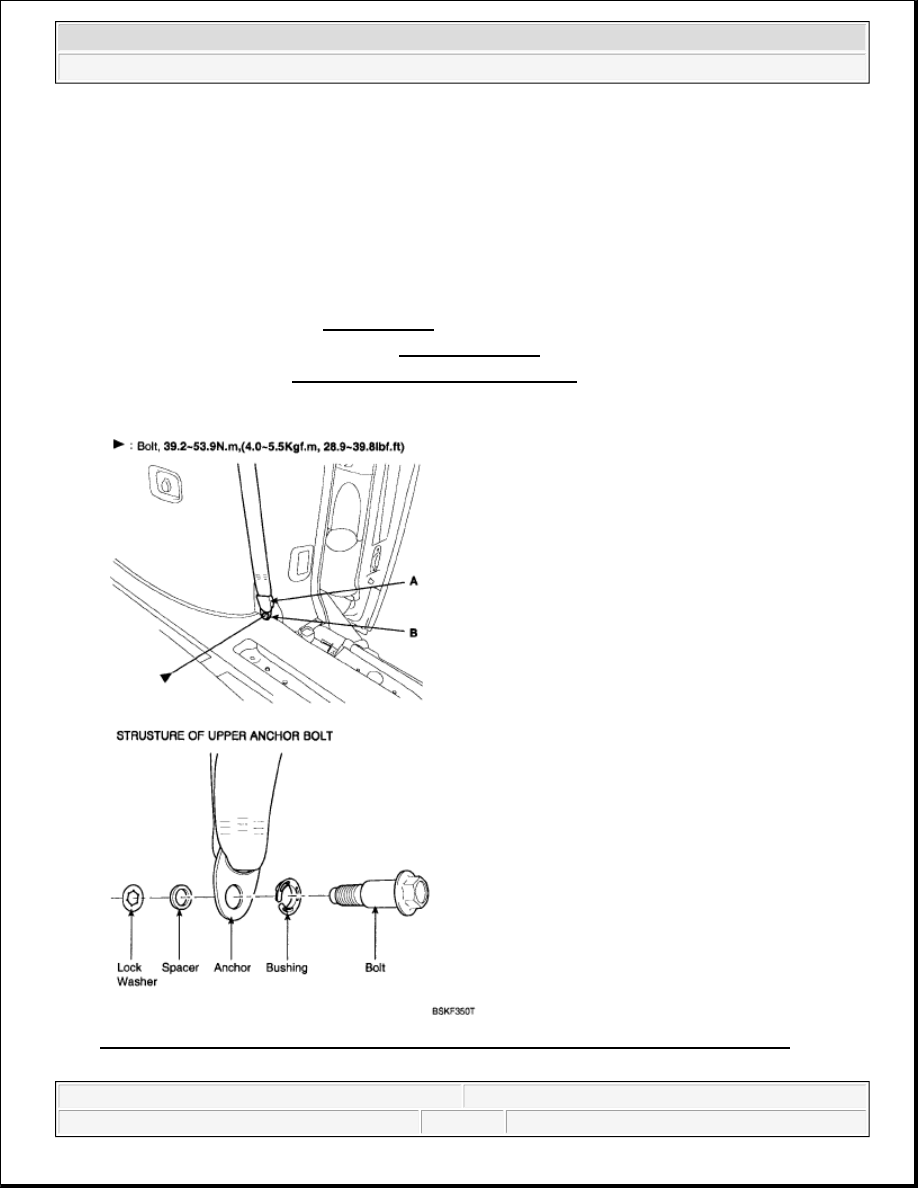

Fig. 72: Identifying Lower Anchor Cover With Mounting Bolt & Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the center pillar lower trim. See CENTER LOWER PILLAR TRIM REPLACEMENT .

4. Remove the center pillar upper trim. See CENTER LOWER PILLAR TRIM REPLACEMENT .

5. Remove the upper anchor (A).

6. After disconnecting the pretensioner connector lock pin, remove the connector (B), Loosen the mounting

bolt, then remove the pretensioner (C).
