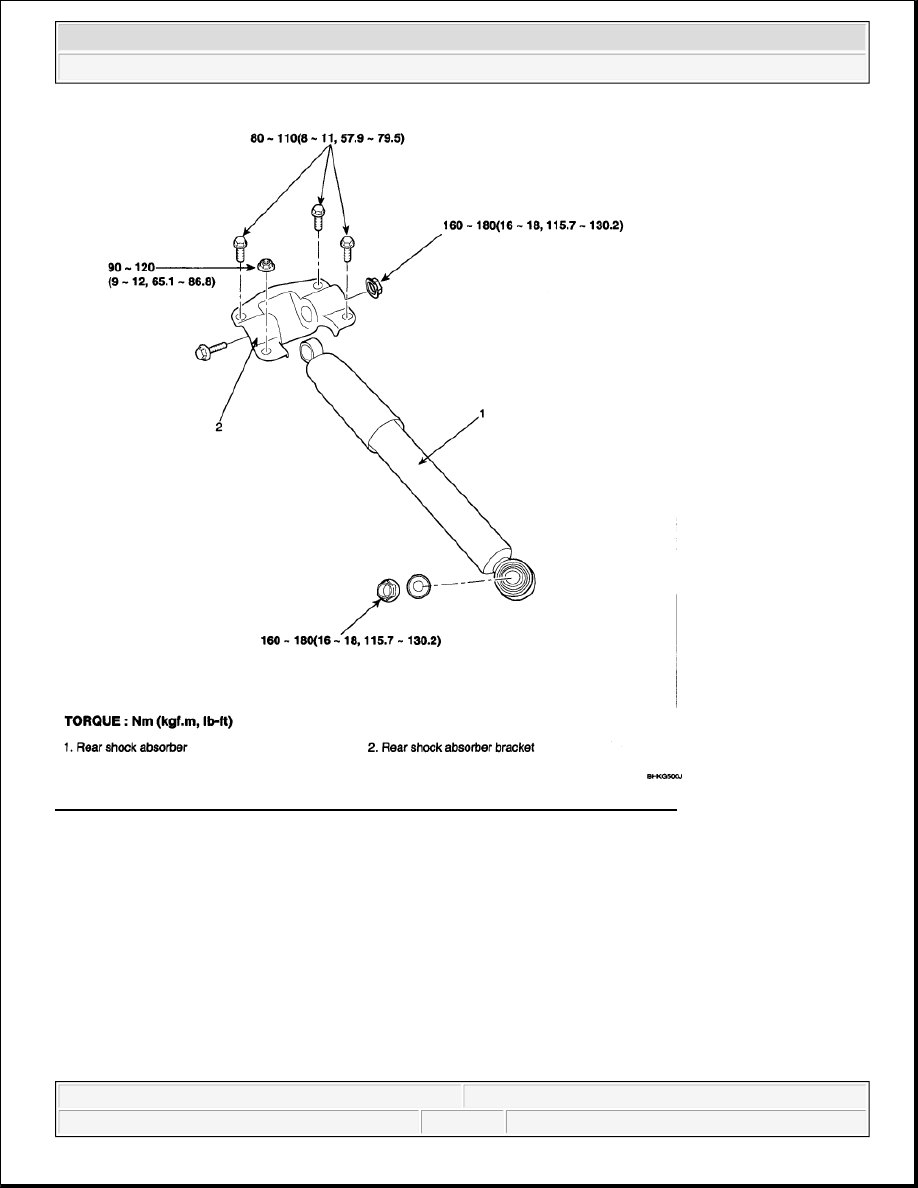

Fig. 2: Identifying Rear Shock Absorber Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Loosen the wheel nuts slightly.

Raise the rear of the vehicle, and make sure it is securely supported.

2. Remove the rear wheel and tire (A) from rear hub (B).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

Fig. 3: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the rear shock absorber assembly mounting bolts (A) and nut (B) from the body.

Fig. 4: Identifying Rear Shock Absorber Assembly Mounting Bolts And Nut
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the rear shock absorber assembly nut (B) from the rear knuckle, then remove the shock absorber

assembly (A).

CAUTION: Be careful not to damage the hub bolts (C) when removing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

Fig. 5: Identifying Rear Shock Absorber Assembly And Nut
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the rear shock absorber bracket bolt (A).

Fig. 6: Identifying Rear Shock Absorber Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. Check the rubber parts for damage or deterioration.

2. Check the shock absorber for abnormal resistance or unusual sounds.

DISPOSAL

1. Fully extend the shock absorber rod.

2. Drill a hole to remove gas from the cylinder.



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

Fig. 7: Extending Shock Absorber Rod
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Install the connecting bolt (A) between the rear shock absorber and the bracket.

Tightening torque N.m (kgf.m, lb-ft):

160-180 (16-18, 115.7-130.2)

Fig. 8: Identifying Rear Shock Absorber Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

2. Install the rear shock absorber (A) to the knuckle temporarily.

CAUTION: The gas coming out is harmless, but be careful of chips that may fly

up when drilling. Be sure to use face shield and safety goggles.
