Fig. 9: Identifying Rear Shock Absorber
Courtesy of KIA MOTORS AMERICA, INC.

3. Install the rear shock absorber bracket mounting bolts (A) and nut (B).

Tightening torque N.m (kgf.m, lb-ft):

Bolt: 80-110 (8-11, 59.7-79.5)

Nut: 90-120 (9-12, 65.1-86.8)

Fig. 10: Identifying Rear Shock Absorber Assembly Mounting Bolts And Nut
Courtesy of KIA MOTORS AMERICA, INC.

4. Install the rear shock absorber (A) nut (B) to the knuckle.

Tightening torque N.m (kgf.m, lb-ft):

160-180 (16-18, 115.7-130.2)



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

Fig. 11: Identifying Rear Shock Absorber Assembly And Nut
Courtesy of KIA MOTORS AMERICA, INC.

5. Install the wheel and the tire (A) to the rear hub (B).

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)

Fig. 12: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

REAR UPPER ARM

COMPONENTS

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Fig. 13: Identifying Rear Upper Arm Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Loosen the wheel nuts slightly. Raise the rear of the vehicle, and make sure it is securely supported.

2. Remove the rear wheel and tire (A) from rear hub (B).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

Fig. 14: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the brake caliper mounting bolts (A), and then place the brake caliper assembly (B) with wire as

shown in the illustration.

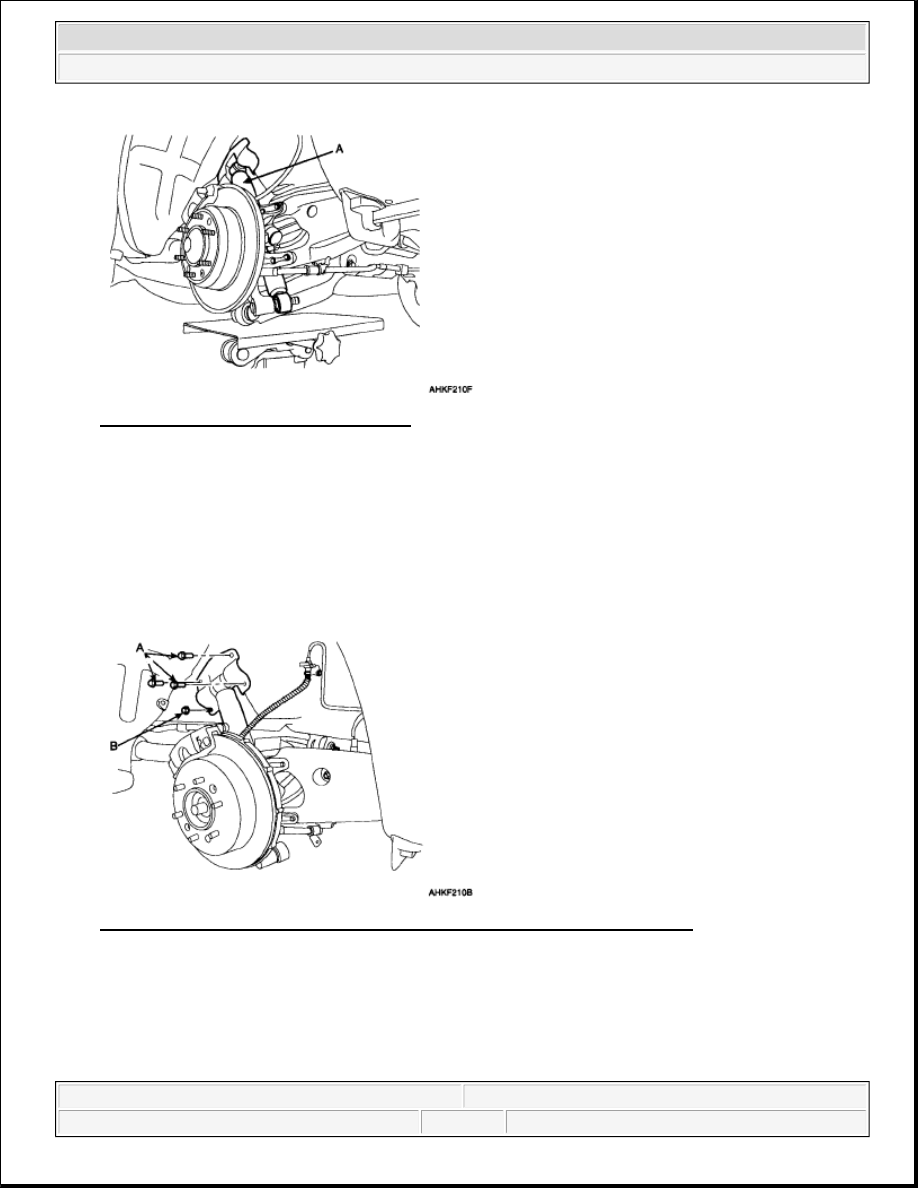

Fig. 15: Identifying Brake Caliper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when removing the rear

wheel and tire (A).
