Fig. 5: Identifying Window Motor And Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

SLIDING POWER WINDOW MOTOR

1. Remove (-) negative battery terminal.

2. Remove the sliding door trim panel. Refer to REAR DOOR .

3. Remove the door trim seal and glass.

4. Remove the door regulator.

5. Remove the power window motor (A) after disconnecting the motor connector and power window motor

mounting nuts.

Fig. 6: Identifying Power Window Motor And Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

6. Installation is the reverse of removal.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Windows - Sedona



Microsoft



Monday, May 24, 2010 4:10:37 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

QUARTER GLASS MOTOR

1. Remove (-) negative battery terminal.

2. Remove the D pillar trim panel (A). Refer to INTERIOR TRIM .

Fig. 7: Identifying D Pillar Trim Panel
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the quarter glass motor (B) after disconnecting the motor connector (A) and quarter glass motor

mounting bolts and screws.

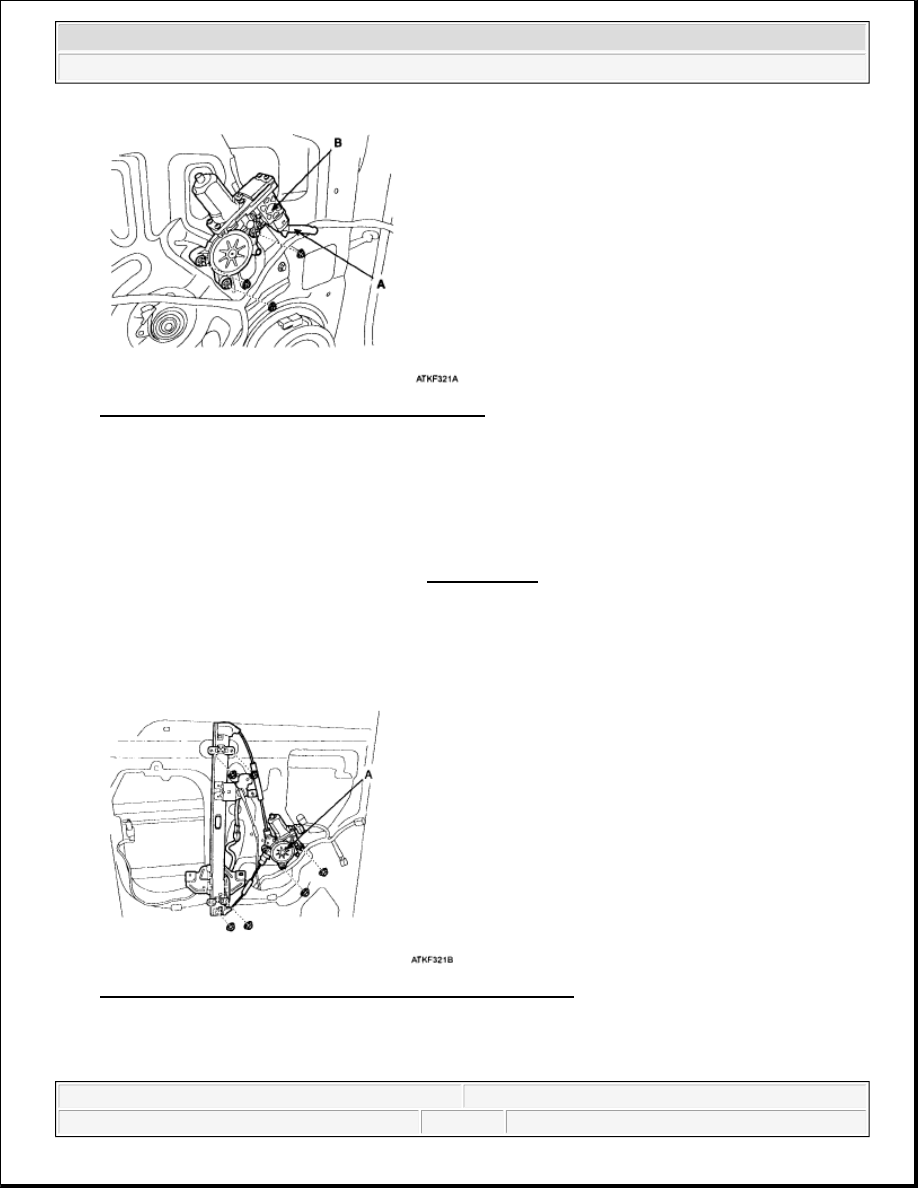

Fig. 8: Identifying Quarter Glass Motor And Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

INSPECTION

FRONT POWER WINDOW MOTOR INSPECTION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Windows - Sedona



Microsoft



Monday, May 24, 2010 4:10:37 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

1. Remove (-) negative battery terminal.

2. Remove the rear door trim panel. Refer to FRONT DOOR .

3. Disconnect the motor connector from the motor.

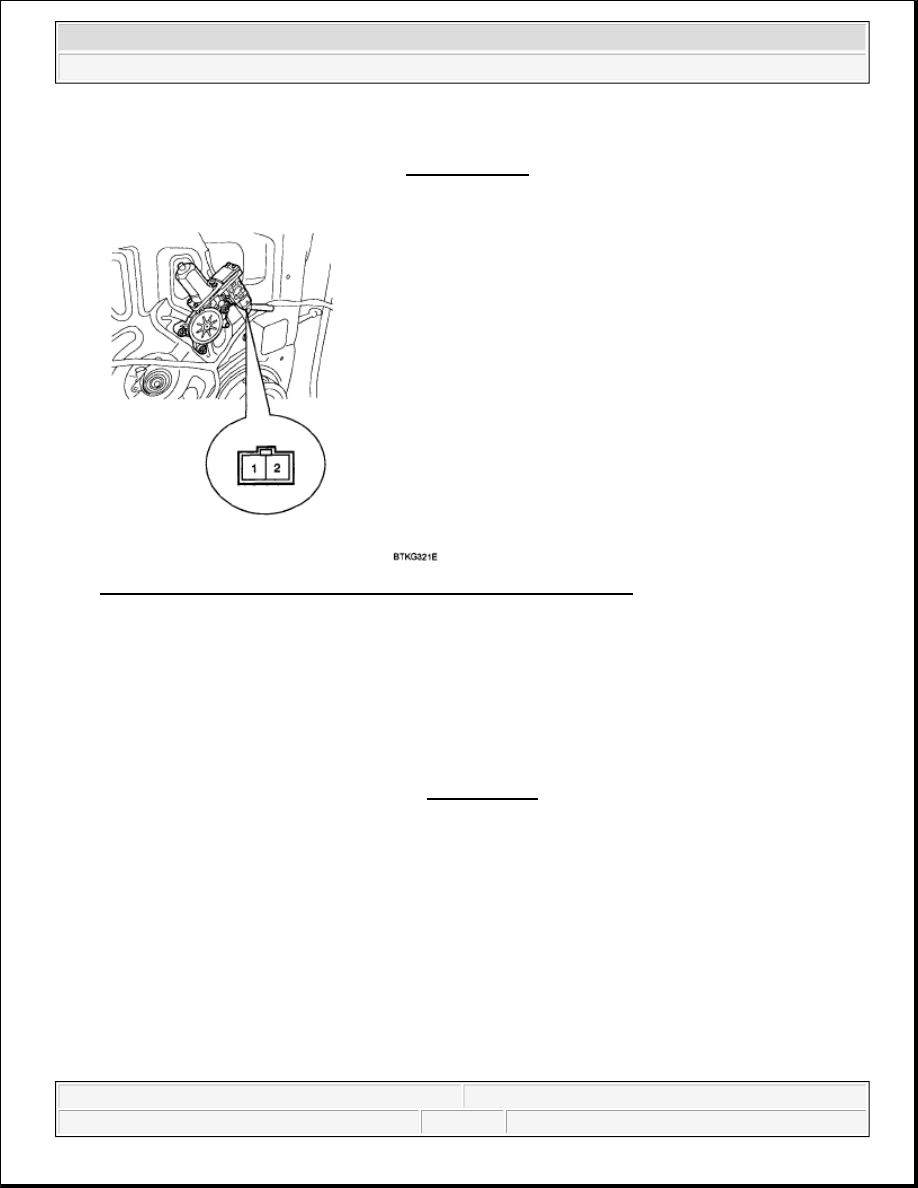

Fig. 9: Identifying Front Power Window Motor Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates

smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction.
If the operation is abnormal, replace the motor.

SLIDING POWER WINDOW MOTOR INSPECTION

1. Remove (-) negative battery terminal.

2. Remove the sliding door trim panel. Refer to REAR DOOR .

3. Disconnect the motor connector from the motor.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Windows - Sedona



Microsoft



Monday, May 24, 2010 4:10:37 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

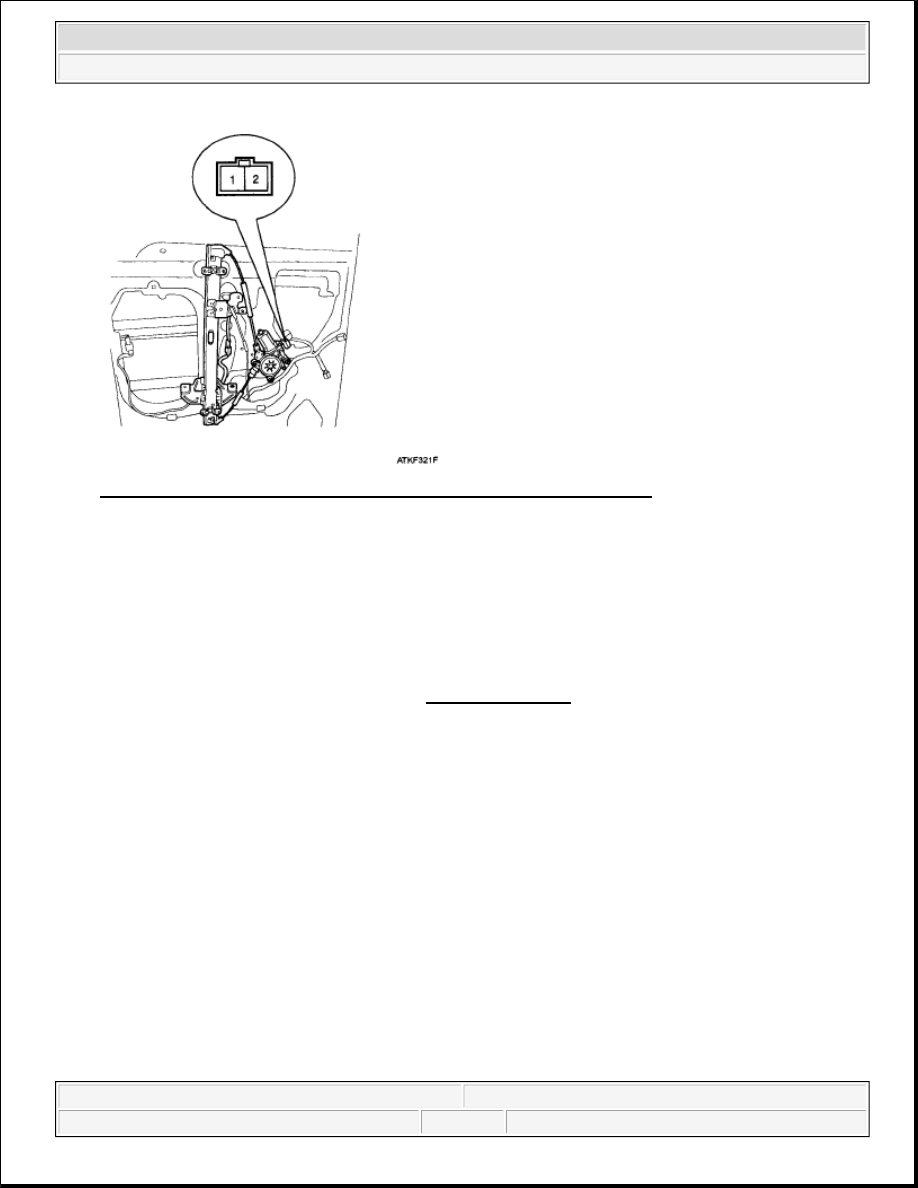

Fig. 10: Identifying Sliding Power Window Motor Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

4. Connect the motor terminals directly to battery voltage and check that the motor operates smoothly. Next,

reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is
abnormal, replace the motor.

QUARTER GLASS MOTOR INSPECTION

1. Remove (-) negative battery terminal.

2. Remove the D pillar trim panel (A). Refer to INTERIOR TRIM .

3. Disconnect the motor connector from the motor.
