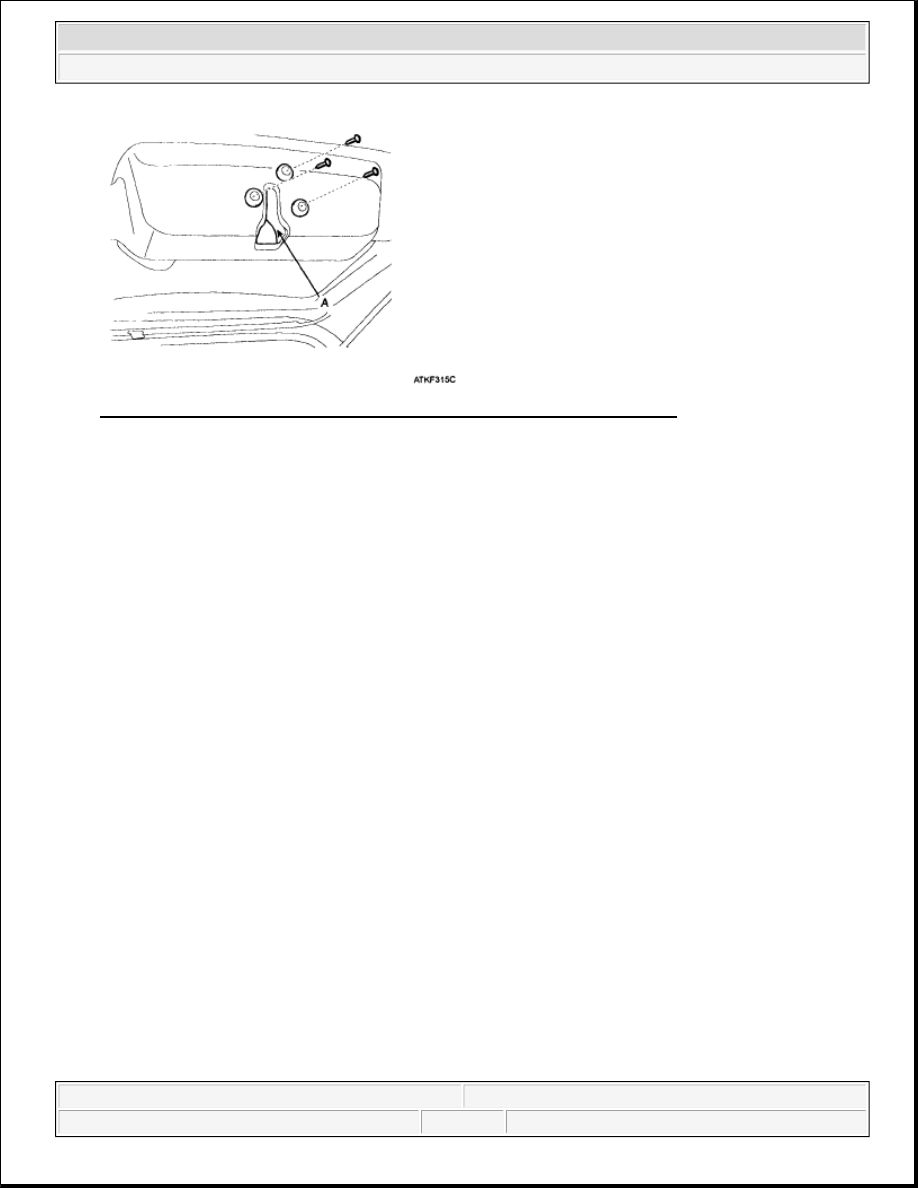

Fig. 32: Identifying Cinching Latch Assembly And Latch Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

7. Installation is the reverse of removal.

POWER TAILGATE SWITCH

INSPECTION

OVERHEAD CONSOLE DOOR SWITCH INSPECTION

1. Check the overhead console door switch input/output value by using the diagnostic tool. If the operation

of overhead console door switch is abnormal, check the IPM and replace.

2. When checking the overhead console switch operation, select a vehicle type and "IPM".

NOTE:



Check the power tailgate for normal operation.



Check the normal operating whenever a power tailgate component is
removed or replaced. If the chime sound is heard, check the DTC,
wiring harness and cable connections.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:17:00 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.

Fig. 33: Identifying Scan Tool Display - IPM
Courtesy of KIA MOTORS AMERICA, INC.

3. Select a in panel module (IPM) and "02. CURRENT DATA".

Fig. 34: Diagnosis Tool Display - CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.

4. Check the PSD PTG power control switch and PTG switch output value.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:17:00 PM

Page 28

© 2006 Mitchell Repair Information Company, LLC.

Fig. 35: Identifying Scan Tool Display - PTG Open/Close
Courtesy of KIA MOTORS AMERICA, INC.

5. Confirm that output is changed by the controlling ON/OFF of each switch on the overhead console.

TAILGATE SWITCH INSPECTION

1. Check the power tailgate control module input/output value by using the diagnostic tool. If the operation

of tailgate module is abnormal, replace power tailgate switch.

2. When checking tailgate switch operation, select a vehicle type and "POWER SLIDING/TAILGATE"

menu.

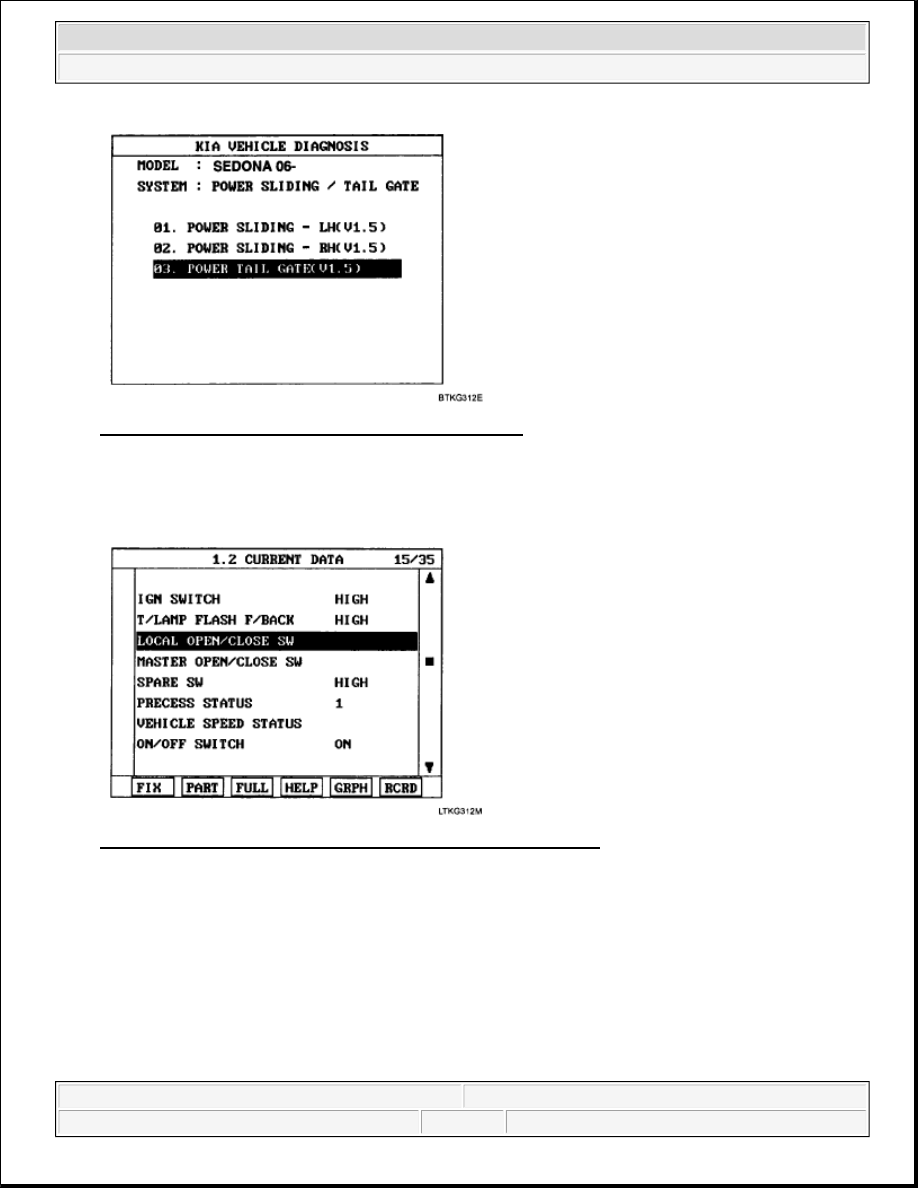

Fig. 36: Identifying Scan Tool Display - Power Sliding/Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

3. Select the "POWER TAILGATE" menu to check.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:17:00 PM

Page 29

© 2006 Mitchell Repair Information Company, LLC.

Fig. 37: Identifying Scan Tool Display - Power Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the power tailgate local switch output value changed by the

controlling PTG.

Fig. 38: Identifying Scan Tool Display - Local Open/Close Switch
Courtesy of KIA MOTORS AMERICA, INC.

5. If there is no input/output change from OFF to ON during PTG operation, change the power tailgate

switch.

REPLACEMENT

OVERHEAD CONSOLE SWITCH

1. Disconnect the negative (-) battery terminal.

2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:17:00 PM

Page 30

© 2006 Mitchell Repair Information Company, LLC.
