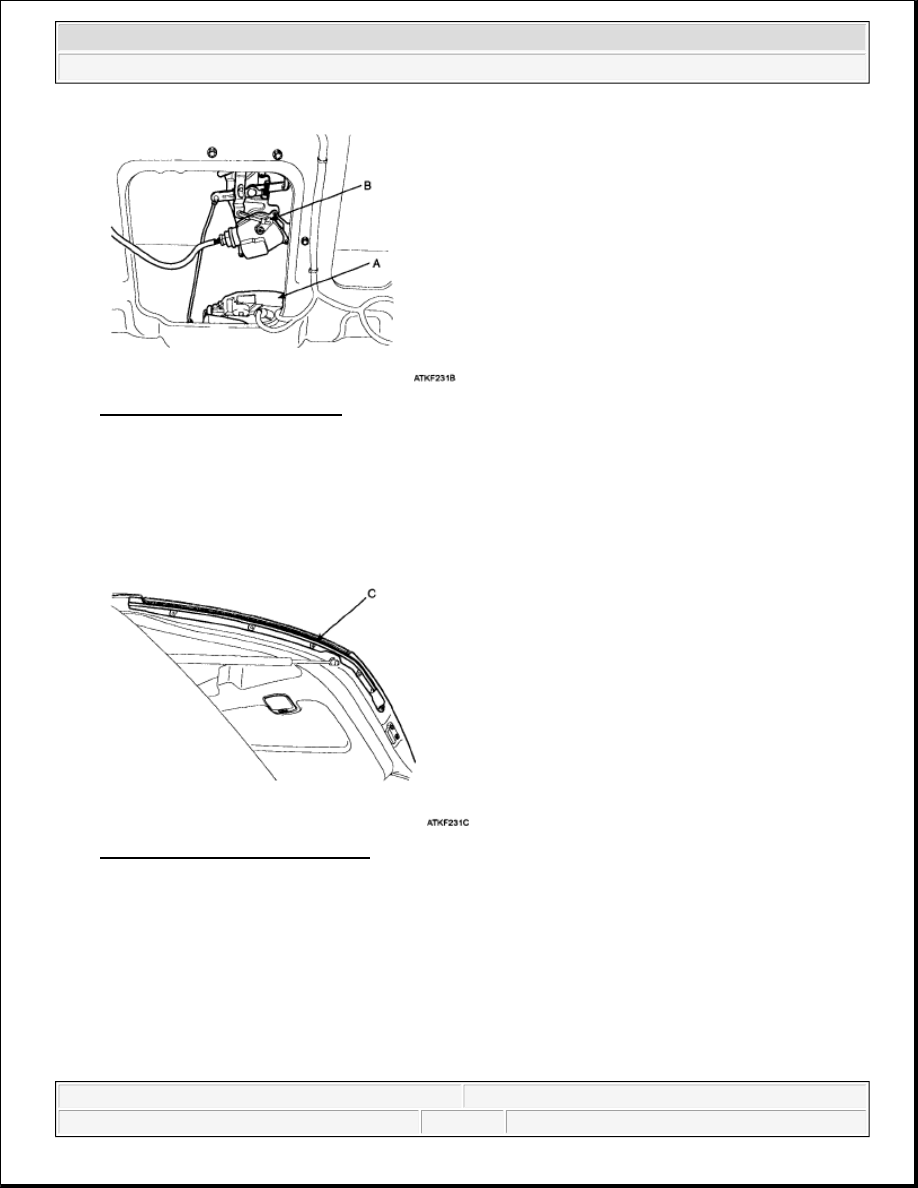

Fig. 3: Identifying Power Latch
Courtesy of KIA MOTORS AMERICA, INC.

3. ANTI PINCH STRIP (C)

During power closing or cinching, the PTG system shall reverse to full open if an anti-pinch strip signal is
received. However, the anti-pinch strips will not work when the Tailgate is idle in the full closed, full
open, or stopped positions.

Fig. 4: Identifying Anti Pinch Strip
Courtesy of KIA MOTORS AMERICA, INC.

4. PTG CHIME (D)

When a power operation cannot be performed as requested or an obstacle has been detected.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

Fig. 5: Identifying PTG Chime
Courtesy of KIA MOTORS AMERICA, INC.

5. REMOTE KEYLESS ENTRY (A)

Fig. 6: Identifying Remote Keyless Entry
Courtesy of KIA MOTORS AMERICA, INC.

Push the power tailgate (A) of the remote keyless entry more than 0.5s to open the power tailgate. Power
Open operation shall be reversed when an additional Open/Close signal is received during power
opening.

6. OPERATING ORDER

Switch ON --> clutch on --> motor operation --> pinion gear rotation --> rack rectilinear motion --> push
rod motion --> tailgate open/close

OPERATION

POWER TAILGATE OPEN/CLOSE



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

1. The power tall gate is opened and closed automatically if the main switch (A) is pressed on the overhead

console.

Fig. 7: Identifying Power Tailgate Main Switch
Courtesy of KIA MOTORS AMERICA, INC.

2. When the power ON/OFF button (PWR) (B) is ON, the power sliding door and power tailgate can be

opened and closed automatically by using the switch.

3. When the power tailgate door will power open/close fully, the warning lamp and the chime will operate 3

times.

4. General rules for chime functions



Chime & tail lamp shall operate prior to and during power opening or closing the Tailgate: 3 Times
(0.5 sec on, 0.5 sec off), after 1 chime start opening or closing with two chimes.



Chime shall operate when a power operation cannot be performed as requested except handle pull:
1 Time (Duration 0.5 second on)



Chime shall operate when an obstacle has been detected: 3 Times (0.5 sec on, 0.5 sec off)



Chime shall operate if PTG has not reached primary latch position after a power cinch cycle: 3
Times (0.5 sec on, 0.5 sec off)

POWER TAILGATE OPERATING CONDITION

1. The tailgate will not power open when vehicle is moving above 3 mph (5 km/h) or the gearshift lever is

not in P (Park) for automatic transaxle.

2. The power tailgate will not open with the transmitter or the main control button when all power sliding

doors are locked and closed.

3. The power tailgate will detect the resistance, then stop movement or move to the full open position to

allow the object to be cleared.

4. If the automatic stop and reversal feature operates continuously more than twice during one opening or

closing operation, the power tailgate may stop at that position. At this time, close the tailgate manually
and operate the tailgate automatically again.

5. The PTG system is an electronic device and requires a minimum battery voltage to operate. The

Electronic Control Unit (ECU) monitors the battery voltage present at the ECU input battery input and



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

will not permit operation if the battery voltage is out of range.

6. If the PTG button is pressed during closing operation, the power tailgate may reverse direction and open

fully.

7. Remove the accumulated snow or ice on the power tailgate before operating.

POWER OPERATION

The PTG system shall not open the Tailgate when the vehicle is moving.

The PTG system shall operate through the full range of Tailgate travel.

The PTG system shall learn the position of each travel extreme: full open and full closed.

PTG SYSTEM OPERATION CHART

NOTE:

To prevent the battery from being discharged, do not leave the power
sliding door and power tailgate at open position for a long time.

WARNING:



Always disconnect the negative battery cable before attempting
any power tailgate system service.



Never attempt to enter or exit the vehicle with the tailgate in
motion. You could be injured or cause damage to the power
tailgate system and or components.

-: No action •: Close o:Open X: Stop

Vehicle

Motion

Door

Position

Zone

ON/OFF

Door Lock

Status

Operation

RKE Key fob

Note 2

PSD main

switch

PSD sub

switch

Door handle

switch

Not

Moving

1

OFF

Any

o

o

-

X

ON

Unlock

o

o

-

o

Locked

o

o

-

X

2

OFF

Any

o

o

X (Chime 1

T)

X

ON

Unlock

o

o

o

X

Locked

o

o

o

X

3 or 4

OFF

Any

•

•

X (Chime 1

T)

X

ON

Any

•

•

•

X

Closing

OFF

Any

o

o

X

X

ON

Any

o

o

o

X

Opening 1 or

2

ON

Any

X

X

X

X

OFF

Any

X

X

X

X

Opening 3 or

4

OFF

Any

•

•

X

X
