Fig. 71: Identifying Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.

4. Install the pump pulley (A).

Tightening torque:

55-69 N.m (5.5-6.9 kgf.m, 39.8-49.9 lb-ft)

Fig. 72: Identifying Oil Pump Pulley
Courtesy of KIA MOTORS AMERICA, INC.

5. Install the inner O-ring and outer O-ring (A).



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 38

© 2006 Mitchell Repair Information Company, LLC.

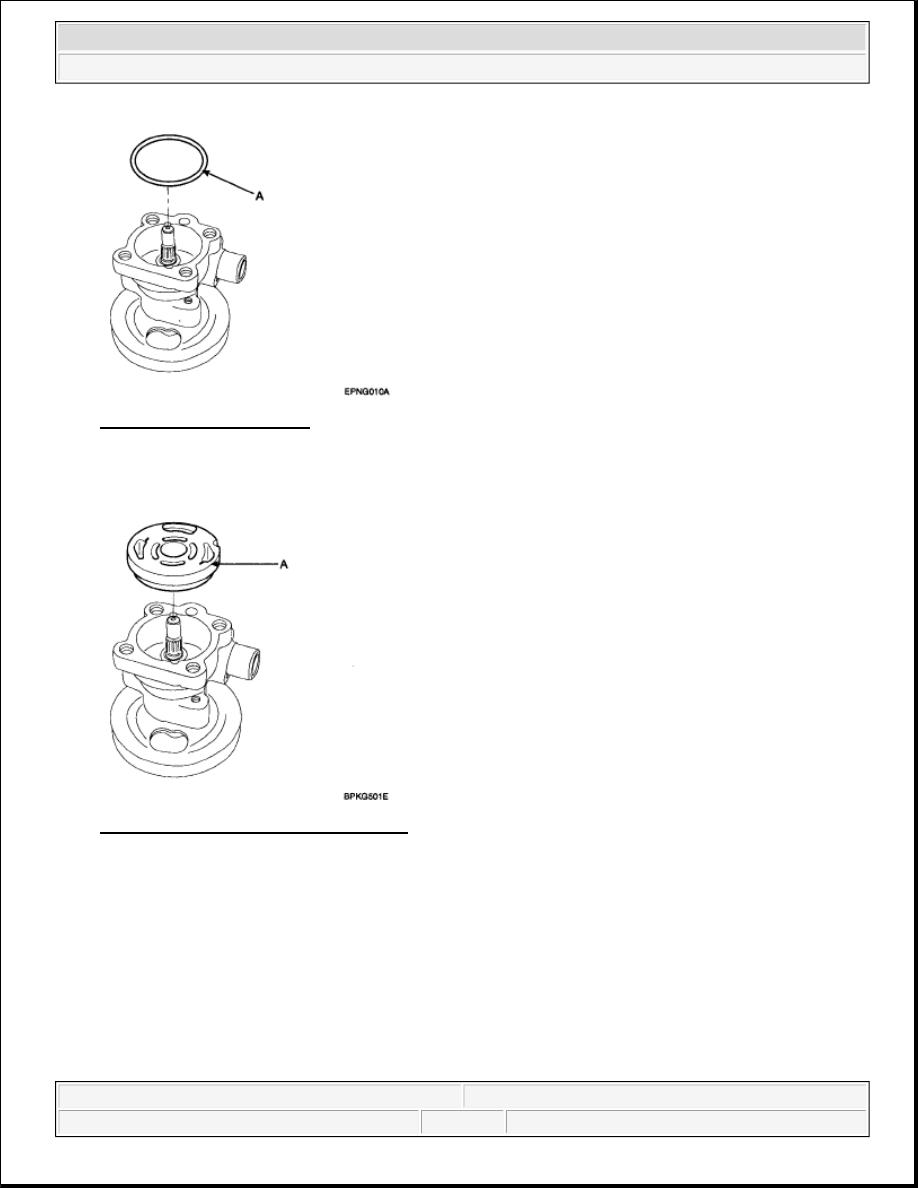

Fig. 73: Identifying O-Ring
Courtesy of KIA MOTORS AMERICA, INC.

6. Install the oil pump side plate (A).

Fig. 74: Identifying Oil Pump Side Plate
Courtesy of KIA MOTORS AMERICA, INC.

7. After inserting the lock pin into the groove of the front housing, install the cam ring (A) attending to the

direction.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 39

© 2006 Mitchell Repair Information Company, LLC.

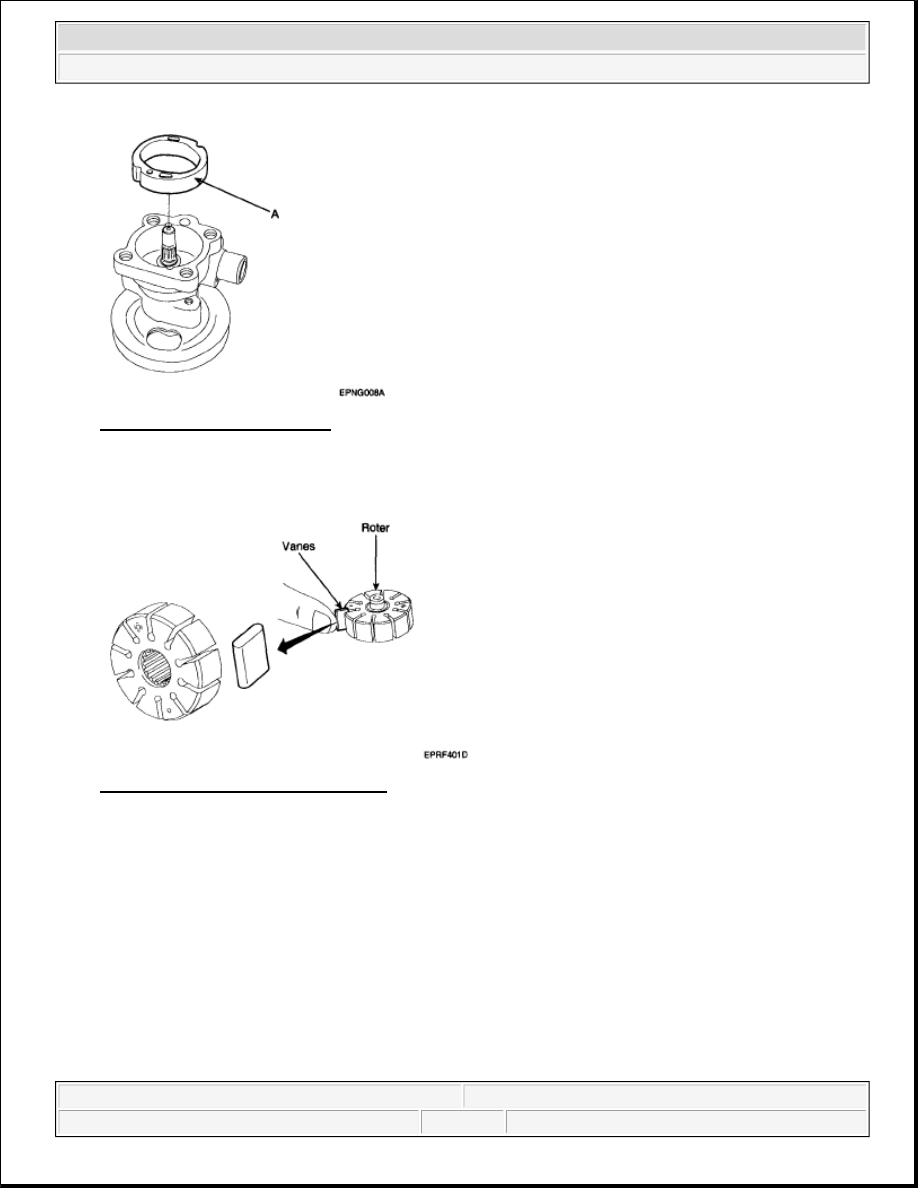

Fig. 75: Identifying Cam Ring
Courtesy of KIA MOTORS AMERICA, INC.

8. Install the rotor and the vanes.

Fig. 76: Identifying Rotor And Vanes
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 40

© 2006 Mitchell Repair Information Company, LLC.

Fig. 77: Identifying Rotor And Vanes
Courtesy of KIA MOTORS AMERICA, INC.

9. Install the gasket and oil pump cover assembly (A).

Fig. 78: Identifying Oil Pump Cover Gasket
Courtesy of KIA MOTORS AMERICA, INC.
