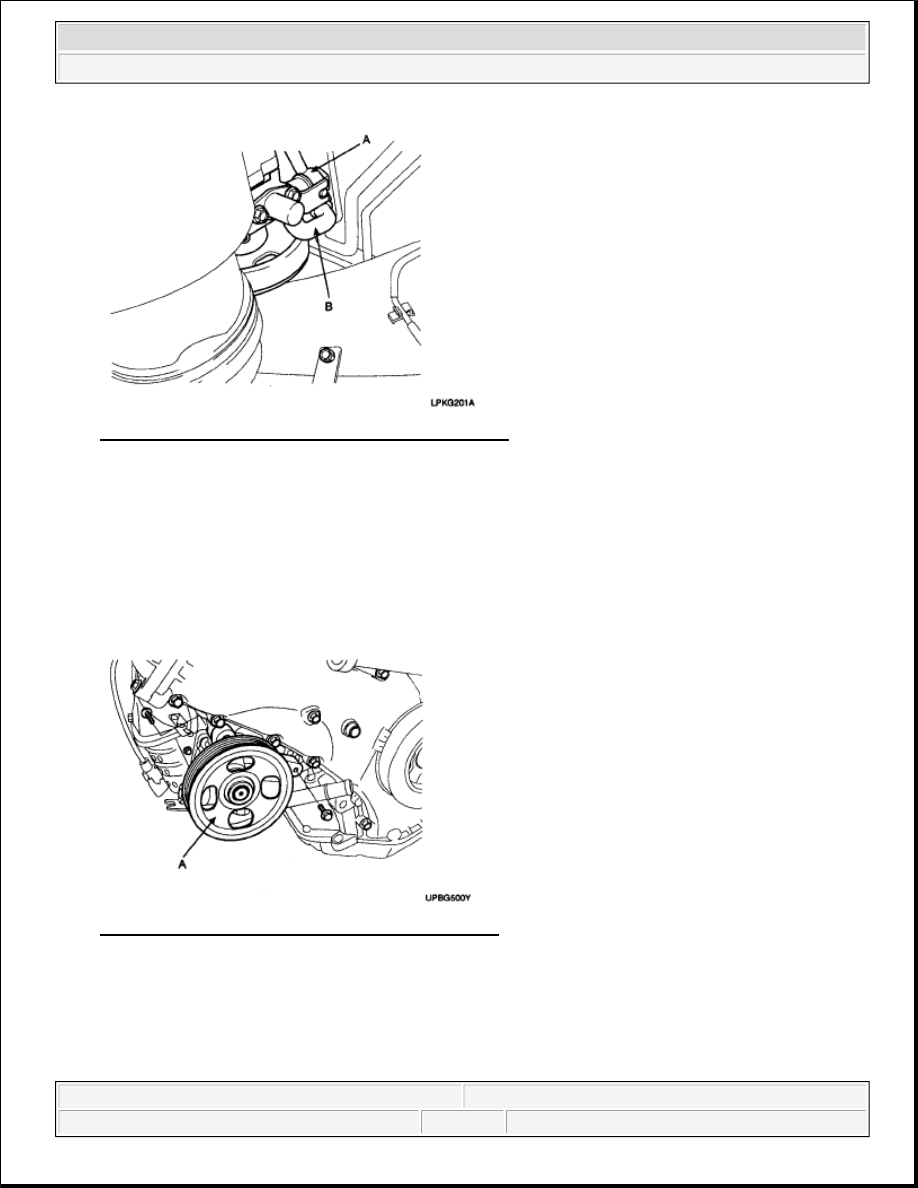

Fig. 56: Identifying Pressure Tube And Suction Tube
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the drive belt.

4. Loosen the power steering pump mounting bolt and nut, and then remove the power steering pump

assembly (A) from the pump bracket.

Tightening torque N.m (kgf.m lb-ft):

35-50 (3.5-5.0, 25-36)

Fig. 57: Identifying Power Steering Pump Assembly
Courtesy of KIA MOTORS AMERICA, INC.

DISASSEMBLY

1. Remove two bolts from the oil pump body (A), and then remove the suction pipe (B) and O-ring.

NOTE:

Be careful not to spill fluid from the power steering oil pump.

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:04 PM

Page 30

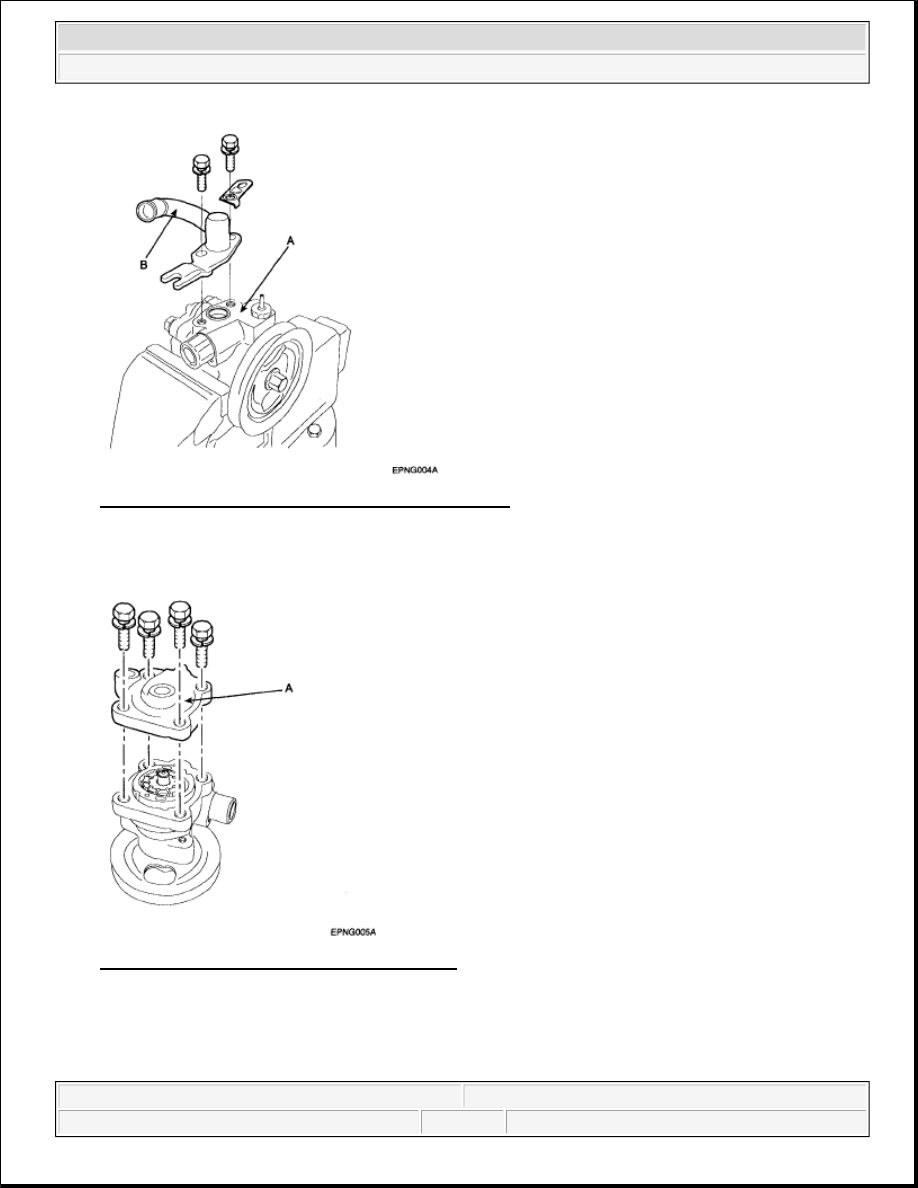

Fig. 58: Identifying Oil Pump Body And Suction Pipe
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the four bolts and remove the oil pump cover assembly (A) and the gasket.

Fig. 59: Identifying Oil Pump Cover Assembly
Courtesy of KIA MOTORS AMERICA, INC.

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:04 PM

Page 31

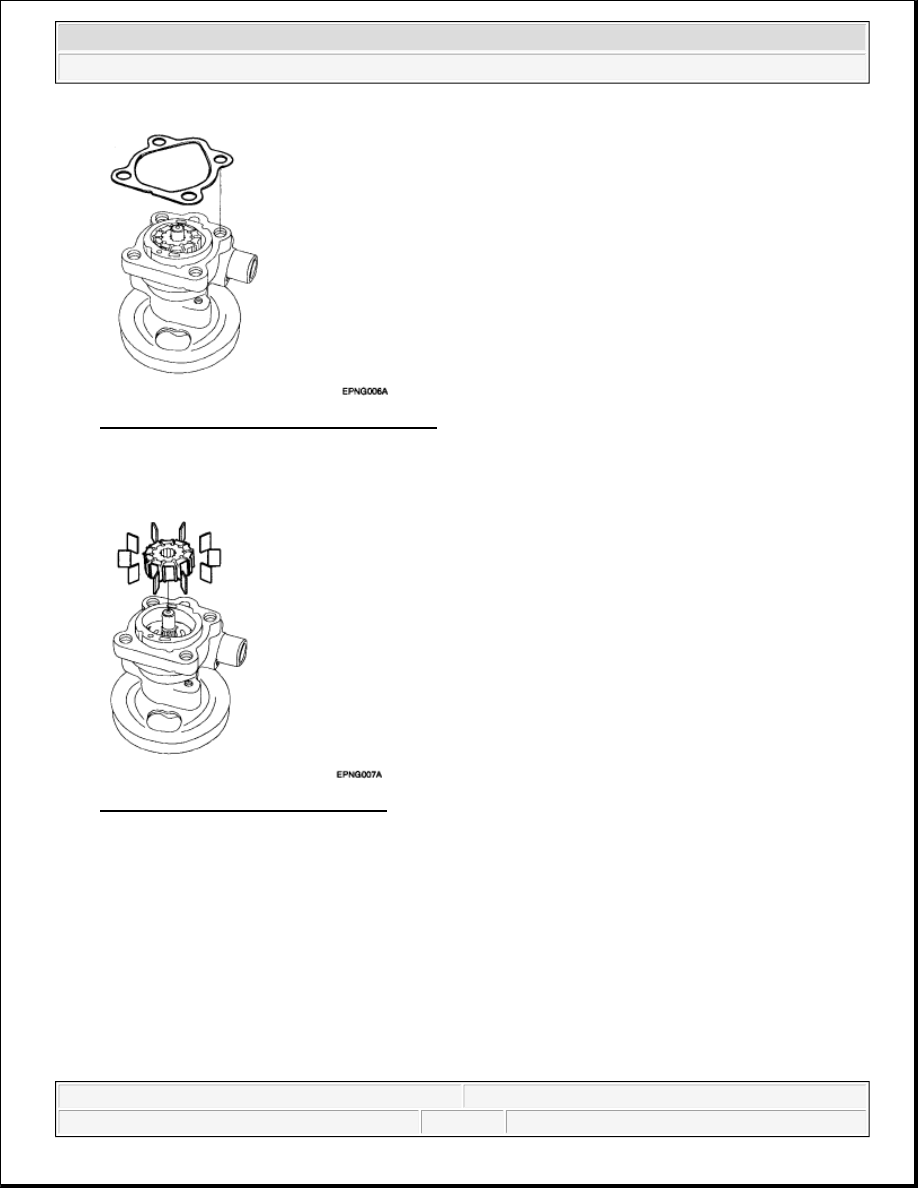

Fig. 60: Identifying Oil Pump Cover Gasket
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the rotor and vanes.

Fig. 61: Identifying Rotor And Vanes
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the cam ring.

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:04 PM

Page 32

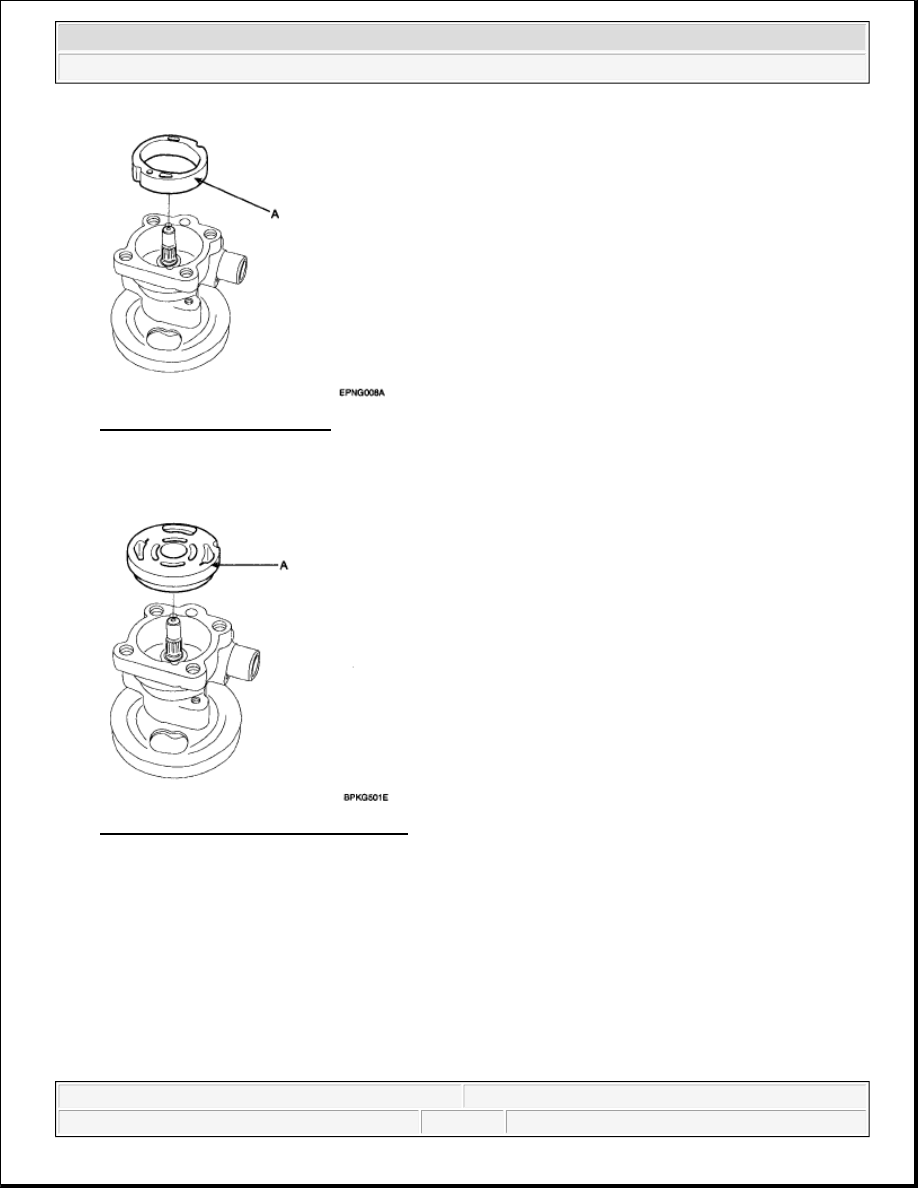

Fig. 62: Identifying Cam Ring
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the oil pump side plate (A).

Fig. 63: Identifying Oil Pump Side Plate
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the inner and outer O-ring (A).
