Kia Sedona (2008 year). Manual - part 484

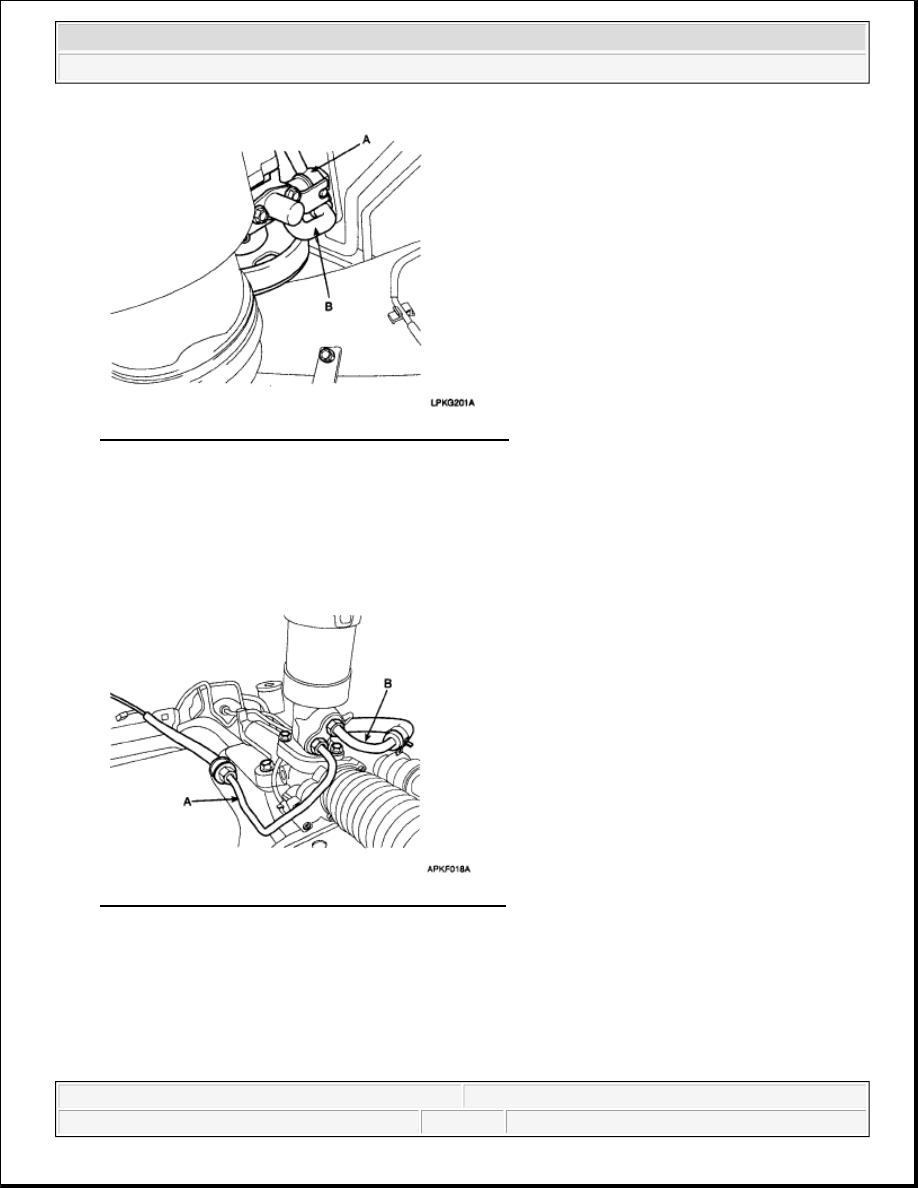

Fig. 50: Identifying Pressure Tube And Suction Tube
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the pressure tube (A) and return tube (B) from the valve body housing.

Tightening torque N.m (kgf.m, lb-ft):

12-18 (1.2-1.8, 9-13)

Fig. 51: Identifying Pressure Tube And Return Tube
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the brackets of the pressure tube and hose from the sub-frame.

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:04 PM

Page 26

Fig. 52: Identifying Brackets Of Pressure Tube And Hose
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the bracket of the return tube and hose.

Fig. 53: Identifying Bracket Of Return Tube And Hose
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the under cover and then loosen the oil cooler tube bracket bolts.

NOTE:

Be sure to connect between a tube and a hose. See Fig. 54.

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:04 PM

Page 27

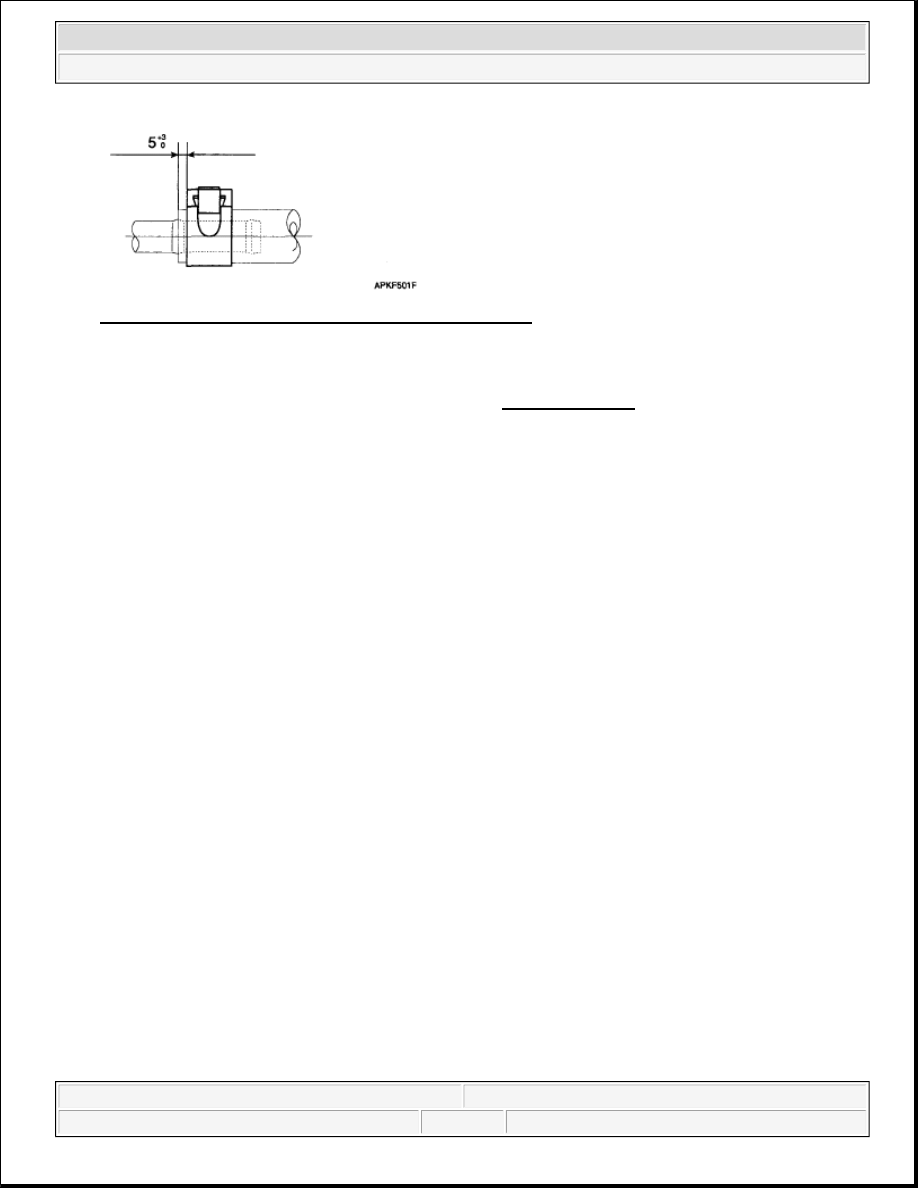

Fig. 54: Identifying Tube And Hose Connecting Position
Courtesy of KIA MOTORS AMERICA, INC.

7. Installation is the reverse of removal.

8. After installation, bleed the power steering system. See AIR BLEEDING .

POWER STEERING OIL PUMP

COMPONENTS

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:04 PM

Page 28

Fig. 55: Identifying Power Steering Oil Pump Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Disconnect the pressure tube (A) from the oil pump by loosening the eye bolt.

Tightening torque N.m (kgf-m, lb-ft):

65-75 (6.5-7.5, 47-54)

2. Disconnect the suction hose (B) from the suction pipe.
