4. Installation is the reverse of removal.

OVERHEAD CONSOLE LAMP

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Replace the bulb after removing the lens with a flat-tip screwdriver.

Fig. 14: Identifying Overhead Console Lamp Bulb
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the bulb and replace it with a new one

DOOR COURTESY LAMP

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

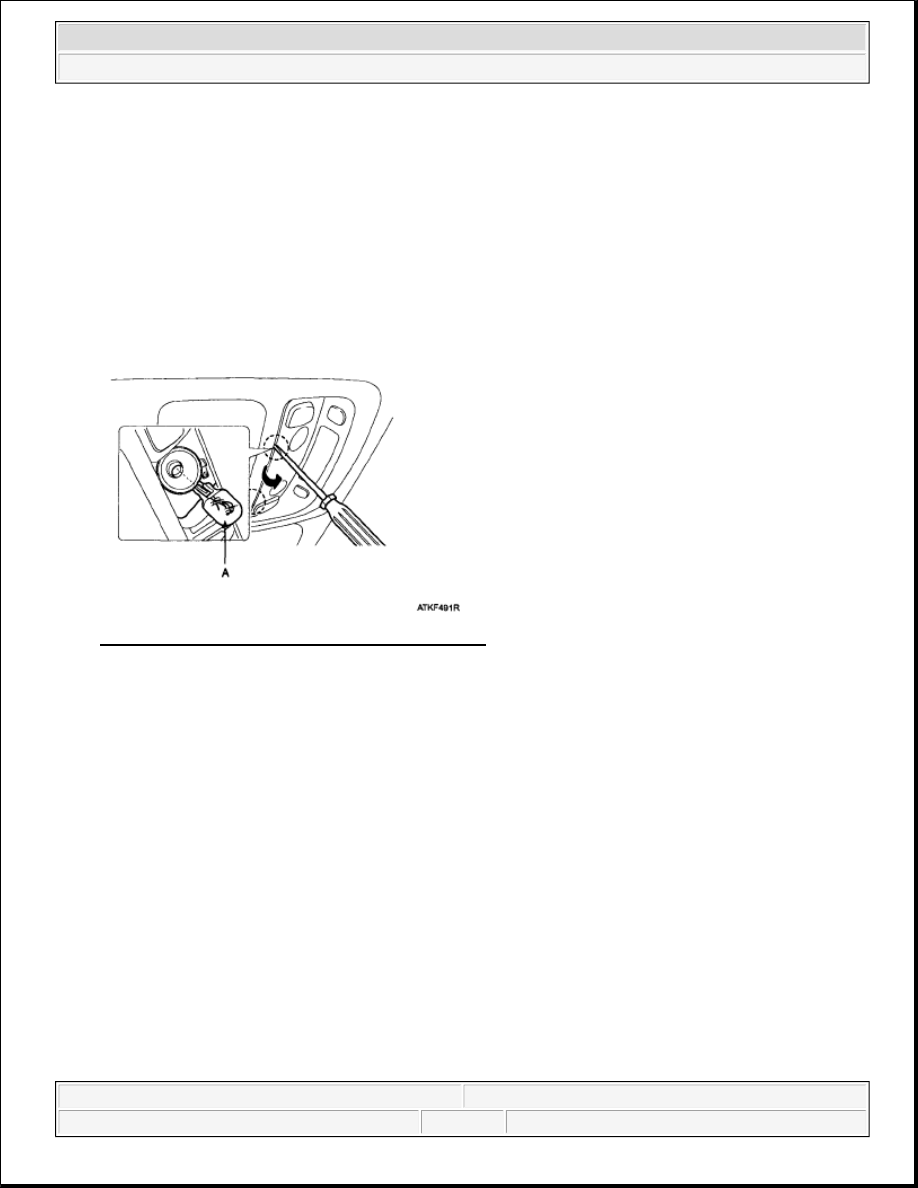

2. Replace the bulb (A) after removing the lens with a flat-tip screwdriver.

NOTE:

Take care that holding clip (A) is not to be damaged.

NOTE:

Take care that holding clip (A) is not to be damaged



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

Fig. 15: Identifying Front Door Courtesy Bulb
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 16: Identifying Rear Door Courtesy Bulb
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the bulb and replace it with a new one.

FRONT FOG LAMPS

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the front lamp assembly.

3. Remove connector and socket (A) in a counterclockwise direction.

NOTE:

Take care that holding clip (A) is not to be damaged.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

Fig. 17: Identifying Front Fog Lamps Connector And Socket
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the bulb and replace it with a new one.

LICENSE LAMPS

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the license plate lamp cover mounting screw with a flat-tip screwdriver.

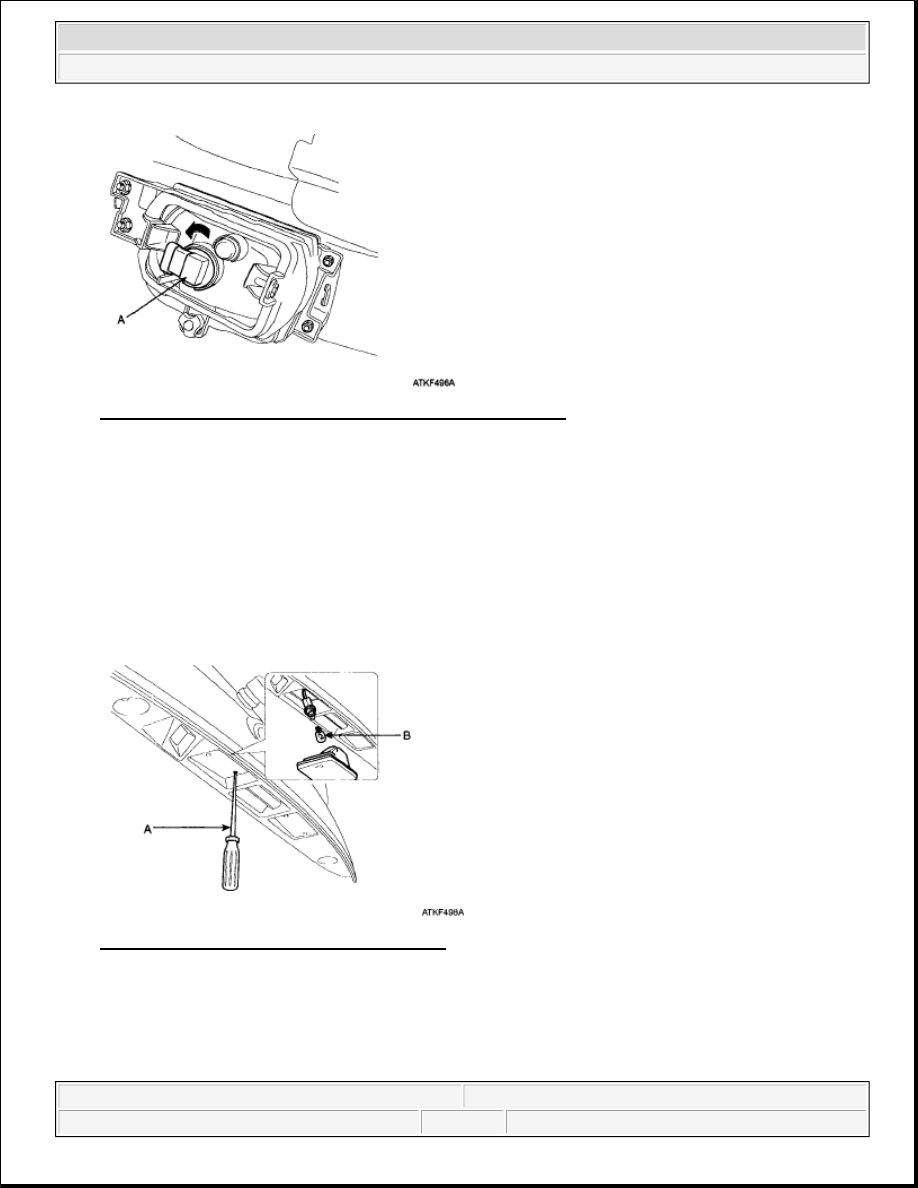

Fig. 18: Identifying License Plate Lamp Bulb
Courtesy of KIA MOTORS AMERICA, INC.

3. Pull the bulb (B) down and replace it with a new one.

STOP LAMPS



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

REPLACEMENT

HIGH MOUNTED STOP LAMP

1. Disconnect the negative (-) battery terminal.

2. Open the tail gate and disconnect the high mounted stop lamp mounting bolts (3 EA). And then remove

the high mounted stop lamp (A).

Fig. 19: Identifying High Mounted Stop Lamp
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.
