Lighting System - Sedona

COMPONENT LOCATION

Fig. 1: Lighting System Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

SPECIFICATION

LIGHTING SYSTEM SPECIFICATION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:08:03 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

HEAD LAMPS

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Loose the mounting bolts (2 EA).

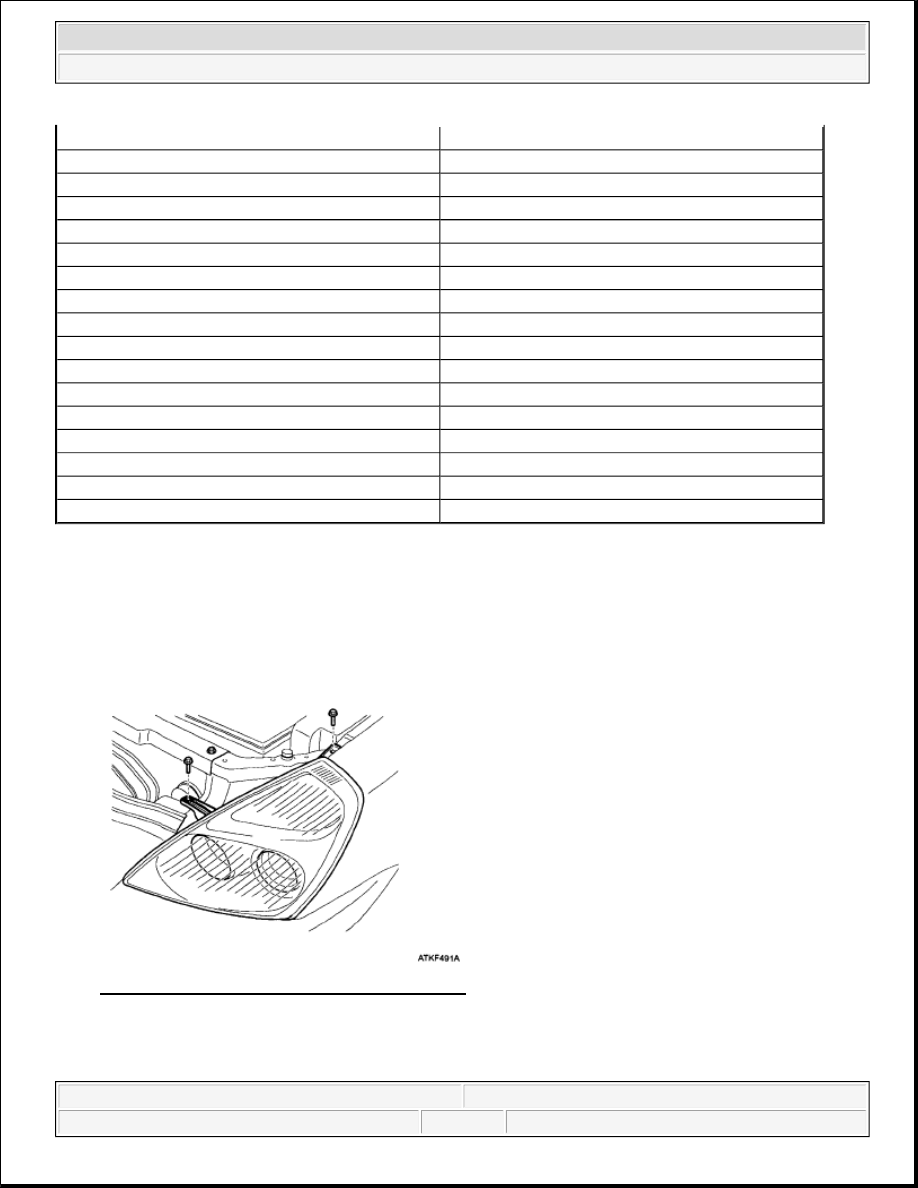

Fig. 2: Identifying Head Lamps Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the head lamp assembly after disconnecting the lamp connectors.

Items

Bulb Watt (W)

Head Lamp (High)

55

Head Lamp (Low)

55

Front Turn Signal Lamp

28

Front Position Lamp

8

Front Side Marker Lamp

5

Front Fog Lamp

35

Rear Stop/Tail Lamp

21/5

Back Up Lamp

16

Rear Turn Signal Lamp

27

License Plate Lamp

5

Room Lamp

10

Overhead Console Lamp

10 X 2

High Mounted Stop Lamp

Led

Glove Box Lamp

5

Luggage Room Lamp

5

Door Courtesy Lamp

5



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

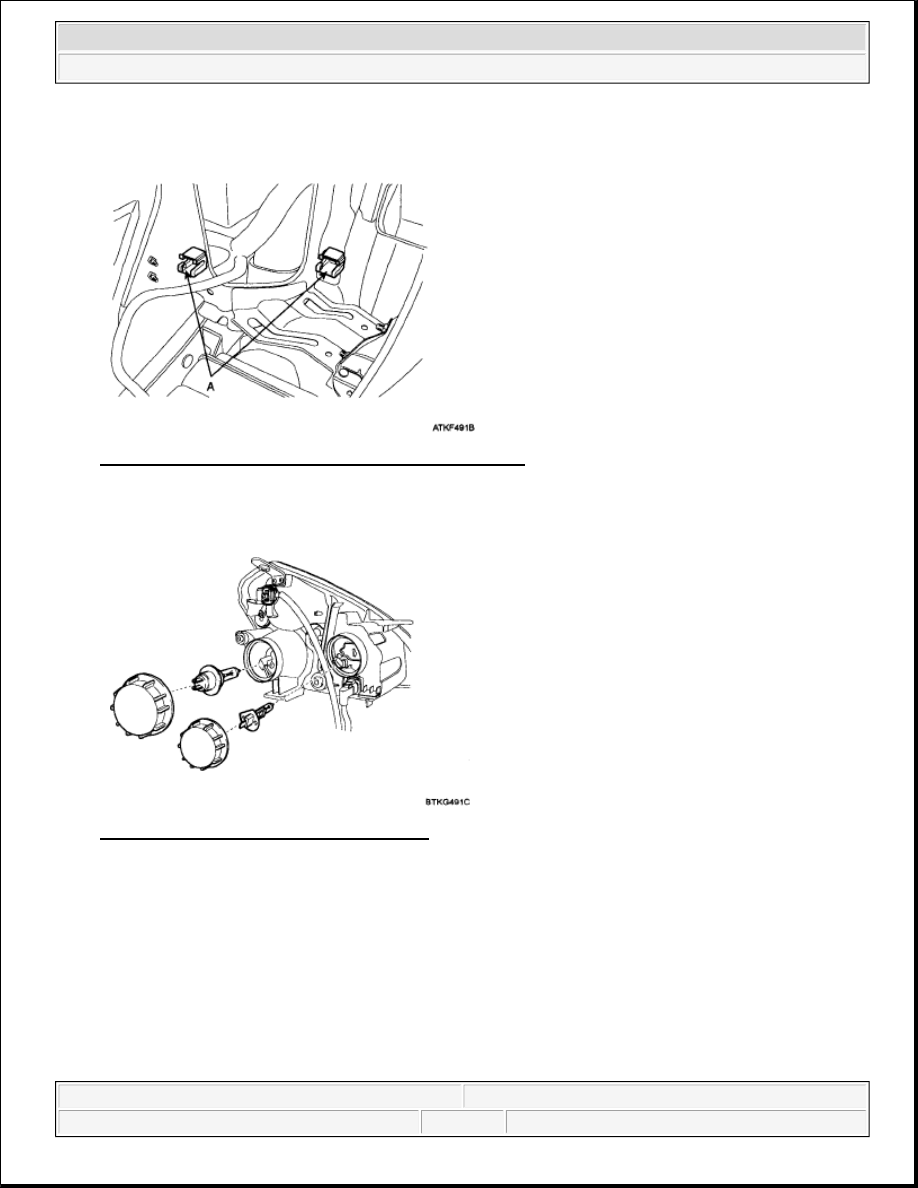

Fig. 3: Identifying Head Lamp Assembly Holding Clips
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the head lamp rear cover and pulling up head lamp bulb fixing wire clip.

Fig. 4: Identifying Head Lamp Rear Cover
Courtesy of KIA MOTORS AMERICA, INC.

5. Replace the bulb.

6. Installation is the reverse of removal.

HEAD LAMP AIMING INSTRUCTIONS

Alternately turn the adjusting gear to adjust the head lamp aiming. If beam-setting equipment is not available,
proceed as follows :

1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare

NOTE:

Take care that holding clip (A) is not to be damaged.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

tire, and tools.

2. The vehicle should be placed on a flat floor.

3. Check the suspension spring.

4. Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line

(Horizontal line passing through center of head lamps) on the screen.

5. With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on

the horizontal and vertical lines.

Make vertical adjustments to the lower beam using the adjusting wheel.

Fig. 5: Adjusting Head Lamp Aiming
Courtesy of KIA MOTORS AMERICA, INC.

FRONT FOG LAMP AIMING

The front fog lamps should be aimed as the same manner used to adjust the head lamps.

With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear
(A).
