2008 ACCESSORIES & BODY, CAB

Multi-Function Switch - Sedona

MULTI-FUNCTION SWITCH

COMPONENT LOCATION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Multi-Function Switch - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Multi-Function Switch - Sedona



Microsoft



Monday, May 24, 2010 4:11:26 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:11:29 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

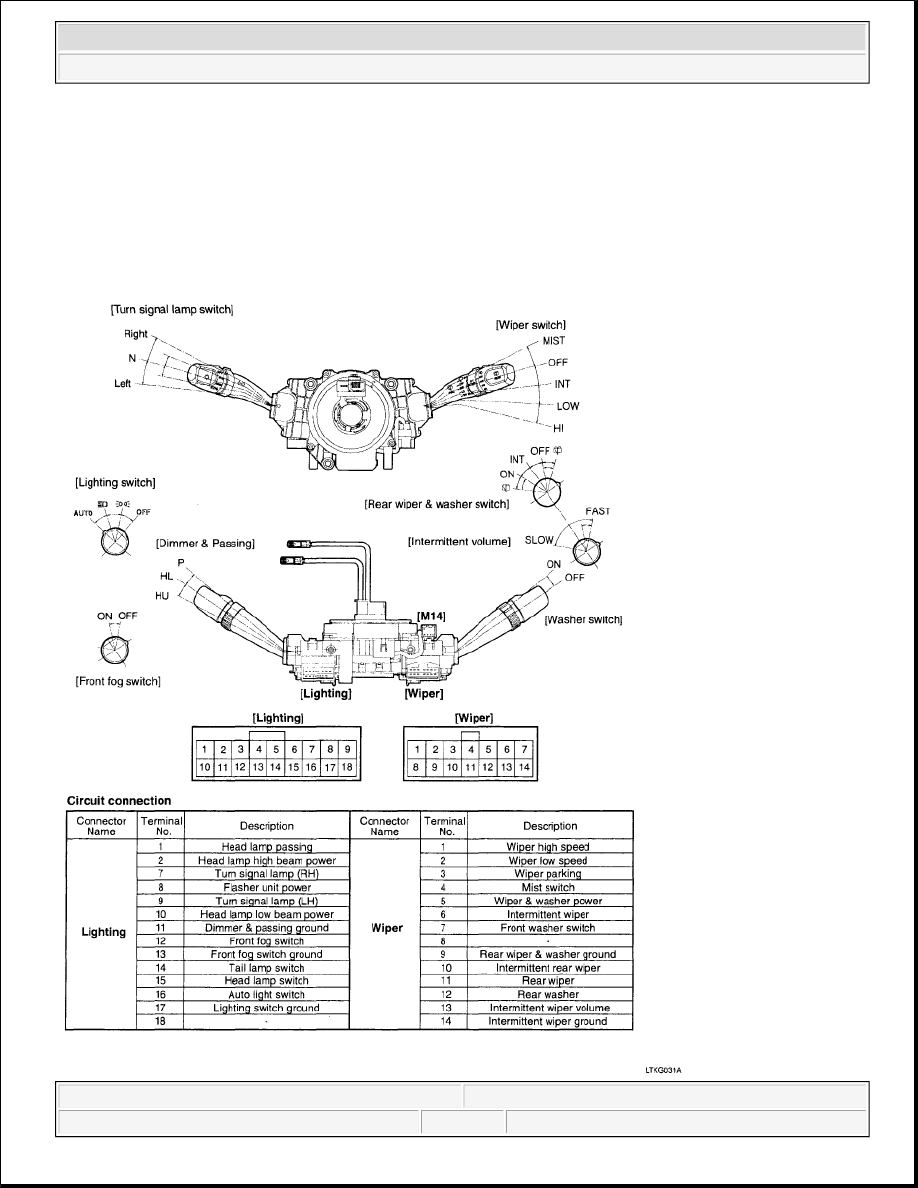

Fig. 1: Identifying Multi-Function Switch Component Locations & Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. Multi-function switch operates head lamps and wiper through LIN communication with BCM.

2. Check BCM input/output specification of multi-function switch using the scan tool. If the specification is

abnormal, replace the head lamp or wiper switch.

3. If diagnosis is required on the multi-function switch, select "SEDONA" and "BCM".

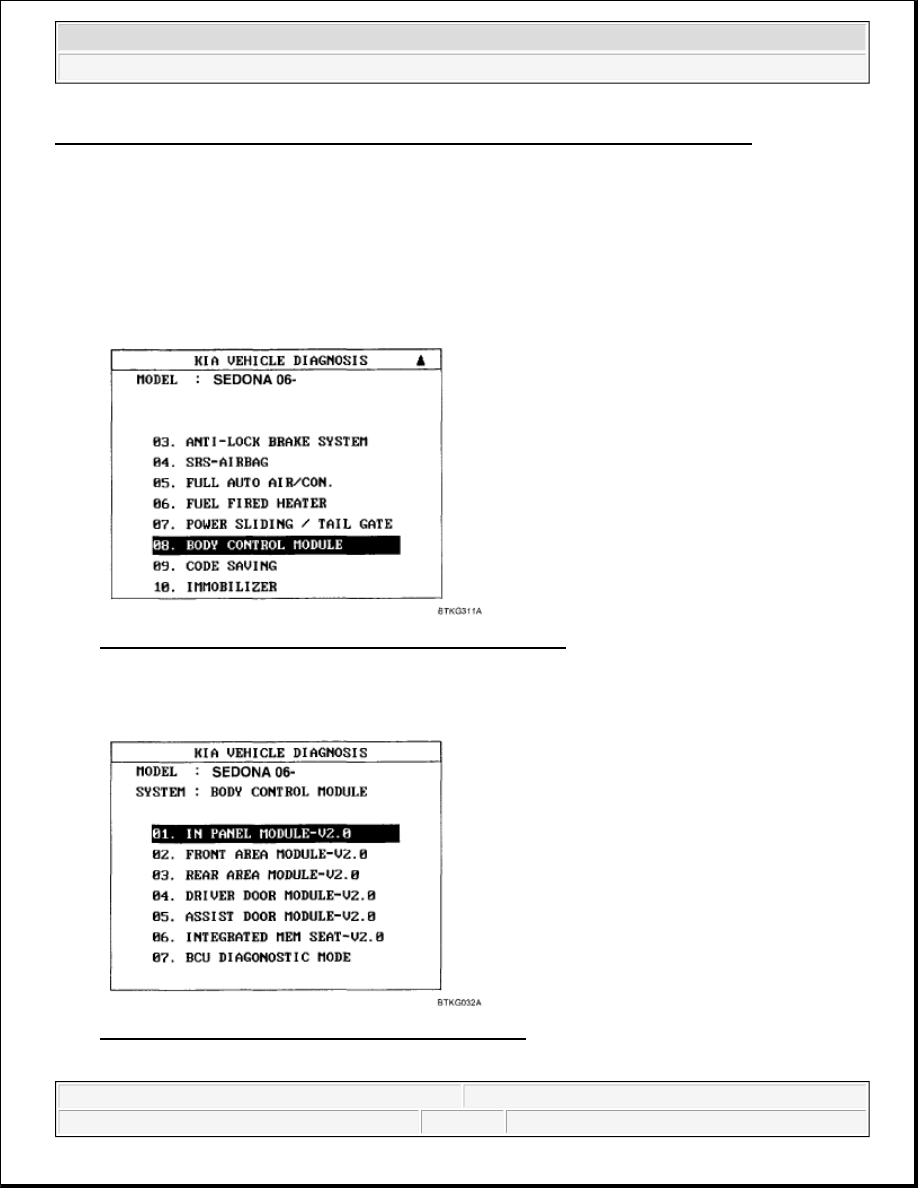

Fig. 2: Identifying Scan Tool Display - Body Control Module
Courtesy of KIA MOTORS AMERICA, INC.

4. Select "In panel Module".

Fig. 3: Identifying Scan Tool Display - In Panel Module
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Multi-Function Switch - Sedona



Microsoft



Monday, May 24, 2010 4:11:26 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

5. Select "Current data" and check the input/output condition of BCM.

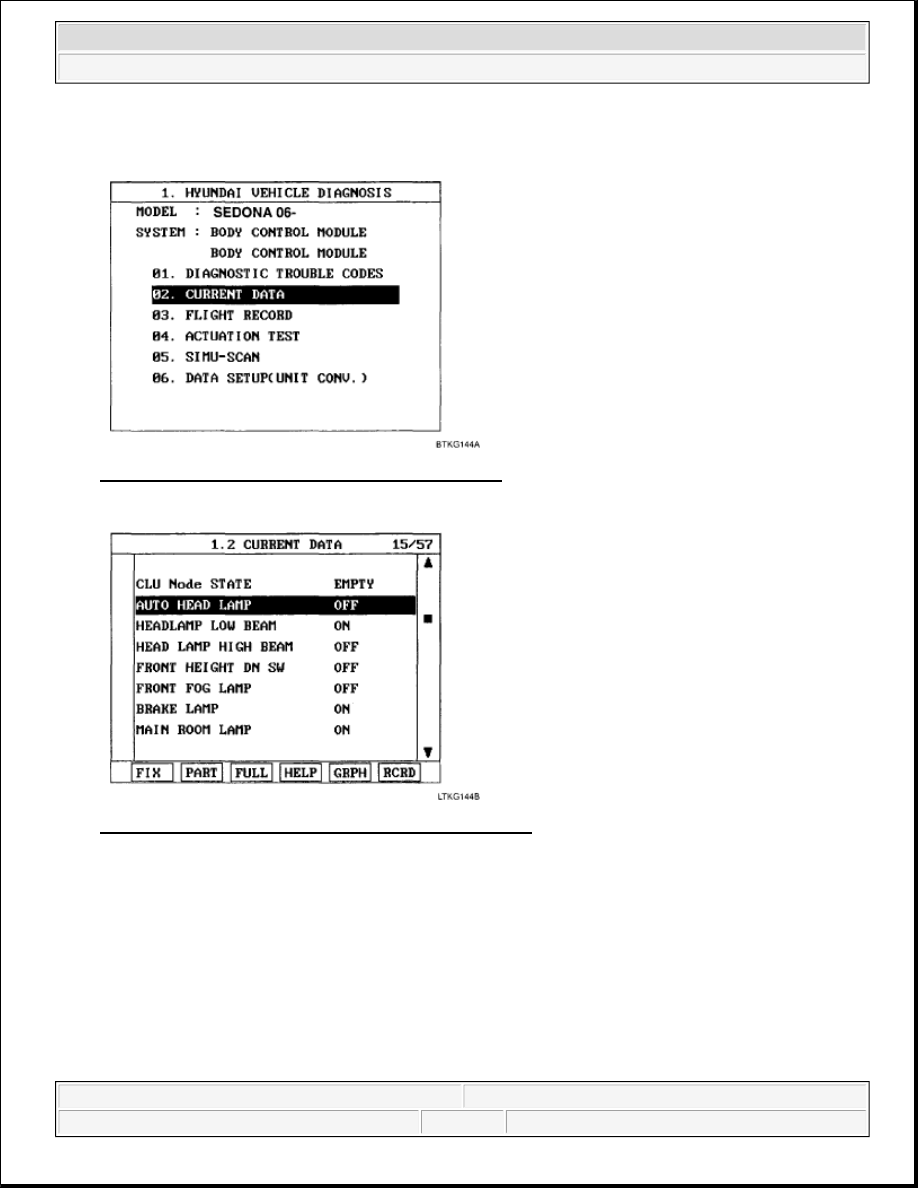

Fig. 4: Identifying Scan Tool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 5: Identifying Scan Tool Display - Auto Head Lamp
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Multi-Function Switch - Sedona



Microsoft



Monday, May 24, 2010 4:11:26 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

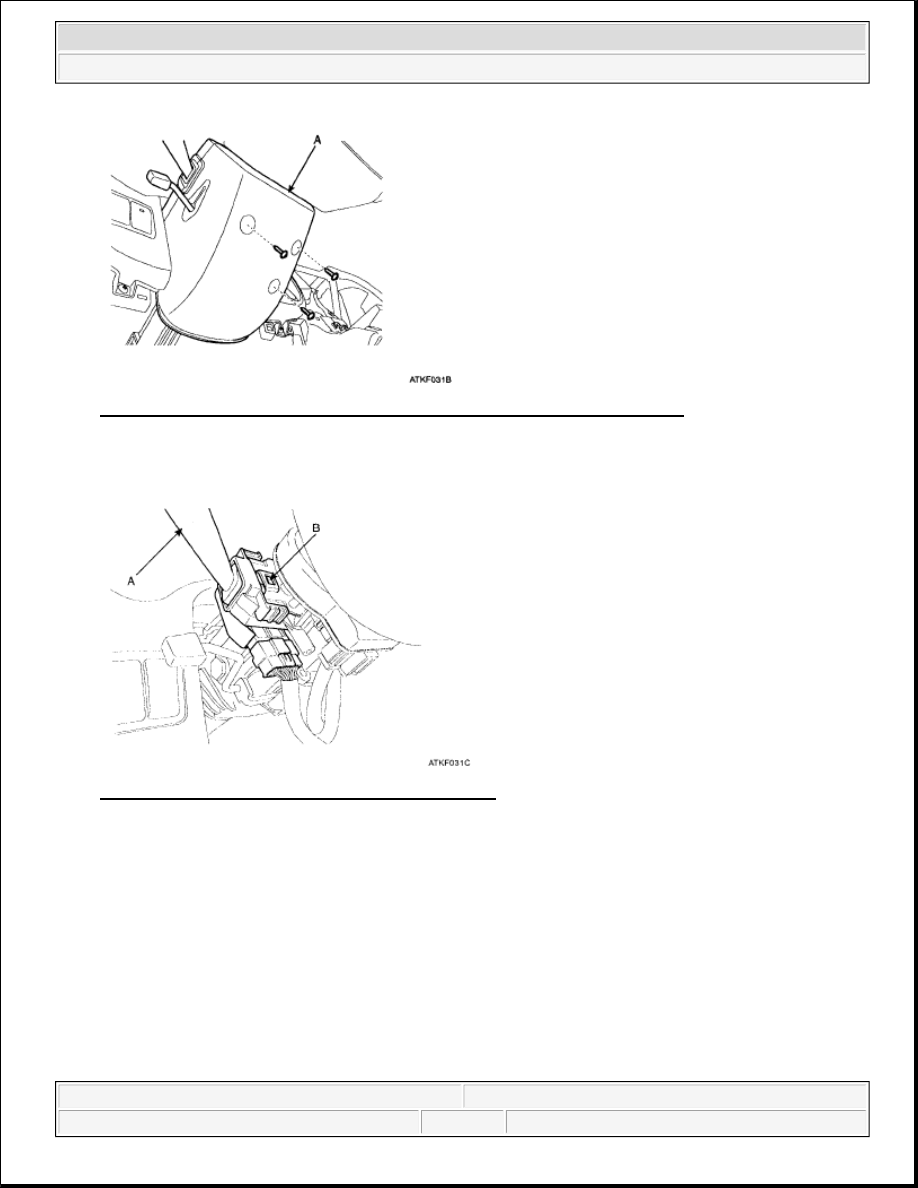

Fig. 6: Identifying Steering Column Upper And Lower Shrouds And Screws
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the light switch (A) connector and pin (B).

Fig. 7: Identifying Light Switch Connector And Pin
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the wiper switch (A) after disconnecting the connector and pin (B).
