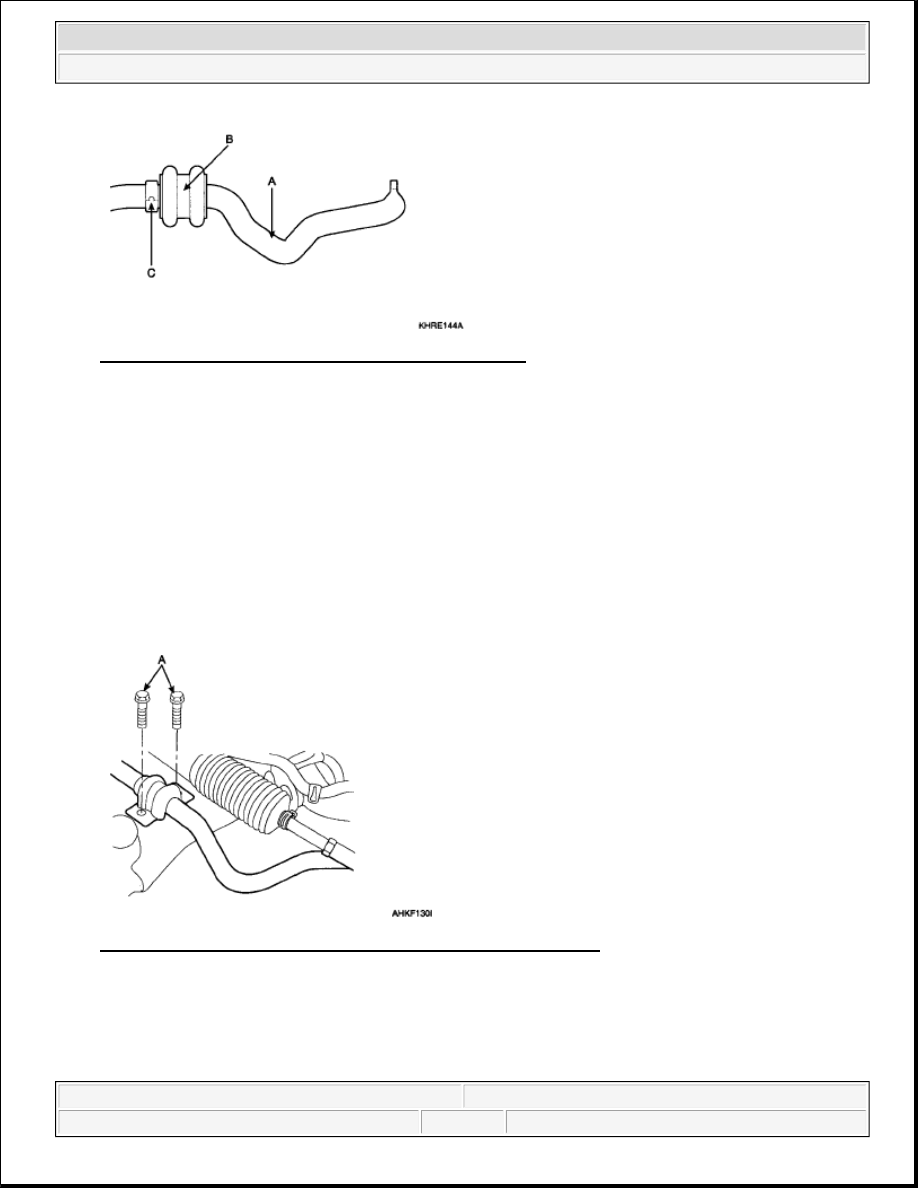

Fig. 44: Identifying Stabilizer Bar, Bushing And Clamp
Courtesy of KIA MOTORS AMERICA, INC.

2. Install the bracket on the bushing (B).

3. After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite

side.

4. Install the stabilizer bar bracket mounting bolts (A) to the sub frame.

Tightening torque N.m (kgf.m, lb-ft):

39-60 (3.9-6.0, 28.2-43.4)

Fig. 45: Identifying Stabilizer Bar Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

5. After lifting the jack which supports the sub frame, install the four bolts (A) of the sub frame and the

eight bolts (B) of the guide bracket.

Tightening torque N.m (kgf.m, lb-ft):

NOTE:

Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).



2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona



Microsoft



Monday, May 24, 2010 3:45:01 PM

Page 26

© 2006 Mitchell Repair Information Company, LLC.

Bolt (A): 160-180 (16-18, 115.7-130.2)

Bolt (B): 45-60 (4.5-6.0, 32.5-43.4)

Fig. 46: Identifying Sub Frame And Guide Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.

6. Install the engine mounting bolts (A, B)

Tightening torque N.m (kgf.m, lb-ft):

65-85 (6.5-8.5, 47.0-61.5)

Fig. 47: Identifying Engine Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona



Microsoft



Monday, May 24, 2010 3:45:01 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.

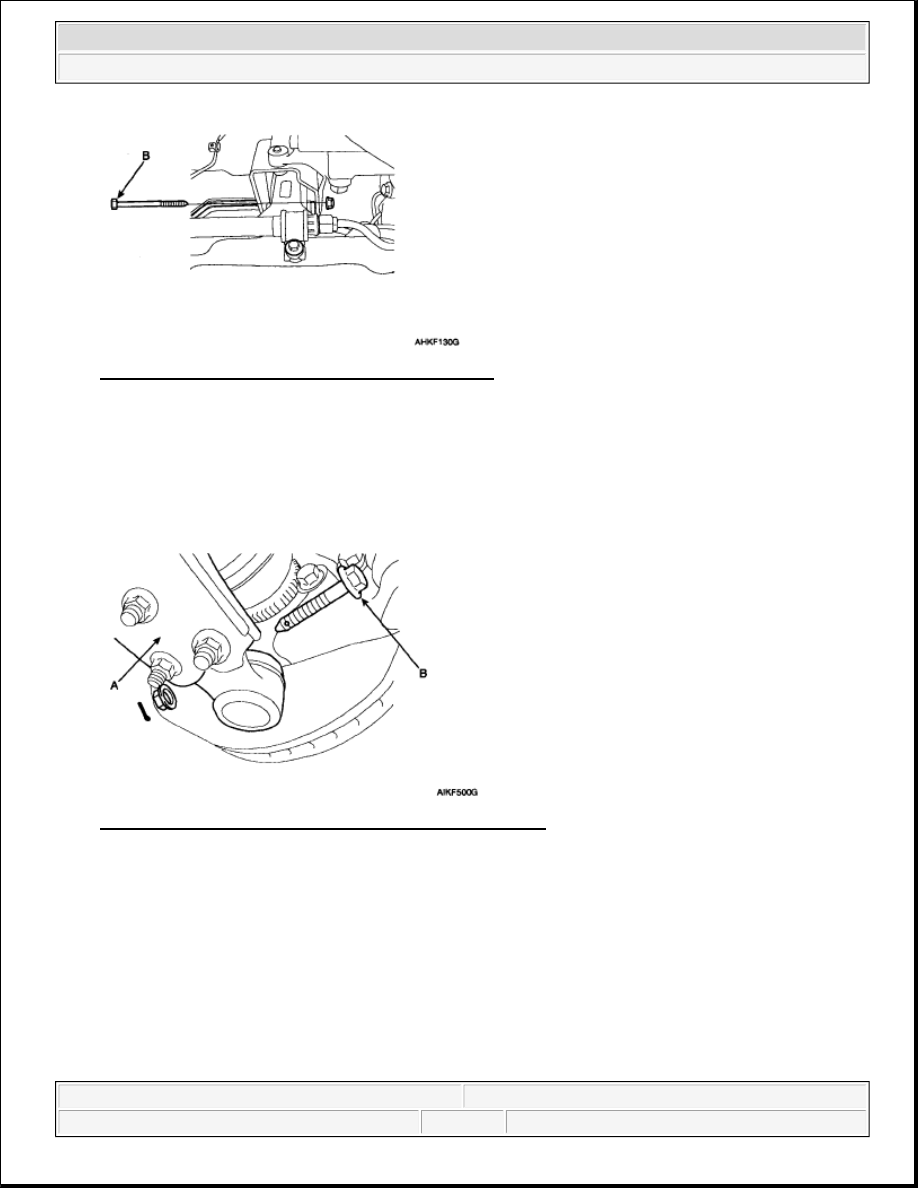

Fig. 48: Identifying Engine Mounting Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

7. Install both sides of the lower arm (A) mounting bolts (B).

Tightening torque N.m (kgf.m, lb-ft):

90-120 (9-12, 65.1-86.8)

Fig. 49: Identifying Front Lower Arm And Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

8. Install both sides of the tie rod end (A) self-locking nuts (B). Insert cotter pin after nut is torqued to

specifications.

Tightening torque N.m (kgf.m, lb-ft):

65-80 (6-8, 43.4-57.8)



2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona



Microsoft



Monday, May 24, 2010 3:45:01 PM

Page 28

© 2006 Mitchell Repair Information Company, LLC.

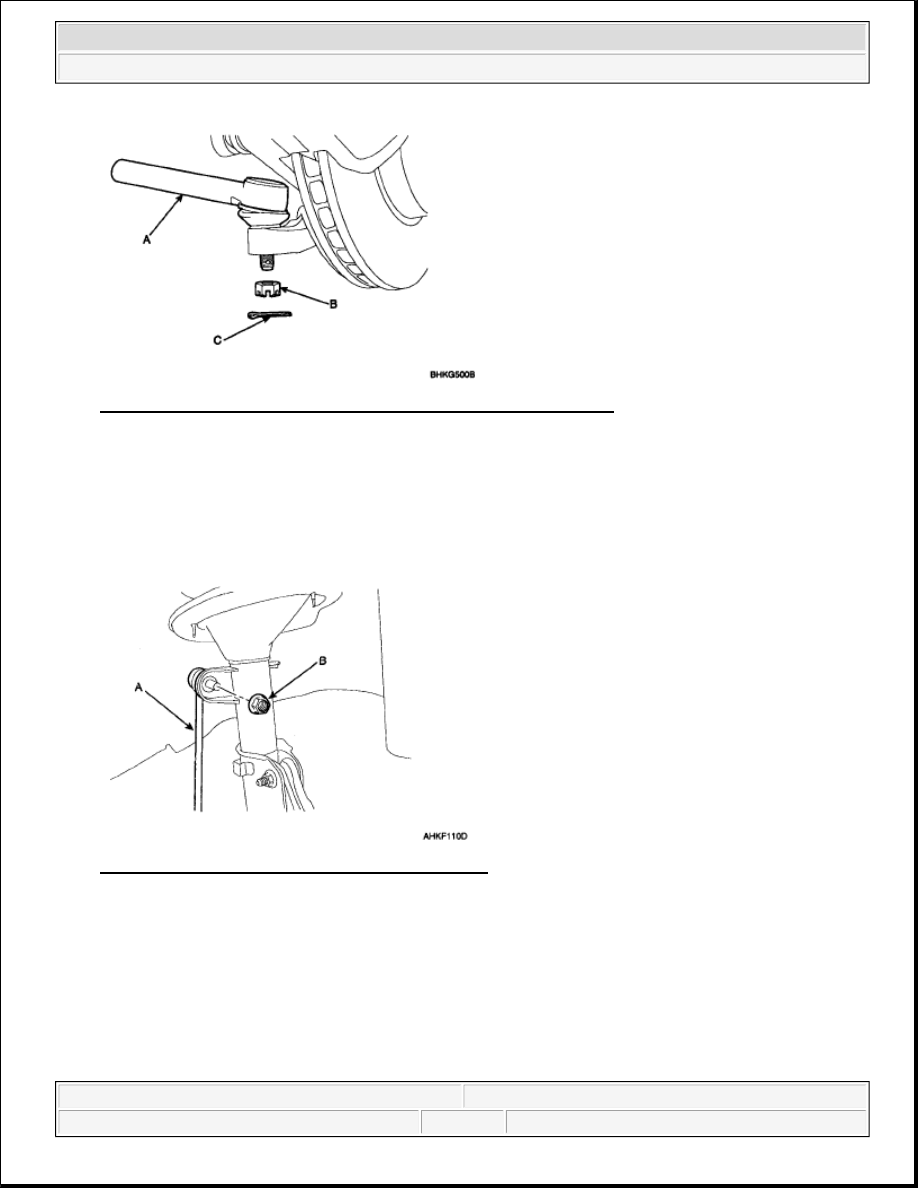

Fig. 50: Identifying Tie Rod End, Self-Locking Nut And Cotter Pin
Courtesy of KIA MOTORS AMERICA, INC.

9. Install the front stabilizer link (A) nut (B) to the strut assembly.

Tightening torque N.m (kgf.m, lb-ft):

100-120 (10-12, 72.3-86.8)

Fig. 51: Identifying Front Stabilizer Link And Nut
Courtesy of KIA MOTORS AMERICA, INC.

10. Install the wheel and the tire (A) to the front hub (B).

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)
