Fig. 30: Identifying Wheel & Tire Assembly And Front Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.

FRONT STABILIZER BAR

COMPONENTS

CAUTION: Be careful not to damage the hub bolts (C) when installing the front

wheel and tire (A).

2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona

Microsoft

Monday, May 24, 2010 3:45:01 PM

Page 18

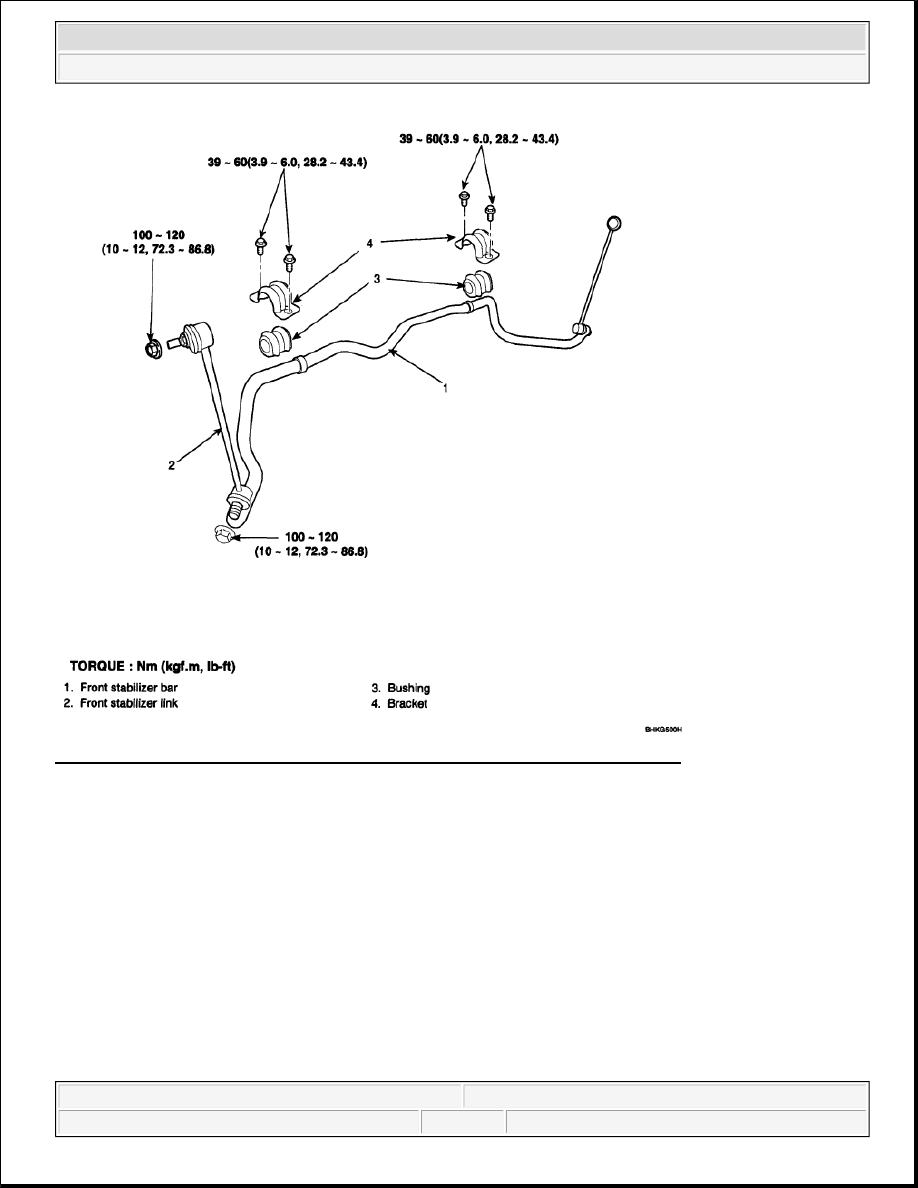

Fig. 31: Identifying Front Stabilizer Bar Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Remove the connecting bolt (A) between the steering universal joint assembly (B) and the pinion

assembly.

2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona

Microsoft

Monday, May 24, 2010 3:45:01 PM

Page 19

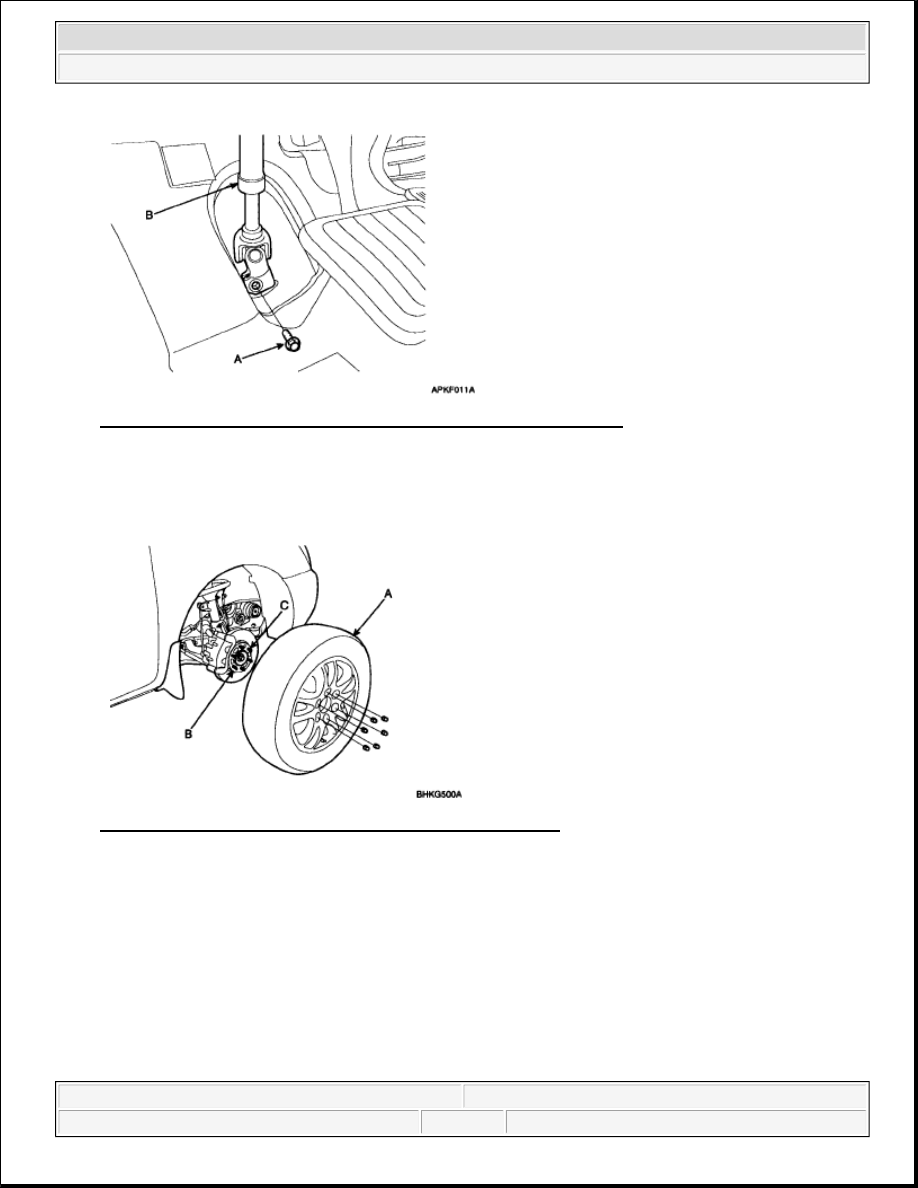

Fig. 32: Identifying Bolt Between Steering Universal Joint Assembly
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the wheel nuts slightly. Raise the front of the vehicle, and make sure it is securely supported.

3. Remove the front wheel and tire (A) from front hub (B).

Fig. 33: Identifying Front Wheel And Tire From Front Hub
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the front stabilizer link (A) nut (B) from the strut assembly.

CAUTION: Be careful not to damage the hub bolts (C) when removing the front

wheel and tire (A).

2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona

Microsoft

Monday, May 24, 2010 3:45:01 PM

Page 20

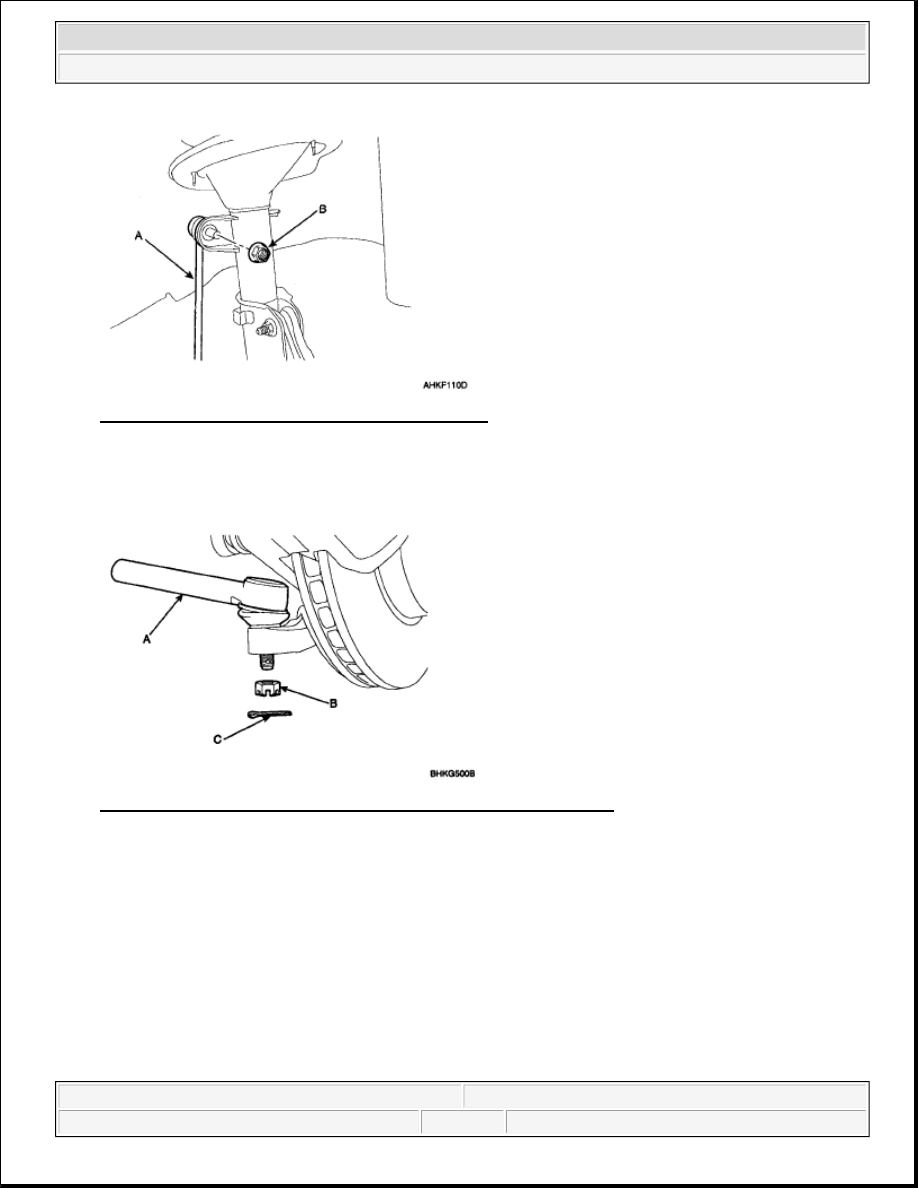

Fig. 34: Identifying Front Stabilizer Link And Nut
Courtesy of KIA MOTORS AMERICA, INC.

5. After removing both sides of the tie rod end (A) self-locking nuts (B) and cotter pin (C), remove the ball

joint by using the special tool (09568-4A000).

Fig. 35: Identifying Tie Rod End, Self-Locking Nut And Cotter Pin
Courtesy of KIA MOTORS AMERICA, INC.
