Fig. 52: Identifying Front Wheel And Tire From Front Hub
Courtesy of KIA MOTORS AMERICA, INC.

11. Install the connecting bolt (A) between the steering universal joint assembly (B) and the pinion assembly.

Tightening torque N.m (kgf.m, lb-ft):

13-18 (1.3-1.8, 9.4-13.0)

Fig. 53: Identifying Bolt Between Steering Universal Joint Assembly
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when installing the front

wheel and tire (A).

CAUTION: After installation, if necessary, adjust the alignment of the steering

wheel and front tires



2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona



Microsoft



Monday, May 24, 2010 3:45:01 PM

Page 30

© 2006 Mitchell Repair Information Company, LLC.

2008 ENGINE PERFORMANCE

Fuel Delivery System - Sedona

COMPONENTS

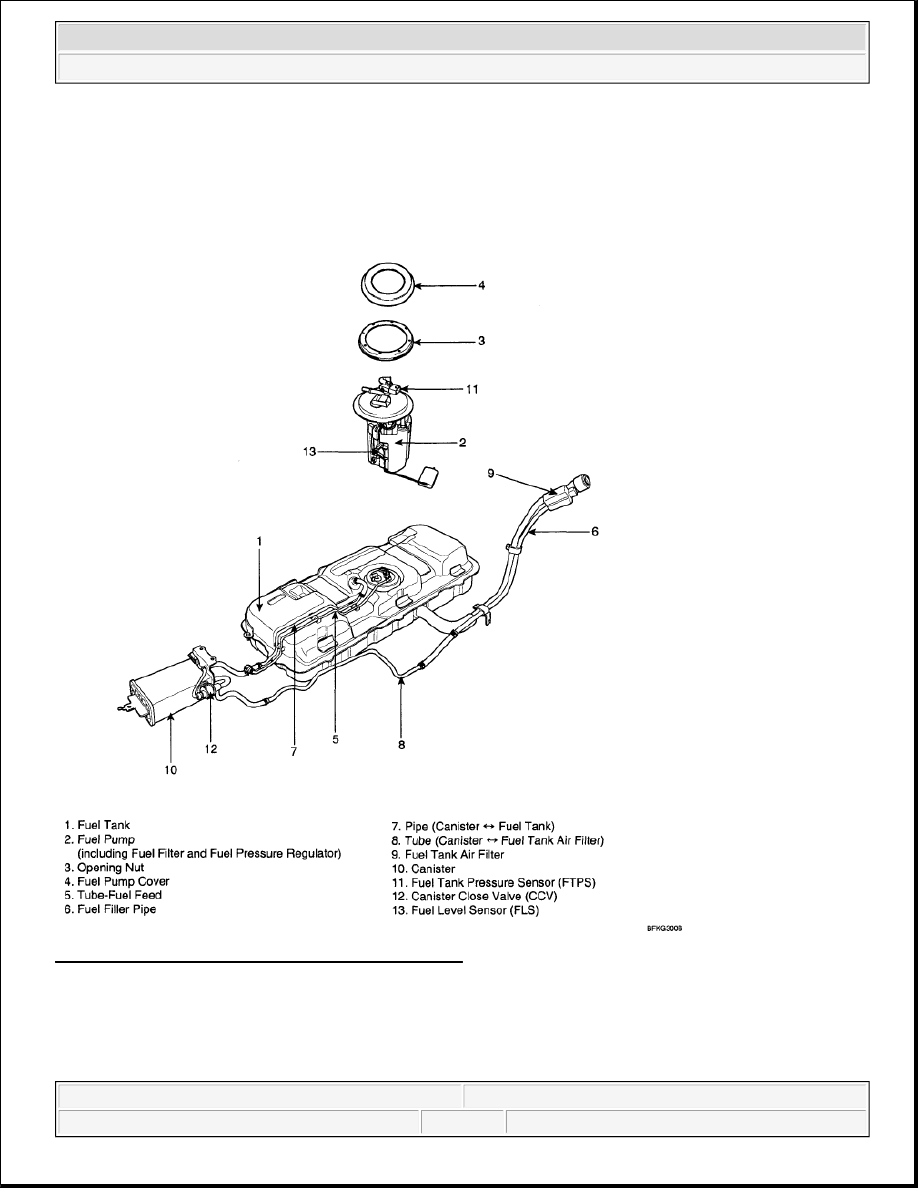

Fig. 1: Identifying Fuel Delivery System Components
Courtesy of KIA MOTORS AMERICA, INC.

FUEL PRESSURE TEST

1. PREPARING



2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel Delivery System - Sedona





2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel Delivery System - Sedona



Microsoft



Saturday, May 22, 2010 3:59:05 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Saturday, May 22, 2010 3:59:08 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

1. Remove the 2nd seat(s). Refer to SEATS .

2. Remove the Service Cover (A).

Fig. 2: Identifying Service Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. RELEASE THE INTERNAL PRESSURE

1. Disconnect the fuel pump connector (A).

2. Start the engine and wait until fuel in fuel line is exhausted.

3. After the engine stalls, turn the ignition switch to OFF position and disconnect the negative (-)

terminal from the battery.

Fig. 3: Identifying Fuel Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. INSTALL THE SPECIAL SERVICE TOOL (SST) FOR MEASURING THE FUEL PRESSURE

1. Disconnect the fuel feed hose from the delivery pipe.

2. Install the Fuel Pressure Gauge Adapter (09353-38000) between the delivery pipe and the fuel feed

hose.

3. Connect the Fuel Pressure Gauge Connector (09353-24000) to the Fuel Pressure Gauge Adapter

NOTE:

Be sure to reduce the fuel pressure before disconnecting the fuel
feed hose, otherwise fuel will spill out.

CAUTION: Cover the hose connection with a shop towel to prevent

splashing of fuel caused by residual pressure in the fuel line.



2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel Delivery System - Sedona



Microsoft



Saturday, May 22, 2010 3:59:05 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

(09353-38000).

4. Connect the Fuel Pressure Gauge and Hose (09353-24100) to Fuel Pressure Gauge Connector

(09353-24000).

5. Connect the fuel feed hose to the Fuel Pressure Gauge Adapter (09353-38000).

Fig. 4: Identifying Fuel Pressure Gauge Connector, Adapter And Hose
Courtesy of KIA MOTORS AMERICA, INC.

4. INSPECT FUEL LEAKAGE ON CONNECTION

1. Connect the battery negative (-) terminal.

2. Apply battery voltage to the fuel pump terminal and activate the fuel pump. With fuel pressure

applied, check that there is no fuel leakage from the fuel pressure gauge or connection part.

5. FUEL PRESSURE TEST

1. Disconnect the negative (-) terminal from the battery.

2. Connect the fuel pump connector.

3. Connect the battery negative (-) terminal.

4. Start the engine and measure the fuel pressure at idle.

Standard Value: 374-384 kPa (3.82-3.92 kgf/cm

2

 , 54.3-55.8 psi)





If the measured fuel pressure differs from the standard value, perform the necessary repairs.
See REPAIRS REFERENCE CHART FOR FUEL PRESSURE.

REPAIRS REFERENCE CHART FOR FUEL PRESSURE

Condition

Probable Cause

Suspected

Area

Fuel Pressure
too low

Clogged fuel filter

Fuel filter

Fuel leak on the fuel-pressure regulator that is assembled
on fuel pump because of poor seating of the fuel-pressure
regulator.

Fuel Pressure
Regulator

Fuel Pressure  Sticking fuel pressure regulator

Fuel Pressure
