Fig. 110: Aligning Slide
Courtesy of KIA MOTORS AMERICA, INC.

ADJUSTMENT

HOW TO INITIALIZE

1. Check that the glass has been installed.



Finish height adjustment.

2. Push the up switch (Keep on pushing the switch).



The slide moved 5mm forward after 15 seconds.

NOTE:



Make sure to align the slide with the center of "A" and "B"



Make sure to initialize the motor.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 80

© 2006 Mitchell Repair Information Company, LLC.

Fig. 111: Initializing Sunroof
Courtesy of KIA MOTORS AMERICA, INC.

3. After moving the slide 5mm forward, release the switch just momentarily.



If the operation above is normal condition, the sunroof opens and closes.

4. When the sunroof is closed completely, turn OFF the UP switch initialize the motor completely.

WHEN TO INITIALIZE THE MOTOR

1. First operation the vehicle after manufactured it.

2. Initial value is erased or damaged because of short power electric discharge during operation

3. After using the manual handle.

OPERATING THE SUNROOF EMERGENCY HANDLE

1. Use the sunroof emergency handle to close and open the sunroof manually for the following case only.



To close the sunroof before driving a vehicle in a rainy day or on the highway if the sunroof cannot
be closed due to failure of the sunroof motor or controller.

2. Operating method



Remove the overhead console



Push the emergency handle up into the hexagonal drive (A) of the sunroof motor. You must push



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 81

© 2006 Mitchell Repair Information Company, LLC.

hard enough to disengage the motor clutch; otherwise the emergency handle will slip due to
incomplete fit in the motor.



Carefully turn the emergency handle clockwise to close the sunroof.



After closing the sunroof, wiggle the handle back and forth as you remove the tool from the motor,
to ensure the motor clutch reengages.



A 5mm hex socket may be used in place of the emergency handle, with a "Speeder" type handle.

Fig. 112: Identifying Hexagonal Drive
Courtesy of KIA MOTORS AMERICA, INC.

MIRROR

COMPONENTS

CAUTION:



Do not use power tools to operate the sunroof.



Damage to the components may occur.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 82

© 2006 Mitchell Repair Information Company, LLC.

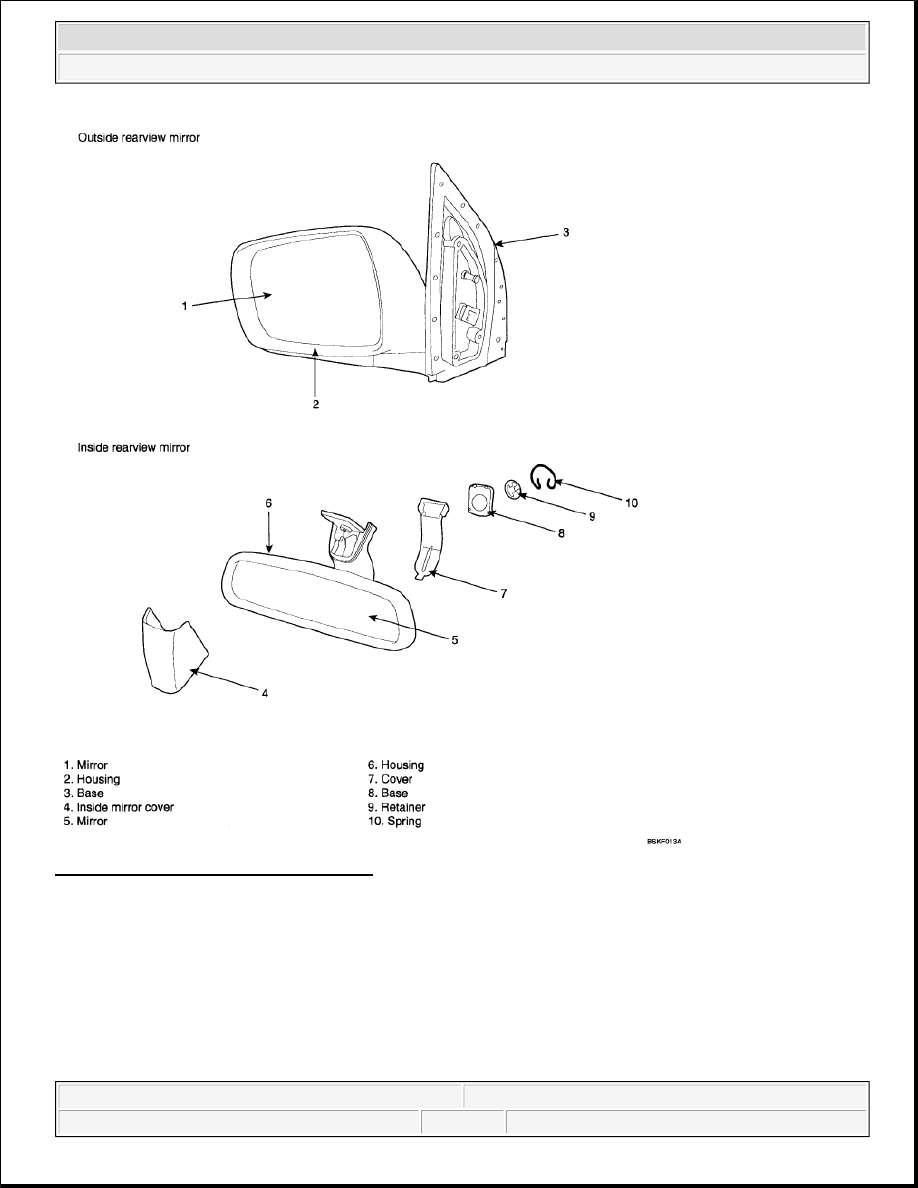

Fig. 113: Identifying Mirror Components
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

OUTSIDE REAR VIEW MIRROR REPLACEMENT

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts, to prevent damage.



Put on gloves to protect your hands.
