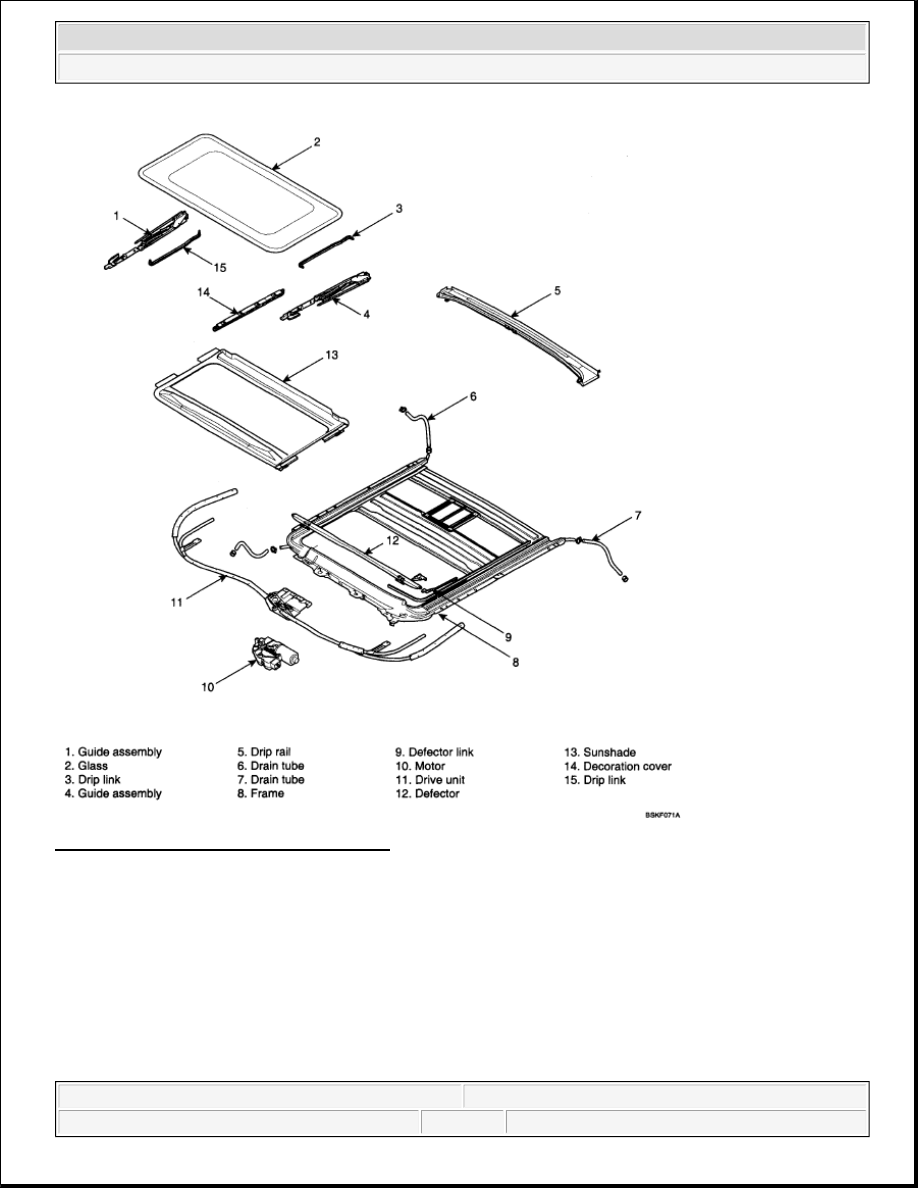

Fig. 100: Identifying Sun Roof Components
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

GLASS REPLACEMENT

1. Remove both decoration cover (A).

NOTE:



Put on glove to protect your hands.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 72

© 2006 Mitchell Repair Information Company, LLC.

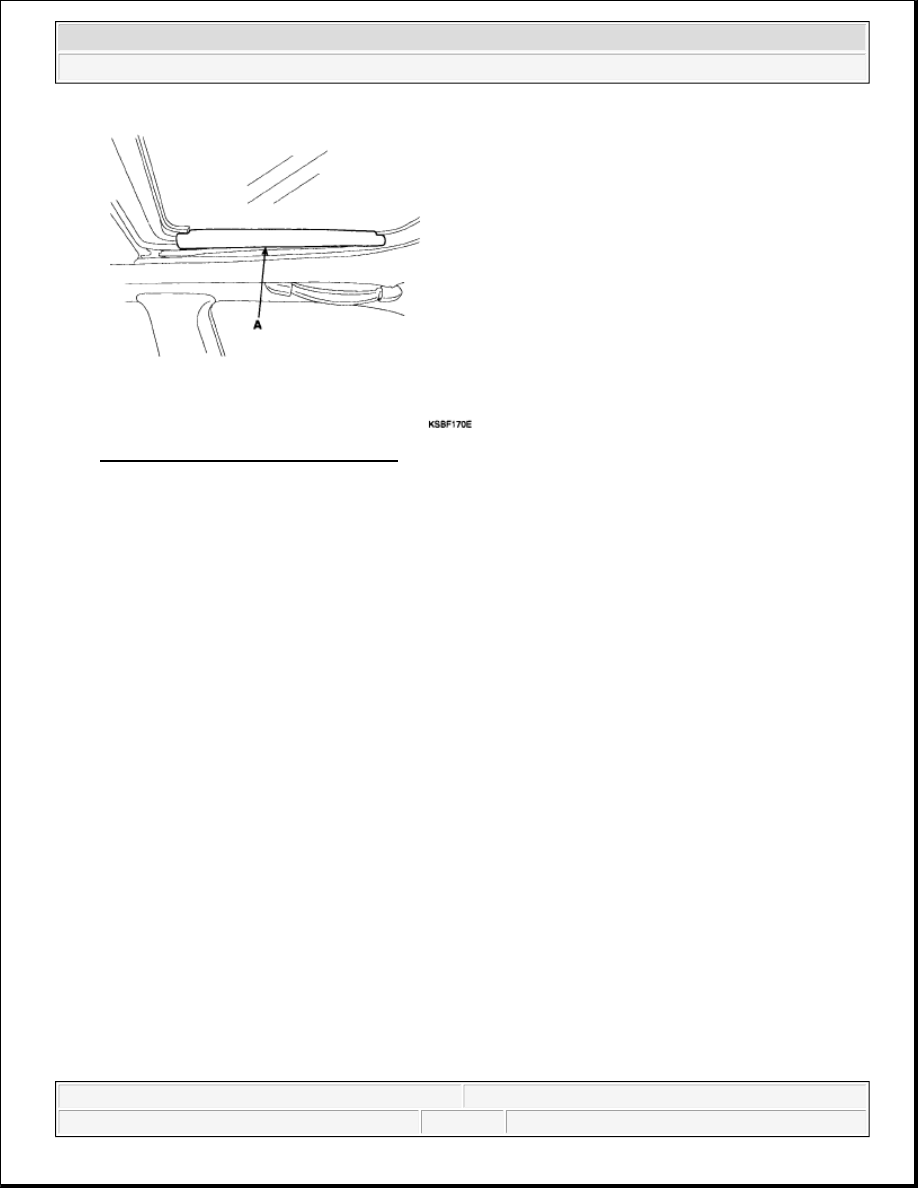

Fig. 101: Identifying Decoration Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the glass (A) by lifting it up.

NOTE:



Do not damage the roof panel.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 73

© 2006 Mitchell Repair Information Company, LLC.

Fig. 102: Identifying Glass And Screws
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

MOTOR REPLACEMENT

1. Remove the over head console (A). See OVERHEAD CONSOLE REPLACEMENT .

NOTE:



Confirm the position of guide whether it is closed or not when you
remove the motor.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 74

© 2006 Mitchell Repair Information Company, LLC.

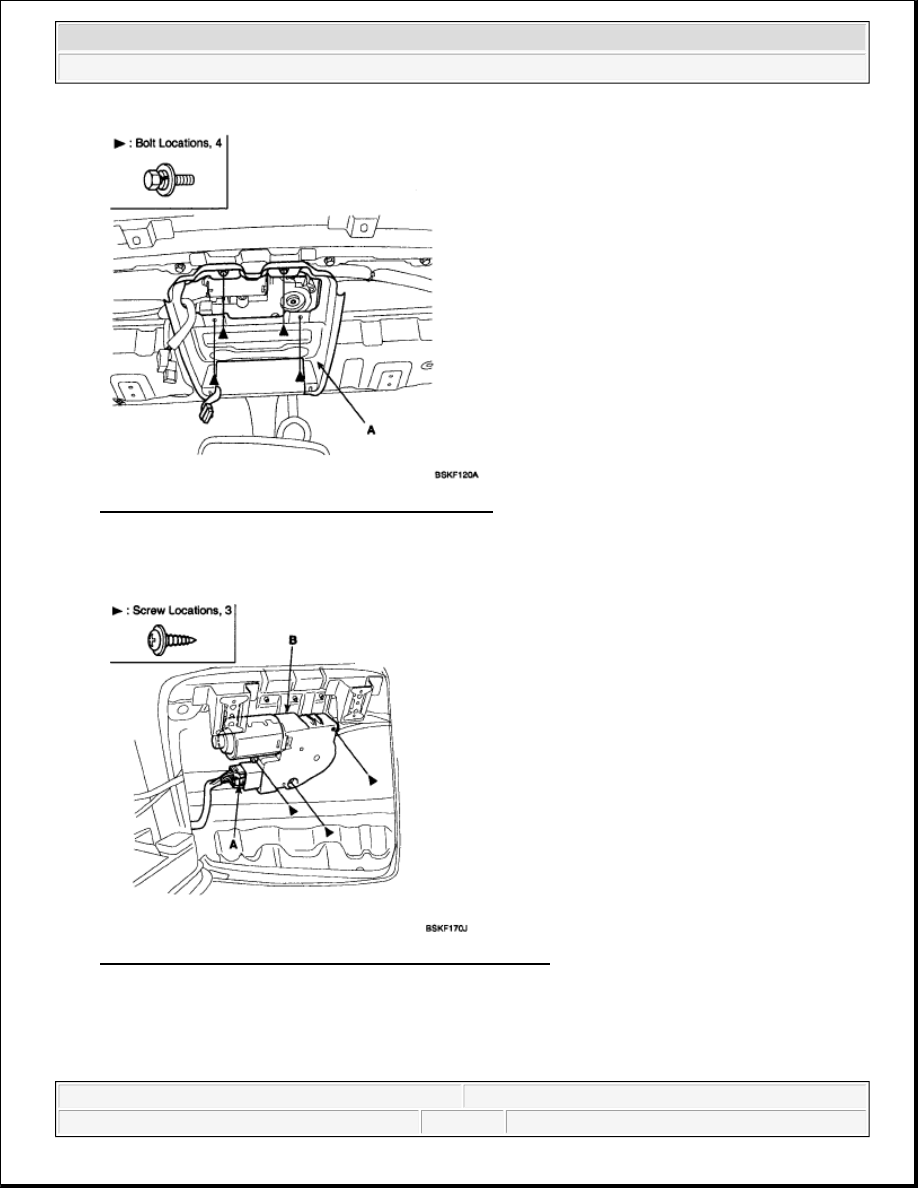

Fig. 103: Identifying Over Head Console And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).

Fig. 104: Identifying Motor Connector, Motor And Screws
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

NOTE:



Make sure to initialize the motor.
