Kia Sedona (2008 year). Manual - part 404

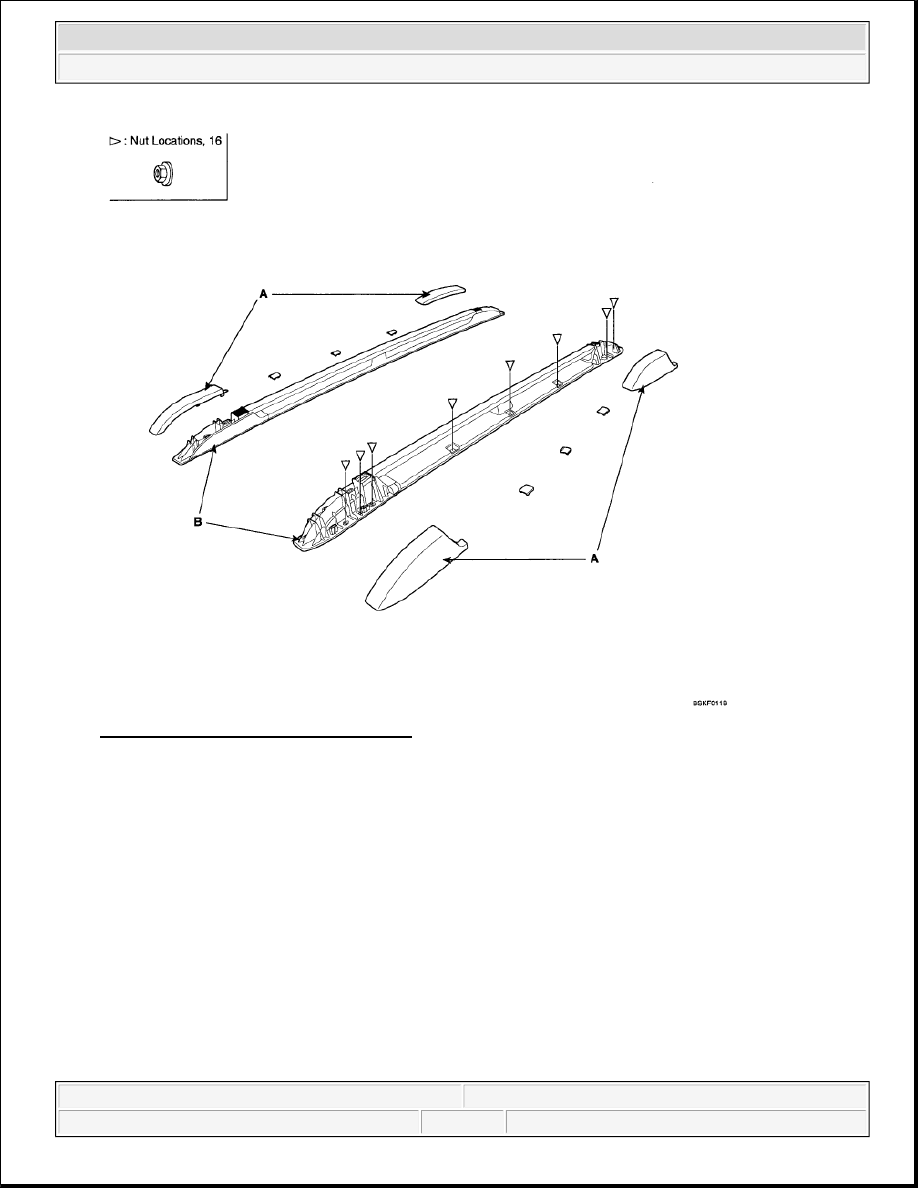

Fig. 96: Identifying Roof Rack And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

FRONT MUD GUARD AND WHEEL GUARD REPLACEMENT

1. Remove the wheel guard (B) first by removing the clip and screw, then remove the wheel guard (A), by

removing the screws and clip.

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts, to prevent damage.



Put on gloves to protect your hands.



Take care not to scratch the body surface.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 68

© 2006 Mitchell Repair Information Company, LLC.

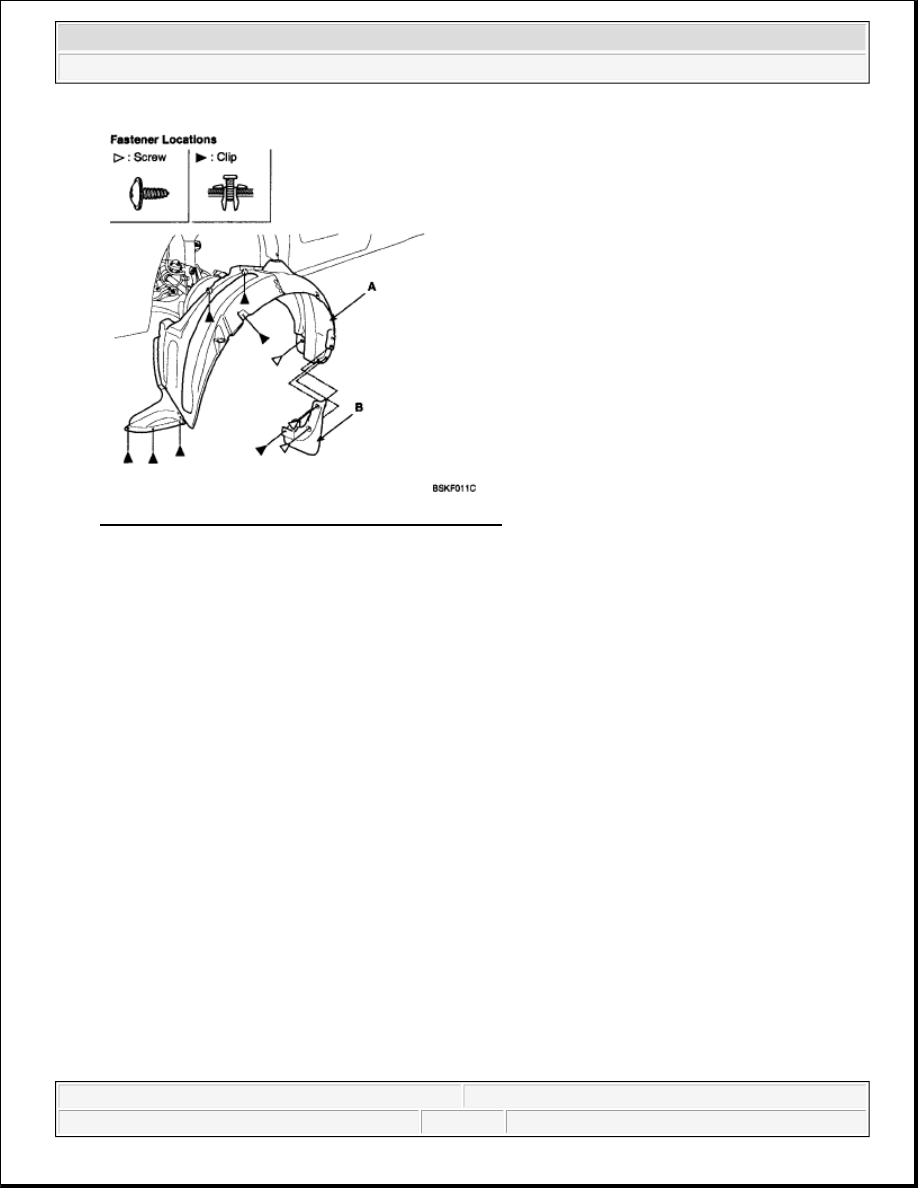

Fig. 97: Identifying Wheel Guard, Clips And Screws
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

REAR MUD GUARD AND WHEEL GUARD REPLACEMENT

1. Remove the wheel guard (B) first by removing the clip and screw, then remove the wheel guard (A), by

removing the screws and clip.

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts, to prevent damage.



Put on gloves to protect your hands.



Take care not to scratch the body surface.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 69

© 2006 Mitchell Repair Information Company, LLC.

Fig. 98: Identifying Wheel Guard, Slip And Screws
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

SIDE GARNISH AND SIDE SILL REPLACEMENT

1. Remove all the screw and clips to replace the side garnish and side sill.

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts, to prevent damage.



Put on gloves to protect your hands.



Take care not to scratch the body surface.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 70

© 2006 Mitchell Repair Information Company, LLC.

Fig. 99: Identifying Side Garnish, Clip And Screws
Courtesy of KIA MOTORS AMERICA, INC.

SUN ROOF

COMPONENTS



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 71
