Fig. 84: Identifying Door Belt Weather Strip And Screws
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

DOOR ACTUATOR REPLACEMENT

1. Remove the inside handle. See INSIDE HANDLE REPLACEMENT.

2. Remove the door trim. See REPLACEMENT.

3. Remove the door trim seal.

4. Disconnect the connector (A) and cable (B).

Fig. 85: Identifying Connector And Cable
Courtesy of KIA MOTORS AMERICA, INC.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM

Page 60

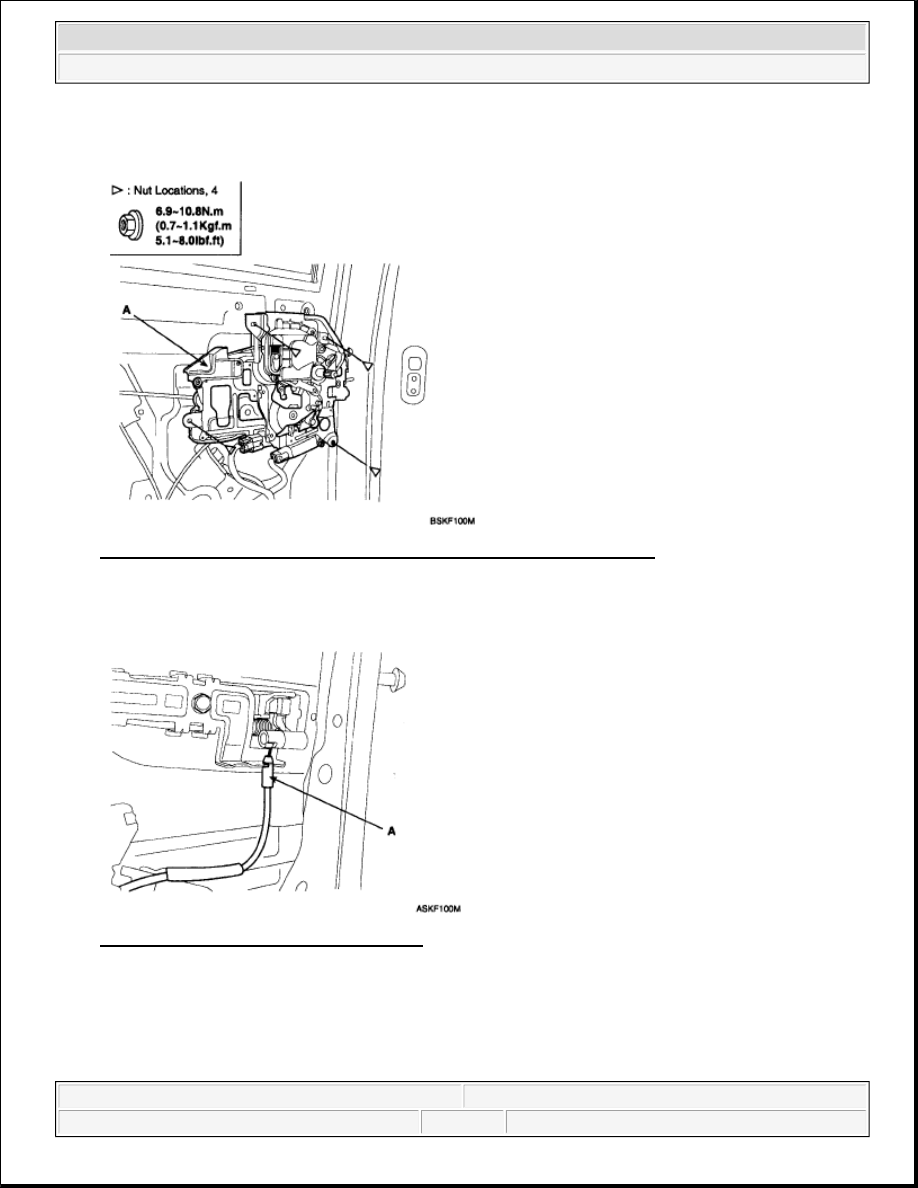

5. After loosening the mounting bolts and nuts, then remove the actuator assembly (A).

Fig. 86: Identifying Actuator Assembly, Nuts And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

6. Disconnect the outside handle cable (A).

Fig. 87: Identifying Outside Handle Cable
Courtesy of KIA MOTORS AMERICA, INC.

7. Installation is the reverse of removal.

DOOR MOTOR REPLACEMENT

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM

Page 61

1. Remove the rear combination ramp. See REAR BUMPER .

2. After loosening the rail cover mounting bolts, then remove the rail cover (A).

Fig. 88: Identifying Rail Cover And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the rear cable (A).

Fig. 89: Identifying Rear Cable
Courtesy of KIA MOTORS AMERICA, INC.

4. Loosen the mounting bolts, remove the bracket (A).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona

Microsoft

Monday, May 24, 2010 4:07:09 PM

Page 62

Fig. 90: Identifying Bracket And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the front cable (B).

Fig. 91: Identifying Front Cable
Courtesy of KIA MOTORS AMERICA, INC.

6. Disconnect the connector.

7. After removing the motor mounting and nut, remove the motor (A).
