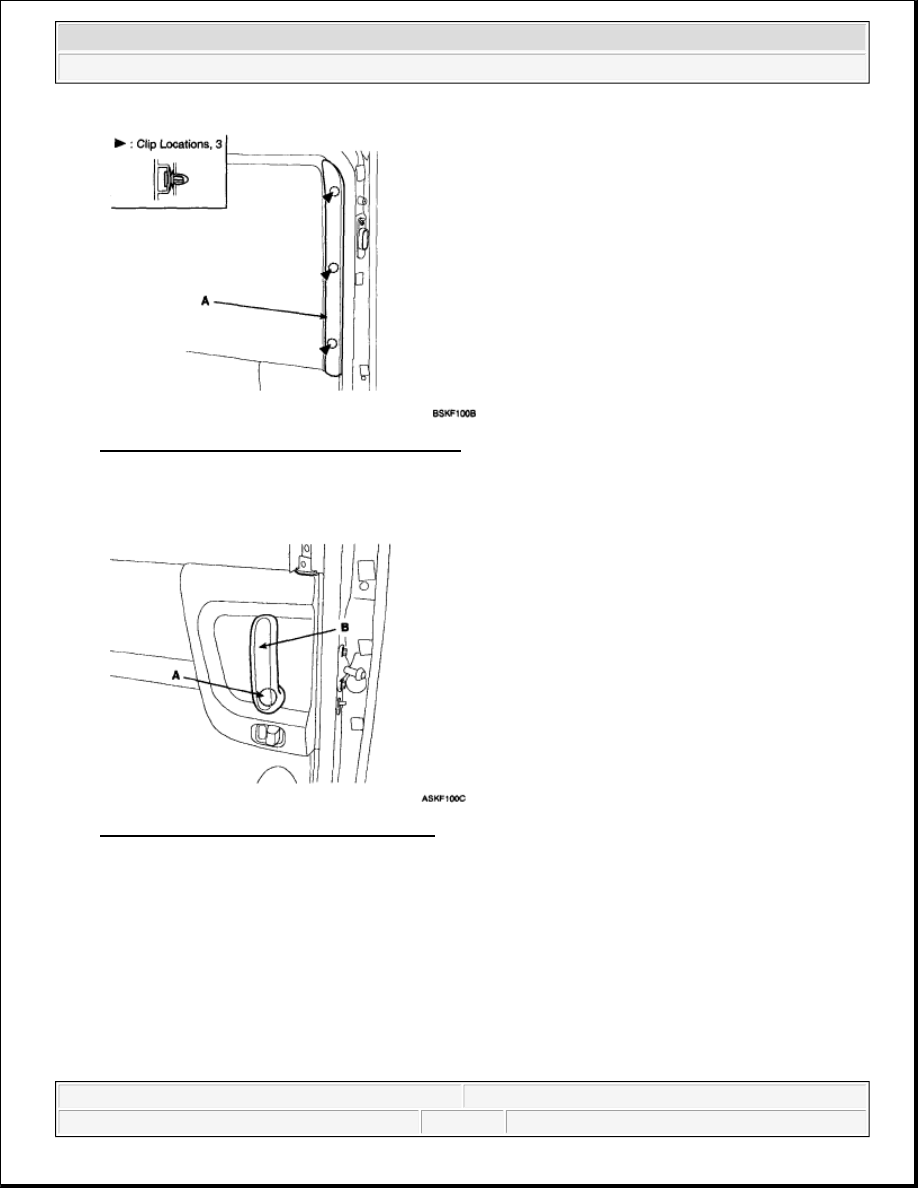

Fig. 72: Identifying Front Side Trim And Clips
Courtesy of KIA MOTORS AMERICA, INC.

2. Disconnect the clip (A), remove the inside handle (B).

Fig. 73: Identifying Clip And Inside Handle
Courtesy of KIA MOTORS AMERICA, INC.

3. Loosen the inside handle cover (A) mounting screws, remove the inside handle cover.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 52

© 2006 Mitchell Repair Information Company, LLC.

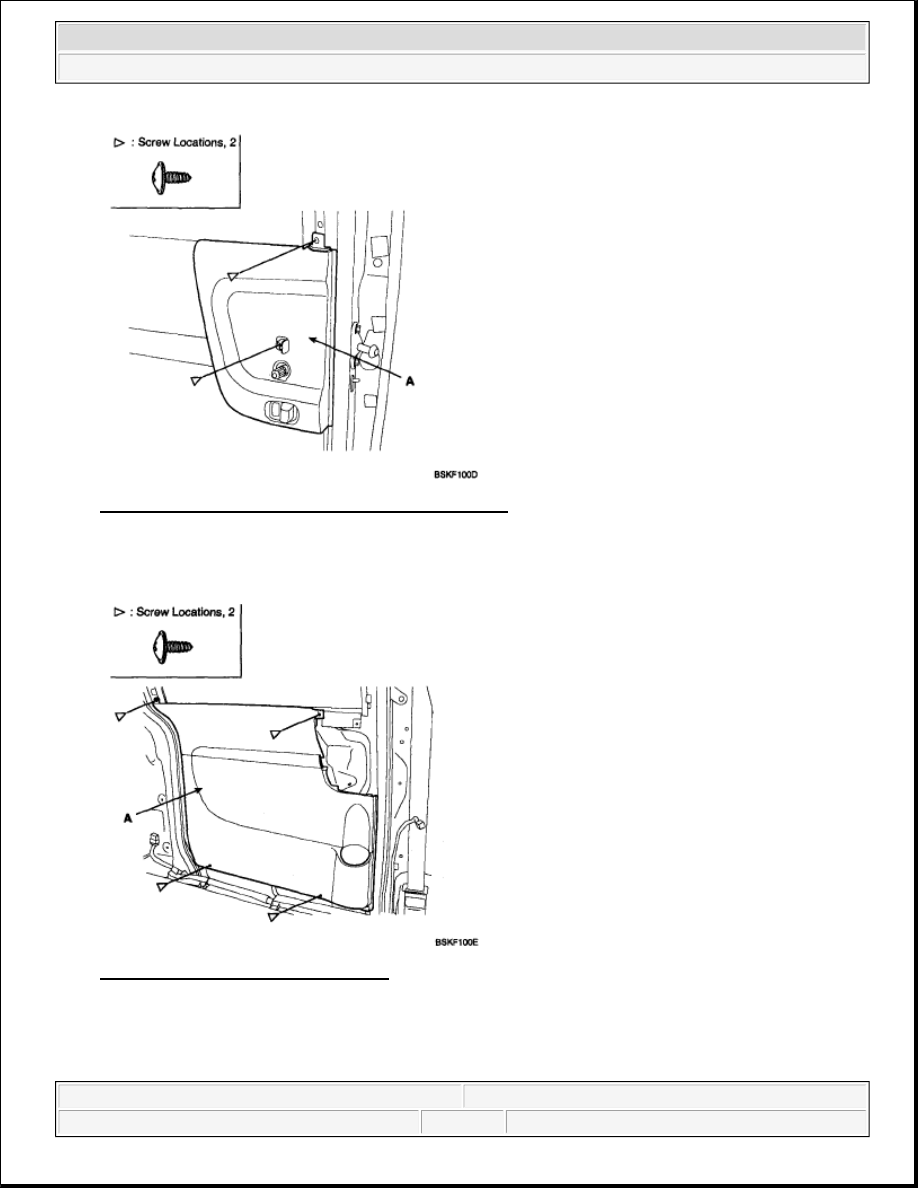

Fig. 74: Identifying Inside Handle Cover And Screws
Courtesy of KIA MOTORS AMERICA, INC.

4. Loosen the trim (A) mounting screws, remove the trim.

Fig. 75: Identifying Trim And Screws
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

GLASS REPLACEMENT



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 53

© 2006 Mitchell Repair Information Company, LLC.

1. Remove the following items.



Door trim. See REPLACEMENT.



Door belt weather strip. See DOOR BELT WEATHERSTRIP REPLACEMENT.



Rear channel. See CHANNEL REPLACEMENT.

2. Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass run from

the door panel and carefully pull the glass out through the window slot.

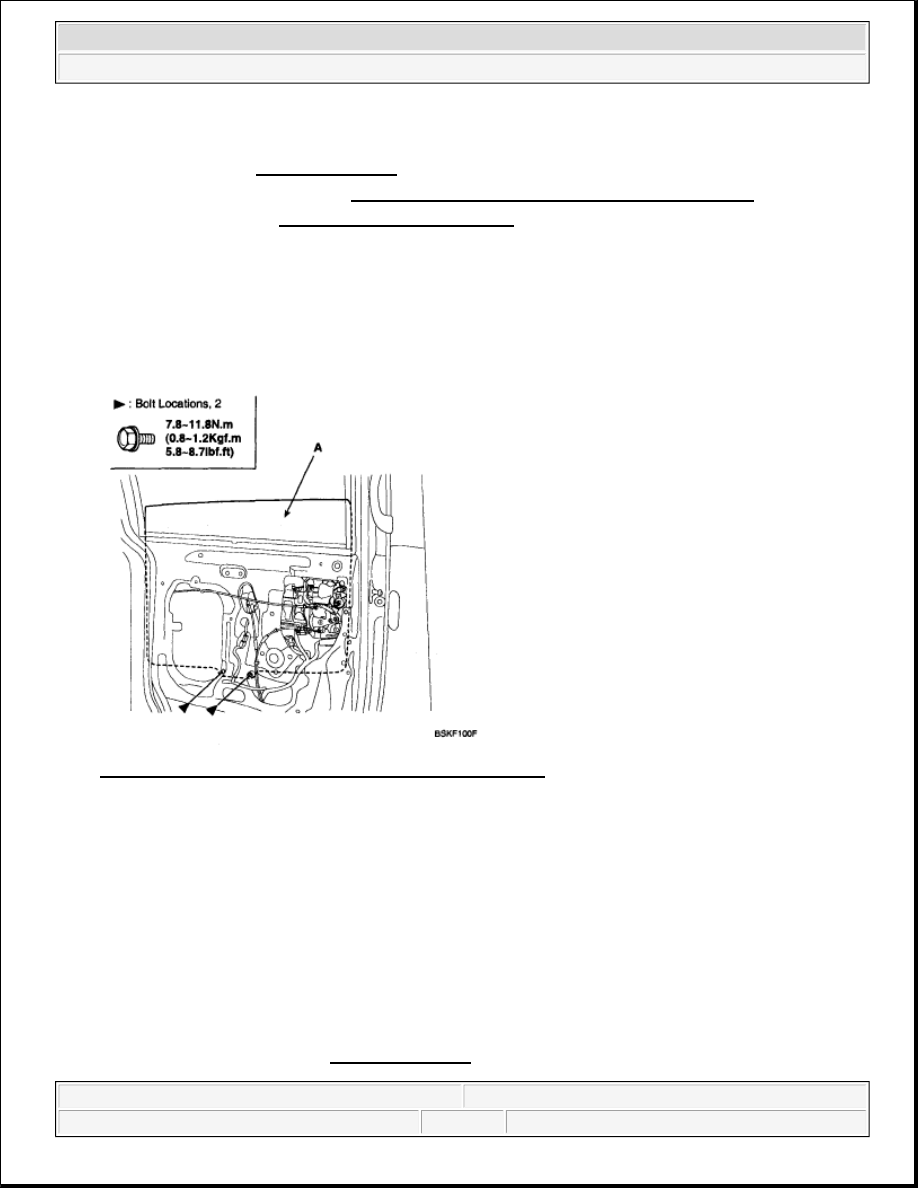

Fig. 76: Identifying Glass, Bolt And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

POWER WINDOW MOTOR REPLACEMENT

1. Remove the rear door trim. See REPLACEMENT.

CAUTION:



Take care not to drop to glass and scratch the glass surface.

NOTE:



Roll the glass up and down to see if it will move freely without
binding.



Make sure that there is no gap between the glass and glass run
channel when the glass is closed.



Adjust the position of the glass as necessary.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 54

© 2006 Mitchell Repair Information Company, LLC.

2. After disconnecting the connector (B), remove the power window motor (A).

Fig. 77: Identifying Power Window Motor, Connector And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

OUT SIDE HANDLE REPLACEMENT

1. Remove the following items.



Door trim. See REPLACEMENT.



Door trim seal.



Actuator. See DOOR ACTUATOR REPLACEMENT.

2. Loosen the mounting bolt, then remove the outside handle bracket (A).

NOTE:



Roll the glass up and down to see if it move will freely without
binding.
