1. Remove the quadrant inner cover (A).

Fig. 114: Identifying Quadrant Inner Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the door trim. See REPLACEMENT.

3. After disconnecting the connector (A), remove the outside rear view mirror (B).

Fig. 115: Identifying Connector, Outside Rear View Mirror And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

INSIDE REAR VIEW MIRROR REPLACEMENT

1. Push the inside rear view mirror base (A) down to remove to inside rear view mirror assembly (B).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 84

© 2006 Mitchell Repair Information Company, LLC.

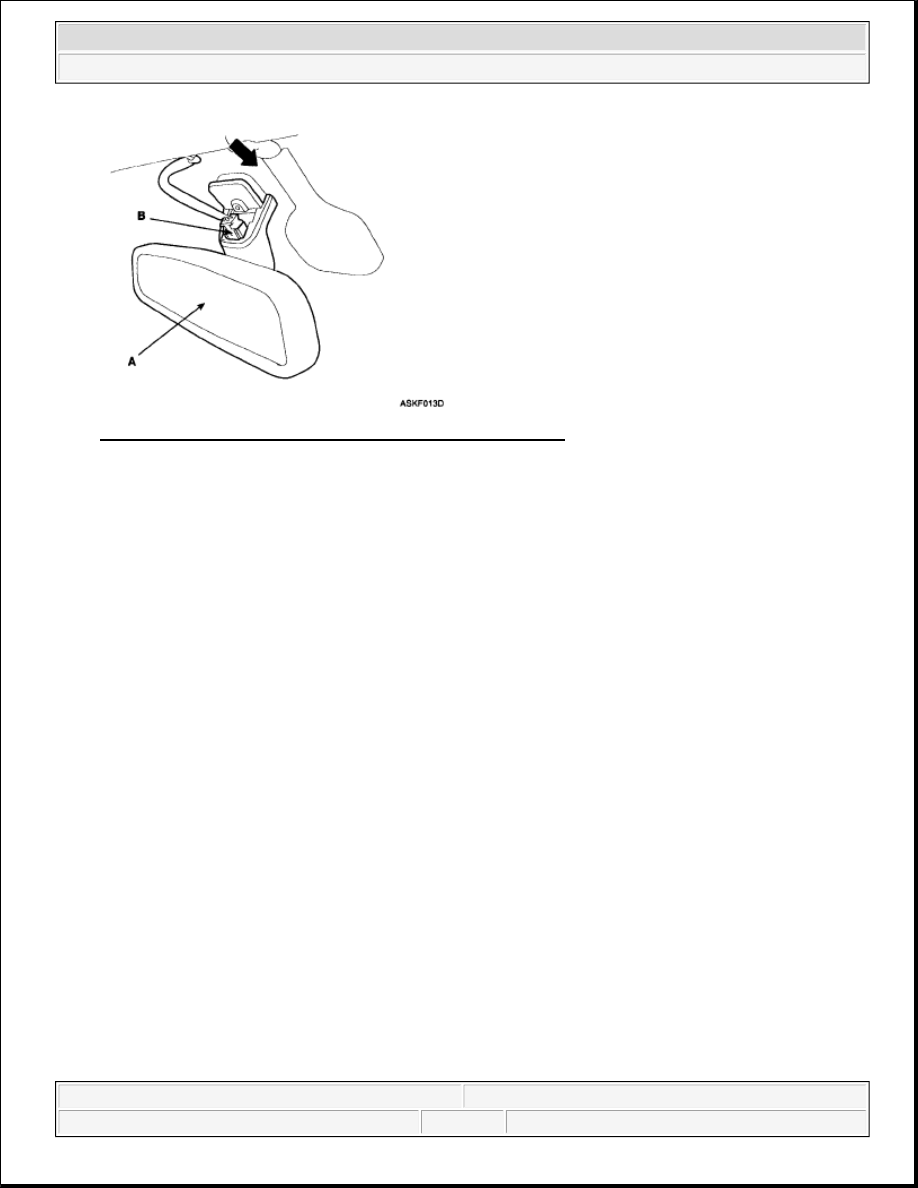

Fig. 116: Identifying Inside Rear View Mirror Base And Inside Rear View Mirror Assembly
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

ECM MIRROR REPLACEMENT

1. Remove the ECM mirror cover (A).

Fig. 117: Identifying ECM Mirror Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the cover and connector (A).

3. Push the ECM mirror base down to remove the ECM mirror assembly (B).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 85

© 2006 Mitchell Repair Information Company, LLC.

Fig. 118: Identifying Connector And ECM Mirror Assembly
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 86

© 2006 Mitchell Repair Information Company, LLC.

2008 SUSPENSION

Front Suspension - Sedona

COMPONENTS

Fig. 1: Identifying Front Suspension Components
Courtesy of KIA MOTORS AMERICA, INC.

FRONT STRUT ASSEMBLY
