INSIDE HANDLE REPLACEMENT

1. Remove the front door trim. See REPLACEMENT.

2. Loosen the inside handle (A) mounting screw.

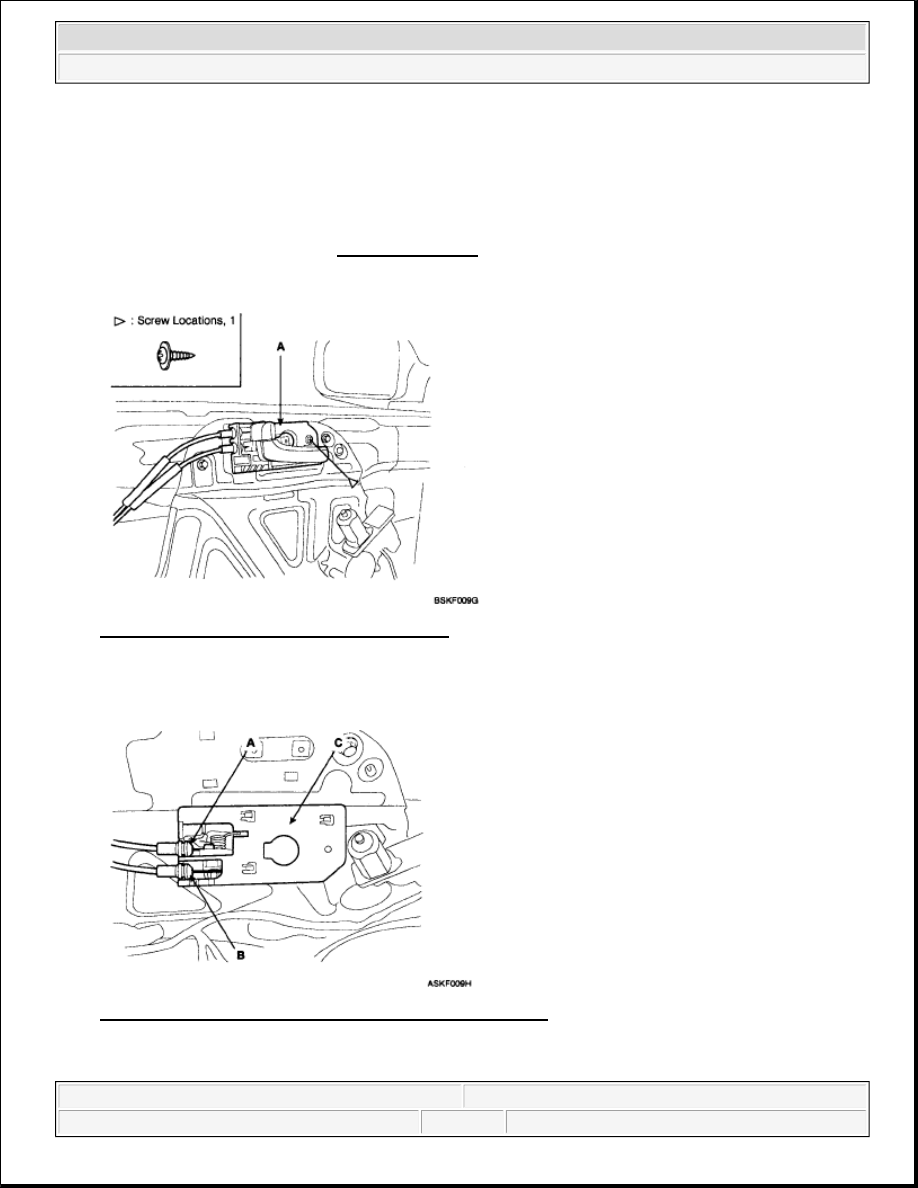

Fig. 49: Identifying Inside Handle And Screw
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the lock cable (A) and inside connect cable (B).

Fig. 50: Identifying Lock Cable And Inside Connect Cable
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

channel when the glass is closed.



Adjust the position of the glass as necessary.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 36

© 2006 Mitchell Repair Information Company, LLC.

SPEAKER REPLACEMENT

1. Remove the door trim. See REPLACEMENT.

2. After disconnecting the speaker connector (A), remove the speaker (B).

Fig. 51: Identifying Speaker Connector, Speaker And Screw
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

POWER WINDOW MOTOR REPLACEMENT

1. Remove the door trim. See REPLACEMENT.

2. Disconnect the power window motor connector (A).

3. After loosening the mounting nuts, remove the power window motor (B).

NOTE:



Make sure the door locks and opens properly.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 37

© 2006 Mitchell Repair Information Company, LLC.

Fig. 52: Identifying Power Window Motor Connector, Power Window Motor And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

FRONT DOOR LATCH ASSEMBLY REPLACEMENT

1. Remove the following parts.



Front door trim. See REPLACEMENT.



Glass. See GLASS REPLACEMENT.



Inside handle. See INSIDE HANDLE REPLACEMENT.



Door module. See DOOR MODULE ASSEMBLY REPLACEMENT.

2. Remove the latch assembly (A).

NOTE:



Make sure that there is no clearance between the glass and glass run
channel when the glass is closed.



Adjust the position of the glass as necessary.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 38

© 2006 Mitchell Repair Information Company, LLC.

Fig. 53: Identifying Latch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse the removal.

DOOR MODULE ASSEMBLY REPLACEMENT

1. Remove the following parts.



Front door trim. See REPLACEMENT.



Glass. See GLASS REPLACEMENT.



Channel. See REAR CHANNEL REPLACEMENT.

2. Disconnect the wiring harness (A).

Fig. 54: Identifying Wiring Harness

NOTE:



Make sure the door locks and opens properly.
