Kia Sedona (2008 year). Manual - part 395

Fig. 43: Identifying Front Door Components
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

FRONT DOOR TRIM REPLACEMENT

1. Remove the quadrant inner cover (A).

NOTE:



Take care not to scratch the door trim and other parts.



Put on gloves to protect your hands.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 32

© 2006 Mitchell Repair Information Company, LLC.

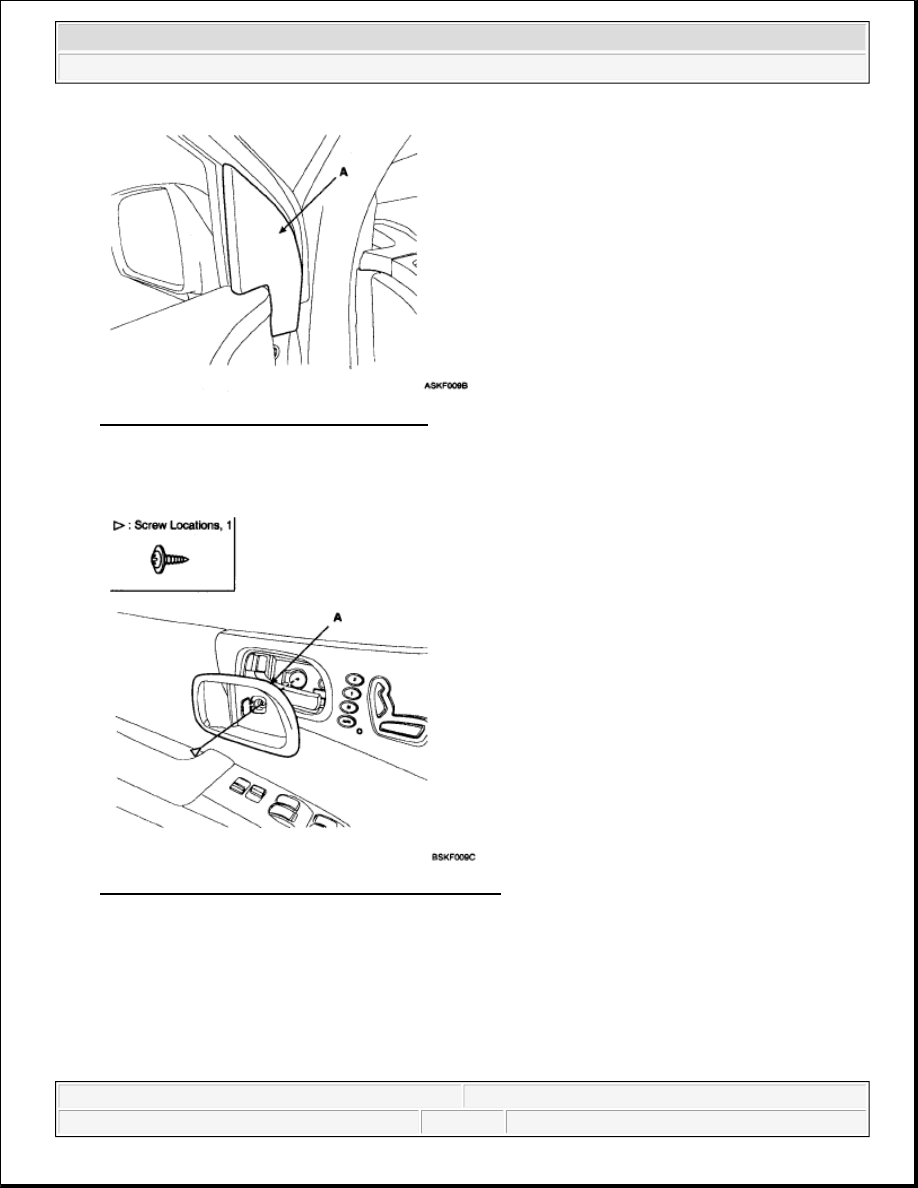

Fig. 44: Identifying Quadrant Inner Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the mounting screw, remove the inside handle cover (A).

Fig. 45: Identifying Inside Handle Cover And Screw
Courtesy of KIA MOTORS AMERICA, INC.

3. Loosen the door trim (C) mounting screws. Release the clips that hold the door trim, then remove the

door trim by pulling it upward Disconnect the power window switch connector (A), power mirror
connector (B), and door courtesy lamp connector (D).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 33

© 2006 Mitchell Repair Information Company, LLC.

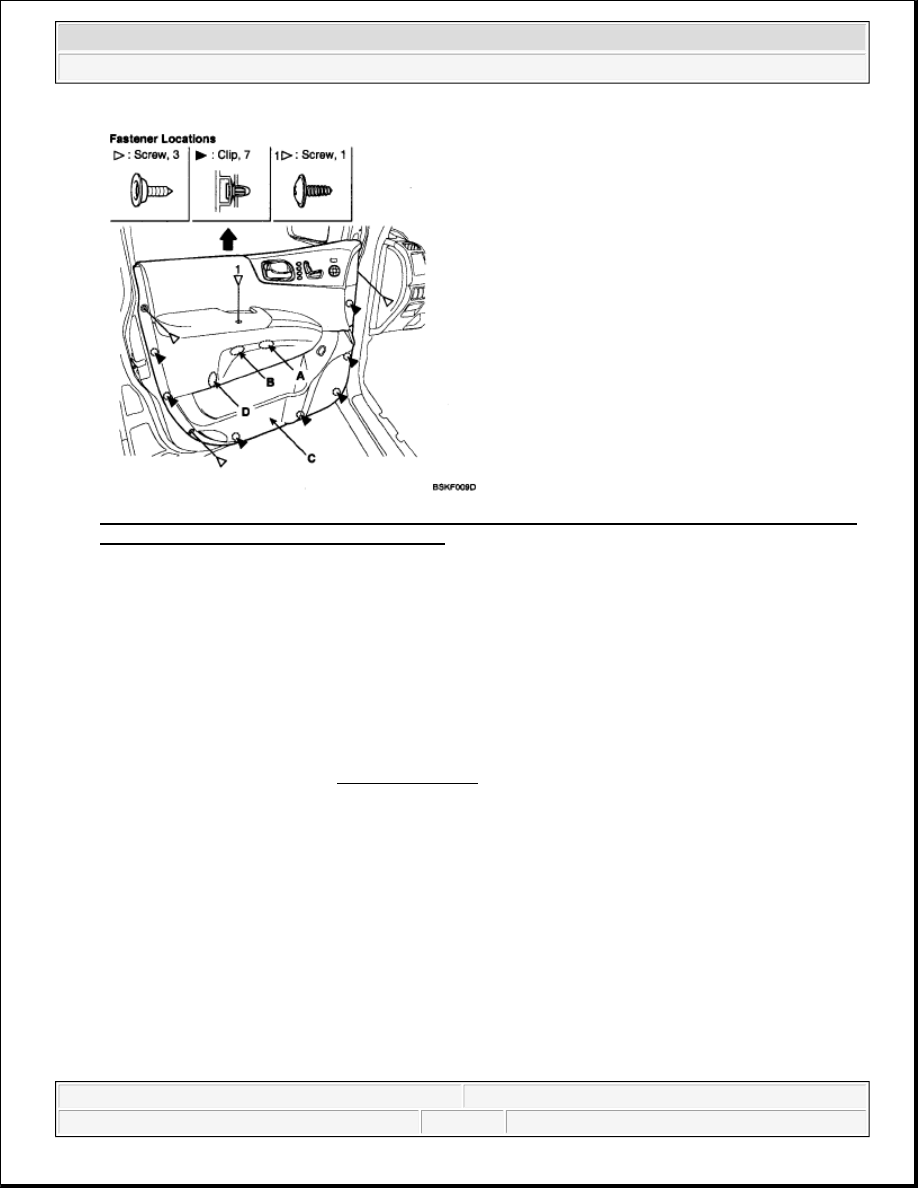

Fig. 46: Identifying Door Trim, Power Window Switch Connector, Power Mirror Connector, Door
Courtesy Lamp Connector, Clip And Screws
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

GLASS REPLACEMENT

1. Remove the front door trim. See REPLACEMENT.

2. Remove the door trim seal (A).

NOTE:



Make sure of connectors is plugged in properly and each rod is
connected securely.



Make sure the door locks and opens properly.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 34

© 2006 Mitchell Repair Information Company, LLC.

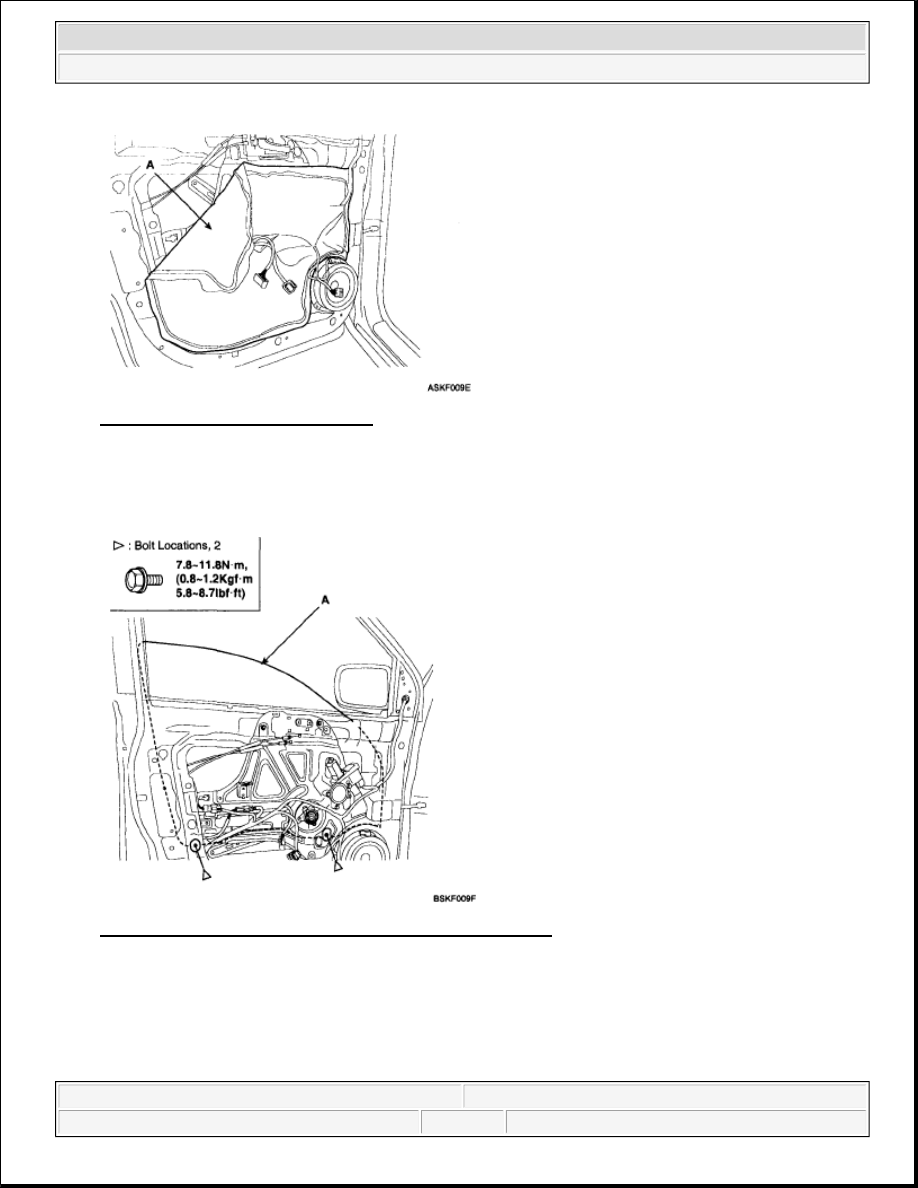

Fig. 47: Identifying Door Trim Seal
Courtesy of KIA MOTORS AMERICA, INC.

3. Carefully move the glass (A) until you can see the bolts, then loosen them. Carefully pull the glass out

through the window slot (B).

Fig. 48: Identifying Glass, Bolts And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

NOTE:



Roll the glass up down to see if it moves freely without binding.



Make sure that there is no clearance between the glass and glass run



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Exterior - Sedona



Microsoft



Monday, May 24, 2010 4:07:09 PM

Page 35

© 2006 Mitchell Repair Information Company, LLC.
